overset_interface Module Reference

Defines overset interface scalar boundary conditions.

Data Types
interface	morph_overset_interface
	User callback for overset-interface morphing and boundary-value updates. More...
type	overset_interface_t
	Overset interface BC for a scalar field. More...

Functions/Subroutines
subroutine	overset_interface_init (this, coef, json)
	Constructor.
subroutine	overset_interface_init_from_components (this, coef, field_name, tol, pad, log, relaxation)
	Constructor from components.
subroutine	overset_interface_free (this)
	Destructor.
subroutine	overset_interface_restart (this, s, slag)
	Restore scalar interface history from an accepted solution field. The lag series is present for transported scalars and absent for pressure. Historical values are inserted oldest-to-newest, while the current accepted value remains in the base interface vector for the first regular update to shift into lag position one.
subroutine	overset_interface_apply_scalar (this, x, n, time, strong)
	Apply scalar.
subroutine	overset_interface_apply_scalar_dev (this, x_d, time, strong, strm)
	Apply scalar (device).
subroutine	overset_interface_apply_vector (this, x, y, z, n, time, strong)
	(No-op) Apply vector.
subroutine	overset_interface_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	(No-op) Apply vector (device).
subroutine	overset_interface_finalize (this)
	Finalize by building the mask arrays and preparing interpolation data.
subroutine	overset_interface_update (this, time)
	Update values at the overset interface.
subroutine	relax_interface_value_ (this)
	Under-relax a Schwarz correction using the previously applied interface. Blend the new donor value g_new with the preceding Schwarz iterate g_old as g = relaxation * g_new + (1 - relaxation) * g_old. The caller skips this routine on the first pass of every physical timestep, preserving the temporal accuracy of the IEXT prediction.
subroutine	log_interface_error_ (this, s)
	Log interface RMSE for the scalar field.
subroutine	build_masks_ (this)
	Build masks.
subroutine	gather_interface_dofs_ (this)
	Gather interface dofs.
subroutine	setup_interpolator_ (this)
	Set up the global interpolator.

Function/Subroutine Documentation

build_masks_()

subroutine overset_interface::build_masks_ ( class(overset_interface_t), intent(inout)  this )

private

Definition at line 611 of file overset_interface.f90.

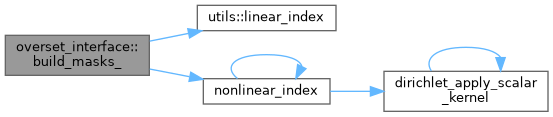

Here is the call graph for this function:

gather_interface_dofs_()

subroutine overset_interface::gather_interface_dofs_ ( class(overset_interface_t), intent(inout)  this )

private

Definition at line 662 of file overset_interface.f90.

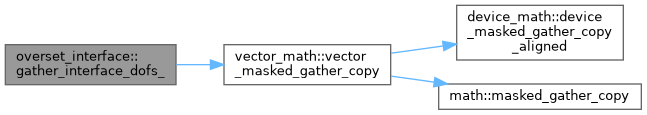

Here is the call graph for this function:

log_interface_error_()

subroutine overset_interface::log_interface_error_ ( class(overset_interface_t), intent(inout)  this, type(field_t), intent(in), pointer  s  )

private

Definition at line 583 of file overset_interface.f90.

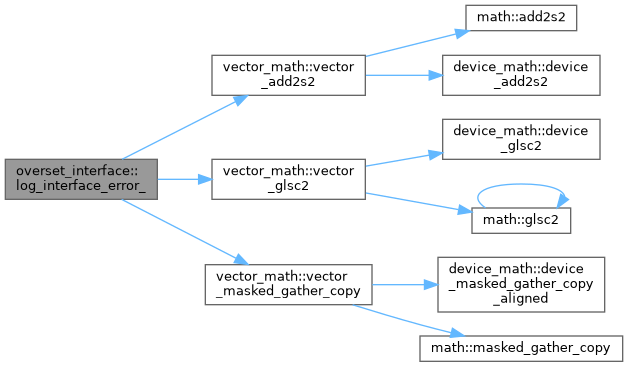

Here is the call graph for this function:

overset_interface_apply_scalar()

subroutine overset_interface::overset_interface_apply_scalar ( class(overset_interface_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	Field onto which to copy the values.
n	Size of the array x.
time	The current time state.

Definition at line 346 of file overset_interface.f90.

Here is the call graph for this function:

overset_interface_apply_scalar_dev()

subroutine overset_interface::overset_interface_apply_scalar_dev ( class(overset_interface_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

x_d	Device pointer to the field onto which to copy the values.
time	The current time state.
strm	Device stream

Definition at line 377 of file overset_interface.f90.

Here is the call graph for this function:

overset_interface_apply_vector()

subroutine overset_interface::overset_interface_apply_vector ( class(overset_interface_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Definition at line 408 of file overset_interface.f90.

overset_interface_apply_vector_dev()

subroutine overset_interface::overset_interface_apply_vector_dev ( class(overset_interface_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Definition at line 423 of file overset_interface.f90.

overset_interface_finalize()

subroutine overset_interface::overset_interface_finalize ( class(overset_interface_t), intent(inout), target  this )

private

Definition at line 439 of file overset_interface.f90.

overset_interface_free()

subroutine overset_interface::overset_interface_free ( class(overset_interface_t), intent(inout), target  this )

private

Definition at line 281 of file overset_interface.f90.

overset_interface_init()

subroutine overset_interface::overset_interface_init ( class(overset_interface_t), intent(inout), target  this, type(coef_t), intent(in), target  coef, type(json_file), intent(inout)  json  )

private

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 184 of file overset_interface.f90.

overset_interface_init_from_components()

subroutine overset_interface::overset_interface_init_from_components ( class(overset_interface_t), intent(inout), target  this, type(coef_t), intent(in)  coef, character(len=*), intent(in)  field_name, real(kind=rp), intent(in), optional  tol, real(kind=rp), intent(in), optional  pad, logical, intent(in), optional  log, real(kind=rp), intent(in), optional  relaxation  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	relaxation	Under-relaxation factor for interface updates.

Definition at line 213 of file overset_interface.f90.

Here is the call graph for this function:

overset_interface_restart()

subroutine overset_interface::overset_interface_restart ( class(overset_interface_t), intent(inout)  this, type(field_t), intent(in)  s, type(field_series_t), intent(in), optional  slag  )

private

Definition at line 317 of file overset_interface.f90.

Here is the call graph for this function:

overset_interface_update()

subroutine overset_interface::overset_interface_update ( class(overset_interface_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Change the coordinates of the interface if set up by the user

Find points if needed - later make sure only in first substep

Definition at line 477 of file overset_interface.f90.

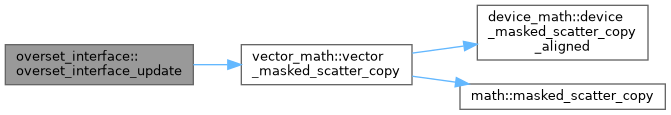

Here is the call graph for this function:

relax_interface_value_()

subroutine overset_interface::relax_interface_value_ ( class(overset_interface_t), intent(inout)  this )

private

Definition at line 557 of file overset_interface.f90.

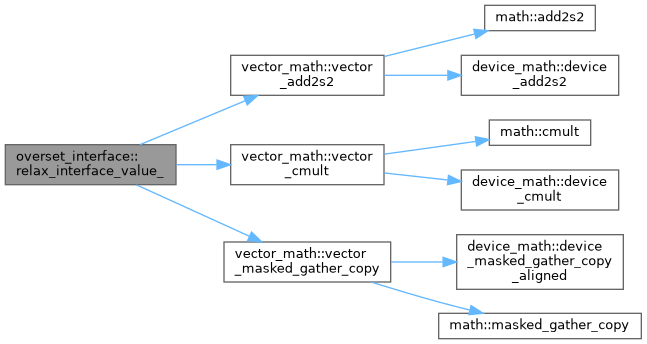

Here is the call graph for this function:

setup_interpolator_()

subroutine overset_interface::setup_interpolator_ ( class(overset_interface_t), intent(inout)  this )

private

Definition at line 679 of file overset_interface.f90.
