mean_field_output::mean_field_output_t Type Reference

Output for a list of mean fields. More...

Inheritance diagram for mean_field_output::mean_field_output_t:

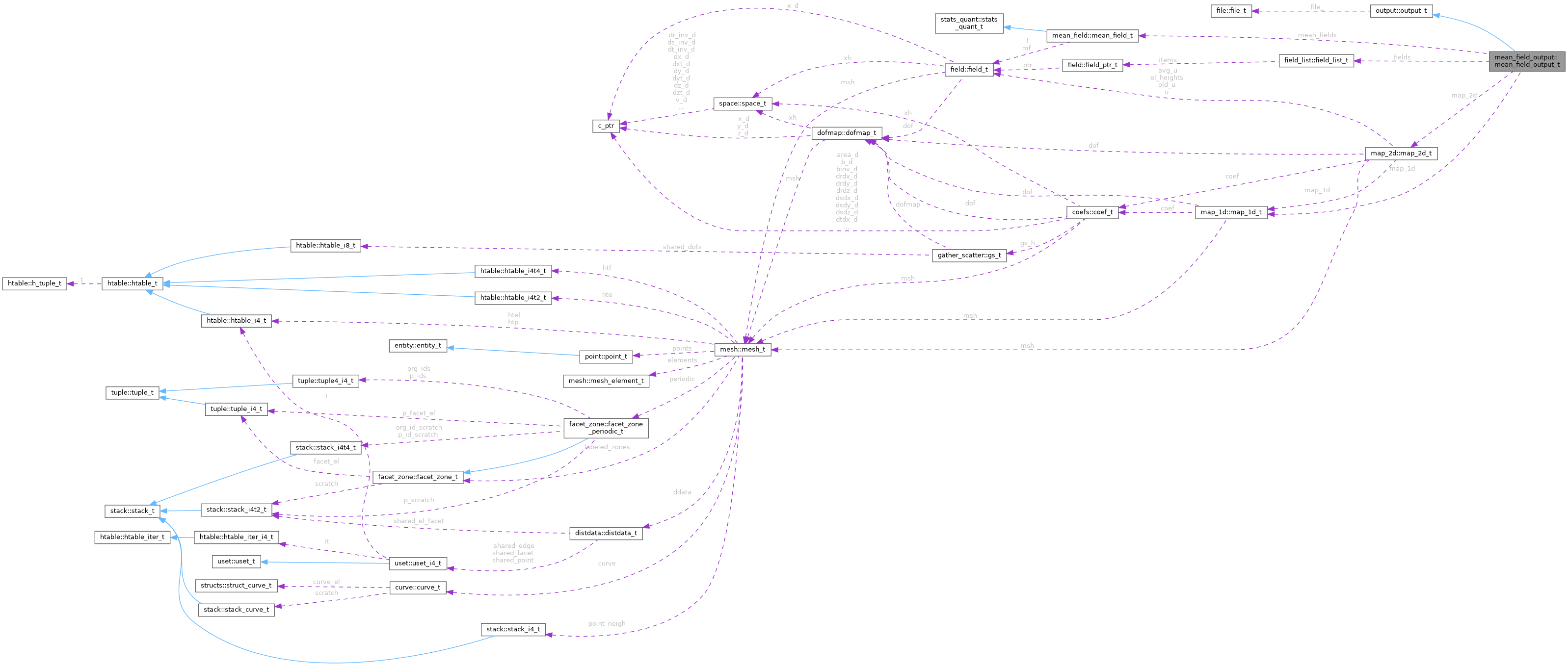

Collaboration diagram for mean_field_output::mean_field_output_t:

Public Member Functions
procedure, pass(this)	init (this, mean_fields, n_fields, start_time, coef, avg_dir, name, path)
	Constructor.
procedure, pass(this)	sample (this, t)
	Sample, i.e. extract the values of the fields, average, and write.
procedure, pass(this)	init_base (this, fname, precision, layout, overwrite)
	Output constructor.
procedure, pass(this)	set_counter (this, n)
	Update the output's file counter.
procedure, pass(this)	set_start_counter (this, n)
	Update the start of output's file counter.
procedure(output_sample), deferred, pass	sample (this, t)

Public Attributes
type(mean_field_t), dimension(:), pointer	mean_fields
	list of mean fields
type(field_list_t)	fields
	Pointers to the fields inside the mean_fields.
real(kind=rp)	start_time
	Time to start output.
integer	n_fields
	Number of fields.
type(map_1d_t)	map_1d
	Space averaging object for 2 homogeneous directions.
type(map_2d_t)	map_2d
	Space averaging object for 1 homogeneous direction.
integer	output_dim
	The dimension of the output fields. Either 1, 2, or 3.
type(file_t)	file_

Detailed Description

Definition at line 50 of file mean_field_output.f90.

Member Function/Subroutine Documentation

init()

procedure, pass(this) mean_field_output::mean_field_output_t::init	(	class(mean_field_output_t), intent(inout)	this,
		type(mean_field_t), dimension(n_fields), intent(inout), target	mean_fields,
		integer, intent(in)	n_fields,
		real(kind=rp), intent(in)	start_time,
		type(coef_t), intent(inout)	coef,
		character(len=*), intent(in)	avg_dir,
		character(len=*), intent(in), optional	name,
		character(len=*), intent(in), optional	path
	)

Parameters

mean_fields	Array of mean fields to output.
n_fields	Number of mean fields.
start_time	Time to start output.
SEM	coefficients.
avg_dir	Direction(s) to average in. Either 'none', 'x', 'y', 'z', 'xy', 'xz', 'yz'.
name	Name of the output file.
path	Path to the output file.

Definition at line 67 of file mean_field_output.f90.

init_base()

procedure, pass(this) output::output_t::init_base ( class(output_t), intent(inout)  this, character(len=*), intent(inout)  fname, integer, intent(in), optional  precision, integer, intent(in), optional  layout, logical, intent(in), optional  overwrite  )

inherited

Parameters

fname	Name of the output file.
precision	Output precision (sp or dp).

Definition at line 44 of file output.f90.

sample() [1/2]

procedure, pass(this) mean_field_output::mean_field_output_t::sample	(	class(mean_field_output_t), intent(inout)	this,
		real(kind=rp), intent(in)	t
	)

Definition at line 69 of file mean_field_output.f90.

sample() [2/2]

procedure(output_sample), deferred, pass output::output_t::sample ( class(output_t), intent(inout)  this, real(kind=rp), intent(in)  t  )

pure virtualinherited

Definition at line 47 of file output.f90.

set_counter()

procedure, pass(this) output::output_t::set_counter ( class(output_t), intent(inout)  this, integer, intent(in)  n  )

inherited

Definition at line 45 of file output.f90.

set_start_counter()

procedure, pass(this) output::output_t::set_start_counter ( class(output_t), intent(inout)  this, integer, intent(in)  n  )

inherited

Definition at line 46 of file output.f90.

Member Data Documentation

fields

type(field_list_t) mean_field_output::mean_field_output_t::fields

Definition at line 54 of file mean_field_output.f90.

file_

type(file_t) output::output_t::file_

inherited

Definition at line 42 of file output.f90.

map_1d

type(map_1d_t) mean_field_output::mean_field_output_t::map_1d

Definition at line 60 of file mean_field_output.f90.

map_2d

type(map_2d_t) mean_field_output::mean_field_output_t::map_2d

Definition at line 62 of file mean_field_output.f90.

mean_fields

type(mean_field_t), dimension(:), pointer mean_field_output::mean_field_output_t::mean_fields

Definition at line 52 of file mean_field_output.f90.

n_fields

integer mean_field_output::mean_field_output_t::n_fields

Definition at line 58 of file mean_field_output.f90.

output_dim

integer mean_field_output::mean_field_output_t::output_dim

Definition at line 64 of file mean_field_output.f90.

start_time

real(kind=rp) mean_field_output::mean_field_output_t::start_time

Definition at line 56 of file mean_field_output.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/io/mean_field_output.f90
