Importation of fields from fld files. More...

Functions/Subroutines
subroutine	import_fields_from_json (fname, global_interp_subdict, mesh_fname, u, v, w, p, t, s_target_list, s_index_list, interpolate)
	Imports fields from an fld file, potentially with interpolation, with parameters provided in a JSON subdict.

subroutine	import_fields_from_params (fname, mesh_fname, u, v, w, p, t, s_target_list, s_index_list, interpolate, tolerance, padding)
	Imports fields from an fld file, potentially with interpolation.

Detailed Description

Import field from fld files. This tool is in a separate file because of multiple import requirements.

Function/Subroutine Documentation

subroutine import_field_utils::import_fields_from_json	(	character(len=*), intent(in)	fname,
		type(json_file), intent(inout)	global_interp_subdict,
		character(len=*), intent(in), optional	mesh_fname,
		type(field_t), intent(inout), optional, pointer	u,
		type(field_t), intent(inout), optional, pointer	v,
		type(field_t), intent(inout), optional, pointer	w,
		type(field_t), intent(inout), optional, pointer	p,
		type(field_t), intent(inout), optional, pointer	t,
		type(field_list_t), intent(inout), optional	s_target_list,
		integer, dimension(:), intent(in), optional	s_index_list,
		logical, intent(in), optional	interpolate
	)

private

Parameters

fname	The name of the fld file, e.g. "my_field0.f00019".
global_interp_subdict	If interpolation is enabled, subdict containing the interpolation parameters to use.
mesh_fname	The name of the fld file containing the spatial coordinates, if interpolation is enabled and fname does not already contain them.
u	The field on which to import the u component of the fld data.
v	The field on which to import the v component of the fld data.
w	The field on which to import the w component of the fld data.
p	The field on which to import the pressure field of the fld data.
t	The field on which to import the temperature field of the fld data.
s_target_list	Field list containing the fields on which to import the scalar fields of the fld data. Unless a list of target indices is provided in `s_index_list`, assigns field at position `i` in the list to scalar `i` in the fld file.
s_index_list	The list of scalars indices from which to load the fields provided in `s_target_list`. Must have the same size as `s_target_list`. For example, s_index_list = (/2,3/) will load scalar #2 in `s_target_listitems(1)` and scalar #3 in `s_target_listitems(2)`. Index 0 corresponds to temperature by default. Therefore using `s_index_list = (/0/)` is equivalent to using the argument `t=...`.
interpolate	Whether or not to interpolate the fld data.

Note: If interpolation is disabled, space-to-space interpolation is still performed within each element to allow for seamless change of polynomial order for the same given mesh.; This subroutine also takes care of data movement from host to to device when necessary, i.e. only the required fields are copied to device.

Definition at line 91 of file import_field_utils.f90.

subroutine import_field_utils::import_fields_from_params	(	character(len=*), intent(in)	fname,
		character(len=*), intent(in), optional	mesh_fname,
		type(field_t), intent(inout), optional, pointer	u,
		type(field_t), intent(inout), optional, pointer	v,
		type(field_t), intent(inout), optional, pointer	w,
		type(field_t), intent(inout), optional, pointer	p,
		type(field_t), intent(inout), optional, pointer	t,
		type(field_list_t), intent(inout), optional	s_target_list,
		integer, dimension(:), intent(in), optional	s_index_list,
		logical, intent(in), optional	interpolate,
		real(kind=dp), intent(in), optional	tolerance,
		real(kind=dp), intent(in), optional	padding
	)

private

Parameters

fname	The name of the fld file, e.g. "my_field0.f00019".
mesh_fname	The name of the fld file containing the spatial coordinates, if interpolation is enabled and fname does not already contain them.
u	The field on which to import the u component of the fld data.
v	The field on which to import the v component of the fld data.
w	The field on which to import the w component of the fld data.
p	The field on which to import the pressure field of the fld data.
t	The field on which to import the temperature field of the fld data.
s_target_list	Field list containing the fields on which to import the scalar fields of the fld data. Unless a list of target indices is provided in `s_index_list`, assigns field at position `i` in the list to scalar `i` in the fld file.
s_index_list	The list of scalars indices from which to load the fields provided in `s_target_list`. Must have the same size as `s_target_list`. For example, s_index_list = (/2,3/) will load scalar #2 in `s_target_listitems(1)` and scalar #3 in `s_target_listitems(2)`. Index 0 corresponds to temperature by default. Therefore using `s_index_list = (/0/)` is equivalent to using the argument `t=...`.
interpolate	Whether or not to interpolate the fld data.
tolerance	If interpolation is enabled, the tolerance to use for the point finding.
padding	If interpolation is enabled, the tolerance to use for the point finding.

Note: If interpolation is disabled, space-to-space interpolation is still performed within each element to allow for seamless change of polynomial order for the same given mesh.; This subroutine also takes care of data movement from host to to device when necessary, i.e. only the required fields are copied to device.

Definition at line 147 of file import_field_utils.f90.

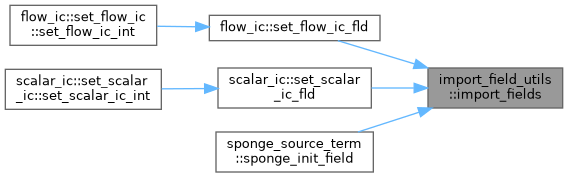

Here is the caller graph for this function:
