device_constrain_mixed_bc Module Reference

Device wrappers for basis-aware mixed boundary-condition constraint kernels. These routines operate on a resolved mixed-node mask together with a local orthonormal basis stored as nodewise normal and tangent vectors. They are used to impose homogeneous or prescribed constraints on vector fields in the local (n, t1, t2) basis on device backends.

Data Types
interface	hip_constrain_mixed_bc_set
interface	hip_constrain_mixed_bc_set_const
interface	hip_constrain_mixed_bc_zero

Functions/Subroutines
subroutine, public	device_constrain_mixed_bc_zero (mixed_msk, x, y, z, constraint_n, constraint_t1, constraint_t2, n, t1, t2, m, strm)
	Constrain mixed-boundary projections by zeroing the selected local components on the device.
subroutine, public	device_constrain_mixed_bc_set (mixed_msk, x, y, z, constraint_n, constraint_t1, constraint_t2, n, t1, t2, values_n, values_t1, values_t2, m, strm)
	Constrain mixed-boundary projections by assigning prescribed local components derived from nodewise target vectors on the device.
subroutine, public	device_constrain_mixed_bc_set_const (mixed_msk, x, y, z, constraint_n, constraint_t1, constraint_t2, n, t1, t2, value_n, value_t1, value_t2, m, strm)
	Constrain mixed-boundary projections by assigning prescribed local components derived from a constant target vector on the device.

Function/Subroutine Documentation

device_constrain_mixed_bc_set()

subroutine, public device_constrain_mixed_bc::device_constrain_mixed_bc_set	(	type(c_ptr), intent(in)	mixed_msk,
		type(c_ptr), intent(in)	x,
		type(c_ptr), intent(in)	y,
		type(c_ptr), intent(in)	z,
		integer, intent(in)	constraint_n,
		integer, intent(in)	constraint_t1,
		integer, intent(in)	constraint_t2,
		type(c_ptr), intent(in)	n,
		type(c_ptr), intent(in)	t1,
		type(c_ptr), intent(in)	t2,
		type(c_ptr), intent(in)	values_n,
		type(c_ptr), intent(in)	values_t1,
		type(c_ptr), intent(in)	values_t2,
		integer, intent(in)	m,
		type(c_ptr), intent(in), optional	strm
	)

Parameters

[in]	mixed_msk	Device pointer to the resolved mixed-node mask.
[in,out]	x	Device pointer to the x-component field.
[in,out]	y	Device pointer to the y-component field.
[in,out]	z	Device pointer to the z-component field.
[in]	constraint_n	Nonzero if the normal component is constrained.
[in]	constraint_t1	Nonzero if the first tangent component is constrained.
[in]	constraint_t2	Nonzero if the second tangent component is constrained.
[in]	n	Device pointer to the nodewise normal vectors.
[in]	t1	Device pointer to the nodewise first tangent vectors.
[in]	t2	Device pointer to the nodewise second tangent vectors.
[in]	values_n	Device pointer to the x-components of the target vectors.
[in]	values_t1	Device pointer to the y-components of the target vectors.
[in]	values_t2	Device pointer to the z-components of the target vectors.
[in]	m	Number of resolved mixed nodes.
[in]	strm	Optional backend stream/queue to launch on.

Definition at line 235 of file device_constrain_mixed_bc.F90.

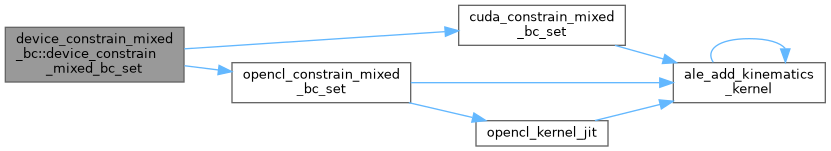

Here is the call graph for this function:

Here is the caller graph for this function:

device_constrain_mixed_bc_set_const()

subroutine, public device_constrain_mixed_bc::device_constrain_mixed_bc_set_const	(	type(c_ptr), intent(in)	mixed_msk,
		type(c_ptr), intent(in)	x,
		type(c_ptr), intent(in)	y,
		type(c_ptr), intent(in)	z,
		integer, intent(in)	constraint_n,
		integer, intent(in)	constraint_t1,
		integer, intent(in)	constraint_t2,
		type(c_ptr), intent(in)	n,
		type(c_ptr), intent(in)	t1,
		type(c_ptr), intent(in)	t2,
		real(kind=rp), intent(in)	value_n,
		real(kind=rp), intent(in)	value_t1,
		real(kind=rp), intent(in)	value_t2,
		integer, intent(in)	m,
		type(c_ptr), intent(in), optional	strm
	)

Parameters

[in]	mixed_msk	Device pointer to the resolved mixed-node mask.
[in,out]	x	Device pointer to the x-component field.
[in,out]	y	Device pointer to the y-component field.
[in,out]	z	Device pointer to the z-component field.
[in]	constraint_n	Nonzero if the normal component is constrained.
[in]	constraint_t1	Nonzero if the first tangent component is constrained.
[in]	constraint_t2	Nonzero if the second tangent component is constrained.
[in]	n	Device pointer to the nodewise normal vectors.
[in]	t1	Device pointer to the nodewise first tangent vectors.
[in]	t2	Device pointer to the nodewise second tangent vectors.
[in]	value_n	x-component of the constant target vector.
[in]	value_t1	y-component of the constant target vector.
[in]	value_t2	z-component of the constant target vector.
[in]	m	Number of resolved mixed nodes.
[in]	strm	Optional backend stream/queue to launch on.

Definition at line 291 of file device_constrain_mixed_bc.F90.

Here is the call graph for this function:

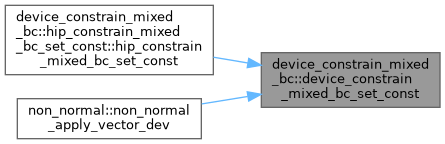

Here is the caller graph for this function:

device_constrain_mixed_bc_zero()

subroutine, public device_constrain_mixed_bc::device_constrain_mixed_bc_zero	(	type(c_ptr), intent(in)	mixed_msk,
		type(c_ptr), intent(in)	x,
		type(c_ptr), intent(in)	y,
		type(c_ptr), intent(in)	z,
		integer, intent(in)	constraint_n,
		integer, intent(in)	constraint_t1,
		integer, intent(in)	constraint_t2,
		type(c_ptr), intent(in)	n,
		type(c_ptr), intent(in)	t1,
		type(c_ptr), intent(in)	t2,
		integer, intent(in)	m,
		type(c_ptr), intent(in), optional	strm
	)

Parameters

[in]	mixed_msk	Device pointer to the resolved mixed-node mask.
[in,out]	x	Device pointer to the x-component field.
[in,out]	y	Device pointer to the y-component field.
[in,out]	z	Device pointer to the z-component field.
[in]	constraint_n	Nonzero if the normal component is constrained.
[in]	constraint_t1	Nonzero if the first tangent component is constrained.
[in]	constraint_t2	Nonzero if the second tangent component is constrained.
[in]	n	Device pointer to the nodewise normal vectors.
[in]	t1	Device pointer to the nodewise first tangent vectors.
[in]	t2	Device pointer to the nodewise second tangent vectors.
[in]	m	Number of resolved mixed nodes.
[in]	strm	Optional backend stream/queue to launch on.

Definition at line 181 of file device_constrain_mixed_bc.F90.

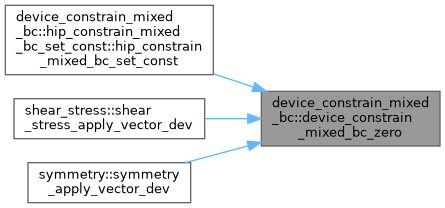

Here is the call graph for this function:

Here is the caller graph for this function:
