device_deardorff_nut Module Reference

Device kernel wrapper for computing Deardorff SGS quantities.

Data Types
interface	hip_deardorff_nut_compute

Functions/Subroutines
subroutine, public	device_deardorff_nut_compute (tke_d, dtdx_d, dtdy_d, dtdz_d, a11_d, a12_d, a13_d, a21_d, a22_d, a23_d, a31_d, a32_d, a33_d, delta_d, nut_d, temperature_alphat, tke_alphat, tke_source, c_k, t0, g, eps, n)
	Compute Deardorff SGS quantities on the device backend.

Function/Subroutine Documentation

device_deardorff_nut_compute()

subroutine, public device_deardorff_nut::device_deardorff_nut_compute	(	type(c_ptr)	tke_d,
		type(c_ptr)	dtdx_d,
		type(c_ptr)	dtdy_d,
		type(c_ptr)	dtdz_d,
		type(c_ptr)	a11_d,
		type(c_ptr)	a12_d,
		type(c_ptr)	a13_d,
		type(c_ptr)	a21_d,
		type(c_ptr)	a22_d,
		type(c_ptr)	a23_d,
		type(c_ptr)	a31_d,
		type(c_ptr)	a32_d,
		type(c_ptr)	a33_d,
		type(c_ptr)	delta_d,
		type(c_ptr)	nut_d,
		type(c_ptr)	temperature_alphat,
		type(c_ptr)	tke_alphat,
		type(c_ptr)	tke_source,
		real(kind=rp)	c_k,
		real(kind=rp)	t0,
		real(kind=rp), dimension(3)	g,
		real(kind=rp)	eps,
		integer	n
	)

Parameters

TKE_d	Device pointer to the TKE field.
dTdx_d	Device pointer to the x-gradient of temperature.
dTdy_d	Device pointer to the y-gradient of temperature.
dTdz_d	Device pointer to the z-gradient of temperature.
a11_d	Device pointer to velocity gradient component a11.
a12_d	Device pointer to velocity gradient component a12.
a13_d	Device pointer to velocity gradient component a13.
a21_d	Device pointer to velocity gradient component a21.
a22_d	Device pointer to velocity gradient component a22.
a23_d	Device pointer to velocity gradient component a23.
a31_d	Device pointer to velocity gradient component a31.
a32_d	Device pointer to velocity gradient component a32.
a33_d	Device pointer to velocity gradient component a33.
delta_d	Device pointer to LES filter width field.
nut_d	Device pointer to eddy viscosity output field.
temperature_alphat	Device pointer to temperature eddy diffusivity.
TKE_alphat	Device pointer to TKE eddy diffusivity.
TKE_source	Device pointer to TKE source output field.
c_k	Deardorff model constant.
T0	Reference temperature.
g	Gravity vector.
eps	Lower bound used to clip TKE.
n	Number of degrees of freedom.

Definition at line 123 of file device_deardorff_nut.F90.

Here is the call graph for this function:

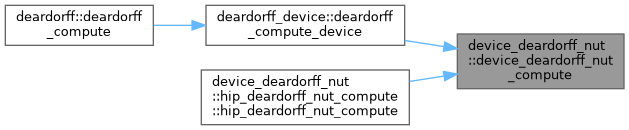

Here is the caller graph for this function:
