compressible_res_cpu Module Reference

This implements CPU-based residual calculations for the compressible equations. It handles the time advancement of primitive variables using Runge-Kutta methods and evaluates the right-hand side terms of the compressible equations including artificial viscosity.

Data Types
type	compressible_res_cpu_t

Functions/Subroutines
subroutine	advance_primitive_variables_cpu (rho_field, m_x, m_y, m_z, e, p, u, v, w, ax, ax_stress, coef, gs, h, artificial_visc, mu, kappa, bcs_vel, time, rk_scheme, dt)
	Advances the primitive variables (density, momentum, energy) in time using a Runge-Kutta scheme.
subroutine	evaluate_rhs_cpu (rhs_rho_field, rhs_m_x, rhs_m_y, rhs_m_z, rhs_e, rho_field, m_x, m_y, m_z, e, p, u, v, w, ax, ax_stress, coef, gs, h, artificial_visc, mu, kappa)
	Evaluates the right-hand side of the compressible equations. Inviscid terms are evaluated through div(). Stabilization is always the existing scalar Laplacian. In navier-stokes mode, physical mu and kappa add a separate compressible Navier-Stokes viscous flux.
subroutine	add_navier_stokes_flux_cpu (visc_m_x, visc_m_y, visc_m_z, visc_e, rho_field, p, u, v, w, mu, kappa, ax, ax_stress, coef)
	Add the physical Navier-Stokes flux contribution to the viscous residual.

Variables
logical	compressible_res_cpu_add_physical_flux = .false.
	Whether physical Navier-Stokes fluxes are active for the current step.
logical	compressible_res_cpu_add_physical_stress = .false.
	Whether physical viscous stress is active for the current step.
real(kind=rp), public	compressible_res_cpu_gamma = 1.4_rp
	Module variable to store thermodynamic parameter set by factory.

Function/Subroutine Documentation

add_navier_stokes_flux_cpu()

subroutine compressible_res_cpu::add_navier_stokes_flux_cpu ( type(field_t), intent(inout)  visc_m_x, type(field_t), intent(inout)  visc_m_y, type(field_t), intent(inout)  visc_m_z, type(field_t), intent(inout)  visc_e, type(field_t), intent(in)  rho_field, type(field_t), intent(in)  p, type(field_t), intent(in)  u, type(field_t), intent(in)  v, type(field_t), intent(in)  w, type(field_t), intent(in)  mu, type(field_t), intent(in)  kappa, class(ax_t), intent(inout)  ax, class(ax_t), intent(inout)  ax_stress, type(coef_t), intent(inout)  coef  )

private

Parameters

visc_m_x	Viscous residual for x-momentum.
visc_m_y	Viscous residual for y-momentum.
visc_m_z	Viscous residual for z-momentum.
visc_E	Viscous residual for total energy.
rho_field	Density field.
p	Pressure field.
u	X-velocity field.
v	Y-velocity field.
w	Z-velocity field.
mu	Dynamic viscosity field.
kappa	Thermal conductivity field.
Ax	Matrix-vector product operator for scalar diffusion.
Ax_stress	Matrix-vector product operator for full stress.
coef	Spatial discretization coefficients.

Definition at line 511 of file compressible_res_cpu.f90.

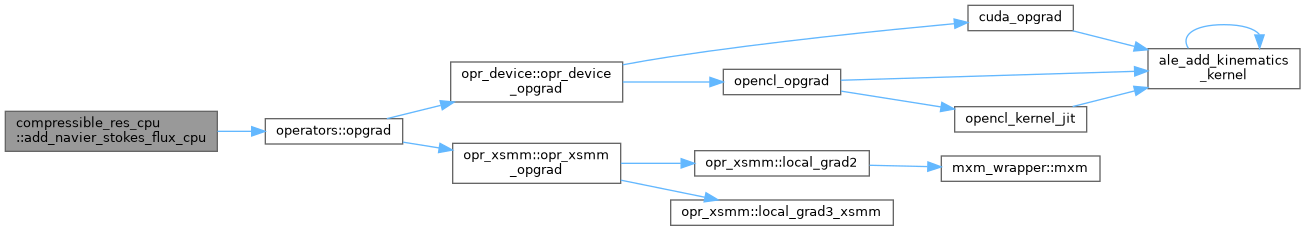

Here is the call graph for this function:

Here is the caller graph for this function:

advance_primitive_variables_cpu()

subroutine compressible_res_cpu::advance_primitive_variables_cpu ( type(field_t), intent(inout)  rho_field, type(field_t), intent(inout)  m_x, type(field_t), intent(inout)  m_y, type(field_t), intent(inout)  m_z, type(field_t), intent(inout)  e, type(field_t), intent(in)  p, type(field_t), intent(in)  u, type(field_t), intent(in)  v, type(field_t), intent(in)  w, class(ax_t), intent(inout)  ax, class(ax_t), intent(inout)  ax_stress, type(coef_t), intent(inout)  coef, type(gs_t), intent(inout)  gs, type(field_t), intent(in)  h, type(field_t), intent(in)  artificial_visc, type(field_t), intent(in)  mu, type(field_t), intent(in)  kappa, type(bc_list_t), intent(inout)  bcs_vel, type(time_state_t), intent(in)  time, class(runge_kutta_time_scheme_t), intent(in)  rk_scheme, real(kind=rp), intent(in)  dt  )

private

Parameters

rho_field	Density field
m_x,m_y,m_z	Momentum components
E	Total energy
p	Pressure field
u,v,w	Velocity components
Ax	Matrix-vector product operator
coef	Coefficients for spatial discretization
gs	Gather-scatter operator for parallel communication
h	Mesh size field
artificial_visc	Artificial viscosity field (entropy viscosity, min with low-order)
mu	Dynamic viscosity field (physical viscosity for momentum)
kappa	Thermal conductivity field (physical viscosity for energy)
bcs_vel	Velocity boundary conditions
time	Current time state
rk_scheme	Runge-Kutta time integration scheme
dt	Time step size

Definition at line 89 of file compressible_res_cpu.f90.

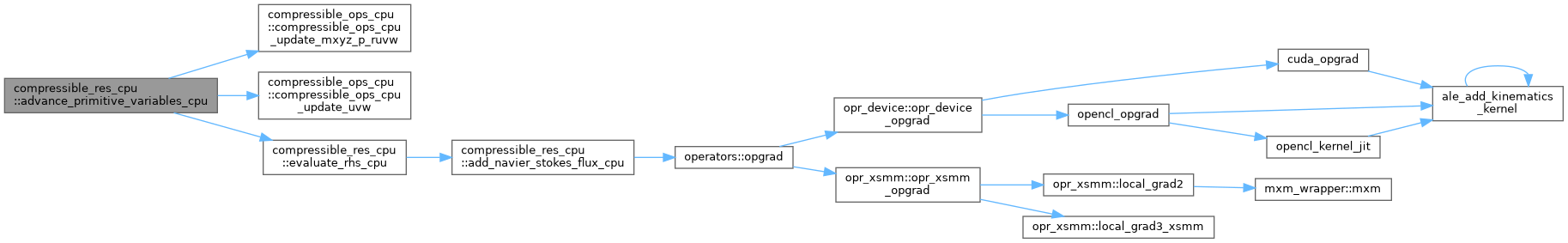

Here is the call graph for this function:

evaluate_rhs_cpu()

subroutine compressible_res_cpu::evaluate_rhs_cpu ( type(field_t), intent(inout)  rhs_rho_field, type(field_t), intent(inout)  rhs_m_x, type(field_t), intent(inout)  rhs_m_y, type(field_t), intent(inout)  rhs_m_z, type(field_t), intent(inout)  rhs_e, type(field_t), intent(inout)  rho_field, type(field_t), intent(inout)  m_x, type(field_t), intent(inout)  m_y, type(field_t), intent(inout)  m_z, type(field_t), intent(inout)  e, type(field_t), intent(in)  p, type(field_t), intent(in)  u, type(field_t), intent(in)  v, type(field_t), intent(in)  w, class(ax_t), intent(inout)  ax, class(ax_t), intent(inout)  ax_stress, type(coef_t), intent(inout)  coef, type(gs_t), intent(inout)  gs, type(field_t), intent(in)  h, type(field_t), intent(in)  artificial_visc, type(field_t), intent(in)  mu, type(field_t), intent(in)  kappa  )

private

Parameters

rhs_rho_field	Output array for density RHS terms
rhs_m_x	Output array for x-momentum RHS terms
rhs_m_y	Output array for y-momentum RHS terms
rhs_m_z	Output array for z-momentum RHS terms
rhs_E	Output array for energy RHS terms
rho_field	Input density field
m_x	Input x-momentum field
m_y	Input y-momentum field
m_z	Input z-momentum field
E	Input total energy field
p	Input pressure field
u	Input x-velocity field
v	Input y-velocity field
w	Input z-velocity field
Ax	Matrix-vector product operator for Laplacian terms
coef	Spatial discretization coefficients
gs	Gather-scatter operator for parallel communication
h	Mesh size field
artificial_visc	Artificial viscosity field
mu	Dynamic viscosity field for physical momentum diffusion
kappa	Thermal conductivity field for physical energy diffusion

rho = rho - dt * div(m)

m = m - dt * div(rho * u * u^T + p*I)

E = E - dt * div(u * (E + p))

Definition at line 317 of file compressible_res_cpu.f90.

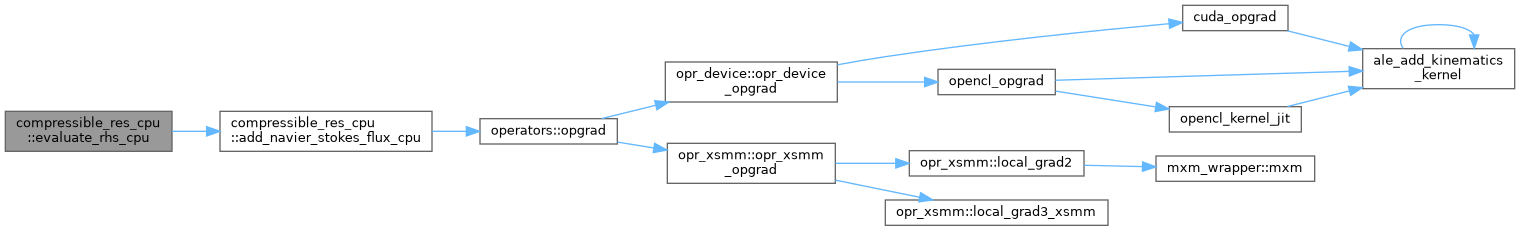

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

compressible_res_cpu_add_physical_flux

logical compressible_res_cpu::compressible_res_cpu_add_physical_flux = .false.

Definition at line 63 of file compressible_res_cpu.f90.

compressible_res_cpu_add_physical_stress

logical compressible_res_cpu::compressible_res_cpu_add_physical_stress = .false.

private

Definition at line 65 of file compressible_res_cpu.f90.

compressible_res_cpu_gamma

real(kind=rp), public compressible_res_cpu::compressible_res_cpu_gamma = 1.4_rp

Definition at line 67 of file compressible_res_cpu.f90.
