centrifugal_source_term Module Reference

Implements the centrifugal_source_term_t type. Maintainer: Adam Peplinski.

Data Types
type	centrifugal_source_term_t
	This source term adds the centrifugal force. More...

Functions/Subroutines
subroutine	centrifugal_source_term_init_from_json (this, json, fields, coef, variable_name)
	The common constructor using a JSON object.
subroutine	centrifugal_source_term_init_from_components (this, fields, omega, ref_point, coef, start_time, end_time)
	The constructor from type components.
subroutine	centrifugal_source_term_free (this)
	Destructor.
subroutine	centrifugal_source_term_compute (this, time)
	Computes the source term and adds the result to fields.

Function/Subroutine Documentation

centrifugal_source_term_compute()

subroutine centrifugal_source_term::centrifugal_source_term_compute ( class(centrifugal_source_term_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

time	The time state.

Definition at line 155 of file centrifugal_source_term.f90.

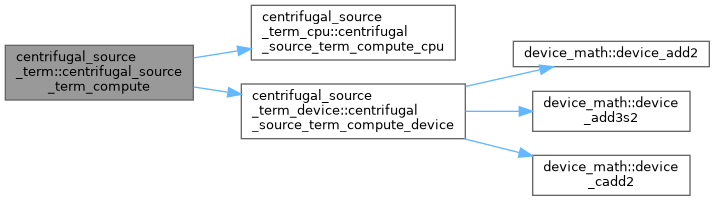

Here is the call graph for this function:

centrifugal_source_term_free()

subroutine centrifugal_source_term::centrifugal_source_term_free ( class(centrifugal_source_term_t), intent(inout)  this )

private

Definition at line 147 of file centrifugal_source_term.f90.

centrifugal_source_term_init_from_components()

subroutine centrifugal_source_term::centrifugal_source_term_init_from_components ( class(centrifugal_source_term_t), intent(inout)  this, class(field_list_t), intent(in), target  fields, real(kind=rp), dimension(3), intent(in)  omega, real(kind=rp), dimension(3), intent(in)  ref_point, type(coef_t)  coef, real(kind=rp), intent(in)  start_time, real(kind=rp), intent(in)  end_time  )

private

Parameters

fields	A list of fields for adding the source values.
omega	The rotation vector.
ref_point	The reference point.
coef	The SEM coeffs.
start_time	When to start adding the source term.
end_time	When to stop adding the source term.

Definition at line 125 of file centrifugal_source_term.f90.

Here is the caller graph for this function:

centrifugal_source_term_init_from_json()

subroutine centrifugal_source_term::centrifugal_source_term_init_from_json	(	class(centrifugal_source_term_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(field_list_t), intent(in), target	fields,
		type(coef_t), intent(in), target	coef,
		character(len=*), intent(in)	variable_name
	)

Parameters

json	The JSON object for the source.
fields	A list of fields for adding the source values.
coef	The SEM coeffs.
variable_name	The name of the variable for this source term.

Definition at line 85 of file centrifugal_source_term.f90.

Here is the call graph for this function:
