Wall sampler implementation for GLL nodes at prescribed off-wall indices. More...

Inheritance diagram for wall_gll_sampler::wall_gll_sampler_t:

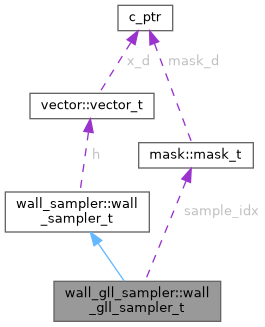

Collaboration diagram for wall_gll_sampler::wall_gll_sampler_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json)
	Partial constructor from JSON.

procedure, pass(this)	init_from_indices (this, indices, output_h)
	Partial constructor from off-wall GLL indices.

procedure, pass(this)	init_from_components (this, indices, sample_idx, h, output_h)
	Fully construct a sampler from its resolved components.

procedure, pass(this)	finalize (this, coef, msk, facet, n_x, n_y, n_z, bc_name, user)
	Construct field indices and wall-normal distances for sampling.

procedure, pass(this)	sample (this, field, values)
	Sample the solution field at the sampling points.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	init_base (this, n_nodes, n_samples, h, output_h)
	Initialise state common to all fully constructed wall samplers.

procedure, pass(this)	output_h (this, coef, msk, bc_name)
	Write the wall-normal sampling distance as a field file.

procedure(wall_sampler_init), deferred, pass	init (this, json)
	Parse sampler-specific configuration from JSON.

procedure(wall_sampler_finalize), deferred, pass	finalize (this, coef, msk, facet, n_x, n_y, n_z, bc_name, user)
	Complete sampler setup after geometric and wall-node data are known.

procedure(wall_sampler_sample), deferred, pass	sample (this, field, values)
	Sample the solution field at the sampling points.

procedure(wall_sampler_free), deferred, pass	free (this)
	Release sampler resources.

Public Attributes
integer, dimension(:), allocatable	indices
	Off-wall GLL indices for each sampling point per wall node.

type(mask_t)	sample_idx
	Linear indices into the sampled fields.

integer	n_nodes = 0
	Number of wall nodes local to this rank.

integer	n_samples = 0
	Number of sampling points associated with each wall node.

logical	user_values = .false.
	True when sampling values are supplied by a user callback.

logical	output_h_enabled = .true.
	True when the wall-normal sampling distance is written to a field.

type(vector_t)	h
	Wall-normal distance of every sampling point. The layout is `(node - 1) * n_samples + sample`.

Private Member Functions
procedure, pass(this), private	init_from_user (this, n_samples, output_h)
	Partial constructor for user-provided GLL indices.

Detailed Description

Definition at line 53 of file wall_gll_sampler.f90.

Member Function/Subroutine Documentation

◆ finalize() [1/2]

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::finalize	(	class(wall_gll_sampler_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		integer, dimension(0:), intent(in)	msk,
		integer, dimension(0:), intent(in)	facet,
		type(vector_t), intent(in)	n_x,
		type(vector_t), intent(in)	n_y,
		type(vector_t), intent(in)	n_z,
		character(len=*), intent(in), optional	bc_name,
		type(user_t), intent(in), optional, target	user
	)

Parameters

coef	SEM coefficients.
msk	Mask selecting local wall nodes.
facet	Facet index for each selected wall node.
n_x	X-component of wall-normal vectors at wall nodes.
n_y	Y-component of wall-normal vectors at wall nodes.
n_z	Z-component of wall-normal vectors at wall nodes.
bc_name	Name of the owning boundary condition for user values.
user	User interface providing the GLL-sampling callback.

Definition at line 71 of file wall_gll_sampler.f90.

◆ finalize() [2/2]

procedure(wall_sampler_finalize), deferred, pass wall_sampler::wall_sampler_t::finalize	(	class(wall_sampler_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		integer, dimension(0:), intent(in)	msk,
		integer, dimension(0:), intent(in)	facet,
		type(vector_t), intent(in)	n_x,
		type(vector_t), intent(in)	n_y,
		type(vector_t), intent(in)	n_z,
		character(len=*), intent(in), optional	bc_name,
		type(user_t), intent(in), optional, target	user
	)

pure virtualinherited

Definition at line 73 of file wall_sampler.f90.

◆ free() [1/2]

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::free ( class(wall_gll_sampler_t), intent(inout) this )

Definition at line 75 of file wall_gll_sampler.f90.

◆ free() [2/2]

procedure(wall_sampler_free), deferred, pass wall_sampler::wall_sampler_t::free ( class(wall_sampler_t), intent(inout) this )

pure virtualinherited

Definition at line 77 of file wall_sampler.f90.

◆ init() [1/2]

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::init	(	class(wall_gll_sampler_t), intent(inout)	this,
		type(json_file), intent(inout)	json
	)

Parameters

json	Sampler configuration data.

Definition at line 60 of file wall_gll_sampler.f90.

◆ init() [2/2]

procedure(wall_sampler_init), deferred, pass wall_sampler::wall_sampler_t::init	(	class(wall_sampler_t), intent(inout)	this,
		type(json_file), intent(inout)	json
	)

pure virtualinherited

Definition at line 71 of file wall_sampler.f90.

◆ init_base()

procedure, pass(this) wall_sampler::wall_sampler_t::init_base	(	class(wall_sampler_t), intent(inout)	this,
		integer, intent(in)	n_nodes,
		integer, intent(in)	n_samples,
		type(vector_t), intent(in)	h,
		logical, intent(in)	output_h
	)

inherited

Parameters

n_nodes	Number of local wall nodes.
n_samples	Number of samples at each wall node.
h	Wall-normal distances in sampler ordering.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 67 of file wall_sampler.f90.

◆ init_from_components()

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::init_from_components	(	class(wall_gll_sampler_t), intent(inout)	this,
		integer, dimension(:), intent(in)	indices,
		integer, dimension(:), intent(in)	sample_idx,
		type(vector_t), intent(in)	h,
		logical, intent(in)	output_h
	)

Note: No compatibility checks are performed, input data is assumed to be valid. Checking would require geometric information.

Parameters

indices	Off-wall GLL indices for each sample per wall node.
sample_idx	Linear sampled-field indices in sampler ordering.
h	Wall-normal distances in sampler ordering.
output_h	Sampling-distance diagnostic output flag.

Definition at line 68 of file wall_gll_sampler.f90.

◆ init_from_indices()

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::init_from_indices	(	class(wall_gll_sampler_t), intent(inout)	this,
		integer, dimension(:), intent(in)	indices,
		logical, intent(in)	output_h
	)

Parameters

indices	Positive GLL indices, one for each sampling point per wall node.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 62 of file wall_gll_sampler.f90.

◆ init_from_user()

procedure, pass(this), private wall_gll_sampler::wall_gll_sampler_t::init_from_user	(	class(wall_gll_sampler_t), intent(inout)	this,
		integer, intent(in)	n_samples,
		logical, intent(in)	output_h
	)

private

Parameters

n_samples	Number of samples per wall node.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 65 of file wall_gll_sampler.f90.

◆ output_h()

procedure, pass(this) wall_sampler::wall_sampler_t::output_h	(	class(wall_sampler_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		integer, dimension(0:), intent(in)	msk,
		character(len=*), intent(in)	bc_name
	)

inherited

The first sample is written to retain a scalar diagnostic field when samplers support multiple points per wall node.

Parameters

coef	SEM coefficients defining the output field.
msk	Mask selecting local wall nodes.
bc_name	Name of the owning boundary condition.

Definition at line 69 of file wall_sampler.f90.

◆ sample() [1/2]

procedure, pass(this) wall_gll_sampler::wall_gll_sampler_t::sample	(	class(wall_gll_sampler_t), intent(inout)	this,
		type(field_t), intent(inout)	field,
		type(vector_t), intent(inout)	values
	)

Parameters

field	Field to be sampled.
values	Output sampled values in sampler ordering.

Definition at line 73 of file wall_gll_sampler.f90.

◆ sample() [2/2]

procedure(wall_sampler_sample), deferred, pass wall_sampler::wall_sampler_t::sample	(	class(wall_sampler_t), intent(inout)	this,
		type(field_t), intent(inout)	field,
		type(vector_t), intent(inout)	values
	)

pure virtualinherited

Definition at line 75 of file wall_sampler.f90.

Member Data Documentation

◆ h

type(vector_t) wall_sampler::wall_sampler_t::h

inherited

Definition at line 64 of file wall_sampler.f90.

◆ indices

integer, dimension(:), allocatable wall_gll_sampler::wall_gll_sampler_t::indices

Definition at line 55 of file wall_gll_sampler.f90.

◆ n_nodes

integer wall_sampler::wall_sampler_t::n_nodes = 0

inherited

Definition at line 55 of file wall_sampler.f90.

◆ n_samples

integer wall_sampler::wall_sampler_t::n_samples = 0

inherited

Definition at line 57 of file wall_sampler.f90.

◆ output_h_enabled

logical wall_sampler::wall_sampler_t::output_h_enabled = .true.

inherited

Definition at line 61 of file wall_sampler.f90.

◆ sample_idx

type(mask_t) wall_gll_sampler::wall_gll_sampler_t::sample_idx

Definition at line 57 of file wall_gll_sampler.f90.

◆ user_values

logical wall_sampler::wall_sampler_t::user_values = .false.

inherited

Definition at line 59 of file wall_sampler.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/wall_models/wall_gll_sampler.f90
