Implements the CPU kernel for the most_t type.

Data Types
interface	corr_h_interface

interface	corr_m_interface

interface	dfdl_interface

interface	f_interface

interface	slaw_h_interface

interface	slaw_m_interface

Functions/Subroutines
subroutine	select_bc_operators (bc_type, bc_value, q, ts, ti, kappa, utau, z0h, hi, pr)
	Selects different expressions for the similarity functions in MOST based on the type of bottom boundary condition for temperature.

subroutine	compute_ri_b (bc_type, g_dot_n, hi, ti, ts, magu, kappa, q, pr, ri_b)
	Computes the Richardson number.

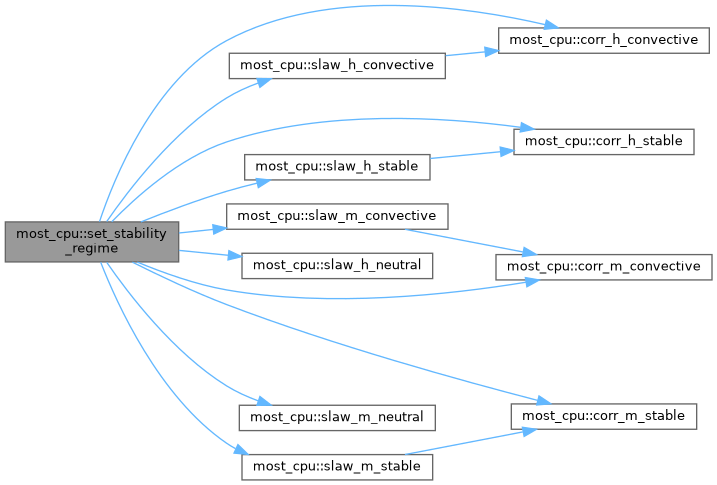

subroutine	set_stability_regime (ri_b, ri_threshold)
	Sets the stability regime based on the Richardson number value (quite arbitrary).

subroutine, public	most_compute_cpu (u, v, w, temp, temp_w, n_x, n_y, n_z, h, tau_x, tau_y, tau_z, n_nodes, kappa, mu_w, rho_w, g_vec, pr, z0, z0h_in, bc_type, bc_value, tstep, ri_b_diagn, l_ob_diagn, utau_diagn, magu_diagn, ti_diagn, ts_diagn, q_diagn)
	Main routine to compute the surface stresses based on MOST.

real(kind=rp) function	slaw_m_stable (z, l_ob, z0)
	Similarity laws and corrections for the STABLE regime: REFERENCE: Holtslag, A. A. M., & De Bruin, H. A. R. (1988). Applied Modeling of the Nighttime Surface Energy Balance over Land. Journal of Applied Meteorology, 27(6), 689–704. NOTE: This formulation is chosen for its superior behaviour in very stable conditions (large z/L), avoiding the numerical decoupling found in older linear functions (e.g., Dyer).

real(kind=rp) function	slaw_h_stable (z, l_ob, z0h)

real(kind=rp) function	corr_m_stable (z, l_ob)

real(kind=rp) function	corr_h_stable (z, l_ob)

real(kind=rp) function	slaw_m_convective (z, l_ob, z0)
	Similarity laws and corrections for the UNSTABLE (convective) regime: REFERENCE: Dyer, A. J. (1974), A review of flux-profile relationships, Bound.-Layer Meteorol., 7, 363-372. INTEGRATION: Paulson, C. A. (1970), The mathematical representation of wind speed and temperature profiles in the unstable atmospheric surface layer, J. Appl. Meteorol., 9, 857-861.

real(kind=rp) function	slaw_h_convective (z, l_ob, z0h)

real(kind=rp) function	corr_m_convective (z, l_ob)

real(kind=rp) function	corr_h_convective (z, l_ob)

real(kind=rp) function	slaw_m_neutral (z, l_ob, z0)
	Similarity laws and corrections for the NEUTRAL regime:

real(kind=rp) function	slaw_h_neutral (z, l_ob, z0h)

real(kind=rp) function	f_neumann (ri_b, z, z0, z0h, pr, l_ob, slaw_m, slaw_h)
	Simialrity laws (different for neumann and dirichlet bc's)

real(kind=rp) function	dfdl_neumann (l_upper, l_lower, z, z0, z0h, pr, l_ob, slaw_m, slaw_h, fd_h)

real(kind=rp) function	f_dirichlet (ri_b, z, z0, z0h, pr, l_ob, slaw_m, slaw_h)

real(kind=rp) function	dfdl_dirichlet (l_upper, l_lower, z, z0, z0h, pr, l_ob, slaw_m, slaw_h, fd_h)

Variables
procedure(slaw_m_interface), pointer	slaw_m_ptr => null()

procedure(slaw_h_interface), pointer	slaw_h_ptr => null()

procedure(corr_m_interface), pointer	corr_m_ptr => null()

procedure(corr_h_interface), pointer	corr_h_ptr => null()

procedure(f_interface), pointer	f_ptr => null()

procedure(dfdl_interface), pointer	dfdl_ptr => null()

Function/Subroutine Documentation

◆ compute_ri_b()

subroutine most_cpu::compute_ri_b	(	character(len=*), intent(in)	bc_type,
		real(kind=rp), intent(in)	g_dot_n,
		real(kind=rp), intent(in)	hi,
		real(kind=rp), intent(in)	ti,
		real(kind=rp), intent(in)	ts,
		real(kind=rp), intent(in)	magu,
		real(kind=rp), intent(in)	kappa,
		real(kind=rp), intent(inout)	q,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(inout)	ri_b
	)

private

Definition at line 128 of file most_cpu.f90.

Here is the caller graph for this function:

◆ corr_h_convective()

real(kind=rp) function most_cpu::corr_h_convective	(	real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	l_ob
	)

private

Definition at line 420 of file most_cpu.f90.

Here is the caller graph for this function:

◆ corr_h_stable()

real(kind=rp) function most_cpu::corr_h_stable	(	real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	l_ob
	)

private

Definition at line 369 of file most_cpu.f90.

Here is the caller graph for this function:

◆ corr_m_convective()

real(kind=rp) function most_cpu::corr_m_convective	(	real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	l_ob
	)

private

Definition at line 408 of file most_cpu.f90.

Here is the caller graph for this function:

◆ corr_m_stable()

real(kind=rp) function most_cpu::corr_m_stable	(	real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	l_ob
	)

private

Definition at line 355 of file most_cpu.f90.

Here is the caller graph for this function:

◆ dfdl_dirichlet()

real(kind=rp) function most_cpu::dfdl_dirichlet	(	real(kind=rp), intent(in)	l_upper,
		real(kind=rp), intent(in)	l_lower,
		real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	l_ob,
		procedure(slaw_m_interface)	slaw_m,
		procedure(slaw_h_interface)	slaw_h,
		real(kind=rp), intent(in)	fd_h
	)

private

Definition at line 478 of file most_cpu.f90.

Here is the caller graph for this function:

◆ dfdl_neumann()

real(kind=rp) function most_cpu::dfdl_neumann	(	real(kind=rp), intent(in)	l_upper,
		real(kind=rp), intent(in)	l_lower,
		real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	l_ob,
		procedure(slaw_m_interface)	slaw_m,
		procedure(slaw_h_interface)	slaw_h,
		real(kind=rp), intent(in)	fd_h
	)

private

Definition at line 457 of file most_cpu.f90.

Here is the caller graph for this function:

◆ f_dirichlet()

real(kind=rp) function most_cpu::f_dirichlet	(	real(kind=rp), intent(in)	ri_b,
		real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	l_ob,
		procedure(slaw_m_interface)	slaw_m,
		procedure(slaw_h_interface)	slaw_h
	)

private

Definition at line 469 of file most_cpu.f90.

Here is the caller graph for this function:

◆ f_neumann()

real(kind=rp) function most_cpu::f_neumann	(	real(kind=rp), intent(in)	ri_b,
		real(kind=rp), intent(in)	z,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	l_ob,
		procedure(slaw_m_interface)	slaw_m,
		procedure(slaw_h_interface)	slaw_h
	)

private

Definition at line 448 of file most_cpu.f90.

Here is the caller graph for this function:

◆ most_compute_cpu()

subroutine, public most_cpu::most_compute_cpu	(	real(kind=rp), dimension(n_nodes), intent(in)	u,
		real(kind=rp), dimension(n_nodes), intent(in)	v,
		real(kind=rp), dimension(n_nodes), intent(in)	w,
		real(kind=rp), dimension(n_nodes), intent(in)	temp,
		real(kind=rp), dimension(n_nodes), intent(in)	temp_w,
		real(kind=rp), dimension(n_nodes), intent(in)	n_x,
		real(kind=rp), dimension(n_nodes), intent(in)	n_y,
		real(kind=rp), dimension(n_nodes), intent(in)	n_z,
		real(kind=rp), dimension(n_nodes), intent(in)	h,
		real(kind=rp), dimension(n_nodes), intent(inout)	tau_x,
		real(kind=rp), dimension(n_nodes), intent(inout)	tau_y,
		real(kind=rp), dimension(n_nodes), intent(inout)	tau_z,
		integer, intent(in)	n_nodes,
		real(kind=rp), intent(in)	kappa,
		real(kind=rp), dimension(n_nodes), intent(in)	mu_w,
		real(kind=rp), dimension(n_nodes), intent(in)	rho_w,
		real(kind=rp), dimension(3), intent(in)	g_vec,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h_in,
		character(len=*), intent(in)	bc_type,
		real(kind=rp), intent(in)	bc_value,
		integer, intent(in)	tstep,
		real(kind=rp), dimension(n_nodes), intent(inout)	ri_b_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	l_ob_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	utau_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	magu_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	ti_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	ts_diagn,
		real(kind=rp), dimension(n_nodes), intent(inout)	q_diagn
	)

Parameters

tstep The current time-step

Definition at line 169 of file most_cpu.f90.

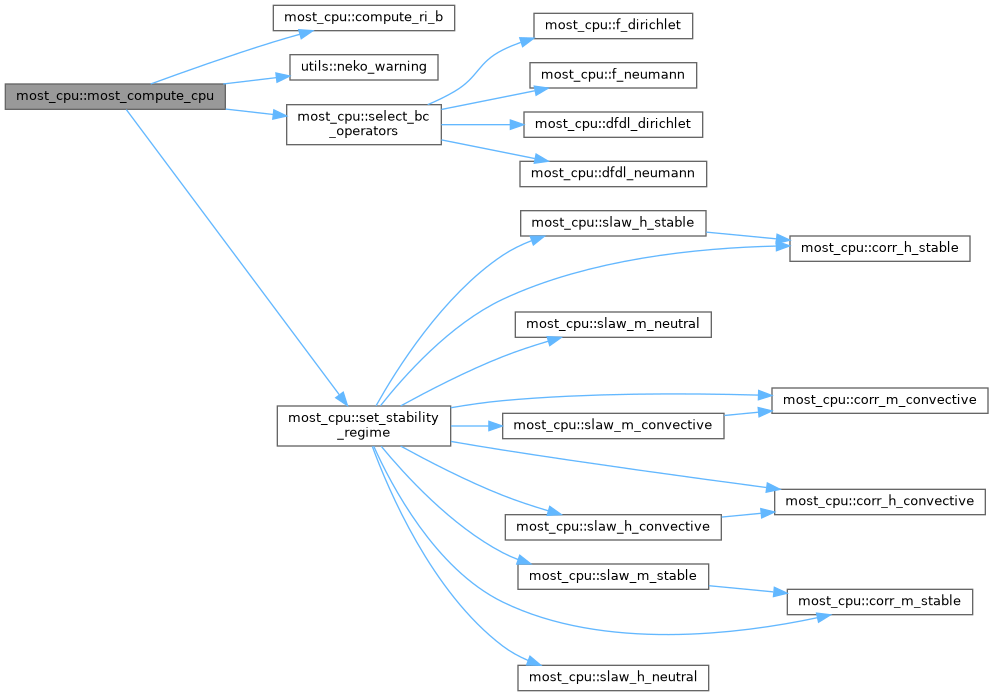

Here is the call graph for this function:

Here is the caller graph for this function:

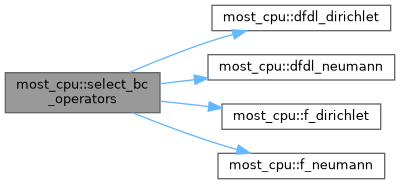

◆ select_bc_operators()

subroutine most_cpu::select_bc_operators	(	character(len=*), intent(in)	bc_type,
		real(kind=rp), intent(in)	bc_value,
		real(kind=rp), intent(inout)	q,
		real(kind=rp), intent(inout)	ts,
		real(kind=rp), intent(in)	ti,
		real(kind=rp), intent(in)	kappa,
		real(kind=rp), intent(in)	utau,
		real(kind=rp), intent(in)	z0h,
		real(kind=rp), intent(in)	hi,
		real(kind=rp), intent(in)	pr
	)
