vector_bc_projector Module Reference

Implements boundary condition projectors for vector fields. Two types concrete types are provided: segregated_vector_bc_projector_t for simple component-wise resolution, and coupled_vector_bc_projector_t for resolving mixed boundary conditions.

Data Types
type	coupled_vector_bc_projector_t
	A coupled projector for vector fields, suitable for mixed boundary conditions. More...
type	segregated_vector_bc_projector_t
	A projector for vector fields that acts component-wise. More...
interface	vector_bc_projector_apply_intrf
	Apply the resolved vector boundary constraints. More...
interface	vector_bc_projector_finalize_intrf
	Finalize the vector boundary-condition projector. More...
interface	vector_bc_projector_free_intrf
	Free the vector boundary-condition projector. More...
interface	vector_bc_projector_init_intrf
	Initialize the vector boundary-condition projector. More...
interface	vector_bc_projector_mark_bc_intrf
	Mark a boundary condition in the vector boundary-condition projector. More...
interface	vector_bc_projector_mark_bc_list_intrf
	Mark a list of boundary conditions in the projector. More...
type	vector_bc_projector_t
	Abstract type for resolving vector boundary conditions. More...

Functions/Subroutines
subroutine	vector_bc_projector_mark_bc_component (this, bc, component)
	Report unsupported component-specific marking.
subroutine	vector_bc_projector_mark_bc_list_component (this, bclst, component)
	Report unsupported component-specific list marking.
subroutine	segregated_vector_bc_projector_free (this)
	Destructor.
subroutine	segregated_vector_bc_projector_init (this, coef)
	Constructor.
subroutine	segregated_vector_bc_projector_finalize (this, rebuild_mask)
	Finalize the segregated vector boundary-condition projector.
subroutine	segregated_vector_bc_projector_mark_bc (this, bc)
	Mark a boundary condition in the segregated projector.
subroutine	segregated_vector_bc_projector_mark_bc_component (this, bc, component)
	Mark a boundary condition on one Cartesian component.
subroutine	segregated_vector_bc_projector_mark_bc_list (this, bclst)
	Mark a list of boundary conditions in the segregated projector.
subroutine	segregated_vector_bc_projector_mark_bc_list_component (this, bclst, component)
	Mark a list of boundary conditions on one Cartesian component.
subroutine	segregated_vector_bc_projector_apply (this, x, y, z, n, strm)
	Apply the segregated vector boundary constraints.
subroutine, public	vector_bc_projector_components (this, x, y, z)
	Access the component scalar projectors from a segregated vector projector.
subroutine	coupled_vector_bc_projector_free (this)
	Destructor.
subroutine	coupled_vector_bc_projector_init (this, coef)
	Constructor.
subroutine	coupled_vector_bc_projector_mark_bc (this, bc)
	Register one vector boundary condition in the coupled projector.
subroutine	coupled_vector_bc_projector_mark_bc_list (this, bclst)
	Register a list of vector boundary conditions in the coupled projector.
subroutine	coupled_vector_bc_projector_clear_masks (this)
	Clear the resolved mask-side state of the coupled projector.
subroutine	coupled_vector_bc_projector_clear_basis (this)
	Clear the resolved basis-side state of the coupled projector.
subroutine	coupled_vector_bc_projector_finalize (this, rebuild_mask)
	Finalize the coupled projector by resolving the accumulated BC list.
subroutine	coupled_vector_bc_projector_rebuild_masks (this)
	Rebuild the resolved masks and local constraint flags.
subroutine	coupled_vector_bc_projector_rebuild_basis (this)
	Rebuild the local mixed-node basis.
subroutine	coupled_vector_bc_projector_apply (this, x, y, z, n, strm)
	Apply homogeneous boundary constraints in the local basis.
subroutine	coupled_vector_bc_projector_debug_output (this, field_name)
	Write fields showing the coupled projector mask and basis.
subroutine	coupled_vector_bc_projector_debug_output_normal_component (this, x, y, z, n, field_name)
	Write scalar fields with the normal component u.n on mixed BC nodes.

Function/Subroutine Documentation

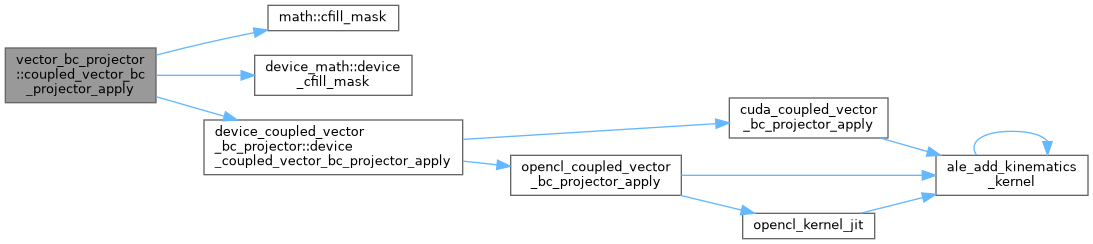

coupled_vector_bc_projector_apply()

subroutine vector_bc_projector::coupled_vector_bc_projector_apply ( class(coupled_vector_bc_projector_t), intent(in)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(c_ptr), intent(inout), optional  strm  )

private

Parameters

[in,out]	x	x-component field values.
[in,out]	y	y-component field values.
[in,out]	z	z-component field values.
[in]	n	Number of entries in each component array.
[in,out]	strm	Optional backend stream/queue used on device backends.

Definition at line 1330 of file vector_bc_projector.f90.

Here is the call graph for this function:

coupled_vector_bc_projector_clear_basis()

subroutine vector_bc_projector::coupled_vector_bc_projector_clear_basis ( class(coupled_vector_bc_projector_t), intent(inout)  this )

private

Definition at line 613 of file vector_bc_projector.f90.

coupled_vector_bc_projector_clear_masks()

subroutine vector_bc_projector::coupled_vector_bc_projector_clear_masks ( class(coupled_vector_bc_projector_t), intent(inout)  this )

private

Releases the resolved Dirichlet and mixed masks, compact boundary-node caches, and the per-mixed-node constraint flags together with their device mirrors.

Definition at line 577 of file vector_bc_projector.f90.

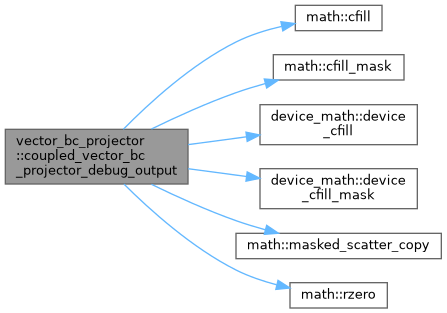

coupled_vector_bc_projector_debug_output()

subroutine vector_bc_projector::coupled_vector_bc_projector_debug_output ( class(coupled_vector_bc_projector_t), intent(inout)  this, character(len=*), intent(in), optional  field_name  )

private

Parameters

[in]

field_name

Optional base name for the output file. The .fld suffix is appended automatically.

Definition at line 1422 of file vector_bc_projector.f90.

Here is the call graph for this function:

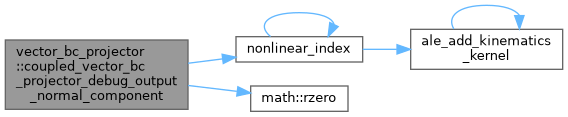

coupled_vector_bc_projector_debug_output_normal_component()

subroutine vector_bc_projector::coupled_vector_bc_projector_debug_output_normal_component ( class(coupled_vector_bc_projector_t), intent(inout)  this, real(kind=rp), dimension(n), intent(in)  x, real(kind=rp), dimension(n), intent(in)  y, real(kind=rp), dimension(n), intent(in)  z, integer, intent(in)  n, character(len=*), intent(in), optional  field_name  )

private

The output is zero outside mixed_dof_mask. The normal vectors come from (1) the resolved basis stored in this projector and (2) the normals stored in coef_t. No area scaling is applied.

Parameters

[in]	x	x-component of the vector field.
[in]	y	y-component of the vector field.
[in]	z	z-component of the vector field.
[in]	n	Number of entries in x, y, z.
[in]	field_name	Optional base name for the output file. The .fld suffix is appended automatically.

Definition at line 1518 of file vector_bc_projector.f90.

Here is the call graph for this function:

coupled_vector_bc_projector_finalize()

subroutine vector_bc_projector::coupled_vector_bc_projector_finalize ( class(coupled_vector_bc_projector_t), intent(inout)  this, logical, intent(in)  rebuild_mask  )

private

This routine builds the dof masks for Dirichlet and mixed nodes, and computes the local basis for the mixed ones.

Definition at line 624 of file vector_bc_projector.f90.

coupled_vector_bc_projector_free()

subroutine vector_bc_projector::coupled_vector_bc_projector_free ( class(coupled_vector_bc_projector_t), intent(inout)  this )

private

Definition at line 464 of file vector_bc_projector.f90.

coupled_vector_bc_projector_init()

subroutine vector_bc_projector::coupled_vector_bc_projector_init ( class(coupled_vector_bc_projector_t), intent(inout)  this, type(coef_t), intent(in), target  coef  )

private

Parameters

[in]

coef

SEM coefficients.

This resets any previous resolved state, stores pointers to the coefficient and dofmap objects, and precomputes reference-element lookup tables used later to reconstruct mixed-node normals on edges and corners.

Definition at line 486 of file vector_bc_projector.f90.

Here is the call graph for this function:

coupled_vector_bc_projector_mark_bc()

subroutine vector_bc_projector::coupled_vector_bc_projector_mark_bc ( class(coupled_vector_bc_projector_t), intent(inout)  this, class(bc_t), intent(inout), target  bc  )

private

Parameters

[in,out]

bc

Boundary condition to queue for resolution.

Definition at line 547 of file vector_bc_projector.f90.

coupled_vector_bc_projector_mark_bc_list()

subroutine vector_bc_projector::coupled_vector_bc_projector_mark_bc_list ( class(coupled_vector_bc_projector_t), intent(inout)  this, type(bc_list_t), intent(in)  bclst  )

private

Parameters

[in]

bclst

Boundary-condition list to queue.

Definition at line 561 of file vector_bc_projector.f90.

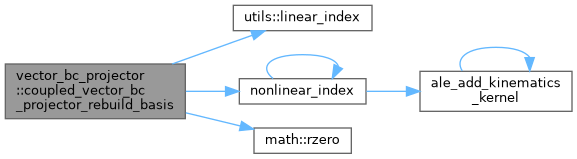

coupled_vector_bc_projector_rebuild_basis()

subroutine vector_bc_projector::coupled_vector_bc_projector_rebuild_basis ( class(coupled_vector_bc_projector_t), intent(inout)  this )

private

Using the resolved mixed-node mask and constraint metadata built by rebuild_masks(), this routine reconstructs consistent normals on face, edge, and corner nodes and then builds an orthonormal local basis (n, t1, t2) for each mixed node. It then propagates the basis data to all marked mixed boundary conditions.

Definition at line 917 of file vector_bc_projector.f90.

Here is the call graph for this function:

coupled_vector_bc_projector_rebuild_masks()

subroutine vector_bc_projector::coupled_vector_bc_projector_rebuild_masks ( class(coupled_vector_bc_projector_t), intent(inout)  this )

private

This routine reduces the queued boundary conditions to a nodal classification, constructs the global Dirichlet and mixed-node masks, computes BC-local resolved supports for mixed_bc_t instances, and fills the local constraint flags constraint_n, constraint_t1, and constraint_t2 on the mixed-node mask.

Definition at line 642 of file vector_bc_projector.f90.

Here is the call graph for this function:

segregated_vector_bc_projector_apply()

subroutine vector_bc_projector::segregated_vector_bc_projector_apply ( class(segregated_vector_bc_projector_t), intent(in)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(c_ptr), intent(inout), optional  strm  )

private

Parameters

[in,out]	x	x-component field values.
[in,out]	y	y-component field values.
[in,out]	z	z-component field values.
[in]	n	Number of entries in each component array.
[in,out]	strm	Optional backend stream/queue used on device backends.

Definition at line 422 of file vector_bc_projector.f90.

segregated_vector_bc_projector_finalize()

subroutine vector_bc_projector::segregated_vector_bc_projector_finalize ( class(segregated_vector_bc_projector_t), intent(inout)  this, logical, intent(in)  rebuild_mask  )

private

Definition at line 335 of file vector_bc_projector.f90.

segregated_vector_bc_projector_free()

subroutine vector_bc_projector::segregated_vector_bc_projector_free ( class(segregated_vector_bc_projector_t), intent(inout)  this )

private

Definition at line 317 of file vector_bc_projector.f90.

segregated_vector_bc_projector_init()

subroutine vector_bc_projector::segregated_vector_bc_projector_init ( class(segregated_vector_bc_projector_t), intent(inout)  this, type(coef_t), intent(in), target  coef  )

private

Parameters

[in]

coef

SEM coefficients defining the dof layout.

Definition at line 326 of file vector_bc_projector.f90.

segregated_vector_bc_projector_mark_bc()

subroutine vector_bc_projector::segregated_vector_bc_projector_mark_bc ( class(segregated_vector_bc_projector_t), intent(inout)  this, class(bc_t), intent(inout), target  bc  )

private

Fully constrained vector boundary conditions are applied to all three component projectors.

Parameters

[in,out]

bc

Boundary condition to register.

Definition at line 344 of file vector_bc_projector.f90.

segregated_vector_bc_projector_mark_bc_component()

subroutine vector_bc_projector::segregated_vector_bc_projector_mark_bc_component ( class(segregated_vector_bc_projector_t), intent(inout)  this, class(bc_t), intent(inout), target  bc, character(len=1), intent(in)  component  )

private

Parameters

[in,out]	bc	Boundary condition to register.
[in]	component	Component selector.

Definition at line 361 of file vector_bc_projector.f90.

segregated_vector_bc_projector_mark_bc_list()

subroutine vector_bc_projector::segregated_vector_bc_projector_mark_bc_list ( class(segregated_vector_bc_projector_t), intent(inout)  this, type(bc_list_t), intent(in)  bclst  )

private

Parameters

[in]

bclst

Boundary-condition list to register.

Definition at line 387 of file vector_bc_projector.f90.

segregated_vector_bc_projector_mark_bc_list_component()

subroutine vector_bc_projector::segregated_vector_bc_projector_mark_bc_list_component ( class(segregated_vector_bc_projector_t), intent(inout)  this, type(bc_list_t), intent(in)  bclst, character(len=1), intent(in)  component  )

private

Parameters

[in]	bclst	Boundary-condition list to register.
[in]	component	Component selector.

Definition at line 402 of file vector_bc_projector.f90.

vector_bc_projector_components()

subroutine, public vector_bc_projector::vector_bc_projector_components	(	class(vector_bc_projector_t), intent(inout), target	this,
		type(scalar_bc_projector_t), intent(inout), pointer	x,
		type(scalar_bc_projector_t), intent(inout), pointer	y,
		type(scalar_bc_projector_t), intent(inout), pointer	z
	)

Parameters

[in,out]	x	Pointer to the x-component scalar projector.
[in,out]	y	Pointer to the y-component scalar projector.
[in,out]	z	Pointer to the z-component scalar projector.

Definition at line 439 of file vector_bc_projector.f90.

Here is the caller graph for this function:

vector_bc_projector_mark_bc_component()

subroutine vector_bc_projector::vector_bc_projector_mark_bc_component ( class(vector_bc_projector_t), intent(inout)  this, class(bc_t), intent(inout), target  bc, character(len=1), intent(in)  component  )

private

Definition at line 295 of file vector_bc_projector.f90.

vector_bc_projector_mark_bc_list_component()

subroutine vector_bc_projector::vector_bc_projector_mark_bc_list_component ( class(vector_bc_projector_t), intent(inout)  this, type(bc_list_t), intent(in)  bclst, character(len=1), intent(in)  component  )

private

Definition at line 306 of file vector_bc_projector.f90.
