Implements the divergence_t type.

Data Types
type	divergence_t
	A simulation component that computes the divergence of a vector field. Added to the field registry as `div` by default, bu can be controlled by the computed_field keyword. More...

Functions/Subroutines
subroutine	divergence_init_from_json (this, json, case)
	Constructor from json.

subroutine	divergence_init_common (this, field_names, computed_field)
	Actual constructor.

subroutine	divergence_init_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller, field_names, computed_field, filename, precision)
	Constructor from components, passing controllers.

subroutine	divergence_init_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, field_names, computed_field, filename, precision)
	Constructor from components, passing properties to the time_based_controller` components in the base type.

subroutine	divergence_free (this)
	Destructor.

subroutine	divergence_compute (this, time)
	Compute the divergence field.

Function/Subroutine Documentation

◆ divergence_compute()

subroutine divergence_simcomp::divergence_compute	(	class(divergence_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

private

Definition at line 235 of file divergence_simcomp.f90.

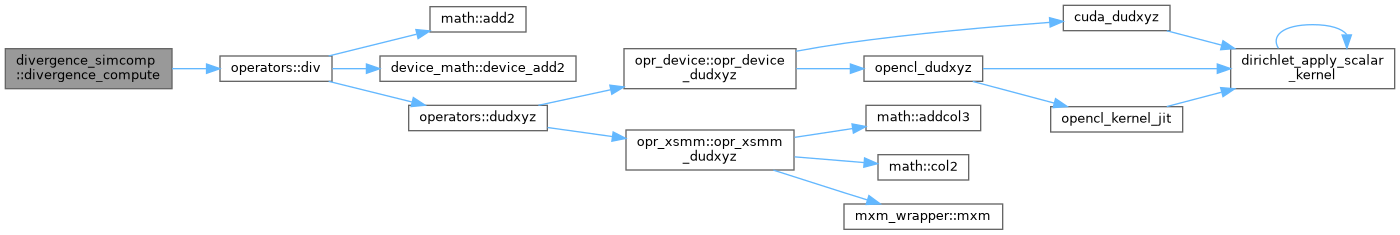

Here is the call graph for this function:

subroutine divergence_simcomp::divergence_free ( class(divergence_t), intent(inout) this )

private

Definition at line 223 of file divergence_simcomp.f90.

subroutine divergence_simcomp::divergence_init_common	(	class(divergence_t), intent(inout)	this,
		character(len=*), dimension(3)	field_names,
		character(len=*)	computed_field
	)

private

Parameters

field_names	The name of the fields to compute the divergence of.
computed_field	The base name of the divergence field components.

Definition at line 124 of file divergence_simcomp.f90.

Here is the caller graph for this function:

subroutine divergence_simcomp::divergence_init_from_controllers	(	class(divergence_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*), dimension(3)	field_names,
		character(len=*)	computed_field,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

private

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
field_names	The name of the fields to compute the divergence of.
computed_field	The base name of the divergence field components.
filename	The name of the file save the fields to. Optional, if not
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 148 of file divergence_simcomp.f90.

subroutine divergence_simcomp::divergence_init_from_controllers_properties	(	class(divergence_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*), dimension(3)	field_names,
		character(len=*)	computed_field,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

private

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
field_names	The name of the field to compute the divergence of.
computed_field	The base name of the divergence field components.
filename	The name of the file save the fields to. Optional, if not provided, fields are added to the main output file.
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 190 of file divergence_simcomp.f90.

subroutine divergence_simcomp::divergence_init_from_json	(	class(divergence_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Definition at line 93 of file divergence_simcomp.f90.

Here is the call graph for this function:
