dynamic_smagorinsky_cpu Module Reference

Implements the CPU kernel for the dynamic_smagorinsky_t type.

Functions/Subroutines
subroutine, public	dynamic_smagorinsky_compute_cpu (if_ext, t, tstep, coef, nut, delta, c_dyn, test_filter, mij, lij, num, den)
	Compute eddy viscosity on the CPU.
subroutine	compute_lij_cpu (lij, u, v, w, test_filter, n)
	Compute Germano Identity on the CPU.
subroutine	compute_mij_cpu (mij, s11, s22, s33, s12, s13, s23, s_abs, test_filter, delta, n)
	Compute M_ij on the CPU.
subroutine	compute_num_den_cpu (num, den, lij, mij, alpha, n)
	Compute numerator and denominator for c_dyn on the CPU.

Function/Subroutine Documentation

compute_lij_cpu()

subroutine dynamic_smagorinsky_cpu::compute_lij_cpu ( type(field_t), dimension(6), intent(inout)  lij, type(field_t), intent(in), pointer  u, type(field_t), intent(in), pointer  v, type(field_t), intent(in), pointer  w, type(elementwise_filter_t), intent(inout)  test_filter, integer, intent(in)  n  )

private

---

L_ij = u_i*u_j - u_i*u_j

Parameters

lij	The Germano identity.
u	x-velocity resolved (only filtered once)
v	y-velocity resolved (only filtered once)
w	z-velocity resolved (only filtered once)
test_filter
n

filtered u,v,w by the test filter

Definition at line 170 of file dynamic_smagorinsky_cpu.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

compute_mij_cpu()

subroutine dynamic_smagorinsky_cpu::compute_mij_cpu ( type(field_t), dimension(6), intent(inout)  mij, type(field_t), intent(inout)  s11, type(field_t), intent(inout)  s22, type(field_t), intent(inout)  s33, type(field_t), intent(inout)  s12, type(field_t), intent(inout)  s13, type(field_t), intent(inout)  s23, type(field_t), intent(inout)  s_abs, type(elementwise_filter_t), intent(inout)  test_filter, type(field_t), intent(in)  delta, integer, intent(in)  n  )

private

---

M_ij = ((delta_test/delta)^2 s_abs*s_ij - s_abs*s_ij)*(delta^2)

Parameters

Mij
s11
s22
s33
s12
s13
s23
s_abs
test_filter
n

Definition at line 240 of file dynamic_smagorinsky_cpu.f90.

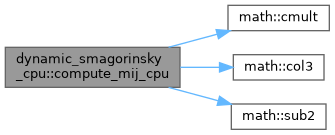

Here is the call graph for this function:

Here is the caller graph for this function:

compute_num_den_cpu()

subroutine dynamic_smagorinsky_cpu::compute_num_den_cpu ( type(field_t), intent(inout)  num, type(field_t), intent(inout)  den, type(field_t), dimension(6), intent(in)  lij, type(field_t), dimension(6), intent(in)  mij, real(kind=rp), intent(in)  alpha, integer, intent(in)  n  )

private

Parameters

num	The numerator in the expression of c_dyn, i.e. <mij*lij>
den	The denominator in the expression of c_dyn, i.e. <mij*mij>
lij	The Germano identity.
mij
alpha	The moving average coefficient
n

Definition at line 340 of file dynamic_smagorinsky_cpu.f90.

Here is the caller graph for this function:

dynamic_smagorinsky_compute_cpu()

subroutine, public dynamic_smagorinsky_cpu::dynamic_smagorinsky_compute_cpu	(	logical, intent(in)	if_ext,
		real(kind=rp), intent(in)	t,
		integer, intent(in)	tstep,
		type(coef_t), intent(in)	coef,
		type(field_t), intent(inout)	nut,
		type(field_t), intent(in)	delta,
		type(field_t), intent(inout)	c_dyn,
		type(elementwise_filter_t), intent(inout)	test_filter,
		type(field_t), dimension(6), intent(inout)	mij,
		type(field_t), dimension(6), intent(inout)	lij,
		type(field_t), intent(inout)	num,
		type(field_t), intent(inout)	den
	)

Parameters

if_ext	If extrapolate the velocity field to evaluate
t	The time value.
tstep	The current time-step.
coef	SEM coefficients.
nut	The SGS viscosity array.
delta	The LES lengthscale.
c_dyn	The DS model coefficient
test_filter
mij
lij	The Germano identity.
num	The numerator in the expression of c_dyn, i.e. <mij*lij>
den	The denominator in the expression of c_dyn, i.e. <mij*mij>

Definition at line 65 of file dynamic_smagorinsky_cpu.f90.

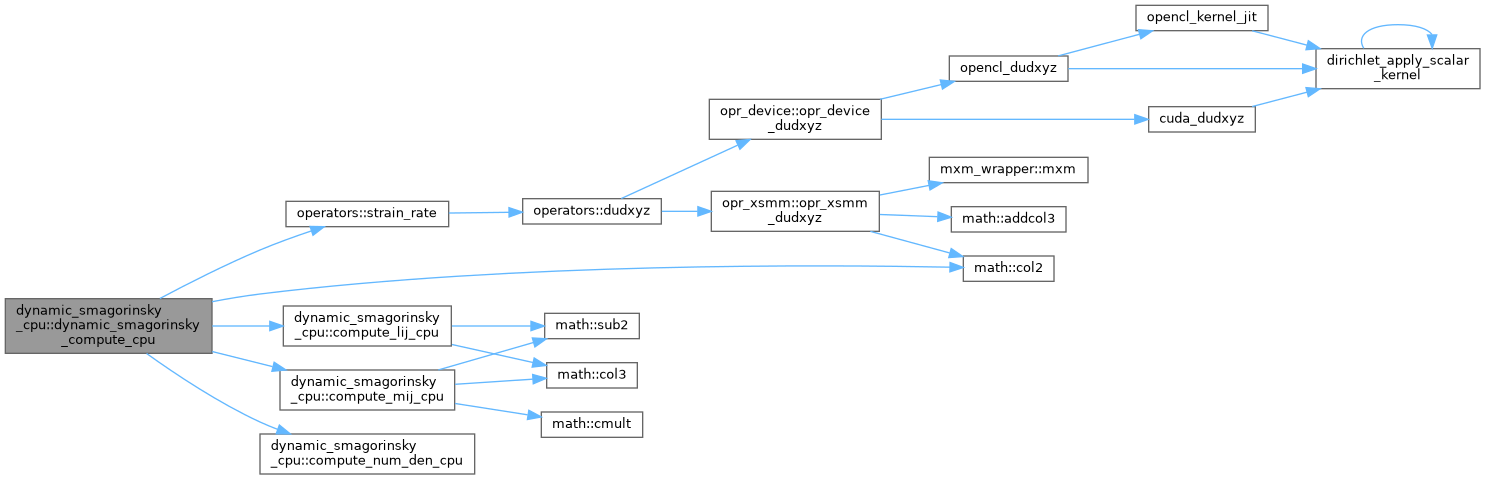

Here is the call graph for this function:
