Global interpolation communication method. More...

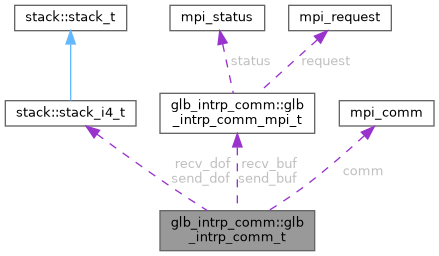

Collaboration diagram for glb_intrp_comm::glb_intrp_comm_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, send_pe, recv_pe, comm)
	Initialise MPI based communication method.

procedure, pass(this)	free (this)
	Deallocate MPI based communication method.

procedure, pass(this)	init_dofs (this, comm_size)

procedure, pass(this)	free_dofs (this)

procedure, pass(this)	init_order (this, send_pe, recv_pe)
	Obtains which ranks to send and receive data from.

procedure, pass(this)	free_order (this)

procedure, pass(this)	nbwait_no_op (this)
	Wait for non-blocking operations.

procedure, pass(this)	sendrecv (this, send, recv, n_send, n_recv)
	Non-blocking sendrecv.

Public Attributes
type(stack_i4_t), dimension(:), allocatable	send_dof
	A list of stacks of dof indices local to this process to send to rank_i.

type(stack_i4_t), dimension(:), allocatable	recv_dof
	recv_dof(rank_i) is a stack of dof indices local to this process to receive from rank_i. size(recv_dof) == pe_size

integer	pe_size
	Size of communicator.

integer, dimension(:), allocatable	send_pe
	Array of ranks that this process should send to.

integer, dimension(:), allocatable	recv_pe
	array of ranks that this process will receive messages from

type(glb_intrp_comm_mpi_t), dimension(:), allocatable	send_buf
	Comm. buffers for send operations.

type(glb_intrp_comm_mpi_t), dimension(:), allocatable	recv_buf
	Comm. buffers for recv operations.

type(mpi_comm)	comm
	Communicator.

Detailed Description

Member Function/Subroutine Documentation

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::free ( class(glb_intrp_comm_t), intent(inout) this )

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::free_dofs ( class(glb_intrp_comm_t), intent(inout) this )

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::free_order ( class(glb_intrp_comm_t), intent(inout) this )

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::init	(	class(glb_intrp_comm_t), intent(inout)	this,
		type(stack_i4_t), intent(inout)	send_pe,
		type(stack_i4_t), intent(inout)	recv_pe,
		type(mpi_comm), intent(inout), optional	comm
	)

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::init_dofs	(	class(glb_intrp_comm_t), intent(inout)	this,
		integer, intent(in), optional	comm_size
	)

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::init_order	(	class(glb_intrp_comm_t), intent(inout)	this,
		type(stack_i4_t), intent(inout)	send_pe,
		type(stack_i4_t), intent(inout)	recv_pe
	)

Parameters

send_pe,only	contains rank ids this process should send to
recv_pe,only	the ranks this process should receive from

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::nbwait_no_op ( class(glb_intrp_comm_t), intent(inout) this )

procedure, pass(this) glb_intrp_comm::glb_intrp_comm_t::sendrecv	(	class(glb_intrp_comm_t), intent(inout)	this,
		real(kind=rp), dimension(n_send), intent(inout)	send,
		real(kind=rp), dimension(n_recv), intent(inout)	recv,
		integer, intent(in)	n_send,
		integer, intent(in)	n_recv
	)
