operators::dudxyz Interface Reference

Compute derivative of a scalar field along a single direction. More...

Public Member Functions
subroutine	dudxyz_r4 (du, u, dr, ds, dt, coef)
	Compute derivative of a scalar field along a single direction.
	opr_device_dudxyz
subroutine	dudxyz_f (du, u, dr, ds, dt, coef)
	Compute derivative of a scalar field along a single direction.

Detailed Description

Definition at line 78 of file operators.f90.

Member Function/Subroutine Documentation

dudxyz_f()

subroutine operators::dudxyz::dudxyz_f	(	type(field_t), intent(inout)	du,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	dr,
		type(field_t), intent(in)	ds,
		type(field_t), intent(in)	dt,
		type(coef_t), intent(in)	coef
	)

Parameters

du	Holds the resulting derivative values.
u	The values of the field.
dr	The derivative of r with respect to the chosen direction.
ds	The derivative of s with respect to the chosen direction.
dt	The derivative of t with respect to the chosen direction.
coef	The SEM coefficients.

Definition at line 167 of file operators.f90.

Here is the call graph for this function:

dudxyz_r4()

subroutine operators::dudxyz::dudxyz_r4	(	real(kind=rp), dimension(:,:,:,:), intent(inout), contiguous	du,
		real(kind=rp), dimension(:,:,:,:), intent(in), contiguous	u,
		real(kind=rp), dimension(:,:,:,:), intent(in), contiguous	dr,
		real(kind=rp), dimension(:,:,:,:), intent(in), contiguous	ds,
		real(kind=rp), dimension(:,:,:,:), intent(in), contiguous	dt,
		type(coef_t), intent(in)	coef
	)

Parameters

du	Holds the resulting derivative values.
u	The values of the field.
dr	The derivative of r with respect to the chosen direction.
ds	The derivative of s with respect to the chosen direction.
dt	The derivative of t with respect to the chosen direction.
coef	The SEM coefficients.

Definition at line 133 of file operators.f90.

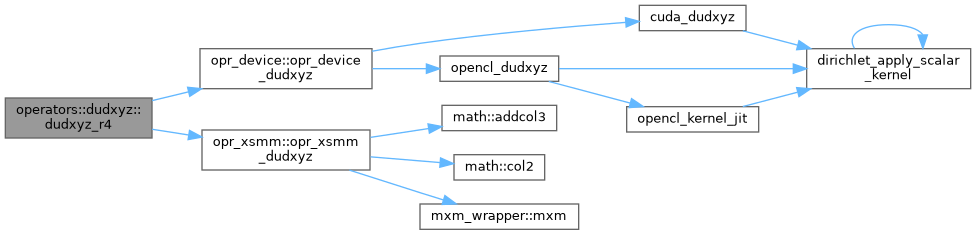

Here is the call graph for this function:

opr_device_dudxyz()

operators::dudxyz::opr_device_dudxyz

---

The documentation for this interface was generated from the following file:

• /home/runner/work/neko/neko/src/math/operators.f90
