expression_dirichlet_vector Module Reference

Defines a vector valued Dirichlet condition prescribed by mathematical expressions.

Data Types
type	expression_dirichlet_vector_t
	Vector valued Dirichlet condition, with one mathematical expression per component, given in the case file. More...

Functions/Subroutines
subroutine	expression_dirichlet_vector_init (this, coef, json)
	Constructor from JSON.
subroutine	expression_dirichlet_vector_init_from_components (this, coef, str_x, str_y, str_z)
	Constructor from components.
subroutine	expression_dirichlet_vector_free (this)
	Destructor.
subroutine	expression_dirichlet_vector_finalize (this, only_facets)
	Finalize.
subroutine	expression_dirichlet_vector_update (this, time, strm)
	Bring the values up to date with the current time.
subroutine	expression_dirichlet_vector_apply_scalar (this, x, n, time, strong)
	(No-op) Apply scalar.
subroutine	expression_dirichlet_vector_apply_scalar_dev (this, x_d, time, strong, strm)
	(No-op) Apply scalar (device version).
subroutine	expression_dirichlet_vector_apply_vector (this, x, y, z, n, time, strong)
	Apply the condition to a vector field.
subroutine	expression_dirichlet_vector_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Apply the condition to a vector field (device version).

Function/Subroutine Documentation

expression_dirichlet_vector_apply_scalar()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_apply_scalar ( class(expression_dirichlet_vector_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

[in,out]	x	The field onto which to apply the values.
[in]	n	The size of x.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.

Definition at line 309 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_apply_scalar_dev()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_apply_scalar_dev ( class(expression_dirichlet_vector_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

[in,out]	x_d	Device pointer to the field.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.
[in,out]	strm	The device stream to issue the work on.

Definition at line 322 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_apply_vector()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_apply_vector ( class(expression_dirichlet_vector_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

[in,out]	x	The x-component of the field.
[in,out]	y	The y-component of the field.
[in,out]	z	The z-component of the field.
[in]	n	The size of x, y and z.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.

Definition at line 338 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_apply_vector_dev()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_apply_vector_dev ( class(expression_dirichlet_vector_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

[in,out]	x_d	Device pointer to the x-component of the field.
[in,out]	y_d	Device pointer to the y-component of the field.
[in,out]	z_d	Device pointer to the z-component of the field.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.
[in,out]	strm	The device stream to issue the work on.

Definition at line 386 of file expression_dirichlet_vector.f90.

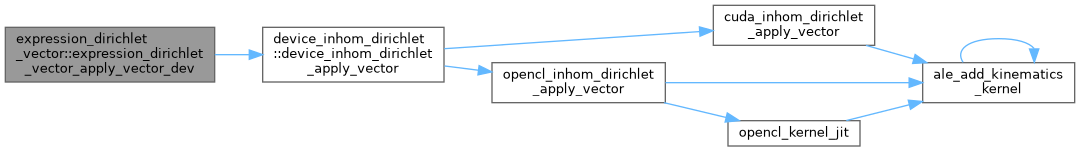

Here is the call graph for this function:

expression_dirichlet_vector_finalize()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_finalize ( class(expression_dirichlet_vector_t), intent(inout), target  this, logical, intent(in), optional  only_facets  )

private

Tabulates the coordinates of the points of the mask and evaluates whichever of the three expressions do not depend on time.

Parameters

[in]

only_facets

Whether to only mark the facets of the mask.

Definition at line 190 of file expression_dirichlet_vector.f90.

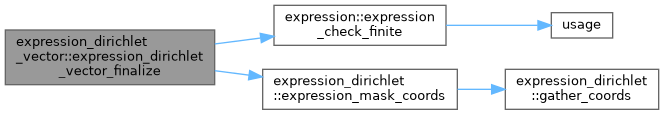

Here is the call graph for this function:

expression_dirichlet_vector_free()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_free ( class(expression_dirichlet_vector_t), intent(inout), target  this )

private

Definition at line 149 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_init()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_init	(	class(expression_dirichlet_vector_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 102 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_init_from_components()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_init_from_components ( class(expression_dirichlet_vector_t), intent(inout), target  this, type(coef_t), intent(in), target  coef, character(len=*), intent(in)  str_x, character(len=*), intent(in)  str_y, character(len=*), intent(in)  str_z  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	str_x	The expression for the x-component.
[in]	str_y	The expression for the y-component.
[in]	str_z	The expression for the z-component.

Definition at line 125 of file expression_dirichlet_vector.f90.

expression_dirichlet_vector_update()

subroutine expression_dirichlet_vector::expression_dirichlet_vector_update ( class(expression_dirichlet_vector_t), intent(inout)  this, type(time_state_t), intent(in), optional  time, type(c_ptr), intent(inout), optional  strm  )

private

A no-op unless at least one of the expressions depends on time and the values have not already been updated in this timestep. Only the time dependent components are re-evaluated, but all three are copied to the device, since they share one transfer anyway.

Parameters

[in]	time	The current time state.
[in,out]	strm	The device stream to issue the copies on.

Definition at line 251 of file expression_dirichlet_vector.f90.

Here is the call graph for this function:
