wall_distance_sampler::wall_distance_sampler_t Type Reference

Implements wall-normal sampling at prescribed physical distances. More...

Inheritance diagram for wall_distance_sampler::wall_distance_sampler_t:

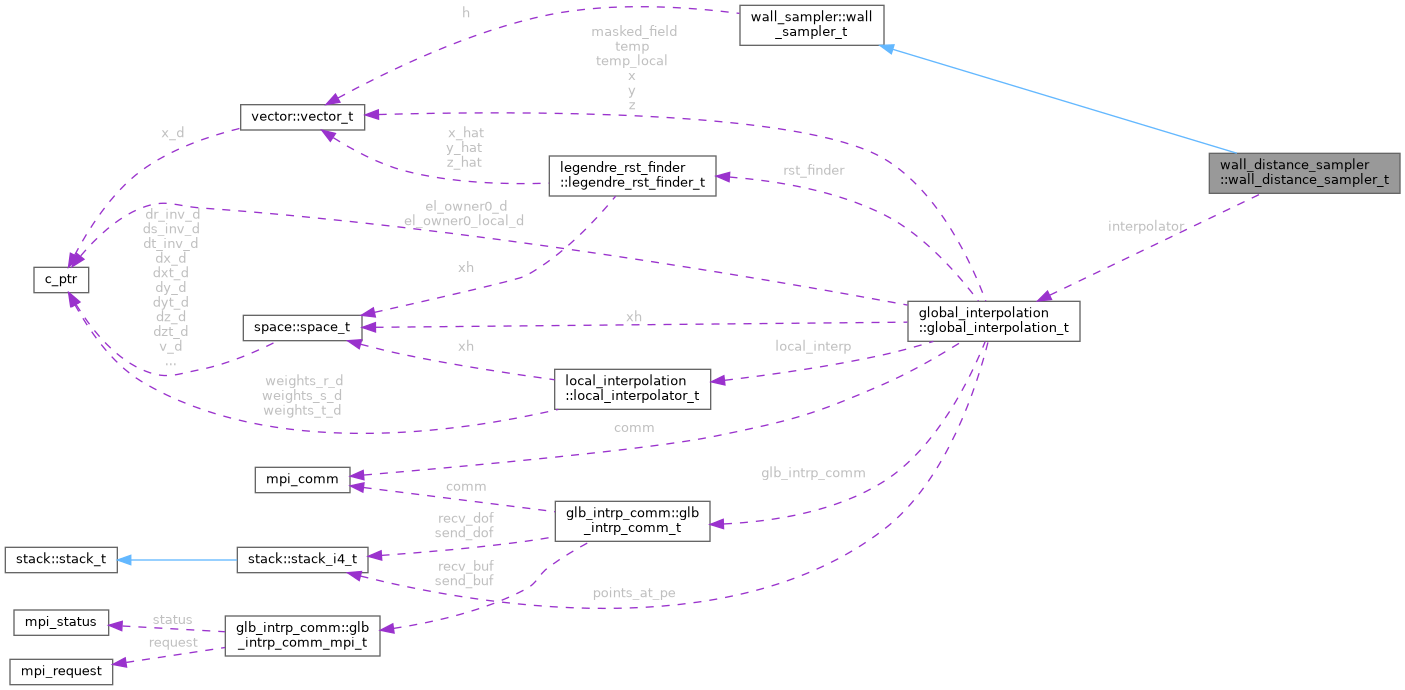

Collaboration diagram for wall_distance_sampler::wall_distance_sampler_t:

Public Member Functions
procedure, pass(this)	init (this, json)
	Partial constructor from JSON.
procedure, pass(this)	init_from_distances (this, distances, output_h)
	Partial constructor from physical wall-normal distances.
procedure, pass(this)	init_from_components (this, coef, distances, xyz, h, output_h)
	Fully construct a sampler from its resolved components.
procedure, pass(this)	finalize (this, coef, msk, facet, n_x, n_y, n_z, bc_name, user)
	Finalize by computing sampling point locations and building the interpolator.
procedure, pass(this)	sample (this, field, values)
	Sample the solution field at the sampling points.
procedure, pass(this)	free (this)
	Destructor.
procedure, pass(this)	init_base (this, n_nodes, n_samples, h, output_h)
	Initialise state common to all fully constructed wall samplers.
procedure, pass(this)	output_h (this, coef, msk, bc_name)
	Write the wall-normal sampling distance as a field file.
procedure(wall_sampler_init), deferred, pass	init (this, json)
	Parse sampler-specific configuration from JSON.
procedure(wall_sampler_finalize), deferred, pass	finalize (this, coef, msk, facet, n_x, n_y, n_z, bc_name, user)
	Complete sampler setup after geometric and wall-node data are known.
procedure(wall_sampler_sample), deferred, pass	sample (this, field, values)
	Sample the solution field at the sampling points.
procedure(wall_sampler_free), deferred, pass	free (this)
	Release sampler resources.

Public Attributes
real(kind=rp), dimension(:), allocatable	distances
	Physical distances from the wall for each sampling point.
real(kind=rp), dimension(:,:), allocatable	xyz
	Sampling point locations with shape (3, n_nodes * n_samples).
type(global_interpolation_t)	interpolator
	Interpolator for sampling the solution field at the sampling points.
integer	n_nodes = 0
	Number of wall nodes local to this rank.
integer	n_samples = 0
	Number of sampling points associated with each wall node.
logical	user_values = .false.
	True when sampling values are supplied by a user callback.
logical	output_h_enabled = .true.
	True when the wall-normal sampling distance is written to a field.
type(vector_t)	h
	Wall-normal distance of every sampling point. The layout is (node - 1) * n_samples + sample.

Private Member Functions
procedure, pass(this), private	init_from_user (this, n_samples, output_h)
	Partial constructor for user-provided sampling distances.

Detailed Description

Definition at line 51 of file wall_distance_sampler.f90.

Member Function/Subroutine Documentation

finalize() [1/2]

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::finalize	(	class(wall_distance_sampler_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		integer, dimension(0:), intent(in)	msk,
		integer, dimension(0:), intent(in)	facet,
		type(vector_t), intent(in)	n_x,
		type(vector_t), intent(in)	n_y,
		type(vector_t), intent(in)	n_z,
		character(len=*), intent(in), optional	bc_name,
		type(user_t), intent(in), optional, target	user
	)

Parameters

coef	SEM coefficients.
msk	Mask selecting local wall nodes.
facet	Facet index for each selected wall node.
n_x	X-component of wall-normal vectors at wall nodes.
n_y	Y-component of wall-normal vectors at wall nodes.
n_z	Z-component of wall-normal vectors at wall nodes.
bc_name	Name of the owning boundary condition for user values.
user	User interface providing the distance-sampling callback.

Definition at line 72 of file wall_distance_sampler.f90.

finalize() [2/2]

procedure(wall_sampler_finalize), deferred, pass wall_sampler::wall_sampler_t::finalize ( class(wall_sampler_t), intent(inout)  this, type(coef_t), intent(in)  coef, integer, dimension(0:), intent(in)  msk, integer, dimension(0:), intent(in)  facet, type(vector_t), intent(in)  n_x, type(vector_t), intent(in)  n_y, type(vector_t), intent(in)  n_z, character(len=*), intent(in), optional  bc_name, type(user_t), intent(in), optional, target  user  )

pure virtualinherited

Definition at line 73 of file wall_sampler.f90.

free() [1/2]

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::free

(

class(wall_distance_sampler_t), intent(inout)

this

)

Definition at line 76 of file wall_distance_sampler.f90.

free() [2/2]

procedure(wall_sampler_free), deferred, pass wall_sampler::wall_sampler_t::free ( class(wall_sampler_t), intent(inout)  this )

pure virtualinherited

Definition at line 77 of file wall_sampler.f90.

init() [1/2]

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::init	(	class(wall_distance_sampler_t), intent(inout)	this,
		type(json_file), intent(inout)	json
	)

Parameters

json	Sampler configuration data.

Definition at line 60 of file wall_distance_sampler.f90.

init() [2/2]

procedure(wall_sampler_init), deferred, pass wall_sampler::wall_sampler_t::init ( class(wall_sampler_t), intent(inout)  this, type(json_file), intent(inout)  json  )

pure virtualinherited

Definition at line 71 of file wall_sampler.f90.

init_base()

procedure, pass(this) wall_sampler::wall_sampler_t::init_base ( class(wall_sampler_t), intent(inout)  this, integer, intent(in)  n_nodes, integer, intent(in)  n_samples, type(vector_t), intent(in)  h, logical, intent(in)  output_h  )

inherited

Parameters

n_nodes	Number of local wall nodes.
n_samples	Number of samples at each wall node.
h	Wall-normal distances in sampler ordering.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 67 of file wall_sampler.f90.

init_from_components()

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::init_from_components	(	class(wall_distance_sampler_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		real(kind=rp), dimension(:), intent(in)	distances,
		real(kind=rp), dimension(:,:), intent(in)	xyz,
		type(vector_t), intent(in)	h,
		logical, intent(in)	output_h
	)

Note

No compatibility checks are performed, input data is assumed to be valid. Checking would require geometric information.

Parameters

coef	SEM coefficients used to construct global interpolation.
distances	Physical distances, one for each sample per wall node.
xyz	Sampling locations with shape (3, n_nodes * n_samples).
h	Wall-normal distances in sampler ordering.
output_h	Sampling-distance diagnostic output flag.

Definition at line 68 of file wall_distance_sampler.f90.

init_from_distances()

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::init_from_distances	(	class(wall_distance_sampler_t), intent(inout)	this,
		real(kind=rp), dimension(:), intent(in)	distances,
		logical, intent(in)	output_h
	)

Parameters

distances	Positive distances, one for each sampling point per wall node.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 62 of file wall_distance_sampler.f90.

init_from_user()

procedure, pass(this), private wall_distance_sampler::wall_distance_sampler_t::init_from_user ( class(wall_distance_sampler_t), intent(inout)  this, integer, intent(in)  n_samples, logical, intent(in)  output_h  )

private

Parameters

n_samples	Number of samples per wall node.
output_h	Whether to write the sampling-distance diagnostic.

Definition at line 65 of file wall_distance_sampler.f90.

output_h()

procedure, pass(this) wall_sampler::wall_sampler_t::output_h ( class(wall_sampler_t), intent(inout)  this, type(coef_t), intent(in)  coef, integer, dimension(0:), intent(in)  msk, character(len=*), intent(in)  bc_name  )

inherited

The first sample is written to retain a scalar diagnostic field when samplers support multiple points per wall node.

Parameters

coef	SEM coefficients defining the output field.
msk	Mask selecting local wall nodes.
bc_name	Name of the owning boundary condition.

Definition at line 69 of file wall_sampler.f90.

sample() [1/2]

procedure, pass(this) wall_distance_sampler::wall_distance_sampler_t::sample	(	class(wall_distance_sampler_t), intent(inout)	this,
		type(field_t), intent(inout)	field,
		type(vector_t), intent(inout)	values
	)

Parameters

field	Field to be sampled.
values	Output sampled values in sampler ordering.

Definition at line 74 of file wall_distance_sampler.f90.

sample() [2/2]

procedure(wall_sampler_sample), deferred, pass wall_sampler::wall_sampler_t::sample ( class(wall_sampler_t), intent(inout)  this, type(field_t), intent(inout)  field, type(vector_t), intent(inout)  values  )

pure virtualinherited

Definition at line 75 of file wall_sampler.f90.

Member Data Documentation

distances

real(kind=rp), dimension(:), allocatable wall_distance_sampler::wall_distance_sampler_t::distances

Definition at line 53 of file wall_distance_sampler.f90.

h

type(vector_t) wall_sampler::wall_sampler_t::h

inherited

Definition at line 64 of file wall_sampler.f90.

interpolator

type(global_interpolation_t) wall_distance_sampler::wall_distance_sampler_t::interpolator

Definition at line 57 of file wall_distance_sampler.f90.

n_nodes

integer wall_sampler::wall_sampler_t::n_nodes = 0

inherited

Definition at line 55 of file wall_sampler.f90.

n_samples

integer wall_sampler::wall_sampler_t::n_samples = 0

inherited

Definition at line 57 of file wall_sampler.f90.

output_h_enabled

logical wall_sampler::wall_sampler_t::output_h_enabled = .true.

inherited

Definition at line 61 of file wall_sampler.f90.

user_values

logical wall_sampler::wall_sampler_t::user_values = .false.

inherited

Definition at line 59 of file wall_sampler.f90.

xyz

real(kind=rp), dimension(:,:), allocatable wall_distance_sampler::wall_distance_sampler_t::xyz

Definition at line 55 of file wall_distance_sampler.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/wall_models/wall_distance_sampler.f90
