expression_dirichlet Module Reference

Defines a Dirichlet condition prescribed by a mathematical expression.

Data Types
type	expression_dirichlet_t
	Dirichlet condition \( x = g(x, y, z, t) \) on \(\partial \Omega\), where \( g \) is a mathematical expression given in the case file. More...

Functions/Subroutines
subroutine	expression_dirichlet_init (this, coef, json)
	Constructor from JSON.
subroutine	expression_dirichlet_init_from_components (this, coef, str)
	Constructor from components.
subroutine	expression_dirichlet_free (this)
	Destructor.
subroutine	expression_dirichlet_finalize (this, only_facets)
	Finalize.
subroutine	expression_dirichlet_update (this, time, strm)
	Bring g up to date with the current time.
subroutine	expression_dirichlet_apply_scalar (this, x, n, time, strong)
	Apply the condition to a scalar field.
subroutine	expression_dirichlet_apply_vector (this, x, y, z, n, time, strong)
	(No-op) Apply vector.
subroutine	expression_dirichlet_apply_scalar_dev (this, x_d, time, strong, strm)
	Apply the condition to a scalar field (device version).
subroutine	expression_dirichlet_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	(No-op) Apply vector (device version).
subroutine, public	expression_mask_coords (bc, xm, ym, zm)
	Tabulate the coordinates of the points of the mask of a boundary condition.
subroutine	gather_coords (msk, m, x, y, z, n, xm, ym, zm)
	Gather the coordinates of the masked points into contiguous arrays.

Function/Subroutine Documentation

expression_dirichlet_apply_scalar()

subroutine expression_dirichlet::expression_dirichlet_apply_scalar ( class(expression_dirichlet_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

[in,out]	x	The field onto which to apply the values.
[in]	n	The size of x.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.

Definition at line 238 of file expression_dirichlet.f90.

expression_dirichlet_apply_scalar_dev()

subroutine expression_dirichlet::expression_dirichlet_apply_scalar_dev ( class(expression_dirichlet_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

[in,out]	x_d	Device pointer to the field.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.
[in,out]	strm	The device stream to issue the work on.

Definition at line 294 of file expression_dirichlet.f90.

Here is the call graph for this function:

expression_dirichlet_apply_vector()

subroutine expression_dirichlet::expression_dirichlet_apply_vector ( class(expression_dirichlet_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

[in,out]	x	The x-component of the field.
[in,out]	y	The y-component of the field.
[in,out]	z	The z-component of the field.
[in]	n	The size of x, y and z.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.

Definition at line 279 of file expression_dirichlet.f90.

expression_dirichlet_apply_vector_dev()

subroutine expression_dirichlet::expression_dirichlet_apply_vector_dev ( class(expression_dirichlet_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

[in,out]	x_d	Device pointer to the x-component of the field.
[in,out]	y_d	Device pointer to the y-component of the field.
[in,out]	z_d	Device pointer to the z-component of the field.
[in]	time	The current time state.
[in]	strong	Whether the condition is applied strongly.
[in,out]	strm	The device stream to issue the work on.

Definition at line 326 of file expression_dirichlet.f90.

expression_dirichlet_finalize()

subroutine expression_dirichlet::expression_dirichlet_finalize ( class(expression_dirichlet_t), intent(inout), target  this, logical, intent(in), optional  only_facets  )

private

Tabulates the coordinates of the points of the mask, which is only known once the mask has been built, and evaluates the expression right away if it does not depend on time.

Parameters

[in]

only_facets

Whether to only mark the facets of the mask.

Definition at line 160 of file expression_dirichlet.f90.

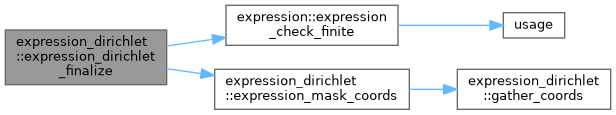

Here is the call graph for this function:

expression_dirichlet_free()

subroutine expression_dirichlet::expression_dirichlet_free ( class(expression_dirichlet_t), intent(inout), target  this )

private

Definition at line 136 of file expression_dirichlet.f90.

expression_dirichlet_init()

subroutine expression_dirichlet::expression_dirichlet_init	(	class(expression_dirichlet_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 103 of file expression_dirichlet.f90.

expression_dirichlet_init_from_components()

subroutine expression_dirichlet::expression_dirichlet_init_from_components ( class(expression_dirichlet_t), intent(inout), target  this, type(coef_t), intent(in), target  coef, character(len=*), intent(in)  str  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	str	The expression prescribing the boundary value.

Definition at line 118 of file expression_dirichlet.f90.

expression_dirichlet_update()

subroutine expression_dirichlet::expression_dirichlet_update ( class(expression_dirichlet_t), intent(inout)  this, type(time_state_t), intent(in), optional  time, type(c_ptr), intent(inout), optional  strm  )

private

A no-op unless the expression depends on time and the values have not already been updated in this timestep.

Parameters

[in]	time	The current time state.
[in,out]	strm	The device stream to issue the copy on.

Definition at line 202 of file expression_dirichlet.f90.

Here is the call graph for this function:

expression_mask_coords()

subroutine, public expression_dirichlet::expression_mask_coords	(	class(bc_t), intent(in)	bc,
		real(kind=rp), dimension(:), intent(inout)	xm,
		real(kind=rp), dimension(:), intent(inout)	ym,
		real(kind=rp), dimension(:), intent(inout)	zm
	)

Parameters

[in]	bc	The boundary condition, which must have been finalized.
[in,out]	xm	The x-coordinates of the points of the mask.
[in,out]	ym	The y-coordinates of the points of the mask.
[in,out]	zm	The z-coordinates of the points of the mask.

Definition at line 343 of file expression_dirichlet.f90.

Here is the call graph for this function:

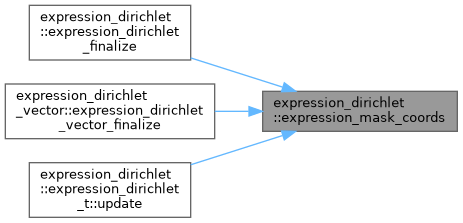

Here is the caller graph for this function:

gather_coords()

subroutine expression_dirichlet::gather_coords ( integer, dimension(0:m), intent(in)  msk, integer, intent(in)  m, real(kind=rp), dimension(n), intent(in)  x, real(kind=rp), dimension(n), intent(in)  y, real(kind=rp), dimension(n), intent(in)  z, integer, intent(in)  n, real(kind=rp), dimension(m), intent(inout)  xm, real(kind=rp), dimension(m), intent(inout)  ym, real(kind=rp), dimension(m), intent(inout)  zm  )

private

Split out from expression_mask_coords so that the rank 4 coordinate arrays of the dofmap are linearised by the call.

Parameters

[in]	msk	The mask, where msk(0) is its length.
[in]	m	The number of masked points.
[in]	x	The x-coordinates of every point of the dofmap.
[in]	y	The y-coordinates of every point of the dofmap.
[in]	z	The z-coordinates of every point of the dofmap.
[in]	n	The number of points of the dofmap.
[in,out]	xm	The x-coordinates of the masked points.
[in,out]	ym	The y-coordinates of the masked points.
[in,out]	zm	The z-coordinates of the masked points.

Definition at line 366 of file expression_dirichlet.f90.

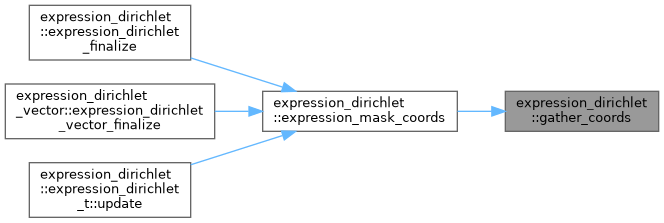

Here is the caller graph for this function:
