bicgstab_cpld Module Reference

Provides a coupled CPU implementation of the BiCGStab method.

Data Types
type	bicgstab_cpld_t
	Coupled right-preconditioned CPU BiCGStab method. More...

Functions/Subroutines
subroutine	bicgstab_cpld_init (this, n, max_iter, m, rel_tol, abs_tol, monitor)
	Initialise a coupled CPU BiCGStab solver.
subroutine	bicgstab_cpld_free (this)
	Free a coupled CPU BiCGStab solver.
type(ksp_monitor_t) function	bicgstab_cpld_solve_scalar (this, ax, x, f, n, coef, bc_projector, gs_h, niter)
	Reject a scalar solve with a coupled BiCGStab solver.
type(ksp_monitor_t) function, dimension(3)	bicgstab_cpld_solve (this, ax, x, y, z, fx, fy, fz, n, coef, bc_projector, gs_h, niter)
	Solve a three-component coupled system with the CPU BiCGStab method.
subroutine	bicgstab_cpld_check_inner_product (inner_product, norm_a, norm_b, quantity)
	Check an inner product for a coupled BiCGStab breakdown.
real(kind=rp) function	bicgstab_cpld_sqrt (value, quantity)
	Return the square root of a valid combined squared norm.
subroutine	bicgstab_cpld_assemble (vector, n, coef, bc_projector, gs_h)
	Assemble a coupled operator result and project its boundary data.
subroutine	bicgstab_cpld_product (product, ax, ay, az, bx, by, bz, mult, n)
	Compute a coupled weighted inner product in one global reduction.
subroutine	bicgstab_cpld_product_and_norm (product, norm_squared, ax, ay, az, bx, by, bz, mult, n)
	Compute a coupled inner product and squared norm in one reduction.

Function/Subroutine Documentation

bicgstab_cpld_assemble()

subroutine bicgstab_cpld::bicgstab_cpld_assemble ( real(kind=rp), dimension(n, 3), intent(inout)  vector, integer, intent(in)  n, type(coef_t), intent(inout)  coef, class(vector_bc_projector_t), intent(inout)  bc_projector, type(gs_t), intent(inout)  gs_h  )

private

Parameters

vector	Three-component operator result.
n	Number of degrees of freedom per component.
coef	Spectral element coefficients used for cyclic rotation.
bc_projector	Projector for vector Dirichlet boundary nodes.
gs_h	Gather-scatter handle used to assemble the vector.

Definition at line 491 of file bicgstab_coupled.f90.

Here is the caller graph for this function:

bicgstab_cpld_check_inner_product()

subroutine bicgstab_cpld::bicgstab_cpld_check_inner_product ( real(kind=rp), intent(in)  inner_product, real(kind=rp), intent(in)  norm_a, real(kind=rp), intent(in)  norm_b, character(len=*), intent(in)  quantity  )

private

Parameters

inner_product	Combined inner product of the two vectors.
norm_a	Combined norm of the first vector.
norm_b	Combined norm of the second vector.
quantity	Name of the algorithmic quantity for error reporting.

Definition at line 444 of file bicgstab_coupled.f90.

Here is the caller graph for this function:

bicgstab_cpld_free()

subroutine bicgstab_cpld::bicgstab_cpld_free ( class(bicgstab_cpld_t), intent(inout)  this )

private

Definition at line 130 of file bicgstab_coupled.f90.

bicgstab_cpld_init()

subroutine bicgstab_cpld::bicgstab_cpld_init	(	class(bicgstab_cpld_t), intent(inout), target	this,
		integer, intent(in)	n,
		integer, intent(in)	max_iter,
		class(pc_t), intent(in), optional, target	m,
		real(kind=rp), intent(in), optional	rel_tol,
		real(kind=rp), intent(in), optional	abs_tol,
		logical, intent(in), optional	monitor
	)

Parameters

n	Number of degrees of freedom per component.
max_iter	Maximum number of iterations.
M	Optional preconditioner. An identity preconditioner is used if absent.
rel_tol	Optional relative convergence tolerance.
abs_tol	Optional absolute convergence tolerance.
monitor	Optional switch for logging the residual at each iteration.

Definition at line 93 of file bicgstab_coupled.f90.

bicgstab_cpld_product()

subroutine bicgstab_cpld::bicgstab_cpld_product ( real(kind=rp), intent(out)  product, real(kind=rp), dimension(n), intent(in)  ax, real(kind=rp), dimension(n), intent(in)  ay, real(kind=rp), dimension(n), intent(in)  az, real(kind=rp), dimension(n), intent(in)  bx, real(kind=rp), dimension(n), intent(in)  by, real(kind=rp), dimension(n), intent(in)  bz, real(kind=rp), dimension(n), intent(in)  mult, integer, intent(in)  n  )

private

Parameters

product	Combined weighted inner product.
ax	First component of the first vector.
ay	Second component of the first vector.
az	Third component of the first vector.
bx	First component of the second vector.
by	Second component of the second vector.
bz	Third component of the second vector.
mult	Spectral element multiplicity weights.
n	Number of degrees of freedom per component.

Definition at line 518 of file bicgstab_coupled.f90.

Here is the caller graph for this function:

bicgstab_cpld_product_and_norm()

subroutine bicgstab_cpld::bicgstab_cpld_product_and_norm ( real(kind=rp), intent(out)  product, real(kind=rp), intent(out)  norm_squared, real(kind=rp), dimension(n), intent(in)  ax, real(kind=rp), dimension(n), intent(in)  ay, real(kind=rp), dimension(n), intent(in)  az, real(kind=rp), dimension(n), intent(in)  bx, real(kind=rp), dimension(n), intent(in)  by, real(kind=rp), dimension(n), intent(in)  bz, real(kind=rp), dimension(n), intent(in)  mult, integer, intent(in)  n  )

private

Parameters

product	Combined weighted inner product of a and b.
norm_squared	Combined weighted squared norm of b.
ax	First component of a.
ay	Second component of a.
az	Third component of a.
bx	First component of b.
by	Second component of b.
bz	Third component of b.
mult	Spectral element multiplicity weights.
n	Number of degrees of freedom per component.

Definition at line 552 of file bicgstab_coupled.f90.

Here is the caller graph for this function:

bicgstab_cpld_solve()

type(ksp_monitor_t) function, dimension(3) bicgstab_cpld::bicgstab_cpld_solve ( class(bicgstab_cpld_t), intent(inout)  this, class(ax_t), intent(in)  ax, type(field_t), intent(inout)  x, type(field_t), intent(inout)  y, type(field_t), intent(inout)  z, real(kind=rp), dimension(n), intent(in)  fx, real(kind=rp), dimension(n), intent(in)  fy, real(kind=rp), dimension(n), intent(in)  fz, integer, intent(in)  n, type(coef_t), intent(inout)  coef, class(vector_bc_projector_t), intent(inout)  bc_projector, type(gs_t), intent(inout)  gs_h, integer, intent(in), optional  niter  )

private

The initial guesses are discarded. All inner products combine the three components, so the method advances one Krylov recurrence for the complete coupled system.

Parameters

Ax	Coupled linear operator.
x	Solution field for the first component.
y	Solution field for the second component.
z	Solution field for the third component.
fx	Right-hand side for the first component.
fy	Right-hand side for the second component.
fz	Right-hand side for the third component.
n	Number of degrees of freedom per component.
coef	Spectral element coefficients and multiplicity weights.
bc_projector	Projector for vector Dirichlet boundary nodes.
gs_h	Gather-scatter handle used to assemble operator results.
niter	Optional maximum number of iterations, overriding the configured value.

Returns

Identical combined convergence information for all components.

Definition at line 191 of file bicgstab_coupled.f90.

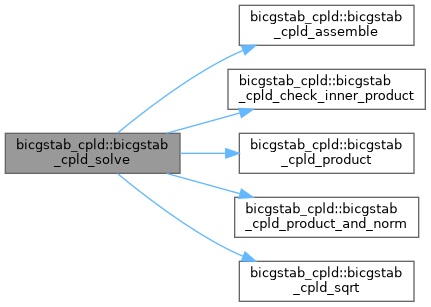

Here is the call graph for this function:

bicgstab_cpld_solve_scalar()

type(ksp_monitor_t) function bicgstab_cpld::bicgstab_cpld_solve_scalar ( class(bicgstab_cpld_t), intent(inout)  this, class(ax_t), intent(in)  ax, type(field_t), intent(inout)  x, real(kind=rp), dimension(n), intent(in)  f, integer, intent(in)  n, type(coef_t), intent(inout)  coef, class(scalar_bc_projector_t), intent(inout)  bc_projector, type(gs_t), intent(inout)  gs_h, integer, intent(in), optional  niter  )

private

Parameters

Ax	Linear operator.
x	Solution field.
f	Right-hand side.
n	Number of degrees of freedom.
coef	Spectral element coefficients and multiplicity weights.
bc_projector	Projector for Dirichlet boundary nodes.
gs_h	Gather-scatter handle used to assemble the operator result.
niter	Optional maximum number of iterations.

Returns

Unused convergence information.

Definition at line 150 of file bicgstab_coupled.f90.

bicgstab_cpld_sqrt()

real(kind=rp) function bicgstab_cpld::bicgstab_cpld_sqrt ( real(kind=rp), intent(in)  value, character(len=*), intent(in)  quantity  )

private

Parameters

value	Combined weighted squared norm.
quantity	Name of the vector for error reporting.

Returns

The non-negative square root.

Definition at line 472 of file bicgstab_coupled.f90.

Here is the caller graph for this function:
