scalar_stats Module Reference

Computes various statistics for the scalar fields. We use the Reynolds decomposition for a field u = + u' = U + u' Spatial derivatives i.e. du/dx we denote dudx.

Data Types
type	scalar_stats_t

Functions/Subroutines
subroutine	scalar_stats_init (this, coef, s, u, v, w, p, set)
	Constructor. Initialize the fields associated with scalar_stats.
subroutine	scalar_stats_update (this, k)
	Updates all fields with a new sample.
subroutine	scalar_stats_free (this)
	Destructor.
subroutine	scalar_stats_reset (this)
	Resets all the computed means values and sampling times to zero.
subroutine	scalar_stats_make_strong_grad (this)

Function/Subroutine Documentation

scalar_stats_free()

subroutine scalar_stats::scalar_stats_free ( class(scalar_stats_t), intent(inout)  this )

private

Definition at line 619 of file scalar_stats.f90.

scalar_stats_init()

subroutine scalar_stats::scalar_stats_init	(	class(scalar_stats_t), intent(inout), target	this,
		type(coef_t), optional, target	coef,
		type(field_t), intent(in), target	s,
		type(field_t), intent(in), target	u,
		type(field_t), intent(in), target	v,
		type(field_t), intent(in), target	w,
		type(field_t), intent(in), target	p,
		character(*), intent(in), optional	set
	)

Parameters

coef	SEM coefficients. Optional.
s	The scalar.
u	The x component of velocity.
v	The y component of velocity.
w	The z component of velocity.
p	The pressure.
set	Specifies the subset of the statistics to be collected. Optional. Either basic or full, defaults to full.

Definition at line 166 of file scalar_stats.f90.

scalar_stats_make_strong_grad()

subroutine scalar_stats::scalar_stats_make_strong_grad ( class(scalar_stats_t)  this )

private

Definition at line 765 of file scalar_stats.f90.

scalar_stats_reset()

subroutine scalar_stats::scalar_stats_reset ( class(scalar_stats_t), intent(inout), target  this )

private

Definition at line 704 of file scalar_stats.f90.

scalar_stats_update()

subroutine scalar_stats::scalar_stats_update ( class(scalar_stats_t), intent(inout)  this, real(kind=rp), intent(in)  k  )

private

Parameters

k	Time elapsed since the last update.

Uf is u and Umf is

Definition at line 330 of file scalar_stats.f90.

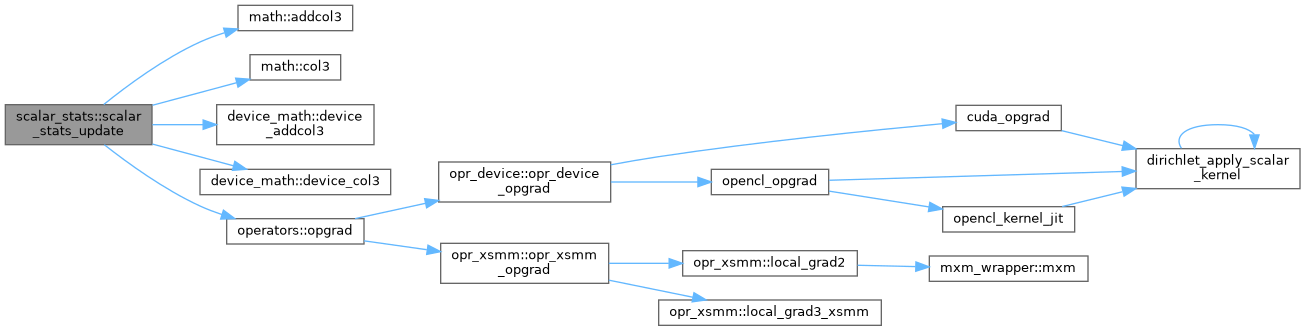

Here is the call graph for this function:
