most::most_t Type Reference

Wall model based on the Monin-Obukhov Similarity Theory for atmospheric boundary layer flows. Automatically switches between stable, unstable and neutral layer formulations based on the Richardson number. More...

Inheritance diagram for most::most_t:

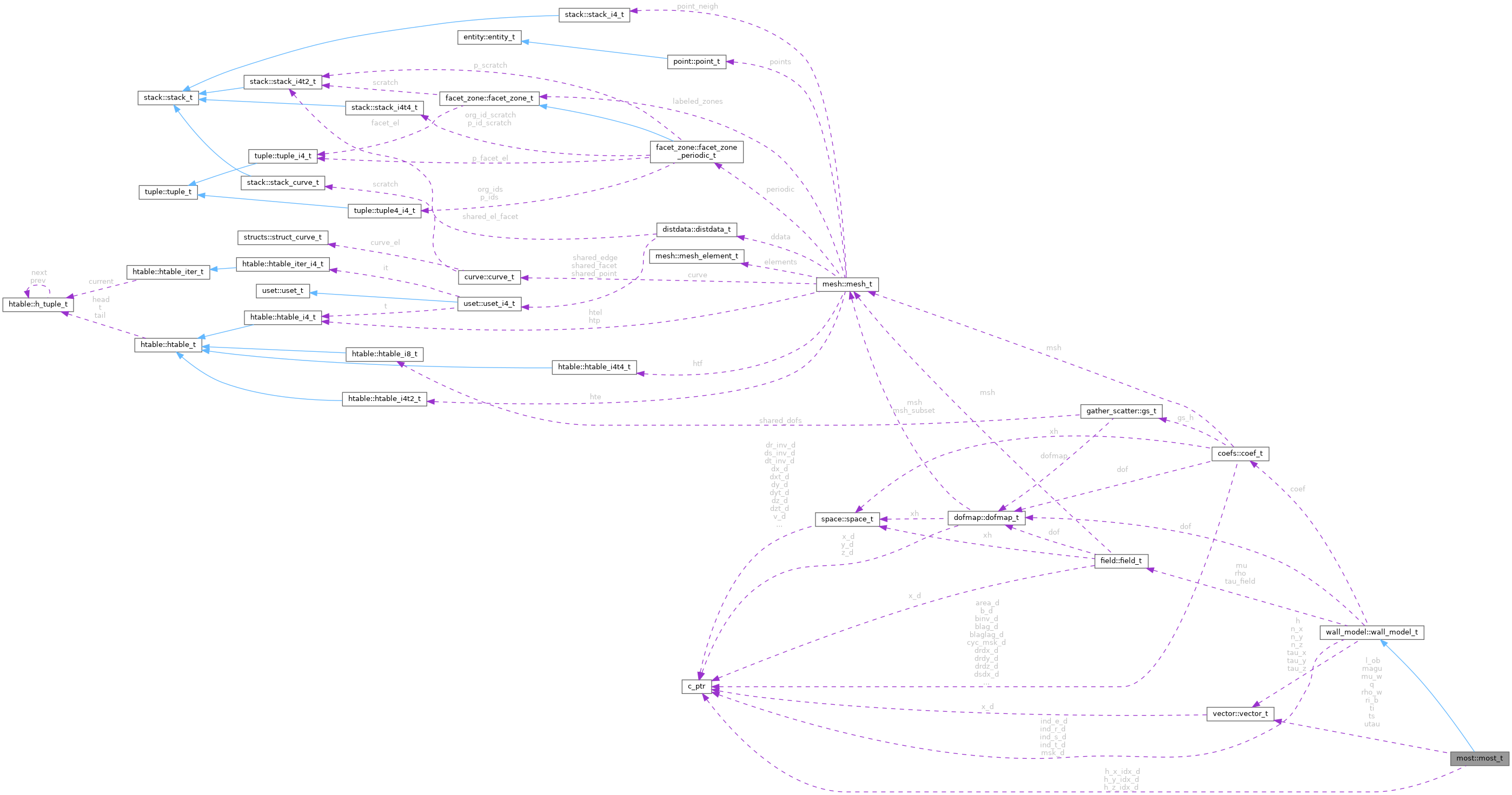

Collaboration diagram for most::most_t:

Public Member Functions
procedure, pass(this)	init (this, scheme_name, coef, msk, facet, h_index, json)
	Constructor from JSON.
procedure, pass(this)	partial_init (this, coef, json)
	Partial constructor from JSON, meant to work as the first stage of initialization before the finalize call.
procedure, pass(this)	finalize (this, msk, facet)
	Finalize the construction using the mask and facet arrays of the bc.
procedure, pass(this)	init_from_components (this, scheme_name, scalar_name, coef, msk, facet, h_index, kappa, g, pr, z0, z0h_in, bc_type, bc_value)
	Constructor from components.
procedure, pass(this)	free (this)
	Destructor.
procedure, pass(this)	compute (this, t, tstep)
	Compute the wall shear stress.
procedure, pass(this)	extract_properties (this)
	Extract the values of rho and mu at the boundary.
procedure, pass(this)	init_base (this, scheme_name, coef, msk, facet, index)
	Constructor for the wall_model_t (base) class.
procedure, pass(this)	partial_init_base (this, coef, json)
	Base type implementation of the deferred partial_init.
procedure, pass(this)	finalize_base (this, msk, facet)
	Base type implementation of the deferred finilize.
procedure, pass(this)	free_base (this)
	Destructor for the wall_model_t (base) class.
procedure, pass(this)	compute_mag_field (this)
	Compute the wall shear stress's magnitude.
procedure(wall_model_init), deferred, pass	init (this, scheme_name, coef, msk, facet, h_index, json)
	The common constructor.
procedure(wall_model_partial_init), deferred, pass	partial_init (this, coef, json)
	A part of the constructor that parses the JSON without initializing the base wall_model_t type. Used in wall_model_bc_t during the init stage of the bc construction. So, in this routine you cannot use the bc mask and facets. The construction can be finished by calling finalize_base. This generally follows the same pattern as in bc_t. This constructor gets the scheme_name from the JSON. This is currently hacked in by the pnpn_bc_factory.
procedure(wall_model_finalize), deferred, pass	finalize (this, msk, facet)
	Finalization of the partial construction, similar to bc_t.
procedure(wall_model_free), deferred, pass	free (this)
	Destructor.
procedure(wall_model_compute), deferred, pass	compute (this, t, tstep)
	Compute the wall shear stress.
procedure, pass(this)	find_points (this)
	Find the sampling points based on the value of h_index.

Public Attributes
real(kind=rp)	kappa
	The von Karman coefficient.
real(kind=rp)	pr
	The turbulent Prandtl number.
real(kind=rp)	z0
	The roughness height.
real(kind=rp)	z0h_in
	The thermal roughness height.
type(vector_t)	mu_w
type(vector_t)	rho_w
real(kind=rp), dimension(3)	g
	The gravity vector.
character(len=:), allocatable	bc_type
	The type of temperature boundary condition set in the case file.
real(kind=rp)	bc_value
	The heat flux or temperature value set in the case file.
character(len=:), allocatable	scalar_name
	The name of the temperature variable.
type(vector_t)	ri_b
	Diagnostics.
type(vector_t)	l_ob
type(vector_t)	utau
type(vector_t)	magu
type(vector_t)	ti
type(vector_t)	ts
type(vector_t)	q
integer, dimension(:), allocatable	h_x_idx
integer, dimension(:), allocatable	h_y_idx
integer, dimension(:), allocatable	h_z_idx
type(c_ptr)	h_x_idx_d = C_NULL_PTR
type(c_ptr)	h_y_idx_d = C_NULL_PTR
type(c_ptr)	h_z_idx_d = C_NULL_PTR
type(coef_t), pointer	coef => null()
	SEM coefficients.
type(dofmap_t), pointer	dof => null()
	Map of degrees of freedom.
type(field_t), pointer	mu => null()
	The dynamic viscosity of the fluid.
type(field_t), pointer	rho => null()
	The density of the fluid.
character(len=:), allocatable	scheme_name
	The name of the scheme for which the wall model is used. This is used to identify the name of the mu an rho fields in the registry.
integer, dimension(:), pointer	msk => null()
	The boundary condition mask. Stores the array size at index zero!
type(c_ptr)	msk_d = C_NULL_PTR
integer, dimension(:), pointer	facet => null()
	The boundary condition facet ids. Stores the array size at index zero!
type(vector_t)	tau_x
	The x component of the shear stress.
type(vector_t)	tau_y
	The y component of the shear stress.
type(vector_t)	tau_z
	The z component of the shear stress.
type(vector_t)	n_x
	The x component of the normal.
type(vector_t)	n_y
	The y component of the normal.
type(vector_t)	n_z
	The z component of the normal.
integer, dimension(:), allocatable	ind_r
	The r indices of the sampling points.
type(c_ptr)	ind_r_d = C_NULL_PTR
integer, dimension(:), allocatable	ind_s
	The s indices of the sampling points.
type(c_ptr)	ind_s_d = C_NULL_PTR
integer, dimension(:), allocatable	ind_t
	The t indices of the sampling points.
type(c_ptr)	ind_t_d = C_NULL_PTR
integer, dimension(:), allocatable	ind_e
	The element indices of the sampling points.
type(c_ptr)	ind_e_d = C_NULL_PTR
type(vector_t)	h
	The sampling height.
integer	h_index = 0
	Sampling index.
integer	n_nodes = 0
	Number of nodes in the boundary.
type(field_t), pointer	tau_field => null()
	The 3D field with the computed stress magnitude at the boundary.

Detailed Description

Definition at line 63 of file most.f90.

Member Function/Subroutine Documentation

compute() [1/2]

procedure, pass(this) most::most_t::compute	(	class(most_t), intent(inout)	this,
		real(kind=rp), intent(in)	t,
		integer, intent(in)	tstep
	)

Parameters

t	The time value.
tstep	The time iteration.

Definition at line 104 of file most.f90.

compute() [2/2]

procedure(wall_model_compute), deferred, pass wall_model::wall_model_t::compute ( class(wall_model_t), intent(inout)  this, real(kind=rp), intent(in)  t, integer, intent(in)  tstep  )

pure virtualinherited

Definition at line 134 of file wall_model.f90.

compute_mag_field()

procedure, pass(this) wall_model::wall_model_t::compute_mag_field ( class(wall_model_t), intent(inout)  this )

inherited

Definition at line 118 of file wall_model.f90.

extract_properties()

procedure, pass(this) most::most_t::extract_properties

(

class(most_t), intent(inout)

this

)

Definition at line 106 of file most.f90.

finalize() [1/2]

procedure, pass(this) most::most_t::finalize	(	class(most_t), intent(inout)	this,
		integer, dimension(:), intent(in)	msk,
		integer, dimension(:), intent(in)	facet
	)

Parameters

msk	The boundary mask.
facet	The boundary facets.

Definition at line 97 of file most.f90.

finalize() [2/2]

procedure(wall_model_finalize), deferred, pass wall_model::wall_model_t::finalize ( class(wall_model_t), intent(inout)  this, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet  )

pure virtualinherited

Definition at line 130 of file wall_model.f90.

finalize_base()

procedure, pass(this) wall_model::wall_model_t::finalize_base ( class(wall_model_t), intent(inout)  this, integer, dimension(0:), intent(in), target  msk, integer, dimension(:), intent(in), target  facet  )

inherited

Definition at line 114 of file wall_model.f90.

find_points()

procedure, pass(this) wall_model::wall_model_t::find_points ( class(wall_model_t), intent(inout)  this )

inherited

Definition at line 136 of file wall_model.f90.

free() [1/2]

procedure, pass(this) most::most_t::free

(

class(most_t), intent(inout)

this

)

Definition at line 102 of file most.f90.

free() [2/2]

procedure(wall_model_free), deferred, pass wall_model::wall_model_t::free ( class(wall_model_t), intent(inout)  this )

pure virtualinherited

Definition at line 132 of file wall_model.f90.

free_base()

procedure, pass(this) wall_model::wall_model_t::free_base ( class(wall_model_t), intent(inout)  this )

inherited

Definition at line 116 of file wall_model.f90.

init() [1/2]

procedure, pass(this) most::most_t::init	(	class(most_t), intent(inout)	this,
		character(len=*), intent(in)	scheme_name,
		type(coef_t), intent(in)	coef,
		integer, dimension(:), intent(in)	msk,
		integer, dimension(:), intent(in)	facet,
		integer, intent(in)	h_index,
		type(json_file), intent(inout)	json
	)

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
h_index	The off-wall index of the sampling cell.
json	A dictionary with parameters.

Definition at line 92 of file most.f90.

init() [2/2]

procedure(wall_model_init), deferred, pass wall_model::wall_model_t::init ( class(wall_model_t), intent(inout)  this, character(len=*), intent(in)  scheme_name, type(coef_t), intent(in)  coef, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet, integer, intent(in)  h_index, type(json_file), intent(inout)  json  )

pure virtualinherited

Definition at line 120 of file wall_model.f90.

init_base()

procedure, pass(this) wall_model::wall_model_t::init_base ( class(wall_model_t), intent(inout)  this, character(len=*)  scheme_name, type(coef_t), intent(in), target  coef, integer, dimension(0:), intent(in), target  msk, integer, dimension(0:), intent(in), target  facet, integer, intent(in)  index  )

inherited

Parameters

coef	SEM coefficients.
msk	The underlying mask of the boundary condition.
facet,The	underlying facet index list of the boundary condition.
scheme_name	The name of the scheme for which the wall model is used.
index	The off-wall index of the sampling point.

Definition at line 110 of file wall_model.f90.

init_from_components()

procedure, pass(this) most::most_t::init_from_components	(	class(most_t), intent(inout)	this,
		character(len=*), intent(in)	scheme_name,
		character(len=*), intent(in)	scalar_name,
		type(coef_t), intent(in)	coef,
		integer, dimension(:), intent(in)	msk,
		integer, dimension(:), intent(in)	facet,
		integer, intent(in)	h_index,
		real(kind=rp), intent(in)	kappa,
		real(kind=rp), dimension(3), intent(in)	g,
		real(kind=rp), intent(in)	pr,
		real(kind=rp), intent(in)	z0,
		real(kind=rp), intent(in)	z0h_in,
		character(len=*), intent(in)	bc_type,
		real(kind=rp), intent(in)	bc_value
	)

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
h_index	The off-wall index of the sampling cell.
kappa	The von Karman coefficient.
g	The gravity vector.
z0	The roughness height.
z0h_in	The thermal roughness height. If negative, set automatically from Zilitinkevich, 1995.
bc_type	The type of bc set for temperature in the case file.
scalar_name	The name of the scalar field (temperature) for MOST.
bc_value	The heat flux at the surface boundary condition.

Definition at line 99 of file most.f90.

partial_init() [1/2]

procedure, pass(this) most::most_t::partial_init	(	class(most_t), intent(inout)	this,
		type(coef_t), intent(in)	coef,
		type(json_file), intent(inout)	json
	)

Parameters

coef	SEM coefficients.
json	A dictionary with parameters.

Definition at line 95 of file most.f90.

partial_init() [2/2]

procedure(wall_model_partial_init), deferred, pass wall_model::wall_model_t::partial_init ( class(wall_model_t), intent(inout)  this, type(coef_t), intent(in)  coef, type(json_file), intent(inout)  json  )

pure virtualinherited

Definition at line 128 of file wall_model.f90.

partial_init_base()

procedure, pass(this) wall_model::wall_model_t::partial_init_base ( class(wall_model_t), intent(inout)  this, type(coef_t), intent(in), target  coef, type(json_file), intent(inout)  json  )

inherited

Parameters

coef	SEM coefficients.
The	name of the scheme for which the wall model is used.
json	A dictionary with parameters.

Definition at line 112 of file wall_model.f90.

Member Data Documentation

bc_type

character(len=:), allocatable most::most_t::bc_type

Definition at line 79 of file most.f90.

bc_value

real(kind=rp) most::most_t::bc_value

Definition at line 81 of file most.f90.

coef

type(coef_t), pointer wall_model::wall_model_t::coef => null()

inherited

Definition at line 60 of file wall_model.f90.

dof

type(dofmap_t), pointer wall_model::wall_model_t::dof => null()

inherited

Definition at line 62 of file wall_model.f90.

facet

integer, dimension(:), pointer wall_model::wall_model_t::facet => null()

inherited

Definition at line 75 of file wall_model.f90.

g

real(kind=rp), dimension(3) most::most_t::g

Definition at line 77 of file most.f90.

h

type(vector_t) wall_model::wall_model_t::h

inherited

Definition at line 101 of file wall_model.f90.

h_index

integer wall_model::wall_model_t::h_index = 0

inherited

Definition at line 103 of file wall_model.f90.

h_x_idx

integer, dimension(:), allocatable most::most_t::h_x_idx

Definition at line 86 of file most.f90.

h_x_idx_d

type(c_ptr) most::most_t::h_x_idx_d = C_NULL_PTR

Definition at line 87 of file most.f90.

h_y_idx

integer, dimension(:), allocatable most::most_t::h_y_idx

Definition at line 86 of file most.f90.

h_y_idx_d

type(c_ptr) most::most_t::h_y_idx_d = C_NULL_PTR

Definition at line 88 of file most.f90.

h_z_idx

integer, dimension(:), allocatable most::most_t::h_z_idx

Definition at line 86 of file most.f90.

h_z_idx_d

type(c_ptr) most::most_t::h_z_idx_d = C_NULL_PTR

Definition at line 89 of file most.f90.

ind_e

integer, dimension(:), allocatable wall_model::wall_model_t::ind_e

inherited

Definition at line 98 of file wall_model.f90.

ind_e_d

type(c_ptr) wall_model::wall_model_t::ind_e_d = C_NULL_PTR

inherited

Definition at line 99 of file wall_model.f90.

ind_r

integer, dimension(:), allocatable wall_model::wall_model_t::ind_r

inherited

Definition at line 89 of file wall_model.f90.

ind_r_d

type(c_ptr) wall_model::wall_model_t::ind_r_d = C_NULL_PTR

inherited

Definition at line 90 of file wall_model.f90.

ind_s

integer, dimension(:), allocatable wall_model::wall_model_t::ind_s

inherited

Definition at line 92 of file wall_model.f90.

ind_s_d

type(c_ptr) wall_model::wall_model_t::ind_s_d = C_NULL_PTR

inherited

Definition at line 93 of file wall_model.f90.

ind_t

integer, dimension(:), allocatable wall_model::wall_model_t::ind_t

inherited

Definition at line 95 of file wall_model.f90.

ind_t_d

type(c_ptr) wall_model::wall_model_t::ind_t_d = C_NULL_PTR

inherited

Definition at line 96 of file wall_model.f90.

kappa

real(kind=rp) most::most_t::kappa

Definition at line 65 of file most.f90.

l_ob

type(vector_t) most::most_t::l_ob

Definition at line 85 of file most.f90.

magu

type(vector_t) most::most_t::magu

Definition at line 85 of file most.f90.

msk

integer, dimension(:), pointer wall_model::wall_model_t::msk => null()

inherited

Definition at line 72 of file wall_model.f90.

msk_d

type(c_ptr) wall_model::wall_model_t::msk_d = C_NULL_PTR

inherited

Definition at line 73 of file wall_model.f90.

mu

type(field_t), pointer wall_model::wall_model_t::mu => null()

inherited

Definition at line 64 of file wall_model.f90.

mu_w

type(vector_t) most::most_t::mu_w

Definition at line 73 of file most.f90.

n_nodes

integer wall_model::wall_model_t::n_nodes = 0

inherited

Definition at line 105 of file wall_model.f90.

n_x

type(vector_t) wall_model::wall_model_t::n_x

inherited

Definition at line 83 of file wall_model.f90.

n_y

type(vector_t) wall_model::wall_model_t::n_y

inherited

Definition at line 85 of file wall_model.f90.

n_z

type(vector_t) wall_model::wall_model_t::n_z

inherited

Definition at line 87 of file wall_model.f90.

pr

real(kind=rp) most::most_t::pr

Definition at line 67 of file most.f90.

q

type(vector_t) most::most_t::q

Definition at line 85 of file most.f90.

rho

type(field_t), pointer wall_model::wall_model_t::rho => null()

inherited

Definition at line 66 of file wall_model.f90.

rho_w

type(vector_t) most::most_t::rho_w

Definition at line 75 of file most.f90.

ri_b

type(vector_t) most::most_t::ri_b

Definition at line 85 of file most.f90.

scalar_name

character(len=:), allocatable most::most_t::scalar_name

Definition at line 83 of file most.f90.

scheme_name

character(len=:), allocatable wall_model::wall_model_t::scheme_name

inherited

Definition at line 70 of file wall_model.f90.

tau_field

type(field_t), pointer wall_model::wall_model_t::tau_field => null()

inherited

Definition at line 107 of file wall_model.f90.

tau_x

type(vector_t) wall_model::wall_model_t::tau_x

inherited

Definition at line 77 of file wall_model.f90.

tau_y

type(vector_t) wall_model::wall_model_t::tau_y

inherited

Definition at line 79 of file wall_model.f90.

tau_z

type(vector_t) wall_model::wall_model_t::tau_z

inherited

Definition at line 81 of file wall_model.f90.

ti

type(vector_t) most::most_t::ti

Definition at line 85 of file most.f90.

ts

type(vector_t) most::most_t::ts

Definition at line 85 of file most.f90.

utau

type(vector_t) most::most_t::utau

Definition at line 85 of file most.f90.

z0

real(kind=rp) most::most_t::z0

Definition at line 69 of file most.f90.

z0h_in

real(kind=rp) most::most_t::z0h_in

Definition at line 71 of file most.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/wall_models/most.f90
