cai_sagaut_model_ii_device Module Reference

Device dispatch for cai_sagaut_model_ii_t.

Data Types
interface	hip_cai_sagaut_model_ii_compute

Functions/Subroutines
subroutine, public	cai_sagaut_model_ii_compute_device (u_d, v_d, w_d, ind_r_d, ind_s_d, ind_t_d, ind_e_d, n_x_d, n_y_d, n_z_d, nu_d, rho_w_d, h_d, tau_x_d, tau_y_d, tau_z_d, n_nodes, lx, kappa, b, p, s)
	Evaluate the device wall-model kernel for Model-II.

Function/Subroutine Documentation

cai_sagaut_model_ii_compute_device()

subroutine, public cai_sagaut_model_ii_device::cai_sagaut_model_ii_compute_device	(	type(c_ptr), intent(in)	u_d,
		type(c_ptr), intent(in)	v_d,
		type(c_ptr), intent(in)	w_d,
		type(c_ptr), intent(in)	ind_r_d,
		type(c_ptr), intent(in)	ind_s_d,
		type(c_ptr), intent(in)	ind_t_d,
		type(c_ptr), intent(in)	ind_e_d,
		type(c_ptr), intent(in)	n_x_d,
		type(c_ptr), intent(in)	n_y_d,
		type(c_ptr), intent(in)	n_z_d,
		type(c_ptr), intent(in)	nu_d,
		type(c_ptr), intent(in)	rho_w_d,
		type(c_ptr), intent(in)	h_d,
		type(c_ptr), intent(inout)	tau_x_d,
		type(c_ptr), intent(inout)	tau_y_d,
		type(c_ptr), intent(inout)	tau_z_d,
		integer, intent(in)	n_nodes,
		integer, intent(in)	lx,
		real(kind=rp), intent(in)	kappa,
		real(kind=rp), intent(in)	b,
		real(kind=rp), intent(in)	p,
		real(kind=rp), intent(in)	s
	)

Parameters

u_d	The sampled x-velocity field on the device.
v_d	The sampled y-velocity field on the device.
w_d	The sampled z-velocity field on the device.
ind_r_d	The r-index array for sampled GLL points.
ind_s_d	The s-index array for sampled GLL points.
ind_t_d	The t-index array for sampled GLL points.
ind_e_d	The element-index array for sampled GLL points.
n_x_d	The x-component of the wall normals.
n_y_d	The y-component of the wall normals.
n_z_d	The z-component of the wall normals.
nu_d	The sampled kinematic viscosity at wall points.
rho_w_d	The sampled density at wall points.
h_d	The wall-model sampling distances.
tau_x_d	The x-component of the wall shear stress.
tau_y_d	The y-component of the wall shear stress.
tau_z_d	The z-component of the wall shear stress.
n_nodes	The number of wall points.
lx	The number of GLL points per direction.
kappa	The von Karman coefficient.
B	The log-law intercept.
p	The blending exponent.
s	The blending scale.

Definition at line 119 of file cai_sagaut_model_ii_device.F90.

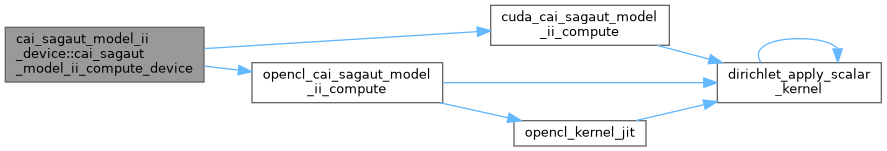

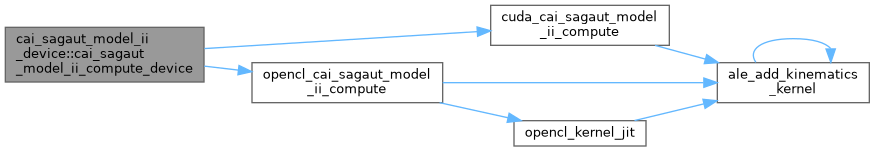

Here is the call graph for this function:

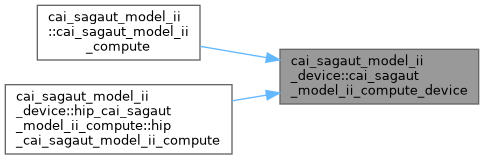

Here is the caller graph for this function:
