Data Types
type	compressible_res_device_t

interface	compressible_res_part_coef_mult_hip

interface	compressible_res_part_rk_sum_hip

interface	compressible_res_part_visc_hip

interface	inviscid_res_part_e_flux_hip

interface	inviscid_res_part_mx_flux_hip

interface	inviscid_res_part_my_flux_hip

interface	inviscid_res_part_mz_flux_hip

Functions/Subroutines
subroutine	advance_primitive_variables_device (rho_field, m_x, m_y, m_z, e, p, u, v, w, ax, ax_stress, coef, gs, h, artificial_visc, mu, kappa, bcs_vel, time, rk_scheme, dt)

subroutine	evaluate_rhs_device (rhs_rho_field, rhs_m_x, rhs_m_y, rhs_m_z, rhs_e, rho_field, m_x, m_y, m_z, e, p, u, v, w, ax, ax_stress, coef, gs, h, artificial_visc, mu, kappa)

subroutine	add_navier_stokes_flux_device (visc_m_x, visc_m_y, visc_m_z, visc_e, rho_field, p, u, v, w, mu, kappa, ax, ax_stress, coef)
	Add the physical Navier-Stokes flux contribution to the viscous residual.

Variables
logical	compressible_res_device_add_physical_flux = .false.
	Whether physical Navier-Stokes fluxes are active for the current step.

logical	compressible_res_device_add_physical_stress = .false.
	Whether physical viscous stress is active for the current step.

real(kind=rp), public	compressible_res_device_gamma = 1.4_rp
	Module variable to store thermodynamic parameter set by factory.

Function/Subroutine Documentation

◆ add_navier_stokes_flux_device()

subroutine compressible_res_device::add_navier_stokes_flux_device	(	type(field_t), intent(inout)	visc_m_x,
		type(field_t), intent(inout)	visc_m_y,
		type(field_t), intent(inout)	visc_m_z,
		type(field_t), intent(inout)	visc_e,
		type(field_t), intent(in)	rho_field,
		type(field_t), intent(in)	p,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	v,
		type(field_t), intent(in)	w,
		type(field_t), intent(in)	mu,
		type(field_t), intent(in)	kappa,
		class(ax_t), intent(inout)	ax,
		class(ax_t), intent(inout)	ax_stress,
		type(coef_t), intent(inout)	coef
	)

Parameters

visc_m_x	Viscous residual for x-momentum.
visc_m_y	Viscous residual for y-momentum.
visc_m_z	Viscous residual for z-momentum.
visc_E	Viscous residual for total energy.
rho_field	Density field.
p	Pressure field.
u	X-velocity field.
v	Y-velocity field.
w	Z-velocity field.
mu	Dynamic viscosity field.
kappa	Thermal conductivity field.
Ax	Matrix-vector product operator for scalar diffusion.
Ax_stress	Matrix-vector product operator for full stress.
coef	Spatial discretization coefficients.

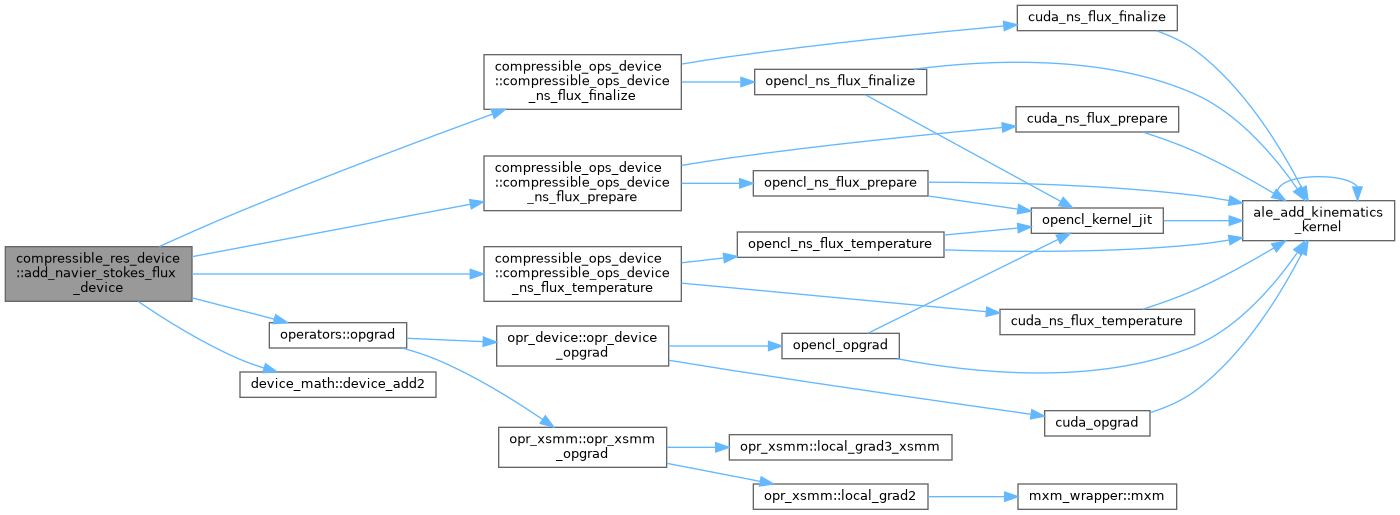

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine compressible_res_device::advance_primitive_variables_device	(	type(field_t), intent(inout)	rho_field,
		type(field_t), intent(inout)	m_x,
		type(field_t), intent(inout)	m_y,
		type(field_t), intent(inout)	m_z,
		type(field_t), intent(inout)	e,
		type(field_t), intent(in)	p,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	v,
		type(field_t), intent(in)	w,
		class(ax_t), intent(inout)	ax,
		class(ax_t), intent(inout)	ax_stress,
		type(coef_t), intent(inout)	coef,
		type(gs_t), intent(inout)	gs,
		type(field_t), intent(in)	h,
		type(field_t), intent(in)	artificial_visc,
		type(field_t), intent(in)	mu,
		type(field_t), intent(in)	kappa,
		type(bc_list_t), intent(inout)	bcs_vel,
		type(time_state_t), intent(in)	time,
		class(runge_kutta_time_scheme_t), intent(in)	rk_scheme,
		real(kind=rp), intent(in)	dt
	)

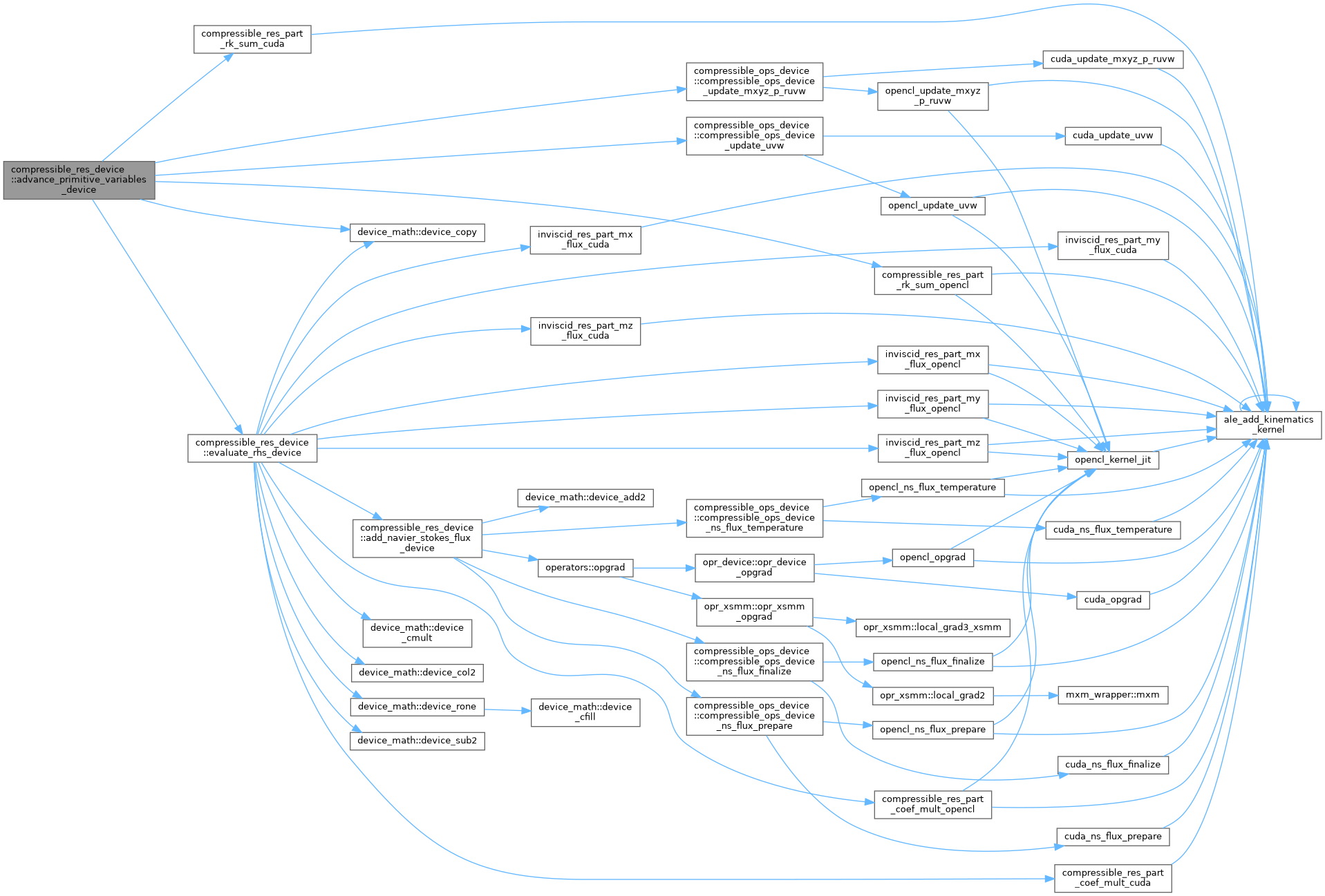

Here is the call graph for this function:

subroutine compressible_res_device::evaluate_rhs_device	(	type(field_t), intent(inout)	rhs_rho_field,
		type(field_t), intent(inout)	rhs_m_x,
		type(field_t), intent(inout)	rhs_m_y,
		type(field_t), intent(inout)	rhs_m_z,
		type(field_t), intent(inout)	rhs_e,
		type(field_t), intent(inout)	rho_field,
		type(field_t), intent(inout)	m_x,
		type(field_t), intent(inout)	m_y,
		type(field_t), intent(inout)	m_z,
		type(field_t), intent(inout)	e,
		type(field_t), intent(in)	p,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	v,
		type(field_t), intent(in)	w,
		class(ax_t), intent(inout)	ax,
		class(ax_t), intent(inout)	ax_stress,
		type(coef_t), intent(inout)	coef,
		type(gs_t), intent(inout)	gs,
		type(field_t), intent(in)	h,
		type(field_t), intent(in)	artificial_visc,
		type(field_t), intent(in)	mu,
		type(field_t), intent(in)	kappa
	)
