scalar_sgs_stats::scalar_sgs_stats_t Type Reference

Inheritance diagram for scalar_sgs_stats::scalar_sgs_stats_t:

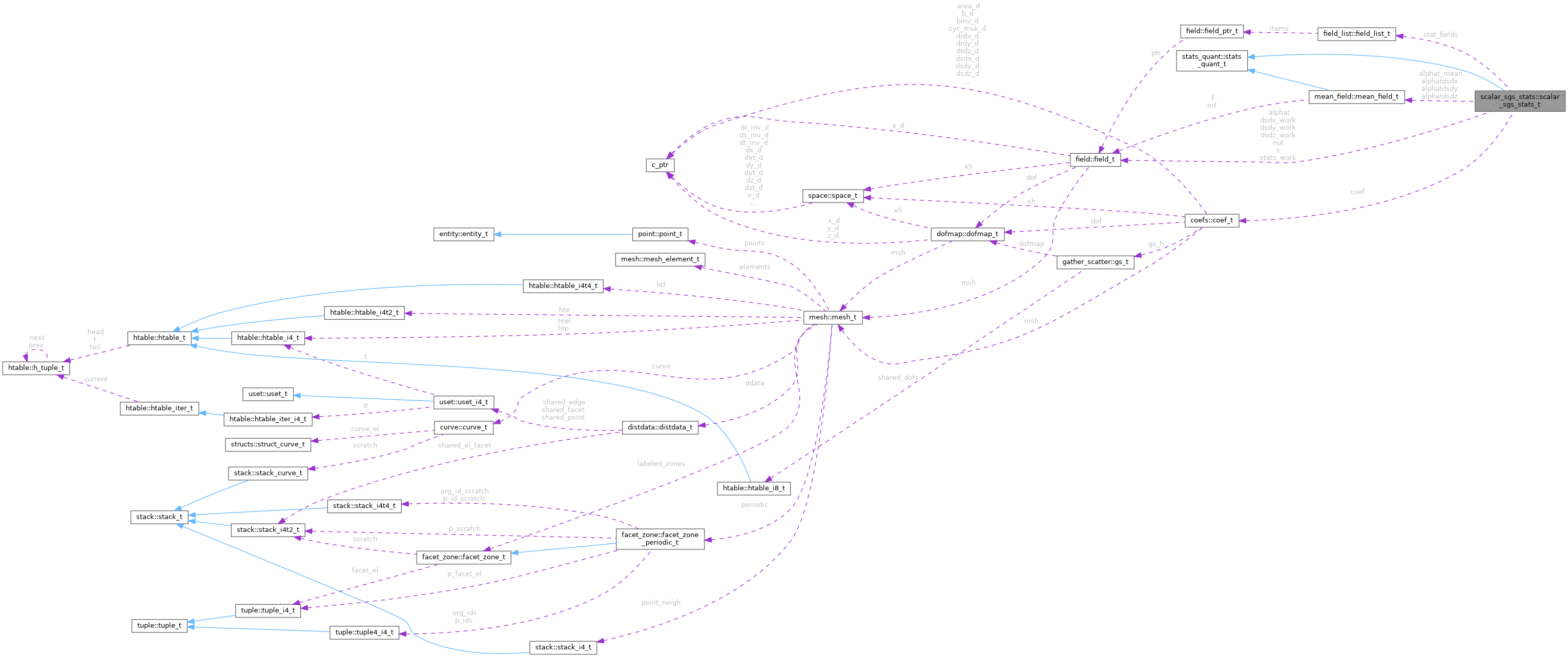

Collaboration diagram for scalar_sgs_stats::scalar_sgs_stats_t:

Public Member Functions
generic	init (this, coef, s, alphat_field)
	Constructor.
generic	init (this, coef, s, nut_field, pr_turb)
	Constructor. Initialize the fields associated with scalar_sgs_stats. This version uses nut field and turbulent Prandtl number.
procedure, pass(this)	init_alphat (this, coef, s, alphat_field)
	Constructor.
procedure, pass(this)	init_nut (this, coef, s, nut_field, pr_turb)
	Constructor. Initialize the fields associated with scalar_sgs_stats. This version uses nut field and turbulent Prandtl number.
procedure, pass(this)	free (this)
	Destructor.
procedure, pass(this)	update (this, k)
	Update all the mean value fields with a new sample.
procedure, pass(this)	reset (this)
	Reset all the computed means values and sampling times to zero.
procedure(stats_quant_update), deferred, pass	update (this, k)

Public Attributes
type(field_t)	stats_work
	Work fields.
type(field_t), pointer	alphat => null()
	Pointers to the instantenious quantities.
type(field_t), pointer	nut => null()
	scalar diffusivity
logical	nut_dependency = .false.
real(kind=rp)	pr_turb
	turbulent Prandtl number
type(field_t), pointer	s => null()
	scalar
type(mean_field_t)	alphat_mean
	<alphat>
type(mean_field_t)	alphatdsdx
	<alphat*dsdx>
type(mean_field_t)	alphatdsdy
	<alphat*dsdy>
type(mean_field_t)	alphatdsdz
	<alphat*dsdz>
type(field_t), pointer	dsdx_work
	gradients
type(field_t), pointer	dsdy_work
type(field_t), pointer	dsdz_work
type(coef_t), pointer	coef => null()
	SEM coefficients.
integer	n_stats = 4
	Number of statistical fields to be computed.
type(field_list_t)	stat_fields
	A list of size n_stats, whith entries pointing to the fields that will be output (the field components above.) Used to write the output.

Detailed Description

Definition at line 49 of file scalar_sgs_stats.f90.

Member Function/Subroutine Documentation

free()

procedure, pass(this) scalar_sgs_stats::scalar_sgs_stats_t::free

(

class(scalar_sgs_stats_t), intent(inout)

this

)

Definition at line 84 of file scalar_sgs_stats.f90.

init() [1/2]

generic scalar_sgs_stats::scalar_sgs_stats_t::init	(	class(scalar_sgs_stats_t), intent(inout), target	this,
		type(coef_t), optional, target	coef,
		type(field_t), intent(in), target	s,
		character(len=*), intent(in)	alphat_field
	)

Parameters

coef	SEM coefficients. Optional.
s	The scalar.
alphat_field	Specifies the name of the alphat field.

Definition at line 79 of file scalar_sgs_stats.f90.

init() [2/2]

generic scalar_sgs_stats::scalar_sgs_stats_t::init	(	class(scalar_sgs_stats_t), intent(inout), target	this,
		type(coef_t), optional, target	coef,
		type(field_t), intent(in), target	s,
		character(len=*), intent(in)	nut_field,
		real(kind=rp), intent(in)	pr_turb
	)

Parameters

coef	SEM coefficients. Optional.
s	The scalar.
nut_field	Specifies the name of the nut field.
pr_turb	Turbulent Prandtl number.

Definition at line 79 of file scalar_sgs_stats.f90.

init_alphat()

procedure, pass(this) scalar_sgs_stats::scalar_sgs_stats_t::init_alphat	(	class(scalar_sgs_stats_t), intent(inout), target	this,
		type(coef_t), optional, target	coef,
		type(field_t), intent(in), target	s,
		character(len=*), intent(in)	alphat_field
	)

Parameters

coef	SEM coefficients. Optional.
s	The scalar.
alphat_field	Specifies the name of the alphat field.

Definition at line 81 of file scalar_sgs_stats.f90.

init_nut()

procedure, pass(this) scalar_sgs_stats::scalar_sgs_stats_t::init_nut	(	class(scalar_sgs_stats_t), intent(inout), target	this,
		type(coef_t), optional, target	coef,
		type(field_t), intent(in), target	s,
		character(len=*), intent(in)	nut_field,
		real(kind=rp), intent(in)	pr_turb
	)

Parameters

coef	SEM coefficients. Optional.
s	The scalar.
nut_field	Specifies the name of the nut field.
pr_turb	Turbulent Prandtl number.

Definition at line 82 of file scalar_sgs_stats.f90.

reset()

procedure, pass(this) scalar_sgs_stats::scalar_sgs_stats_t::reset

(

class(scalar_sgs_stats_t), intent(inout), target

this

)

Definition at line 88 of file scalar_sgs_stats.f90.

update() [1/2]

procedure(stats_quant_update), deferred, pass stats_quant::stats_quant_t::update ( class(stats_quant_t), intent(inout)  this, real(kind=rp), intent(in)  k  )

pure virtualinherited

Definition at line 42 of file stats_quant.f90.

update() [2/2]

procedure, pass(this) scalar_sgs_stats::scalar_sgs_stats_t::update	(	class(scalar_sgs_stats_t), intent(inout)	this,
		real(kind=rp), intent(in)	k
	)

Parameters

k	Time elapsed since the last update.

Definition at line 86 of file scalar_sgs_stats.f90.

Member Data Documentation

alphat

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::alphat => null()

scalar diffusivity

Definition at line 54 of file scalar_sgs_stats.f90.

alphat_mean

type(mean_field_t) scalar_sgs_stats::scalar_sgs_stats_t::alphat_mean

Definition at line 60 of file scalar_sgs_stats.f90.

alphatdsdx

type(mean_field_t) scalar_sgs_stats::scalar_sgs_stats_t::alphatdsdx

Definition at line 62 of file scalar_sgs_stats.f90.

alphatdsdy

type(mean_field_t) scalar_sgs_stats::scalar_sgs_stats_t::alphatdsdy

Definition at line 63 of file scalar_sgs_stats.f90.

alphatdsdz

type(mean_field_t) scalar_sgs_stats::scalar_sgs_stats_t::alphatdsdz

Definition at line 64 of file scalar_sgs_stats.f90.

coef

type(coef_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::coef => null()

Definition at line 72 of file scalar_sgs_stats.f90.

dsdx_work

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::dsdx_work

Definition at line 67 of file scalar_sgs_stats.f90.

dsdy_work

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::dsdy_work

Definition at line 68 of file scalar_sgs_stats.f90.

dsdz_work

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::dsdz_work

Definition at line 69 of file scalar_sgs_stats.f90.

n_stats

integer scalar_sgs_stats::scalar_sgs_stats_t::n_stats = 4

Definition at line 74 of file scalar_sgs_stats.f90.

nut

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::nut => null()

Definition at line 55 of file scalar_sgs_stats.f90.

nut_dependency

logical scalar_sgs_stats::scalar_sgs_stats_t::nut_dependency = .false.

Definition at line 56 of file scalar_sgs_stats.f90.

pr_turb

real(kind=rp) scalar_sgs_stats::scalar_sgs_stats_t::pr_turb

Definition at line 57 of file scalar_sgs_stats.f90.

s

type(field_t), pointer scalar_sgs_stats::scalar_sgs_stats_t::s => null()

Definition at line 58 of file scalar_sgs_stats.f90.

stat_fields

type(field_list_t) scalar_sgs_stats::scalar_sgs_stats_t::stat_fields

Definition at line 77 of file scalar_sgs_stats.f90.

stats_work

type(field_t) scalar_sgs_stats::scalar_sgs_stats_t::stats_work

Definition at line 51 of file scalar_sgs_stats.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/les/scalar_sgs_stats.f90
