brinkman_source_term Module Reference

Implements the brinkman_source_term_t type.

Data Types
type	brinkman_source_term_t
	A Brinkman source term. The region and strength are controlled by assigning regions types and brinkman limits to the source term. More...

Functions/Subroutines
subroutine	brinkman_source_term_init_from_json (this, json, fields, coef)
	The common constructor using a JSON object.
subroutine	brinkman_source_term_free (this)
	Destructor.
subroutine	brinkman_source_term_compute (this, t, tstep)
	Computes the source term and adds the result to fields.
subroutine	init_boundary_mesh (this, json)
	Initializes the source term from a boundary mesh.
subroutine	init_point_zone (this, json)
	Initializes the source term from a point zone.

Function/Subroutine Documentation

brinkman_source_term_compute()

subroutine brinkman_source_term::brinkman_source_term_compute ( class(brinkman_source_term_t), intent(inout)  this, real(kind=rp), intent(in)  t, integer, intent(in)  tstep  )

private

Parameters

t	The time value.
tstep	The current time-step.

Definition at line 198 of file brinkman_source_term.f90.

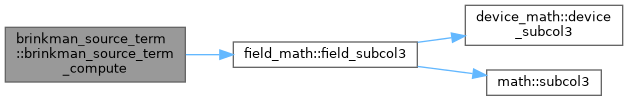

Here is the call graph for this function:

brinkman_source_term_free()

subroutine brinkman_source_term::brinkman_source_term_free ( class(brinkman_source_term_t), intent(inout)  this )

private

Definition at line 187 of file brinkman_source_term.f90.

brinkman_source_term_init_from_json()

subroutine brinkman_source_term::brinkman_source_term_init_from_json	(	class(brinkman_source_term_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(field_list_t), intent(inout), target	fields,
		type(coef_t), intent(inout), target	coef
	)

Parameters

json	The JSON object for the source.
fields	A list of fields for adding the source values.
coef	The SEM coeffs.

Definition at line 86 of file brinkman_source_term.f90.

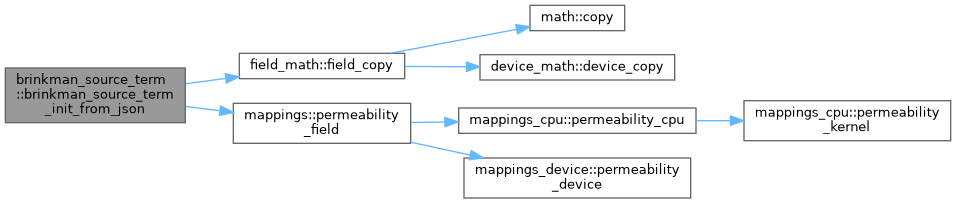

Here is the call graph for this function:

init_boundary_mesh()

subroutine brinkman_source_term::init_boundary_mesh ( class(brinkman_source_term_t), intent(inout)  this, type(json_file), intent(inout)  json  )

private

Definition at line 225 of file brinkman_source_term.f90.

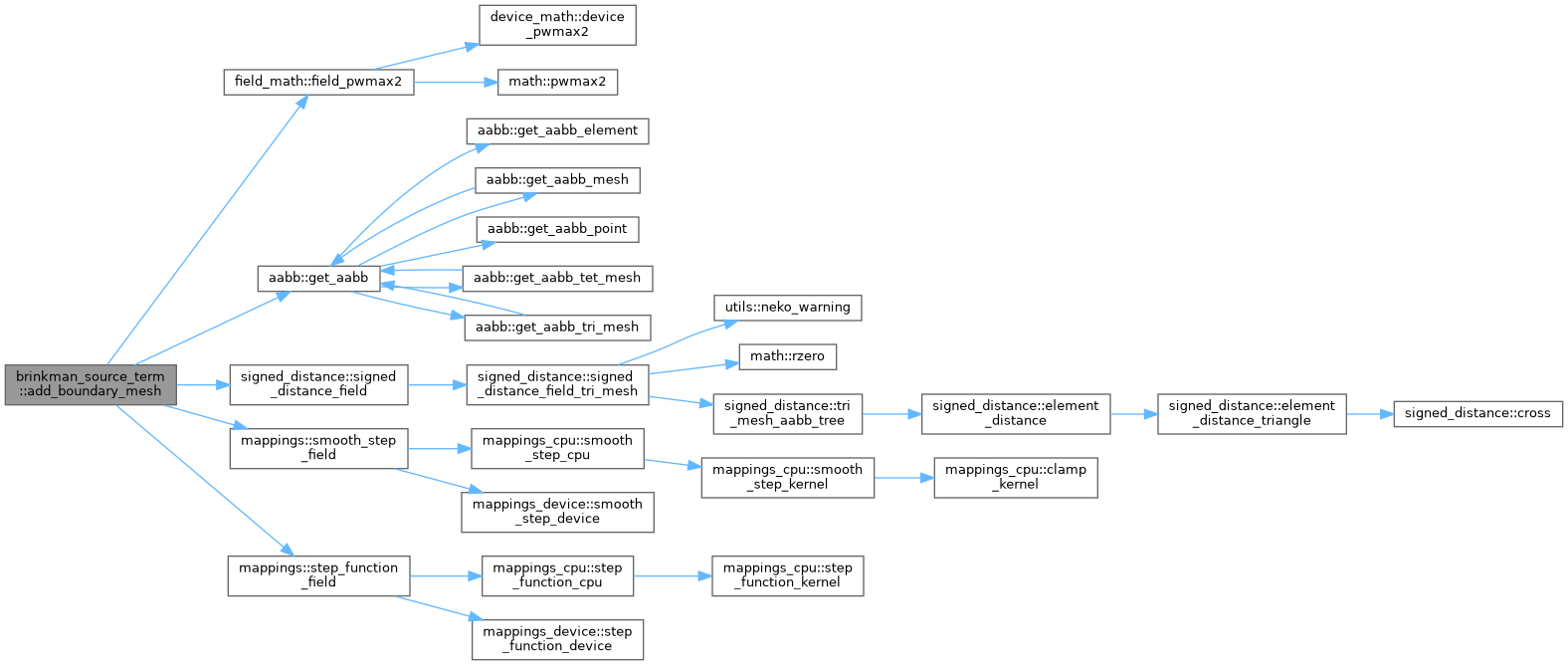

Here is the call graph for this function:

init_point_zone()

subroutine brinkman_source_term::init_point_zone ( class(brinkman_source_term_t), intent(inout)  this, type(json_file), intent(inout)  json  )

private

Definition at line 371 of file brinkman_source_term.f90.

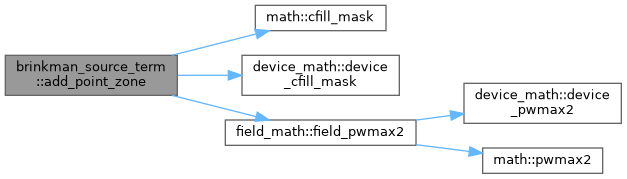

Here is the call graph for this function:
