Defines various Conjugate Gradient methods. More...

Data Types
type	sx_cg_t
	Standard preconditioned conjugate gradient method (SX version) More...

Functions/Subroutines
subroutine	sx_cg_init (this, n, max_iter, M, rel_tol, abs_tol)
	Initialise a standard PCG solver. More...

subroutine	sx_cg_free (this)
	Deallocate a standard PCG solver. More...

type(ksp_monitor_t) function	sx_cg_solve (this, Ax, x, f, n, coef, blst, gs_h, niter)
	Standard PCG solve. More...

Detailed Description

Defines various Conjugate Gradient methods.

Function/Subroutine Documentation

subroutine cg_sx::sx_cg_free ( class(sx_cg_t), intent(inout) this )

private

Deallocate a standard PCG solver.

Definition at line 94 of file cg_sx.f90.

subroutine cg_sx::sx_cg_init	(	class(sx_cg_t), intent(inout)	this,
		integer, intent(in)	n,
		integer, intent(in)	max_iter,
		class(pc_t), intent(inout), optional, target	M,
		real(kind=rp), intent(inout), optional	rel_tol,
		real(kind=rp), intent(inout), optional	abs_tol
	)

Initialise a standard PCG solver.

Definition at line 62 of file cg_sx.f90.

type(ksp_monitor_t) function cg_sx::sx_cg_solve	(	class(sx_cg_t), intent(inout)	this,
		class(ax_t), intent(inout)	Ax,
		type(field_t), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	f,
		integer, intent(in)	n,
		type(coef_t), intent(inout)	coef,
		type(bc_list_t), intent(inout)	blst,
		type(gs_t), intent(inout)	gs_h,
		integer, intent(in), optional	niter
	)

private

Standard PCG solve.

Definition at line 120 of file cg_sx.f90.

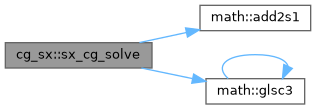

Here is the call graph for this function:
