mesh Module Reference

Defines a mesh. More...

Data Types
type	mesh_element_t
type	mesh_t

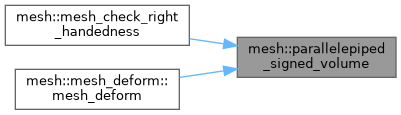

interface	mesh_deform

Functions/Subroutines
subroutine	mesh_init_nelv (this, gdim, nelv)
	Initialise a mesh this with nelv elements. More...
subroutine	mesh_init_dist (this, gdim, dist)
	Initialise a mesh this based on a distribution dist. More...
subroutine	mesh_init_common (this)
subroutine	mesh_free (this)
	Deallocate a mesh this. More...
subroutine	mesh_finalize (this)
subroutine	mesh_generate_flags (this)
subroutine	mesh_all_deformed (this)
	Set all elements as if they are deformed. More...
subroutine	mesh_generate_conn (this)
	Generate element-to-element connectivity. More...
subroutine	mesh_generate_external_facet_conn (this)
	Generate element-element connectivity via facets between PEs. More...
subroutine	mesh_generate_external_point_conn (this)
	Generate element-element connectivity via points between PEs. More...
subroutine	mesh_generate_edge_conn (this)
	Generate element-element connectivity via edges both between internal and between PEs. More...
subroutine	mesh_generate_facet_numbering (this)
	Generate a unique facet numbering. More...
subroutine	mesh_add_quad (this, el, p1, p2, p3, p4)
	Add a quadrilateral element to the mesh this. More...
subroutine	mesh_add_hex (this, el, p1, p2, p3, p4, p5, p6, p7, p8)
	Add a hexahedral element to the mesh this. More...
subroutine	mesh_add_point (this, p, idx)
	Add a unique point to the mesh. More...
subroutine	mesh_add_face (this, f)
	Add a unique face represented as a 4-tuple to the mesh. More...
subroutine	mesh_add_edge (this, e)
	Add a unique edge represented as a 2-tuple to the mesh. More...
subroutine	mesh_mark_wall_facet (this, f, e)
	Mark facet f in element e as a wall. More...
subroutine	mesh_mark_curve_element (this, e, curve_data, curve_type)
	Mark element e as a curve element. More...
subroutine	mesh_mark_inlet_facet (this, f, e)
	Mark facet f in element e as an inlet. More...
subroutine	mesh_mark_labeled_facet (this, f, e, label)
	Mark facet f in element e with label. More...
subroutine	mesh_mark_outlet_normal_facet (this, f, e)
	Mark facet f in element e as an outlet normal. More...
subroutine	mesh_mark_outlet_facet (this, f, e)
	Mark facet f in element e as an outlet. More...
subroutine	mesh_mark_sympln_facet (this, f, e)
	Mark facet f in element e as a symmetry plane. More...
subroutine	mesh_mark_periodic_facet (this, f, e, pf, pe, pids)
	Mark facet f in element e as periodic with (pf, pe) More...
subroutine	mesh_get_facet_ids (this, f, e, pids)
	Get original ids of periodic points. More...
subroutine	mesh_reset_periodic_ids (this)
	Reset ids of periodic points to their original ids. More...
subroutine	mesh_create_periodic_ids (this, f, e, pf, pe)
	Creates common ids for matching periodic points. More...
subroutine	mesh_apply_periodic_facet (this, f, e, pf, pe, pids)
	Replaces the periodic point's id with a common id for matching periodic points. More...
integer function	mesh_get_local_point (this, p)
	Return the local id of a point p. More...
integer function	mesh_get_local_edge (this, e)
	Return the local id of an edge e. More...
integer function	mesh_get_local_facet (this, f)
	Return the local id of a face f. More...
integer function	mesh_get_global_edge (this, e)
	Return the global id of an edge e. More...
integer function	mesh_get_global_facet (this, f)
	Return the local id of a face f. More...
integer function	mesh_have_point_glb_idx (this, index)
	Check if the mesh has a point given its global index. More...
logical function	mesh_is_shared_point (this, p)
	Check if a point is shared. More...
logical function	mesh_is_shared_edge (this, e)
	Check if an edge is shared. More...
logical function	mesh_is_shared_facet (this, f)
	Check if a facet is shared. More...

Variables
integer, parameter, public	neko_msh_max_zlbls = 20
	Max num. zone labels. More...
integer, parameter, public	neko_msh_max_zlbl_len = 40
	Max length of a zone label. More...

Detailed Description

Defines a mesh.

Function/Subroutine Documentation

mesh_add_edge()

subroutine mesh::mesh_add_edge ( class(mesh_t), intent(inout)  this, type(tuple_i4_t), intent(inout)  e  )

private

Add a unique edge represented as a 2-tuple to the mesh.

Definition at line 1499 of file mesh.f90.

mesh_add_face()

subroutine mesh::mesh_add_face ( class(mesh_t), intent(inout)  this, type(tuple4_i4_t), intent(inout)  f  )

private

Add a unique face represented as a 4-tuple to the mesh.

Definition at line 1486 of file mesh.f90.

mesh_add_hex()

subroutine mesh::mesh_add_hex ( class(mesh_t), intent(inout), target  this, integer, value  el, type(point_t), intent(inout), target  p1, type(point_t), intent(inout), target  p2, type(point_t), intent(inout), target  p3, type(point_t), intent(inout), target  p4, type(point_t), intent(inout), target  p5, type(point_t), intent(inout), target  p6, type(point_t), intent(inout), target  p7, type(point_t), intent(inout), target  p8  )

private

Add a hexahedral element to the mesh this.

Definition at line 1422 of file mesh.f90.

mesh_add_point()

subroutine mesh::mesh_add_point ( class(mesh_t), intent(inout)  this, type(point_t), intent(inout)  p, integer, intent(inout)  idx  )

private

Add a unique point to the mesh.

Definition at line 1462 of file mesh.f90.

mesh_add_quad()

subroutine mesh::mesh_add_quad ( class(mesh_t), intent(inout), target  this, integer, value  el, type(point_t), intent(inout), target  p1, type(point_t), intent(inout), target  p2, type(point_t), intent(inout), target  p3, type(point_t), intent(inout), target  p4  )

private

Add a quadrilateral element to the mesh this.

Definition at line 1386 of file mesh.f90.

mesh_all_deformed()

subroutine mesh::mesh_all_deformed ( class(mesh_t), intent(inout)  this )

private

Set all elements as if they are deformed.

Definition at line 443 of file mesh.f90.

mesh_apply_periodic_facet()

subroutine mesh::mesh_apply_periodic_facet ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e, integer, intent(in)  pf, integer, intent(in)  pe, integer, dimension(4), intent(inout)  pids  )

private

Replaces the periodic point's id with a common id for matching periodic points.

Definition at line 1818 of file mesh.f90.

mesh_create_periodic_ids()

subroutine mesh::mesh_create_periodic_ids ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e, integer, intent(in)  pf, integer, intent(in)  pe  )

private

Creates common ids for matching periodic points.

Definition at line 1736 of file mesh.f90.

mesh_finalize()

subroutine mesh::mesh_finalize ( class(mesh_t), intent(inout), target  this )

private

Definition at line 390 of file mesh.f90.

Here is the call graph for this function:

mesh_free()

subroutine mesh::mesh_free ( class(mesh_t), intent(inout)  this )

private

Deallocate a mesh this.

Definition at line 312 of file mesh.f90.

Here is the call graph for this function:

mesh_generate_conn()

subroutine mesh::mesh_generate_conn ( class(mesh_t), intent(inout), target  this )

private

Generate element-to-element connectivity.

Note

We have to sweep through the facet map twice to make sure that both odd and even sides are marked

Todo:

These loop nests needs a lot of love...

Definition at line 449 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_generate_edge_conn()

subroutine mesh::mesh_generate_edge_conn ( type(mesh_t), intent(inout), target  this )

private

Generate element-element connectivity via edges both between internal and between PEs.

Attention

only for elements where facet .ne. edges

Todo:

move this into distdata

Definition at line 898 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_generate_external_facet_conn()

subroutine mesh::mesh_generate_external_facet_conn ( type(mesh_t), intent(inout)  this )

private

Generate element-element connectivity via facets between PEs.

Definition at line 663 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_generate_external_point_conn()

subroutine mesh::mesh_generate_external_point_conn ( type(mesh_t), intent(inout)  this )

private

Generate element-element connectivity via points between PEs.

Definition at line 830 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_generate_facet_numbering()

subroutine mesh::mesh_generate_facet_numbering ( type(mesh_t), intent(inout), target  this )

private

Generate a unique facet numbering.

Todo:

move this into distdata

Todo:

Move this into distdata as a method...

Todo:

Since we now the neigh. we can actually do p2p here...

Definition at line 1142 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_generate_flags()

subroutine mesh::mesh_generate_flags ( type(mesh_t), intent(inout)  this )

private

Definition at line 410 of file mesh.f90.

Here is the caller graph for this function:

mesh_get_facet_ids()

subroutine mesh::mesh_get_facet_ids ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e, integer, dimension(4), intent(inout)  pids  )

private

Get original ids of periodic points.

Definition at line 1661 of file mesh.f90.

mesh_get_global_edge()

integer function mesh::mesh_get_global_edge ( class(mesh_t), intent(inout)  this, type(tuple_i4_t), intent(inout)  e  )

private

Return the global id of an edge e.

Definition at line 1890 of file mesh.f90.

mesh_get_global_facet()

integer function mesh::mesh_get_global_facet ( class(mesh_t), intent(inout)  this, type(tuple4_i4_t), intent(inout)  f  )

private

Return the local id of a face f.

Definition at line 1910 of file mesh.f90.

mesh_get_local_edge()

integer function mesh::mesh_get_local_edge ( class(mesh_t), intent(inout)  this, type(tuple_i4_t), intent(inout)  e  )

private

Return the local id of an edge e.

Attention

only defined for gdim .ne. 2

Definition at line 1866 of file mesh.f90.

mesh_get_local_facet()

integer function mesh::mesh_get_local_facet ( class(mesh_t), intent(inout)  this, type(tuple4_i4_t), intent(inout)  f  )

private

Return the local id of a face f.

Definition at line 1878 of file mesh.f90.

mesh_get_local_point()

integer function mesh::mesh_get_local_point ( class(mesh_t), intent(inout)  this, type(point_t), intent(inout)  p  )

private

Return the local id of a point p.

Todo:

why do we still need to do this?

Definition at line 1849 of file mesh.f90.

mesh_have_point_glb_idx()

integer function mesh::mesh_have_point_glb_idx ( class(mesh_t), intent(inout)  this, integer, intent(inout)  index  )

private

Check if the mesh has a point given its global index.

Returns

The local id of the point (if present) otherwise -1

Todo:

Consider moving this to distdata

Parameters

[in,out]

index

Global index

Definition at line 1927 of file mesh.f90.

mesh_init_common()

subroutine mesh::mesh_init_common ( type(mesh_t), intent(inout)  this )

private

Only intialize if we generate connectivity

Todo:

resize onces final size is known

Todo:

resize onces final size is known Only init if we generate connectivity

Definition at line 222 of file mesh.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

mesh_init_dist()

subroutine mesh::mesh_init_dist ( class(mesh_t), intent(inout)  this, integer, intent(in)  gdim, type(linear_dist_t), intent(in)  dist  )

private

Initialise a mesh this based on a distribution dist.

Parameters

[in,out]	this	Mesh
[in]	gdim	Geometric dimension
[in]	dist	Data distribution

Definition at line 206 of file mesh.f90.

Here is the call graph for this function:

mesh_init_nelv()

subroutine mesh::mesh_init_nelv ( class(mesh_t), intent(inout)  this, integer, intent(in)  gdim, integer, intent(in)  nelv  )

private

Initialise a mesh this with nelv elements.

Parameters

[in,out]	this	Mesh
[in]	gdim	Geometric dimension
[in]	nelv	Local number of elements

Definition at line 183 of file mesh.f90.

Here is the call graph for this function:

mesh_is_shared_edge()

logical function mesh::mesh_is_shared_edge ( class(mesh_t), intent(inout)  this, type(tuple_i4_t), intent(inout)  e  )

private

Check if an edge is shared.

Attention

only defined for gdim .ne. 2

Definition at line 1954 of file mesh.f90.

mesh_is_shared_facet()

logical function mesh::mesh_is_shared_facet ( class(mesh_t), intent(inout)  this, type(tuple4_i4_t), intent(inout)  f  )

private

Check if a facet is shared.

Definition at line 1968 of file mesh.f90.

mesh_is_shared_point()

logical function mesh::mesh_is_shared_point ( class(mesh_t), intent(inout)  this, type(point_t), intent(inout)  p  )

private

Check if a point is shared.

Definition at line 1940 of file mesh.f90.

mesh_mark_curve_element()

subroutine mesh::mesh_mark_curve_element ( class(mesh_t), intent(inout)  this, integer, intent(in)  e, real(kind=dp), dimension(5,12), intent(in)  curve_data, integer, dimension(12), intent(in)  curve_type  )

private

Mark element e as a curve element.

Definition at line 1531 of file mesh.f90.

mesh_mark_inlet_facet()

subroutine mesh::mesh_mark_inlet_facet ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e  )

private

Mark facet f in element e as an inlet.

Definition at line 1549 of file mesh.f90.

mesh_mark_labeled_facet()

subroutine mesh::mesh_mark_labeled_facet ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e, integer, intent(in)  label  )

private

Mark facet f in element e with label.

Definition at line 1568 of file mesh.f90.

mesh_mark_outlet_facet()

subroutine mesh::mesh_mark_outlet_facet ( class(mesh_t), intent(inout)  this, integer, intent(inout)  f, integer, intent(inout)  e  )

private

Mark facet f in element e as an outlet.

Definition at line 1609 of file mesh.f90.

mesh_mark_outlet_normal_facet()

subroutine mesh::mesh_mark_outlet_normal_facet ( class(mesh_t), intent(inout)  this, integer, intent(inout)  f, integer, intent(inout)  e  )

private

Mark facet f in element e as an outlet normal.

Definition at line 1589 of file mesh.f90.

mesh_mark_periodic_facet()

subroutine mesh::mesh_mark_periodic_facet ( class(mesh_t), intent(inout)  this, integer, intent(in)  f, integer, intent(in)  e, integer, intent(in)  pf, integer, intent(in)  pe, integer, dimension(4), intent(inout)  pids  )

private

Mark facet f in element e as periodic with (pf, pe)

Definition at line 1647 of file mesh.f90.

mesh_mark_sympln_facet()

subroutine mesh::mesh_mark_sympln_facet ( class(mesh_t), intent(inout)  this, integer, intent(inout)  f, integer, intent(inout)  e  )

private

Mark facet f in element e as a symmetry plane.

Definition at line 1628 of file mesh.f90.

mesh_mark_wall_facet()

subroutine mesh::mesh_mark_wall_facet ( class(mesh_t), intent(inout)  this, integer, intent(inout)  f, integer, intent(inout)  e  )

private

Mark facet f in element e as a wall.

Definition at line 1512 of file mesh.f90.

mesh_reset_periodic_ids()

subroutine mesh::mesh_reset_periodic_ids ( class(mesh_t), intent(inout)  this )

private

Reset ids of periodic points to their original ids.

Definition at line 1685 of file mesh.f90.

Variable Documentation

neko_msh_max_zlbl_len

integer, parameter, public mesh::neko_msh_max_zlbl_len = 40

Max length of a zone label.

Definition at line 57 of file mesh.f90.

neko_msh_max_zlbls

integer, parameter, public mesh::neko_msh_max_zlbls = 20

Max num. zone labels.

Definition at line 55 of file mesh.f90.
