Defines various Bi-Conjugate Gradient Stabilized methods.

Data Types
type	bicgstab_t
	Standard preconditioned Bi-Conjugate Gradient Stabilized method. More...

Functions/Subroutines
subroutine	bicgstab_init (this, n, max_iter, M, rel_tol, abs_tol, monitor)
	Constructor. More...

subroutine	bicgstab_free (this)
	Deallocate a standard BiCGSTAB solver. More...

type(ksp_monitor_t) function	bicgstab_solve (this, Ax, x, f, n, coef, blst, gs_h, niter)
	Bi-Conjugate Gradient Stabilized method solve. More...

type(ksp_monitor_t) function, dimension(3)	bicgstab_solve_coupled (this, Ax, x, y, z, fx, fy, fz, n, coef, blstx, blsty, blstz, gs_h, niter)
	Standard BiCGSTAB coupled solve. More...

Function/Subroutine Documentation

◆ bicgstab_free()

subroutine bicgstab::bicgstab_free ( class(bicgstab_t), intent(inout) this )

private

Definition at line 116 of file bicgstab.f90.

subroutine bicgstab::bicgstab_init	(	class(bicgstab_t), intent(inout)	this,
		integer, intent(in)	n,
		integer, intent(in)	max_iter,
		class(pc_t), intent(inout), optional, target	M,
		real(kind=rp), intent(inout), optional	rel_tol,
		real(kind=rp), intent(inout), optional	abs_tol,
		logical, intent(in), optional	monitor
	)

Definition at line 72 of file bicgstab.f90.

type(ksp_monitor_t) function bicgstab::bicgstab_solve	(	class(bicgstab_t), intent(inout)	this,
		class(ax_t), intent(inout)	Ax,
		type(field_t), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	f,
		integer, intent(in)	n,
		type(coef_t), intent(inout)	coef,
		type(bc_list_t), intent(inout)	blst,
		type(gs_t), intent(inout)	gs_h,
		integer, intent(in), optional	niter
	)

private

Definition at line 155 of file bicgstab.f90.

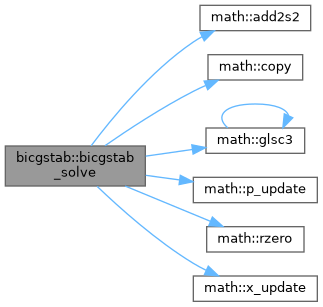

Here is the call graph for this function:

type(ksp_monitor_t) function, dimension(3) bicgstab::bicgstab_solve_coupled	(	class(bicgstab_t), intent(inout)	this,
		class(ax_t), intent(inout)	Ax,
		type(field_t), intent(inout)	x,
		type(field_t), intent(inout)	y,
		type(field_t), intent(inout)	z,
		real(kind=rp), dimension(n), intent(inout)	fx,
		real(kind=rp), dimension(n), intent(inout)	fy,
		real(kind=rp), dimension(n), intent(inout)	fz,
		integer, intent(in)	n,
		type(coef_t), intent(inout)	coef,
		type(bc_list_t), intent(inout)	blstx,
		type(bc_list_t), intent(inout)	blsty,
		type(bc_list_t), intent(inout)	blstz,
		type(gs_t), intent(inout)	gs_h,
		integer, intent(in), optional	niter
	)

private

Definition at line 250 of file bicgstab.f90.
