elementwise_filter Module Reference

Implements explicit_filter_t.

Data Types
type	elementwise_filter_t
	Implements the explicit filter for SEM. More...

Functions/Subroutines
subroutine	elementwise_filter_init (this, nx, filter_type)
	Constructor.
subroutine	elementwise_filter_free (this)
	Destructor.
subroutine	build_1d (this)
	Build the 1d filter for an element.
subroutine	elementwise_field_filter_3d (this, v, u, nelv)
	Filter a 3D field.

Function/Subroutine Documentation

build_1d()

subroutine elementwise_filter::build_1d ( class(elementwise_filter_t), intent(inout)  this )

private

Definition at line 116 of file elementwise_filter.f90.

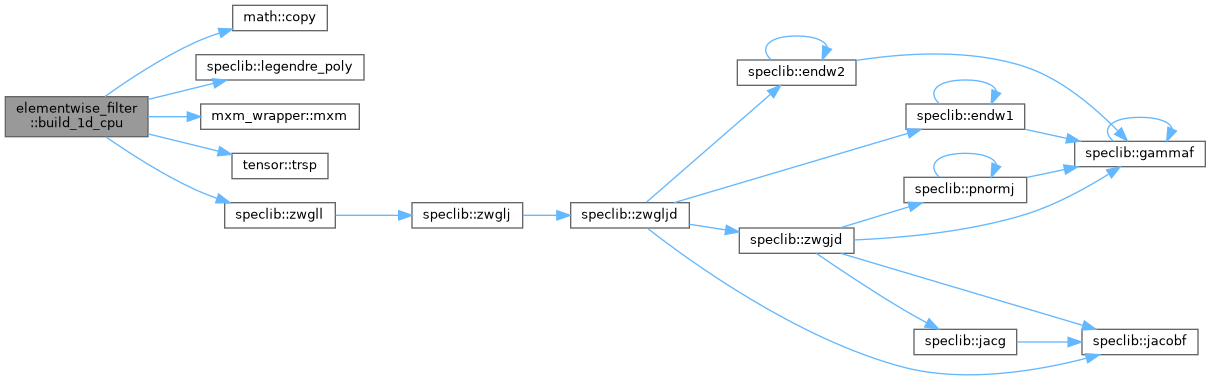

Here is the call graph for this function:

elementwise_field_filter_3d()

subroutine elementwise_filter::elementwise_field_filter_3d ( class(elementwise_filter_t), intent(inout)  this, real(kind=rp), dimension(this%nx, this%nx, this%nx, nelv), intent(inout)  v, real(kind=rp), dimension(this%nx, this%nx, this%nx, nelv), intent(inout)  u, integer, intent(inout)  nelv  )

private

Definition at line 129 of file elementwise_filter.f90.

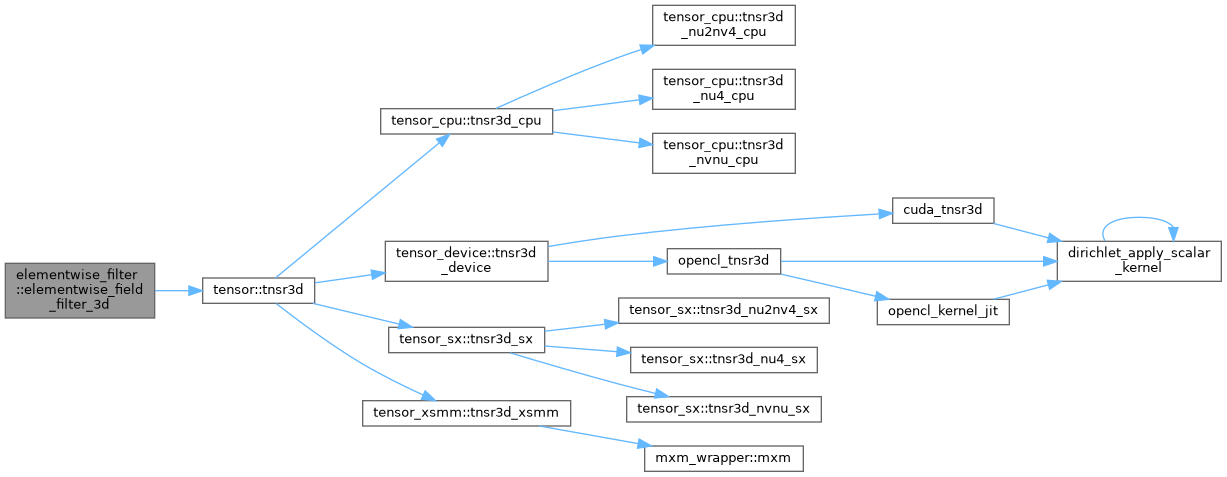

Here is the call graph for this function:

elementwise_filter_free()

subroutine elementwise_filter::elementwise_filter_free ( class(elementwise_filter_t), intent(inout)  this )

private

Definition at line 94 of file elementwise_filter.f90.

elementwise_filter_init()

subroutine elementwise_filter::elementwise_filter_init	(	class(elementwise_filter_t), intent(inout)	this,
		integer	nx,
		character(len=*)	filter_type
	)

Parameters

nx	number of points in an elements in one direction.
filter_type	possible options: "Boyd", "nonBoyd"

Definition at line 74 of file elementwise_filter.f90.

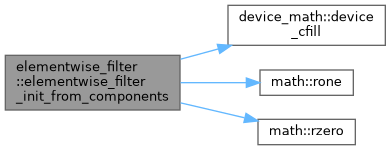

Here is the call graph for this function:
