global_interpolation Module Reference

Implements global_interpolation given a dofmap. More...

Data Types
type	global_interpolation_t
	Implements global interpolation for arbitrary points in the domain. More...

Functions/Subroutines
subroutine	global_interpolation_init_dof (this, dof, tol)
	Initialize the global interpolation object on a dofmap. More...
subroutine	global_interpolation_init_xyz (this, x, y, z, gdim, nelv, Xh, tol)
	Initialize the global interpolation object on a set of coordinates. More...
subroutine	global_interpolation_free (this)
	Destructor. More...
subroutine	global_interpolation_free_points (this)
	Destructor for point arrays. More...
subroutine	global_interpolation_find_common (this)
	Common routine for finding the points. More...
subroutine	global_interpolation_find_coords (this, x, y, z, n_points)
	Finds the corresponding r,s,t coordinates in the correct global element as well as which process that owns the point. After this the values at these points can be evaluated. If the locations of the points change this must be called again. More...
subroutine	global_interpolation_init_point_arrays (this)
subroutine	global_interpolation_find_xyz (this, xyz, n_points)
	Finds the corresponding r,s,t coordinates in the correct global element as well as which process that owns the point. After this the values at these points can be evaluated. If the locations of the points change this must be called again. More...
subroutine	global_interpolation_find_and_redist (this, xyz, n_points)
	Finds the corresponding r,s,t coordinates and redistributes the points to the owning rank in the correct global element as well as which process that owns the point. After this the values at these points can be evaluated. If the locations of the points change this must be called again. More...
subroutine	global_interpolation_redist (this)
subroutine	global_interpolation_evaluate (this, interp_values, field)
	Evalute the interpolated value in the points given a field on the dofmap. More...

Detailed Description

Note

This modules uses functions from gslib, namely findpts_setup, findpts, and findpts_eval. A full description of these subroutines can be found at https://github.com/Nek5000/gslib/blob/master/src/findpts.c

Function/Subroutine Documentation

global_interpolation_evaluate()

subroutine global_interpolation::global_interpolation_evaluate ( class(global_interpolation_t), intent(inout)  this, real(kind=rp), dimension(this%n_points), intent(inout)  interp_values, real(kind=rp), dimension(this%nelv*this%xh%lxyz), intent(inout)  field  )

private

Parameters

interp_values	Array of values in the given points.
field	Array of values used for interpolation.

Definition at line 566 of file global_interpolation.F90.

global_interpolation_find_and_redist()

subroutine global_interpolation::global_interpolation_find_and_redist ( class(global_interpolation_t), intent(inout)  this, real(kind=rp), dimension(:,:), intent(inout), allocatable  xyz, integer, intent(inout)  n_points  )

private

• error_code: returns 0 if point found, 1 if closest point on a border (check dist2), 2 if not found.
• dist2: distance squared (used to compare the points found by each processor)

  Parameters

  xyz	The coordinates of the points.
  n_points	The number of points.

make deep copy incase xyz goes out of scope or deallocated

Sets new points and redistributes them

Definition at line 443 of file global_interpolation.F90.

Here is the call graph for this function:

global_interpolation_find_common()

subroutine global_interpolation::global_interpolation_find_common ( class(global_interpolation_t), intent(inout)  this )

private

Definition at line 236 of file global_interpolation.F90.

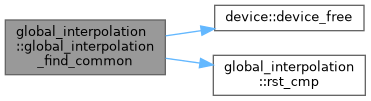

Here is the caller graph for this function:

global_interpolation_find_coords()

subroutine global_interpolation::global_interpolation_find_coords ( class(global_interpolation_t), intent(inout)  this, real(kind=rp), dimension(n_points,1,1,1)  x, real(kind=rp), dimension(n_points,1,1,1)  y, real(kind=rp), dimension(n_points,1,1,1)  z, integer  n_points  )

private

• error_code: returns 0 if point found, 1 if closest point on a border (check dist2), 2 if not found
• dist2: distance squared (used to compare the points found by each processor)

  Parameters

  x	The x-coordinates of the points.
  y	The y-coordinates of the points.
  z	The z-coordinates of the points.
  n_points	The number of points.

Definition at line 360 of file global_interpolation.F90.

Here is the call graph for this function:

global_interpolation_find_xyz()

subroutine global_interpolation::global_interpolation_find_xyz ( class(global_interpolation_t), intent(inout)  this, real(kind=rp), dimension(3, n_points), intent(inout)  xyz, integer, intent(in)  n_points  )

private

• error_code: returns 0 if point found, 1 if closest point on a border (check dist2), 2 if not found
• dist2: distance squared (used to compare the points found by each processor)

  Parameters

  xyz	The coordinates of the points.
  n_points	The number of points.

make deep copy incase xyz goes out of scope or deallocated

Definition at line 412 of file global_interpolation.F90.

Here is the call graph for this function:

global_interpolation_free()

subroutine global_interpolation::global_interpolation_free ( class(global_interpolation_t), intent(inout)  this )

private

Definition at line 193 of file global_interpolation.F90.

global_interpolation_free_points()

subroutine global_interpolation::global_interpolation_free_points ( class(global_interpolation_t), intent(inout)  this )

private

Definition at line 216 of file global_interpolation.F90.

global_interpolation_init_dof()

subroutine global_interpolation::global_interpolation_init_dof	(	class(global_interpolation_t), intent(inout)	this,
		type(dofmap_t), target	dof,
		real(kind=rp), optional	tol
	)

Parameters

dof	Dofmap on which the interpolation is to be carried out.
tol	Tolerance for Newton iterations.

Definition at line 126 of file global_interpolation.F90.

global_interpolation_init_point_arrays()

subroutine global_interpolation::global_interpolation_init_point_arrays ( class(global_interpolation_t)  this )

private

Definition at line 387 of file global_interpolation.F90.

Here is the caller graph for this function:

global_interpolation_init_xyz()

subroutine global_interpolation::global_interpolation_init_xyz ( class(global_interpolation_t), intent(inout)  this, real(kind=rp), dimension(:), intent(in), target  x, real(kind=rp), dimension(:), intent(in), target  y, real(kind=rp), dimension(:), intent(in), target  z, integer, intent(in)  gdim, integer, intent(in)  nelv, type(space_t), intent(in), target  Xh, real(kind=rp), intent(in), optional  tol  )

private

Parameters

x	x-coordinates.
y	y-coordinates.
z	z-coordinates.
gdim	Geometric dimension.
nelv	Number of elements of the mesh in which to search for the points.
Xh	Space on which to interpolate.
tol	Tolerance for Newton iterations.

Definition at line 148 of file global_interpolation.F90.

global_interpolation_redist()

subroutine global_interpolation::global_interpolation_redist ( class(global_interpolation_t), intent(inout)  this )

private

Calculate which processes this proc has points on

Sum number of points on all pes to compute n_new_points Store how many points to receive from each pe

This could be avoided by adding all indices to a list

Definition at line 487 of file global_interpolation.F90.

Here is the call graph for this function:

Here is the caller graph for this function:
