opr_conv1.hip File Reference
#include <string.h>
#include <stdlib.h>
#include <stdio.h>
#include <hip/hip_runtime.h>
#include <device/device_config.h>
#include <device/hip/check.h>
#include "conv1_kernel.h"
#include "elem_block_tune.h"
#include <common/neko_log.h>

Go to the source code of this file.

Macros

#define CASE_1D(LX, C)

#define CASE_1D_SEL(LX, SEL)

#define CASE_KSTEP(LX, C)

#define CASE_KSTEP_SEL(LX, SEL)

#define CASE(LX)

#define CASE_LARGE(LX)


Functions

template<const int >
int tune_conv1 (void *du, void *u, void *vx, void *vy, void *vz, void *dx, void *dy, void *dz, void *drdx, void *dsdx, void *dtdx, void *drdy, void *dsdy, void *dtdy, void *drdz, void *dsdz, void *dtdz, void *jacinv, int *nel, int *gdim, int *lx, int *eb_sel, int *ch_sel)

void hip_conv1 (void *du, void *u, void *vx, void *vy, void *vz, void *dx, void *dy, void *dz, void *drdx, void *dsdx, void *dtdx, void *drdy, void *dsdy, void *dtdy, void *drdz, void *dsdz, void *dtdz, void *jacinv, int *nel, int *gdim, int *lx)


Macro Definition Documentation

◆ CASE

#define CASE (   LX)
Value:
case LX: \
if(autotune[LX] == 0 ) { \
autotune[LX]=tune_conv1<LX>(du, u, \
vx, vy, vz, \
dx, dy, dz, \
drdx, dsdx, dtdx, \
drdy, dsdy, dtdy, \
drdz, dsdz, dtdz, \
jacinv, nel, gdim, lx, &autotune_eb[LX], \
&autotune_ch[LX]); \
} else if (autotune[LX] == 1 ) { \
CASE_1D_SEL(LX, autotune_ch[LX]); \
} else if (autotune[LX] == 2 ) { \
CASE_KSTEP_SEL(LX, autotune_eb[LX]); \
} \
break
ale_add_kinematics_kernel
__global__ void ale_add_kinematics_kernel(const int n, T *__restrict__ wx, T *__restrict__ wy, T *__restrict__ wz, const T *__restrict__ x_ref, const T *__restrict__ y_ref, const T *__restrict__ z_ref, const T *__restrict__ phi, const T *__restrict__ x, const T *__restrict__ y, const T *__restrict__ z, const kinematics_params_t kin_params)
Definition ale_kinematics_kernel.h:52
drdy
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ drdy
Definition ax_helm_full_kernel.h:54
drdz
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ drdz
Definition ax_helm_full_kernel.h:55
dsdz
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dsdz
Definition ax_helm_full_kernel.h:58
dsdy
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dsdy
Definition ax_helm_full_kernel.h:57
dtdy
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dtdy
Definition ax_helm_full_kernel.h:60
u
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ u
Definition ax_helm_full_kernel.h:46
dx
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dx
Definition ax_helm_full_kernel.h:49
drdx
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ drdx
Definition ax_helm_full_kernel.h:53
dtdz
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dtdz
Definition ax_helm_full_kernel.h:61
dsdx
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dsdx
Definition ax_helm_full_kernel.h:56
dtdx
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dtdx
Definition ax_helm_full_kernel.h:59
dz
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dz
Definition ax_helm_full_kernel.h:51
dy
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ dy
Definition ax_helm_full_kernel.h:50
jacinv
__global__ void T *__restrict__ T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ jacinv
Definition ax_helm_full_kernel.h:62
vz
__global__ void const T *__restrict__ const T *__restrict__ const T *__restrict__ const T *__restrict__ vz
Definition conv1_kernel.h:137
vx
__global__ void const T *__restrict__ const T *__restrict__ vx
Definition conv1_kernel.h:135
vy
__global__ void const T *__restrict__ const T *__restrict__ const T *__restrict__ vy
Definition conv1_kernel.h:136

◆ CASE_1D

#define CASE_1D (   LX,
  C
)
Value:
hipLaunchKernelGGL( HIP_KERNEL_NAME( \
conv1_kernel_1d<real, LX, NEKO_CHUNKS(LX, C)> ), \
nblcks, NEKO_CHUNKS_NTHRDS(LX, C), 0, \
(hipStream_t) glb_cmd_queue, \
(real *) du, (real *) u, \
(real *) vx, (real *) vy, (real *) vz, \
(real *) dx, (real *) dy, (real *) dz, \
(real *) drdx, (real *) dsdx, (real *) dtdx, \
(real *) drdy, (real *) dsdy, (real *) dtdy, \
(real *) drdz, (real *) dsdz, (real *) dtdz, \
(real *) jacinv); \
HIP_CHECK(hipGetLastError());
conv1_kernel_1d
__global__ void conv1_kernel_1d(T *__restrict__ du, const T *__restrict__ u, const T *__restrict__ vx, const T *__restrict__ vy, const T *__restrict__ vz, const T *__restrict__ dx, const T *__restrict__ dy, const T *__restrict__ dz, const T *__restrict__ drdx, const T *__restrict__ dsdx, const T *__restrict__ dtdx, const T *__restrict__ drdy, const T *__restrict__ dsdy, const T *__restrict__ dtdy, const T *__restrict__ drdz, const T *__restrict__ dsdz, const T *__restrict__ dtdz, const T *__restrict__ jacinv)
Definition conv1_kernel.h:44
NEKO_CHUNKS
#define NEKO_CHUNKS(LX, C)
Definition elem_block.h:145
NEKO_CHUNKS_NTHRDS
#define NEKO_CHUNKS_NTHRDS(LX, C)
Definition elem_block.h:146
real
double real
Definition device_config.h:12

◆ CASE_1D_SEL

#define CASE_1D_SEL (   LX,
  SEL
)
Value:
switch (SEL) { \
case 0: CASE_1D(LX, 0); break; \
case 1: CASE_1D(LX, 1); break; \
case 2: CASE_1D(LX, 2); break; \
default: CASE_1D(LX, 3); break; \
}
CASE_1D
#define CASE_1D(LX, C)

◆ CASE_KSTEP

#define CASE_KSTEP (   LX,
  C
)
Value:
hipLaunchKernelGGL( HIP_KERNEL_NAME( \
conv1_kernel_kstep<real, LX, NEKO_EB(LX, C)> ), \
NEKO_EB_NBLCKS(*nel, LX, C), NEKO_EB_NTHRDS(LX, C), 0, \
(hipStream_t) glb_cmd_queue, \
(real *) du, (real *) u, \
(real *) vx, (real *) vy, (real *) vz, \
(real *) dx, (real *) dy, (real *) dz, \
(real *) drdx, (real *) dsdx, (real *) dtdx, \
(real *) drdy, (real *) dsdy, (real *) dtdy, \
(real *) drdz, (real *) dsdz, (real *) dtdz, \
(real *) jacinv, *nel); \
HIP_CHECK(hipGetLastError());
NEKO_EB
#define NEKO_EB(LX, C)
Definition elem_block.h:104
NEKO_EB_NBLCKS
#define NEKO_EB_NBLCKS(NELV, LX, C)
Definition elem_block.h:106
NEKO_EB_NTHRDS
#define NEKO_EB_NTHRDS(LX, C)
Definition elem_block.h:105

◆ CASE_KSTEP_SEL

#define CASE_KSTEP_SEL (   LX,
  SEL
)
Value:
switch (SEL) { \
case 0: CASE_KSTEP(LX, 0); break; \
case 1: CASE_KSTEP(LX, 1); break; \
default: CASE_KSTEP(LX, 2); break; \
}
CASE_KSTEP
#define CASE_KSTEP(LX, C)

◆ CASE_LARGE

#define CASE_LARGE (   LX)
Value:
case LX: \
CASE_KSTEP(LX, 0); \
break

Function Documentation

◆ hip_conv1()

void hip_conv1 ( void *  du,
void *  u,
void *  vx,
void *  vy,
void *  vz,
void *  dx,
void *  dy,
void *  dz,
void *  drdx,
void *  dsdx,
void *  dtdx,
void *  drdy,
void *  dsdy,
void *  dtdy,
void *  drdz,
void *  dsdz,
void *  dtdz,
void *  jacinv,
int *  nel,
int *  gdim,
int *  lx
)

Fortran wrapper for device hip convective terms

Definition at line 63 of file opr_conv1.hip.

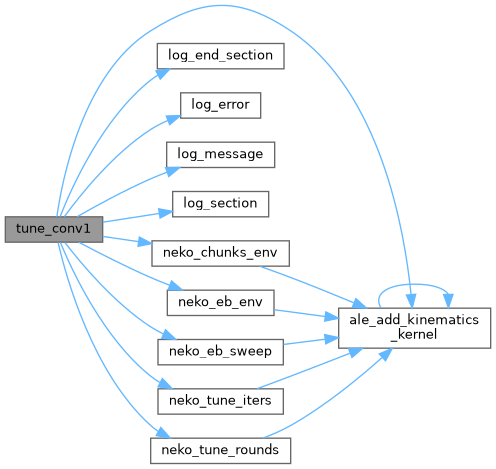

Here is the call graph for this function:

◆ tune_conv1()

template<const int >
int tune_conv1 ( void *  du,
void *  u,
void *  vx,
void *  vy,
void *  vz,
void *  dx,
void *  dy,
void *  dz,
void *  drdx,
void *  dsdx,
void *  dtdx,
void *  drdy,
void *  dsdy,
void *  dtdy,
void *  drdz,
void *  dsdz,
void *  dtdz,
void *  jacinv,
int *  nel,
int *  gdim,
int *  lx,
int *  eb_sel,
int *  ch_sel
)

Definition at line 187 of file opr_conv1.hip.

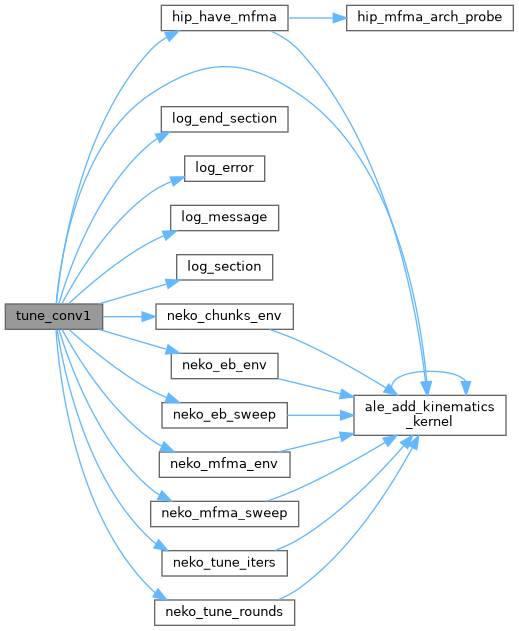

Here is the call graph for this function:
