legendre_rst_finder Module Reference

Data Types
type	legendre_rst_finder_t
	Type to compute local element (rst) coordinates for a gives set points in physical (xyz) space on a SEM grid. More...

Functions/Subroutines
subroutine	legendre_rst_finder_init (this, x, y, z, nelv, xh, tol, max_iter)
subroutine	legendre_rst_finder_free (this)
subroutine	legendre_rst_finder_find (this, rst_local_cand, x_t, y_t, z_t, el_cands, n_point_cand, resx, resy, resz)
	Given a set of element candidates containing the given points and computes the local RST coordinates for those points. This subroutine supports both CPU and device (GPU) execution, depending on the configugered backend of NEKO_BCKND_DEVICE.
subroutine	find_rst_legendre_device (this, rst, pt_x, pt_y, pt_z, el_list, n_pts, resx, resy, resz)
	Using the Legendre polynomials to find the rst coordinates on GPU.
subroutine	find_rst_legendre_cpu (this, rst, pt_x, pt_y, pt_z, el_list, n_pts, resx, resy, resz)
	Using the Legendre polynomials to find the rst coordinates.

Function/Subroutine Documentation

find_rst_legendre_cpu()

subroutine legendre_rst_finder::find_rst_legendre_cpu ( type(legendre_rst_finder_t), intent(inout)  this, real(kind=rp), dimension(3, n_pts), intent(inout)  rst, real(kind=rp), dimension(n_pts), intent(in)  pt_x, real(kind=rp), dimension(n_pts), intent(in)  pt_y, real(kind=rp), dimension(n_pts), intent(in)  pt_z, integer, dimension(n_pts), intent(in)  el_list, integer, intent(in)  n_pts, real(kind=rp), dimension(n_pts), intent(inout)  resx, real(kind=rp), dimension(n_pts), intent(inout)  resy, real(kind=rp), dimension(n_pts), intent(inout)  resz  )

private

Parameters

rst	holds the computed rst values
pt_{x,y,z}	are the xyz coords of the points
el_list	are the elements in which we look for rst
n_pts	the number of points
res{x,y,z}	are the difference between pt_{xyz} and xyz

Definition at line 229 of file legendre_rst_finder.f90.

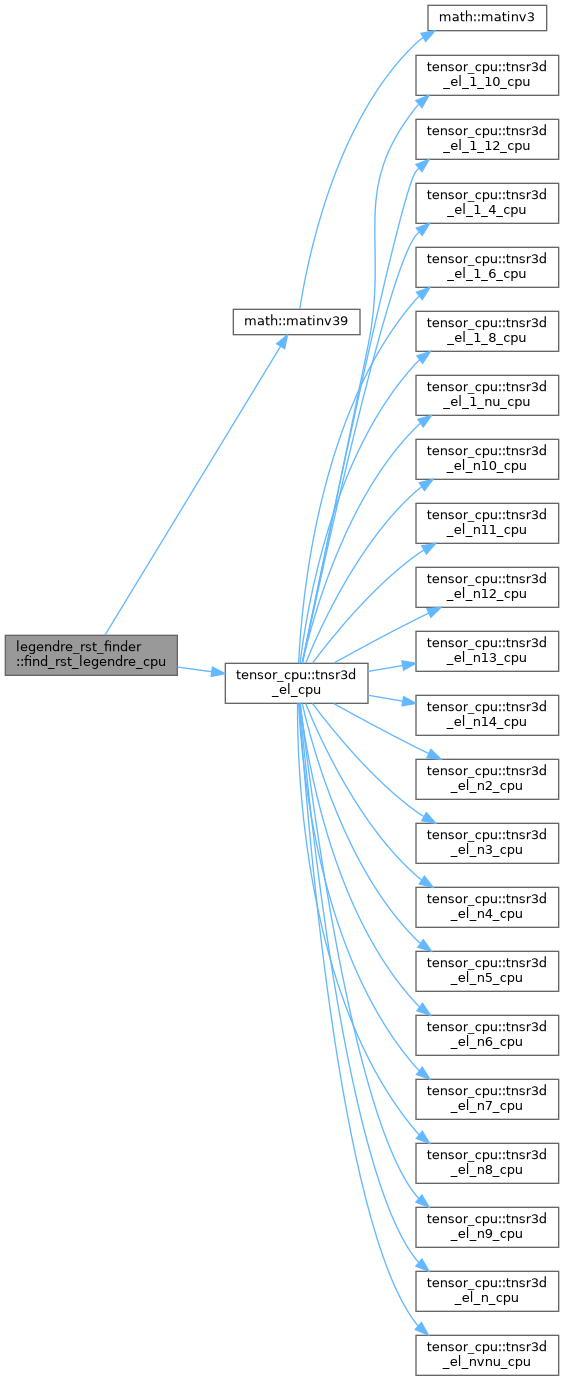

Here is the call graph for this function:

Here is the caller graph for this function:

find_rst_legendre_device()

subroutine legendre_rst_finder::find_rst_legendre_device ( type(legendre_rst_finder_t), intent(inout)  this, type(c_ptr), intent(inout)  rst, type(c_ptr), intent(in)  pt_x, type(c_ptr), intent(in)  pt_y, type(c_ptr), intent(in)  pt_z, type(c_ptr), intent(in)  el_list, integer, intent(in)  n_pts, type(c_ptr), intent(inout)  resx, type(c_ptr), intent(inout)  resy, type(c_ptr), intent(inout)  resz  )

private

Parameters

rst	holds the computed rst values
pt_{x,y,z}	are the xyz coords of the points
el_list	are the elements in which we look for rst
n_pts	the number of points
res{x,y,z}	are the difference between pt_{xyz} and xyz

Definition at line 185 of file legendre_rst_finder.f90.

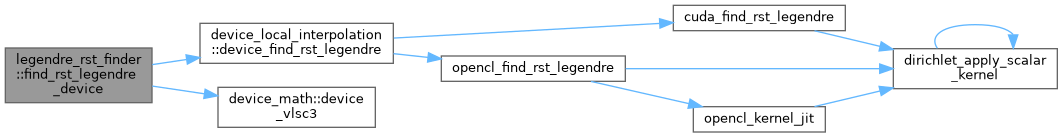

Here is the call graph for this function:

Here is the caller graph for this function:

legendre_rst_finder_find()

subroutine legendre_rst_finder::legendre_rst_finder_find ( class(legendre_rst_finder_t), intent(inout)  this, type(matrix_t), intent(inout)  rst_local_cand, type(vector_t), intent(in)  x_t, type(vector_t), intent(in)  y_t, type(vector_t), intent(in)  z_t, integer, dimension(:), intent(inout)  el_cands, integer, intent(in)  n_point_cand, type(vector_t), intent(inout)  resx, type(vector_t), intent(inout)  resy, type(vector_t), intent(inout)  resz  )

private

Parameters

this	An instance of the legendre_rst_finder_t class.
rst_local_cand	A matrix to store the local RST coordinates of the candidate points.
x_t	A vector containing the x-coordinates of the target points.
y_t	A vector containing the y-coordinates of the target points.
z_t	A vector containing the z-coordinates of the target points.
el_cands	An array with the indices of the candidate elements.
n_point_cand	The number of candidate points to process.
resx	A vector to store the residuals in the x-direction.
resy	A vector to store the residuals in the y-direction.
resz	A vector to store the residuals in the z-direction.

Find the elements that contain the points

Definition at line 148 of file legendre_rst_finder.f90.

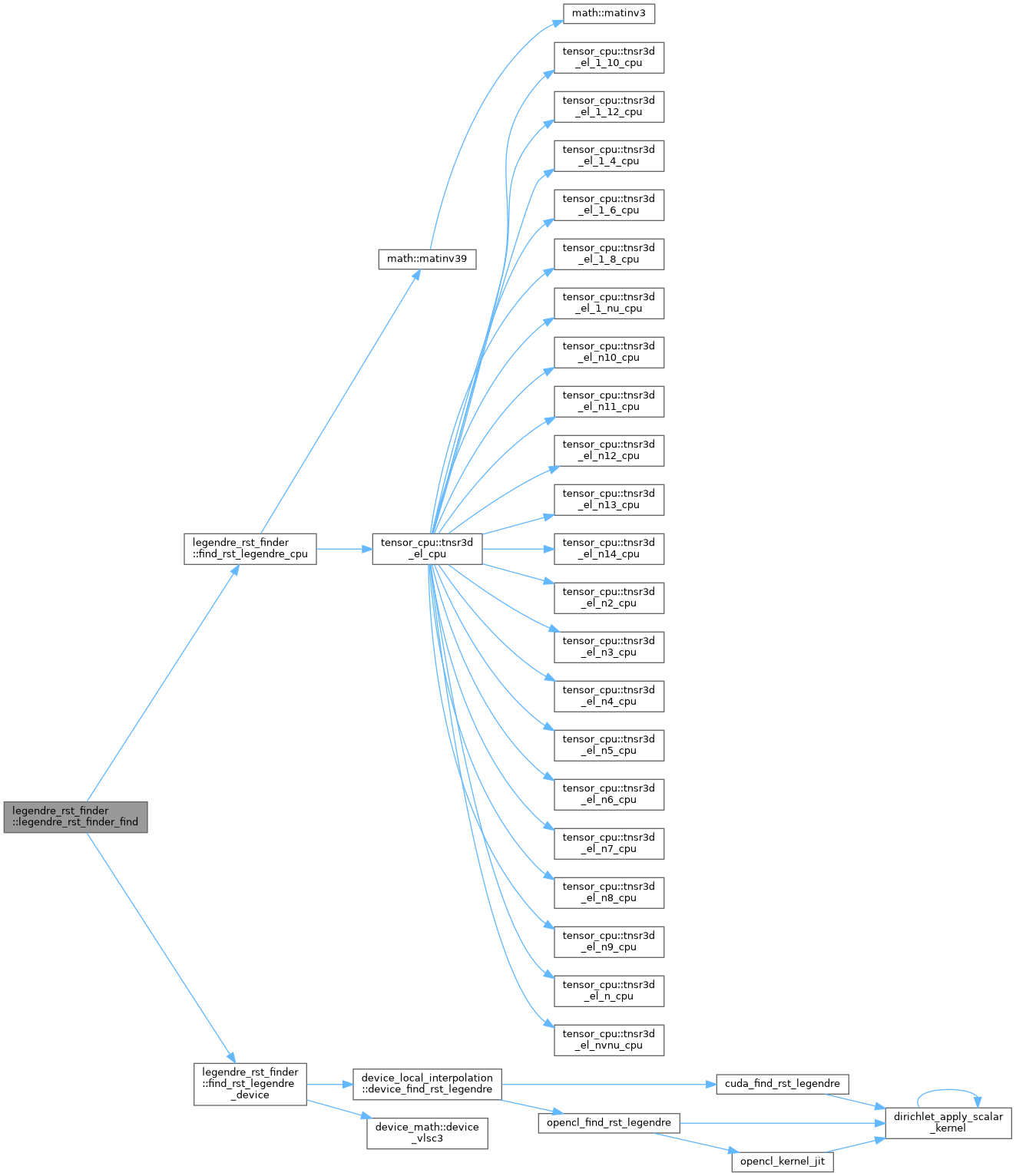

Here is the call graph for this function:

legendre_rst_finder_free()

subroutine legendre_rst_finder::legendre_rst_finder_free ( class(legendre_rst_finder_t), intent(inout)  this )

private

Definition at line 122 of file legendre_rst_finder.f90.

legendre_rst_finder_init()

subroutine legendre_rst_finder::legendre_rst_finder_init	(	class(legendre_rst_finder_t), intent(inout)	this,
		real(kind=rp), dimension(nelv*xh%lxyz), intent(in)	x,
		real(kind=rp), dimension(nelv*xh%lxyz), intent(in)	y,
		real(kind=rp), dimension(nelv*xh%lxyz), intent(in)	z,
		integer, intent(in)	nelv,
		type(space_t), intent(in), target	xh,
		real(kind=rp), intent(in), optional	tol,
		integer, intent(in), optional	max_iter
	)

Copy the data to the device (if device exists)

Definition at line 70 of file legendre_rst_finder.f90.

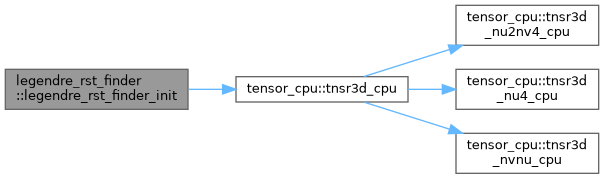

Here is the call graph for this function:
