cartesian_pe_finder Module Reference

Implements cartesian_pe_finder given a dofmap.

Data Types
type	cartesian_pe_finder_t
	Implements global interpolation for arbitrary points in the domain. More...
type	i8_mpi_t

Functions/Subroutines
subroutine	cartesian_pe_finder_init (this, x, y, z, nelv, xh, comm, n_boxes, padding)
	Initialize the global interpolation object on a set of coordinates.
subroutine	cartesian_pe_finder_find (this, my_point, pe_candidates)
integer(kind=i8) function, dimension(3)	get_global_idx (this, x, y, z)
integer function	get_pe_idx (this, global_idx)
subroutine	cartesian_pe_finder_free (this)
	Destructor.
subroutine	cartesian_pe_finder_find_batch (this, points, n_points, points_at_pe, n_points_pe)
subroutine	send_recv_data (this, recv_values, n_recv_values, send_values, n_send_values)

Variables
integer, parameter, public	glob_map_size = 4096
	Minimum number of total boxes in the aabb tree.

Function/Subroutine Documentation

cartesian_pe_finder_find()

subroutine cartesian_pe_finder::cartesian_pe_finder_find ( class(cartesian_pe_finder_t), intent(inout)  this, type(point_t), intent(in)  my_point, type(stack_i4_t), intent(inout)  pe_candidates  )

private

Definition at line 390 of file cartesian_pe_finder.f90.

cartesian_pe_finder_find_batch()

subroutine cartesian_pe_finder::cartesian_pe_finder_find_batch ( class(cartesian_pe_finder_t), intent(inout)  this, real(kind=rp), dimension(3,n_points), intent(in)  points, integer, intent(in)  n_points, type(stack_i4_t), dimension(0:(this%pe_size-1)), intent(inout)  points_at_pe, integer, dimension(0:(this%pe_size-1)), intent(inout)  n_points_pe  )

private

Definition at line 452 of file cartesian_pe_finder.f90.

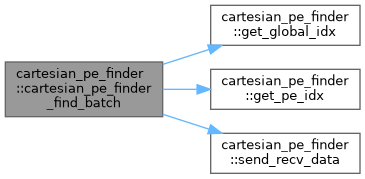

Here is the call graph for this function:

cartesian_pe_finder_free()

subroutine cartesian_pe_finder::cartesian_pe_finder_free ( class(cartesian_pe_finder_t), intent(inout)  this )

private

Definition at line 423 of file cartesian_pe_finder.f90.

cartesian_pe_finder_init()

subroutine cartesian_pe_finder::cartesian_pe_finder_init	(	class(cartesian_pe_finder_t), intent(inout)	this,
		real(kind=rp), dimension(:), intent(in), target	x,
		real(kind=rp), dimension(:), intent(in), target	y,
		real(kind=rp), dimension(:), intent(in), target	z,
		integer, intent(in)	nelv,
		type(space_t), intent(in), target	xh,
		type(mpi_comm), intent(in), optional	comm,
		integer, intent(in)	n_boxes,
		real(kind=dp), intent(in)	padding
	)

Parameters

x	x-coordinates.
y	y-coordinates.
z	z-coordinates.
gdim	Geometric dimension.
nelv	Number of elements of the mesh in which to search for the points.
Xh	Space on which to interpolate.
tol	Tolerance for Newton iterations.

Definition at line 113 of file cartesian_pe_finder.f90.

Here is the call graph for this function:

get_global_idx()

integer(kind=i8) function, dimension(3) cartesian_pe_finder::get_global_idx ( class(cartesian_pe_finder_t), intent(in)  this, real(kind=rp), intent(in)  x, real(kind=rp), intent(in)  y, real(kind=rp), intent(in)  z  )

private

Definition at line 398 of file cartesian_pe_finder.f90.

Here is the caller graph for this function:

get_pe_idx()

integer function cartesian_pe_finder::get_pe_idx ( class(cartesian_pe_finder_t), intent(in)  this, integer(kind=i8), intent(in)  global_idx  )

private

Definition at line 413 of file cartesian_pe_finder.f90.

Here is the caller graph for this function:

send_recv_data()

subroutine cartesian_pe_finder::send_recv_data ( class(cartesian_pe_finder_t), intent(inout)  this, type(stack_i8_t), dimension(0:this%pe_size-1), intent(inout)  recv_values, integer, dimension(0:this%pe_size-1), intent(inout)  n_recv_values, type(stack_i8_t), dimension(0:this%pe_size-1), intent(inout)  send_values, integer, dimension(0:this%pe_size-1), intent(inout)  n_send_values  )

private

Definition at line 609 of file cartesian_pe_finder.f90.

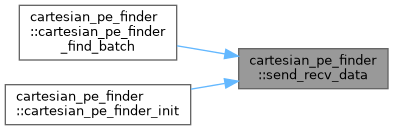

Here is the caller graph for this function:

Variable Documentation

glob_map_size

integer, parameter, public cartesian_pe_finder::glob_map_size = 4096

Definition at line 56 of file cartesian_pe_finder.f90.
