boundary_data_writer_simcomp Module Reference

Implements the boundary_data_writer_t type.

Data Types
type	boundary_data_writer_t
	A simulation component that writes registry fields sampled on labelled boundary zones. The component builds a mask over the requested labelled zones and, at every output, samples the requested quantities at the boundary GLL points. The result is written either as CSV or as HDF5. More...

Functions/Subroutines
subroutine	boundary_data_writer_init_from_json (this, json, case)
	Constructor from json.
subroutine	boundary_data_writer_init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing controllers.
subroutine	boundary_data_writer_init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing properties to the time_based_controller components in the base type.
subroutine	boundary_data_writer_init_common (this, name, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Common part of all constructors.
subroutine	boundary_data_writer_setup_output_csv (this, output_filename, n_geom)
	Set up a CSV output.
subroutine	boundary_data_writer_setup_output_hdf5 (this, ft, n_geom)
	Set up an HDF5 output.
subroutine	boundary_data_writer_free (this)
	Destructor.
subroutine	boundary_data_writer_gather_column (this, f, col)
	Gather a field at the masked points into a column of the local buffer.
subroutine	boundary_data_writer_compute (this, time)
	Sample the boundary and write.
subroutine	boundary_data_writer_gather_to_root (this)
	Gather the local sample buffer onto rank zero.
subroutine	boundary_data_writer_local_geometry (this, mat, n_geom)
	Collect the reference geometry of the local points into a matrix.
subroutine	boundary_data_writer_gather_geometry (this, mat, n_geom)
	Gather the reference geometry of all points onto rank zero.

Function/Subroutine Documentation

boundary_data_writer_compute()

subroutine boundary_data_writer_simcomp::boundary_data_writer_compute ( class(boundary_data_writer_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

time	The current time state.

Definition at line 638 of file boundary_data_writer_simcomp.f90.

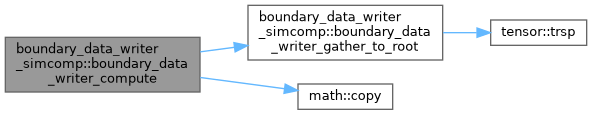

Here is the call graph for this function:

boundary_data_writer_free()

subroutine boundary_data_writer_simcomp::boundary_data_writer_free ( class(boundary_data_writer_t), intent(inout)  this )

private

Definition at line 587 of file boundary_data_writer_simcomp.f90.

boundary_data_writer_gather_column()

subroutine boundary_data_writer_simcomp::boundary_data_writer_gather_column ( class(boundary_data_writer_t), intent(inout)  this, type(field_t), intent(in)  f, integer, intent(in)  col  )

private

Parameters

f	The source field.
col	The destination column.

Definition at line 619 of file boundary_data_writer_simcomp.f90.

Here is the call graph for this function:

boundary_data_writer_gather_geometry()

subroutine boundary_data_writer_simcomp::boundary_data_writer_gather_geometry ( class(boundary_data_writer_t), intent(inout)  this, type(matrix_t), intent(inout)  mat, integer, intent(in)  n_geom  )

private

Parameters

mat	The matrix to fill.
n_geom	The number of geometry entries per point.

Definition at line 797 of file boundary_data_writer_simcomp.f90.

Here is the caller graph for this function:

boundary_data_writer_gather_to_root()

subroutine boundary_data_writer_simcomp::boundary_data_writer_gather_to_root ( class(boundary_data_writer_t), intent(inout)  this )

private

Definition at line 755 of file boundary_data_writer_simcomp.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

boundary_data_writer_init_common()

subroutine boundary_data_writer_simcomp::boundary_data_writer_init_common ( class(boundary_data_writer_t), intent(inout)  this, character(len=*), intent(in)  name, type(coef_t), intent(inout), target  coef, integer, dimension(:), intent(in)  zone_indices, character(len=*), dimension(:), intent(in)  fields, character(len=*), intent(in)  output_filename, logical, intent(in)  output_normals, logical, intent(in)  output_area, logical, intent(in)  append_out, real(kind=rp), intent(in)  start_time  )

private

Parameters

name	The unique name of the simcomp.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either .csv or .h5.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 297 of file boundary_data_writer_simcomp.f90.

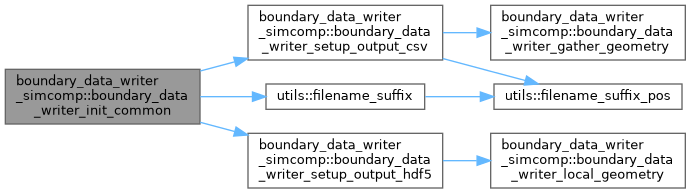

Here is the call graph for this function:

boundary_data_writer_init_from_controllers()

subroutine boundary_data_writer_simcomp::boundary_data_writer_init_from_controllers ( class(boundary_data_writer_t), intent(inout)  this, character(len=*), intent(in)  name, class(case_t), intent(inout), target  case, integer, intent(in)  order, type(time_based_controller_t), intent(in)  preprocess_controller, type(time_based_controller_t), intent(in)  compute_controller, type(time_based_controller_t), intent(in)  output_controller, type(coef_t), intent(inout), target  coef, integer, dimension(:), intent(in)  zone_indices, character(len=*), dimension(:), intent(in)  fields, character(len=*), intent(in)  output_filename, logical, intent(in)  output_normals, logical, intent(in)  output_area, logical, intent(in)  append_out, real(kind=rp), intent(in)  start_time  )

private

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either .csv or .h5.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 205 of file boundary_data_writer_simcomp.f90.

boundary_data_writer_init_from_controllers_properties()

subroutine boundary_data_writer_simcomp::boundary_data_writer_init_from_controllers_properties ( class(boundary_data_writer_t), intent(inout)  this, character(len=*), intent(in)  name, class(case_t), intent(inout), target  case, integer, intent(in)  order, character(len=*), intent(in)  preprocess_control, real(kind=rp), intent(in)  preprocess_value, character(len=*), intent(in)  compute_control, real(kind=rp), intent(in)  compute_value, character(len=*), intent(in)  output_control, real(kind=rp), intent(in)  output_value, type(coef_t), intent(inout), target  coef, integer, dimension(:), intent(in)  zone_indices, character(len=*), dimension(:), intent(in)  fields, character(len=*), intent(in)  output_filename, logical, intent(in)  output_normals, logical, intent(in)  output_area, logical, intent(in)  append_out, real(kind=rp), intent(in)  start_time  )

private

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_control	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_control	Control mode for computing.
compute_value	Value parameter for computing.
output_control	Control mode for output.
output_value	Value parameter for output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either .csv or .h5.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 253 of file boundary_data_writer_simcomp.f90.

boundary_data_writer_init_from_json()

subroutine boundary_data_writer_simcomp::boundary_data_writer_init_from_json	(	class(boundary_data_writer_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Parameters

json	JSON object with the parameters.
case	The case object.

Definition at line 145 of file boundary_data_writer_simcomp.f90.

Here is the call graph for this function:

boundary_data_writer_local_geometry()

subroutine boundary_data_writer_simcomp::boundary_data_writer_local_geometry ( class(boundary_data_writer_t), intent(inout)  this, type(matrix_t), intent(inout)  mat, integer, intent(in)  n_geom  )

private

Parameters

mat	The matrix to fill.
n_geom	The number of geometry entries per point.

Definition at line 770 of file boundary_data_writer_simcomp.f90.

Here is the caller graph for this function:

boundary_data_writer_setup_output_csv()

subroutine boundary_data_writer_simcomp::boundary_data_writer_setup_output_csv ( class(boundary_data_writer_t), intent(inout)  this, character(len=*), intent(in)  output_filename, integer, intent(in)  n_geom  )

private

Parameters

output_filename	The base output filename.
n_geom	Number of geometry entries per point in the companion file.

Definition at line 493 of file boundary_data_writer_simcomp.f90.

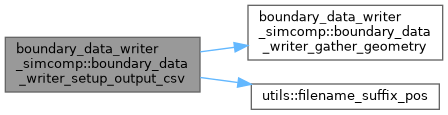

Here is the call graph for this function:

Here is the caller graph for this function:

boundary_data_writer_setup_output_hdf5()

subroutine boundary_data_writer_simcomp::boundary_data_writer_setup_output_hdf5 ( class(boundary_data_writer_t), intent(inout)  this, class(hdf5_file_t), intent(inout)  ft, integer, intent(in)  n_geom  )

private

Parameters

ft	The HDF5 file handle.
n_geom	Number of geometry entries per point.

Definition at line 550 of file boundary_data_writer_simcomp.f90.

Here is the call graph for this function:

Here is the caller graph for this function:
