A simulation component that writes registry fields sampled on labelled boundary zones. The component builds a mask over the requested labelled zones and, at every output, samples the requested quantities at the boundary GLL points. The result is written either as CSV or as HDF5. More...

Inheritance diagram for boundary_data_writer_simcomp::boundary_data_writer_t:

[legend]

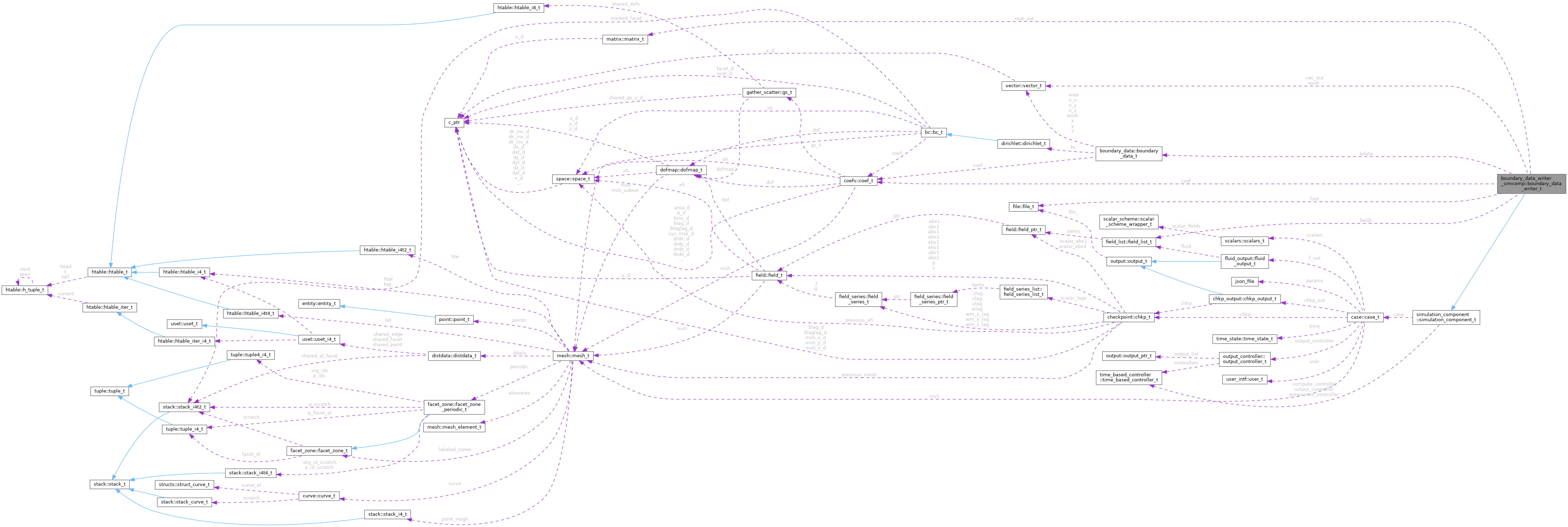

Collaboration diagram for boundary_data_writer_simcomp::boundary_data_writer_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json, case)
	Constructors.

generic	init_from_components (this, name, case, order, preprocess_controller, compute_controller, output_controller, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing controllers.

generic	init_from_components (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing properties to the `time_based_controller` components in the base type.

procedure, pass(this)	init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing controllers.

procedure, pass(this)	init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Constructor from components, passing properties to the `time_based_controller` components in the base type.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	compute_ (this, time)
	Sample the boundary and write.

procedure, pass(this)	init_base (this, json, case)
	Constructor for the simulation_component_t (base) class.

generic	init_base_from_components (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from components.

generic	init_base_from_components (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from components.

procedure, pass(this)	init_base_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from time_based_controllers, essentially directly from all components (we reserve the `_from_components` name for the generic binding).

procedure, pass(this)	init_base_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from properties of time_based_controllers, so the latter are constructed instead of assigned.

procedure, pass(this)	free_base (this)
	Destructor for the simulation_component_t (base) class.

procedure, pass(this)	restart (this, time)
	Wrapper for calling `set_counter` for the time based controllers. Serves as the public interface.

procedure, pass(this)	preprocess (this, time)
	Wrapper for calling `preprocess_` based on the `preprocess_controller`. Serves as the public interface.

procedure, pass(this)	compute (this, time)
	Wrapper for calling `compute_` based on the `compute_controller`. Serves as the public interface.

procedure(simulation_component_init), deferred, pass	init (this, json, case)
	The common constructor using a JSON dictionary.

procedure(simulation_component_free), deferred, pass	free (this)
	Destructor.

procedure, pass(this)	preprocess_ (this, time)
	The preprocessing function to be executed during the run.

procedure, pass(this)	compute_ (this, time)
	The main function to be executed during the run.

procedure, pass(this)	restart_ (this, time)
	The restart function to be called upon restarting simulation.

procedure, pass(this)	parse_json (this, json, case_params, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	JSON parameter parser for the time-based controllers.

Public Attributes
type(coef_t), pointer	coef => null()
	SEM coefficients.

type(boundary_data_t)	bdata
	Boundary points of the chosen zones, with their geometry.

integer, dimension(:), allocatable	zone_indices
	Labelled zones to include.

type(field_list_t)	fields
	Fields sampled directly.

character(len=neko_varname_len), dimension(:), allocatable	col_names
	Names of the output columns.

type(vector_t)	work
	Reusable gathered values.

integer	n_local = 0
	Number of masked points on this rank.

integer	n_global = 0
	Total number of masked points.

integer	n_cols = 0
	Number of data columns, excluding time.

real(kind=rp), dimension(:,:), allocatable	local_buffer
	Local sample buffer (point, column).

real(kind=rp), dimension(:,:), allocatable	local_buffer_t
	Column-blocked transpose of `local_buffer`.

real(kind=rp), dimension(:,:), allocatable	global_buffer
	Global sample buffer on rank zero.

integer, dimension(:), allocatable	recvcounts
	Receive counts for the gather onto rank zero.

integer, dimension(:), allocatable	displs
	Displacements for the gather onto rank zero.

integer, dimension(:), allocatable	recvcounts_c

integer, dimension(:), allocatable	displs_c

type(matrix_t)	mat_out
	Output matrix.

type(vector_t)	vec_out
	Output vector, used for the HDF5.

type(file_t)	fout
	The output file.

real(kind=rp)	start_time = 0.0_rp
	Time after which to start writing.

logical	mesh_has_changed = .false.
	Whether the mesh geometry changes during the run.

logical	geometry_in_data = .false.
	Whether the geometry is part of every sample.

logical	output_normals = .false.
	Whether to output the unit normals.

logical	output_area = .false.
	Whether to output the surface quadrature weights (area).

logical	append_out = .true.
	Append every sample into shared datasets (.true.), or write each sample into its own `Step_N` subgroup (.false.)

type(case_t), pointer	case
	Pointer to the simulation case.

type(time_based_controller_t)	preprocess_controller
	Controller for when to run `preprocess`.

type(time_based_controller_t)	compute_controller
	Controller for when to run `compute`.

type(time_based_controller_t)	output_controller
	Controller for when to do output.

integer	order
	The execution order, lowest excutes first.

character(:), allocatable	name
	Unique name of the simcomp.

Private Member Functions
procedure, pass(this), private	init_common (this, name, coef, zone_indices, fields, output_filename, output_normals, output_area, append_out, start_time)
	Common part of all constructors.

procedure, pass(this), private	gather_column (this, f, col)
	Gather a masked quantity into a column of the local buffer.

Detailed Description

Definition at line 71 of file boundary_data_writer_simcomp.f90.

Member Function/Subroutine Documentation

◆ compute()

procedure, pass(this) simulation_component::simulation_component_t::compute	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 91 of file simulation_component.f90.

◆ compute_() [1/2]

procedure, pass(this) boundary_data_writer_simcomp::boundary_data_writer_t::compute_	(	class(boundary_data_writer_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

time	The current time state.

Definition at line 134 of file boundary_data_writer_simcomp.f90.

◆ compute_() [2/2]

procedure, pass(this) simulation_component::simulation_component_t::compute_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 99 of file simulation_component.f90.

◆ free() [1/2]

procedure, pass(this) boundary_data_writer_simcomp::boundary_data_writer_t::free ( class(boundary_data_writer_t), intent(inout) this )

Definition at line 132 of file boundary_data_writer_simcomp.f90.

◆ free() [2/2]

procedure(simulation_component_free), deferred, pass simulation_component::simulation_component_t::free ( class(simulation_component_t), intent(inout) this )

pure virtualinherited

Definition at line 95 of file simulation_component.f90.

◆ free_base()

procedure, pass(this) simulation_component::simulation_component_t::free_base ( class(simulation_component_t), intent(inout) this )

inherited

Definition at line 81 of file simulation_component.f90.

◆ gather_column()

procedure, pass(this), private boundary_data_writer_simcomp::boundary_data_writer_t::gather_column	(	class(boundary_data_writer_t), intent(inout)	this,
		type(field_t), intent(in)	f,
		integer, intent(in)	col
	)

private

Parameters

f	The source field.
col	The destination column.

Definition at line 136 of file boundary_data_writer_simcomp.f90.

◆ init() [1/2]

procedure, pass(this) boundary_data_writer_simcomp::boundary_data_writer_t::init	(	class(boundary_data_writer_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Parameters

json	JSON object with the parameters.
case	The case object.

Definition at line 122 of file boundary_data_writer_simcomp.f90.

◆ init() [2/2]

procedure(simulation_component_init), deferred, pass simulation_component::simulation_component_t::init	(	class(simulation_component_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

pure virtualinherited

Definition at line 93 of file simulation_component.f90.

◆ init_base()

procedure, pass(this) simulation_component::simulation_component_t::init_base	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

inherited

Definition at line 65 of file simulation_component.f90.

◆ init_base_from_components() [1/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_components() [2/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_controllers()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 73 of file simulation_component.f90.

◆ init_base_from_controllers_properties()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers_properties	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 78 of file simulation_component.f90.

◆ init_common()

procedure, pass(this), private boundary_data_writer_simcomp::boundary_data_writer_t::init_common	(	class(boundary_data_writer_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	fields,
		character(len=*), intent(in)	output_filename,
		logical, intent(in)	output_normals,
		logical, intent(in)	output_area,
		logical, intent(in)	append_out,
		real(kind=rp), intent(in)	start_time
	)

private

Parameters

name	The unique name of the simcomp.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either `.csv` or `.h5`.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 129 of file boundary_data_writer_simcomp.f90.

◆ init_from_components() [1/2]

generic boundary_data_writer_simcomp::boundary_data_writer_t::init_from_components	(	class(boundary_data_writer_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	fields,
		character(len=*), intent(in)	output_filename,
		logical, intent(in)	output_normals,
		logical, intent(in)	output_area,
		logical, intent(in)	append_out,
		real(kind=rp), intent(in)	start_time
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_control	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_control	Control mode for computing.
compute_value	Value parameter for computing.
output_control	Control mode for output.
output_value	Value parameter for output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either `.csv` or `.h5`.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 123 of file boundary_data_writer_simcomp.f90.

◆ init_from_components() [2/2]

generic boundary_data_writer_simcomp::boundary_data_writer_t::init_from_components	(	class(boundary_data_writer_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	fields,
		character(len=*), intent(in)	output_filename,
		logical, intent(in)	output_normals,
		logical, intent(in)	output_area,
		logical, intent(in)	append_out,
		real(kind=rp), intent(in)	start_time
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either `.csv` or `.h5`.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 123 of file boundary_data_writer_simcomp.f90.

◆ init_from_controllers()

procedure, pass(this) boundary_data_writer_simcomp::boundary_data_writer_t::init_from_controllers	(	class(boundary_data_writer_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	fields,
		character(len=*), intent(in)	output_filename,
		logical, intent(in)	output_normals,
		logical, intent(in)	output_area,
		logical, intent(in)	append_out,
		real(kind=rp), intent(in)	start_time
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either `.csv` or `.h5`.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 125 of file boundary_data_writer_simcomp.f90.

◆ init_from_controllers_properties()

procedure, pass(this) boundary_data_writer_simcomp::boundary_data_writer_t::init_from_controllers_properties	(	class(boundary_data_writer_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	fields,
		character(len=*), intent(in)	output_filename,
		logical, intent(in)	output_normals,
		logical, intent(in)	output_area,
		logical, intent(in)	append_out,
		real(kind=rp), intent(in)	start_time
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution order priority of the simcomp.
preprocess_control	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_control	Control mode for computing.
compute_value	Value parameter for computing.
output_control	Control mode for output.
output_value	Value parameter for output.
coef	The SEM coefficients.
zone_indices	Labelled zones to include.
fields	Names of the registry fields to sample.
output_filename	The output file, either `.csv` or `.h5`.
output_normals	Whether to output the unit normals.
output_area	Whether to output the surface quadrature weights.
append_out	Whether to append samples to shared datasets.
start_time	Time after which to start writing.

Definition at line 127 of file boundary_data_writer_simcomp.f90.

◆ parse_json()

procedure, pass(this) simulation_component::simulation_component_t::parse_json	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(json_file), intent(inout)	case_params,
		character(len=:), intent(inout), allocatable	preprocess_control,
		real(kind=rp), intent(out)	preprocess_value,
		character(len=:), intent(inout), allocatable	compute_control,
		real(kind=rp), intent(out)	compute_value,
		character(len=:), intent(inout), allocatable	output_control,
		real(kind=rp), intent(out)	output_value
	)

inherited

Parameters

json	The JSON dictionary of the simcomp.
case_params	The entire case configuration JSON.
preprocess_value	Control mode for preprocessing.
preprocess_controller	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_controller	Value parameter for computing.
output_controller	Control mode for output.
output_controller	Value parameter for output.

Definition at line 103 of file simulation_component.f90.

◆ preprocess()

procedure, pass(this) simulation_component::simulation_component_t::preprocess	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 87 of file simulation_component.f90.

◆ preprocess_()

procedure, pass(this) simulation_component::simulation_component_t::preprocess_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 97 of file simulation_component.f90.

◆ restart()

procedure, pass(this) simulation_component::simulation_component_t::restart	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 84 of file simulation_component.f90.

◆ restart_()

procedure, pass(this) simulation_component::simulation_component_t::restart_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 101 of file simulation_component.f90.

Member Data Documentation

◆ append_out

logical boundary_data_writer_simcomp::boundary_data_writer_t::append_out = .true.

Definition at line 119 of file boundary_data_writer_simcomp.f90.

◆ bdata

type(boundary_data_t) boundary_data_writer_simcomp::boundary_data_writer_t::bdata

Definition at line 75 of file boundary_data_writer_simcomp.f90.

◆ case

type(case_t), pointer simulation_component::simulation_component_t::case

inherited

Definition at line 52 of file simulation_component.f90.

◆ coef

type(coef_t), pointer boundary_data_writer_simcomp::boundary_data_writer_t::coef => null()

Definition at line 73 of file boundary_data_writer_simcomp.f90.

◆ col_names

character(len=neko_varname_len), dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::col_names

Definition at line 81 of file boundary_data_writer_simcomp.f90.

◆ compute_controller

type(time_based_controller_t) simulation_component::simulation_component_t::compute_controller

inherited

Definition at line 56 of file simulation_component.f90.

◆ displs

integer, dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::displs

Definition at line 99 of file boundary_data_writer_simcomp.f90.

◆ displs_c

integer, dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::displs_c

Definition at line 100 of file boundary_data_writer_simcomp.f90.

◆ fields

type(field_list_t) boundary_data_writer_simcomp::boundary_data_writer_t::fields

Definition at line 79 of file boundary_data_writer_simcomp.f90.

◆ fout

type(file_t) boundary_data_writer_simcomp::boundary_data_writer_t::fout

Definition at line 106 of file boundary_data_writer_simcomp.f90.

◆ geometry_in_data

logical boundary_data_writer_simcomp::boundary_data_writer_t::geometry_in_data = .false.

Definition at line 112 of file boundary_data_writer_simcomp.f90.

◆ global_buffer

real(kind=rp), dimension(:,:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::global_buffer

Definition at line 95 of file boundary_data_writer_simcomp.f90.

◆ local_buffer

real(kind=rp), dimension(:,:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::local_buffer

Definition at line 91 of file boundary_data_writer_simcomp.f90.

◆ local_buffer_t

real(kind=rp), dimension(:,:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::local_buffer_t

Definition at line 93 of file boundary_data_writer_simcomp.f90.

◆ mat_out

type(matrix_t) boundary_data_writer_simcomp::boundary_data_writer_t::mat_out

Definition at line 102 of file boundary_data_writer_simcomp.f90.

◆ mesh_has_changed

logical boundary_data_writer_simcomp::boundary_data_writer_t::mesh_has_changed = .false.

Definition at line 110 of file boundary_data_writer_simcomp.f90.

◆ n_cols

integer boundary_data_writer_simcomp::boundary_data_writer_t::n_cols = 0

Definition at line 89 of file boundary_data_writer_simcomp.f90.

◆ n_global

integer boundary_data_writer_simcomp::boundary_data_writer_t::n_global = 0

Definition at line 87 of file boundary_data_writer_simcomp.f90.

◆ n_local

integer boundary_data_writer_simcomp::boundary_data_writer_t::n_local = 0

Definition at line 85 of file boundary_data_writer_simcomp.f90.

◆ name

character(:), allocatable simulation_component::simulation_component_t::name

inherited

Definition at line 62 of file simulation_component.f90.

◆ order

integer simulation_component::simulation_component_t::order

inherited

Definition at line 60 of file simulation_component.f90.

◆ output_area

logical boundary_data_writer_simcomp::boundary_data_writer_t::output_area = .false.

Definition at line 116 of file boundary_data_writer_simcomp.f90.

◆ output_controller

type(time_based_controller_t) simulation_component::simulation_component_t::output_controller

inherited

Definition at line 58 of file simulation_component.f90.

◆ output_normals

logical boundary_data_writer_simcomp::boundary_data_writer_t::output_normals = .false.

Definition at line 114 of file boundary_data_writer_simcomp.f90.

◆ preprocess_controller

type(time_based_controller_t) simulation_component::simulation_component_t::preprocess_controller

inherited

Definition at line 54 of file simulation_component.f90.

◆ recvcounts

integer, dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::recvcounts

Definition at line 97 of file boundary_data_writer_simcomp.f90.

◆ recvcounts_c

integer, dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::recvcounts_c

Definition at line 100 of file boundary_data_writer_simcomp.f90.

◆ start_time

real(kind=rp) boundary_data_writer_simcomp::boundary_data_writer_t::start_time = 0.0_rp

Definition at line 108 of file boundary_data_writer_simcomp.f90.

◆ vec_out

type(vector_t) boundary_data_writer_simcomp::boundary_data_writer_t::vec_out

Definition at line 104 of file boundary_data_writer_simcomp.f90.

◆ work

type(vector_t) boundary_data_writer_simcomp::boundary_data_writer_t::work

Definition at line 83 of file boundary_data_writer_simcomp.f90.

◆ zone_indices

integer, dimension(:), allocatable boundary_data_writer_simcomp::boundary_data_writer_t::zone_indices

Definition at line 77 of file boundary_data_writer_simcomp.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/simulation_components/boundary_data_writer_simcomp.f90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Member Function/Subroutine Documentation

◆ compute()

◆ compute_() [1/2]

◆ compute_() [2/2]

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ gather_column()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_base_from_components() [1/2]

◆ init_base_from_components() [2/2]

◆ init_base_from_controllers()

◆ init_base_from_controllers_properties()

◆ init_common()

◆ init_from_components() [1/2]

◆ init_from_components() [2/2]

◆ init_from_controllers()

◆ init_from_controllers_properties()

◆ parse_json()

◆ preprocess()

◆ preprocess_()

◆ restart()

◆ restart_()

Member Data Documentation

◆ append_out

◆ bdata

◆ case

◆ coef

◆ col_names

◆ compute_controller

◆ displs

◆ displs_c

◆ fields

◆ fout

◆ geometry_in_data

◆ global_buffer

◆ local_buffer

◆ local_buffer_t

◆ mat_out

◆ mesh_has_changed

◆ n_cols

◆ n_global

◆ n_local

◆ name

◆ order

◆ output_area

◆ output_controller

◆ output_normals

◆ preprocess_controller

◆ recvcounts

◆ recvcounts_c

◆ start_time

◆ vec_out

◆ work

◆ zone_indices
