Collects data on the boundary points of one or more labelled zones and perform some bounary operations. More...

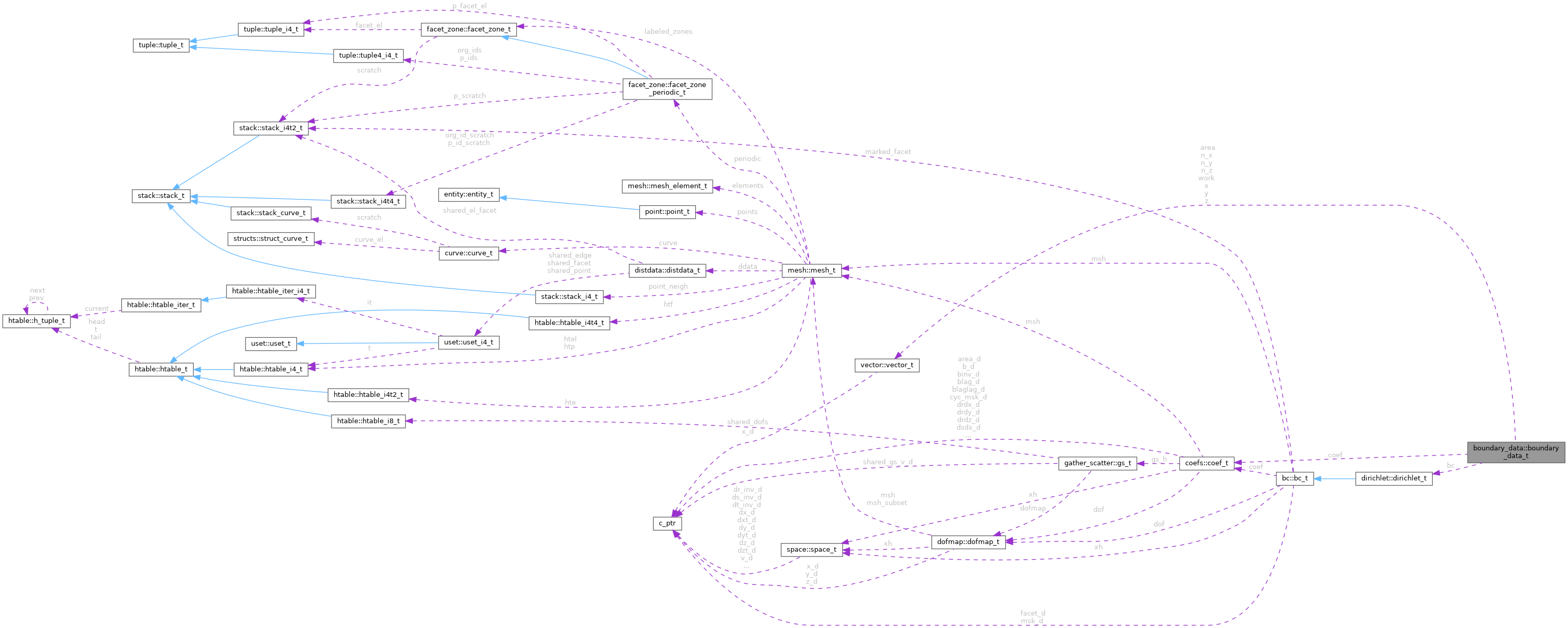

Collaboration diagram for boundary_data::boundary_data_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, coef, zone_indices, outward_normals)
	Constructor.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	update_geometry (this)
	Re-gather the geometry factors at the boundary points.

generic	get (this, name, v)
	Sample a quantity into a boundary vector.

generic	get (this, f, v)
	Sample a quantity into a boundary vector.

generic	scatter (this, v, f, clear)
	Scatter boundary values back into a full field.

generic	scatter (this, name, f, clear)
	Scatter boundary values back into a full field.

generic	integrate (this, name)
	Surface integral of a quantity over the zones.

generic	integrate (this, f)
	Surface integral of a quantity over the zones.

generic	average (this, name)
	Area weighted average of a quantity over the zones.

generic	average (this, f)
	Area weighted average of a quantity over the zones.

procedure, pass(this)	surface_area (this)
	Total surface area of the zones.

procedure, pass(this)	centroid (this)
	Area weighted geometric centre of the zones.

procedure, pass(this)	point_average (this)
	Unweighted mean of the boundary point coordinates.

generic	integrate_vector (this, fx, fy, fz)
	Surface integral of a vector quantity, component by component.

generic	integrate_vector (this, fx, fy, fz)
	Surface integral of a vector quantity, component by component.

generic	integrate_normal (this, name)
	Surface integral of a scalar times the normal.

generic	integrate_normal (this, f)
	Surface integral of a scalar times the normal.

generic	flux (this, u, v, w)
	Flux of a vector quantity through the zones.

generic	flux (this, u, v, w)
	Flux of a vector quantity through the zones.

generic	tangential (this, vx, vy, vz)
	Wall tangential part of a vector.

generic	tangential (this, vx, vy, vz, tx, ty, tz)
	Wall tangential part of a vector.

generic	normal (this, vx, vy, vz)
	Wall normal part of a vector.

generic	normal (this, vx, vy, vz, nx, ny, nz)
	Wall normal part of a vector.

Static Public Member Functions
procedure, nopass	is_geometry (name)
	Whether a name refers to a geometry attribute.

Public Attributes
type(coef_t), pointer	coef => null()
	SEM coefficients.

type(dirichlet_t)	bc
	Boundary mask built from the chosen zones.

integer, dimension(:), allocatable	zone_indices
	Labelled zones included.

integer	n_local = 0
	Number of boundary points on this rank.

integer	n_global = 0
	Number of boundary points over all ranks.

type(vector_t)	x
	Coordinates at the boundary points.

type(vector_t)	y

type(vector_t)	z

type(vector_t)	n_x
	Unit normal components at the boundary points.

type(vector_t)	n_y

type(vector_t)	n_z

type(vector_t)	area
	Surface quadrature weights at the boundary points.

logical	outward_normals = .true.
	Whether the stored normals point out of the wall into the fluid. When false they keep the `coef` convention, pointing out of the fluid.

Private Member Functions
procedure, pass(this), private	get_vector_by_name (this, name, v)
	Sample a named quantity at the boundary points into a vector.

procedure, pass(this), private	get_vector_by_field (this, f, v)
	Sample a field at the boundary points into a vector.

procedure, pass(this), private	scatter_to_field_by_vector (this, v, f, clear)
	Scatter a boundary vector back into a full field.

procedure, pass(this), private	scatter_to_field_by_name (this, name, f, clear)
	Scatter a named boundary quantity into a full field.

procedure, pass(this), private	integrate_by_name (this, name)
	Surface integral of a named quantity over the zones.

procedure, pass(this), private	integrate_by_field (this, f)
	Surface integral of a field over the zones.

procedure, pass(this), private	average_by_name (this, name)
	Area weighted average of a named quantity over the zones.

procedure, pass(this), private	average_by_field (this, f)
	Area weighted average of a field over the zones.

procedure, pass(this), private	integrate_vector_by_name (this, fx, fy, fz)
	Surface integral of a named vector quantity, component by component.

procedure, pass(this), private	integrate_vector_by_field (this, fx, fy, fz)
	Surface integral of a vector quantity, component by component.

procedure, pass(this), private	integrate_normal_by_name (this, name)
	Surface integral of a named scalar quantity times the normal.

procedure, pass(this), private	integrate_normal_by_field (this, f)
	Surface integral of a scalar quantity times the normal.

procedure, pass(this), private	flux_by_name (this, u, v, w)
	Flux of a named vector quantity through the zones.

procedure, pass(this), private	flux_by_field (this, u, v, w)
	Flux of a vector quantity through the zones.

procedure, pass(this), private	tangential_inplace (this, vx, vy, vz)
	Keep only the wall tangential part of a vector at the boundary points, in place. Each component is overwritten with `v - (v . n) n`.

procedure, pass(this), private	tangential_split (this, vx, vy, vz, tx, ty, tz)
	Wall tangential part of a vector at the boundary points, out of place. The input `(vx, vy, vz)` is left unchanged and `(tx, ty, tz)` receive `v - (v . n) n`.

procedure, pass(this), private	normal_inplace (this, vx, vy, vz)
	Keep only the wall normal part of a vector at the boundary points, in place. Each component is overwritten with `(v . n) n`.

procedure, pass(this), private	normal_split (this, vx, vy, vz, nx, ny, nz)
	Wall normal part of a vector at the boundary points, out of place. The input `(vx, vy, vz)` is left unchanged and `(nx, ny, nz)` receive `(v . n) n`.

Private Attributes
type(vector_t), private	work
	Work vector.

Detailed Description

Definition at line 56 of file boundary_data.f90.

Member Function/Subroutine Documentation

◆ average() [1/2]

generic boundary_data::boundary_data_t::average	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

Parameters

f	The field to average.

Definition at line 108 of file boundary_data.f90.

◆ average() [2/2]

generic boundary_data::boundary_data_t::average	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	The quantity to average.

Definition at line 108 of file boundary_data.f90.

◆ average_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::average_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

private

Parameters

f	The field to average.

Definition at line 111 of file boundary_data.f90.

◆ average_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::average_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	The quantity to average.

Definition at line 109 of file boundary_data.f90.

◆ centroid()

procedure, pass(this) boundary_data::boundary_data_t::centroid ( class(boundary_data_t), intent(inout) this )

Definition at line 116 of file boundary_data.f90.

◆ flux() [1/2]

generic boundary_data::boundary_data_t::flux	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	v,
		type(field_t), intent(in)	w
	)

Note: The sign follows the stored normals. With the default outward convention a positive value is a flux out of the wall into the fluid.

Parameters

u	The x component.
v	The y component.
w	The z component.

Definition at line 134 of file boundary_data.f90.

◆ flux() [2/2]

generic boundary_data::boundary_data_t::flux	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	u,
		character(len=*), intent(in)	v,
		character(len=*), intent(in)	w
	)

Parameters

u	The name of the x component.
v	The name of the y component.
w	The name of the z component.

Definition at line 134 of file boundary_data.f90.

◆ flux_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::flux_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	u,
		type(field_t), intent(in)	v,
		type(field_t), intent(in)	w
	)

private

Note: The sign follows the stored normals. With the default outward convention a positive value is a flux out of the wall into the fluid.

Parameters

u	The x component.
v	The y component.
w	The z component.

Definition at line 137 of file boundary_data.f90.

◆ flux_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::flux_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	u,
		character(len=*), intent(in)	v,
		character(len=*), intent(in)	w
	)

private

Parameters

u	The name of the x component.
v	The name of the y component.
w	The name of the z component.

Definition at line 135 of file boundary_data.f90.

◆ free()

procedure, pass(this) boundary_data::boundary_data_t::free ( class(boundary_data_t), intent(inout) this )

Definition at line 82 of file boundary_data.f90.

◆ get() [1/2]

generic boundary_data::boundary_data_t::get	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f,
		type(vector_t), intent(inout)	v
	)

Parameters

f	The source field, which must live on the same dofmap.
v	The vector to fill.

Definition at line 87 of file boundary_data.f90.

◆ get() [2/2]

generic boundary_data::boundary_data_t::get	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(vector_t), intent(inout)	v
	)

The name is either one of the geometry attributes x, y, z, n_x, n_y, n_z, area, or the name of a field in the registry.

Parameters

name	The requested quantity.
v	The vector to fill.

Definition at line 87 of file boundary_data.f90.

◆ get_vector_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::get_vector_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f,
		type(vector_t), intent(inout)	v
	)

private

Parameters

f	The source field, which must live on the same dofmap.
v	The vector to fill.

Definition at line 90 of file boundary_data.f90.

◆ get_vector_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::get_vector_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(vector_t), intent(inout)	v
	)

private

The name is either one of the geometry attributes x, y, z, n_x, n_y, n_z, area, or the name of a field in the registry.

Parameters

name	The requested quantity.
v	The vector to fill.

Definition at line 88 of file boundary_data.f90.

◆ init()

procedure, pass(this) boundary_data::boundary_data_t::init	(	class(boundary_data_t), intent(inout)	this,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		logical, intent(in), optional	outward_normals
	)

Parameters

coef	The SEM coefficients.
zone_indices	The labelled zones to include.
outward_normals	Whether the normals should point out of the wall into the fluid, which is the default. Pass false to keep the `coef` convention, where they point out of the fluid domain.

Definition at line 80 of file boundary_data.f90.

◆ integrate() [1/2]

generic boundary_data::boundary_data_t::integrate	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

Parameters

f	The field to integrate, on the same dofmap.

Definition at line 102 of file boundary_data.f90.

◆ integrate() [2/2]

generic boundary_data::boundary_data_t::integrate	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	The quantity to integrate.

Definition at line 102 of file boundary_data.f90.

◆ integrate_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

private

Parameters

f	The field to integrate, on the same dofmap.

Definition at line 105 of file boundary_data.f90.

◆ integrate_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	The quantity to integrate.

Definition at line 103 of file boundary_data.f90.

◆ integrate_normal() [1/2]

generic boundary_data::boundary_data_t::integrate_normal	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

Note: The sign follows the stored normals, so it changes with outward_normals.

Parameters

f	The scalar field.

Definition at line 127 of file boundary_data.f90.

◆ integrate_normal() [2/2]

generic boundary_data::boundary_data_t::integrate_normal	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	The scalar quantity.

Definition at line 127 of file boundary_data.f90.

◆ integrate_normal_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_normal_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

private

Note: The sign follows the stored normals, so it changes with outward_normals.

Parameters

f	The scalar field.

Definition at line 131 of file boundary_data.f90.

◆ integrate_normal_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_normal_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	The scalar quantity.

Definition at line 129 of file boundary_data.f90.

◆ integrate_vector() [1/2]

generic boundary_data::boundary_data_t::integrate_vector	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	fx,
		character(len=*), intent(in)	fy,
		character(len=*), intent(in)	fz
	)

Parameters

fx	The name of the x component.
fy	The name of the y component.
fz	The name of the z component.

Definition at line 120 of file boundary_data.f90.

◆ integrate_vector() [2/2]

generic boundary_data::boundary_data_t::integrate_vector	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	fx,
		type(field_t), intent(in)	fy,
		type(field_t), intent(in)	fz
	)

Parameters

fx	The x component.
fy	The y component.
fz	The z component.

Definition at line 120 of file boundary_data.f90.

◆ integrate_vector_by_field()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_vector_by_field	(	class(boundary_data_t), intent(inout)	this,
		type(field_t), intent(in)	fx,
		type(field_t), intent(in)	fy,
		type(field_t), intent(in)	fz
	)

private

Parameters

fx	The x component.
fy	The y component.
fz	The z component.

Definition at line 124 of file boundary_data.f90.

◆ integrate_vector_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::integrate_vector_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	fx,
		character(len=*), intent(in)	fy,
		character(len=*), intent(in)	fz
	)

private

Parameters

fx	The name of the x component.
fy	The name of the y component.
fz	The name of the z component.

Definition at line 122 of file boundary_data.f90.

◆ is_geometry()

procedure, nopass boundary_data::boundary_data_t::is_geometry ( character(len=*), intent(in) name )

static

Parameters

name	The requested name.

Definition at line 100 of file boundary_data.f90.

◆ normal() [1/2]

generic boundary_data::boundary_data_t::normal	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(inout)	vx,
		type(vector_t), intent(inout)	vy,
		type(vector_t), intent(inout)	vz
	)

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its normal part.
vy	The y component, overwritten with its normal part.
vz	The z component, overwritten with its normal part.

Definition at line 146 of file boundary_data.f90.

◆ normal() [2/2]

generic boundary_data::boundary_data_t::normal	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	vx,
		type(vector_t), intent(in)	vy,
		type(vector_t), intent(in)	vz,
		type(vector_t), intent(inout)	nx,
		type(vector_t), intent(inout)	ny,
		type(vector_t), intent(inout)	nz
	)

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
nx	The output x component of the normal part.
ny	The output y component of the normal part.
nz	The output z component of the normal part.

Definition at line 146 of file boundary_data.f90.

◆ normal_inplace()

procedure, pass(this), private boundary_data::boundary_data_t::normal_inplace	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(inout)	vx,
		type(vector_t), intent(inout)	vy,
		type(vector_t), intent(inout)	vz
	)

private

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its normal part.
vy	The y component, overwritten with its normal part.
vz	The z component, overwritten with its normal part.

Definition at line 147 of file boundary_data.f90.

◆ normal_split()

procedure, pass(this), private boundary_data::boundary_data_t::normal_split	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	vx,
		type(vector_t), intent(in)	vy,
		type(vector_t), intent(in)	vz,
		type(vector_t), intent(inout)	nx,
		type(vector_t), intent(inout)	ny,
		type(vector_t), intent(inout)	nz
	)

private

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
nx	The output x component of the normal part.
ny	The output y component of the normal part.
nz	The output z component of the normal part.

Definition at line 149 of file boundary_data.f90.

◆ point_average()

procedure, pass(this) boundary_data::boundary_data_t::point_average ( class(boundary_data_t), intent(inout) this )

Definition at line 118 of file boundary_data.f90.

◆ scatter() [1/2]

generic boundary_data::boundary_data_t::scatter	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(field_t), intent(inout)	f,
		logical, intent(in), optional	clear
	)

Parameters

name	The requested quantity.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 93 of file boundary_data.f90.

◆ scatter() [2/2]

generic boundary_data::boundary_data_t::scatter	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	v,
		type(field_t), intent(inout)	f,
		logical, intent(in), optional	clear
	)

Parameters

v	The boundary point values.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 93 of file boundary_data.f90.

◆ scatter_to_field_by_name()

procedure, pass(this), private boundary_data::boundary_data_t::scatter_to_field_by_name	(	class(boundary_data_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(field_t), intent(inout)	f,
		logical, intent(in), optional	clear
	)

private

Parameters

name	The requested quantity.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 97 of file boundary_data.f90.

◆ scatter_to_field_by_vector()

procedure, pass(this), private boundary_data::boundary_data_t::scatter_to_field_by_vector	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	v,
		type(field_t), intent(inout)	f,
		logical, intent(in), optional	clear
	)

private

Parameters

v	The boundary point values.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 95 of file boundary_data.f90.

◆ surface_area()

procedure, pass(this) boundary_data::boundary_data_t::surface_area ( class(boundary_data_t), intent(inout) this )

Definition at line 114 of file boundary_data.f90.

◆ tangential() [1/2]

generic boundary_data::boundary_data_t::tangential	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(inout)	vx,
		type(vector_t), intent(inout)	vy,
		type(vector_t), intent(inout)	vz
	)

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its tangential part.
vy	The y component, overwritten with its tangential part.
vz	The z component, overwritten with its tangential part.

Definition at line 140 of file boundary_data.f90.

◆ tangential() [2/2]

generic boundary_data::boundary_data_t::tangential	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	vx,
		type(vector_t), intent(in)	vy,
		type(vector_t), intent(in)	vz,
		type(vector_t), intent(inout)	tx,
		type(vector_t), intent(inout)	ty,
		type(vector_t), intent(inout)	tz
	)

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
tx	The output x component of the tangential part.
ty	The output y component of the tangential part.
tz	The output z component of the tangential part.

Definition at line 140 of file boundary_data.f90.

◆ tangential_inplace()

procedure, pass(this), private boundary_data::boundary_data_t::tangential_inplace	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(inout)	vx,
		type(vector_t), intent(inout)	vy,
		type(vector_t), intent(inout)	vz
	)

private

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its tangential part.
vy	The y component, overwritten with its tangential part.
vz	The z component, overwritten with its tangential part.

Definition at line 141 of file boundary_data.f90.

◆ tangential_split()

procedure, pass(this), private boundary_data::boundary_data_t::tangential_split	(	class(boundary_data_t), intent(inout)	this,
		type(vector_t), intent(in)	vx,
		type(vector_t), intent(in)	vy,
		type(vector_t), intent(in)	vz,
		type(vector_t), intent(inout)	tx,
		type(vector_t), intent(inout)	ty,
		type(vector_t), intent(inout)	tz
	)

private

Note: The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
tx	The output x component of the tangential part.
ty	The output y component of the tangential part.
tz	The output z component of the tangential part.

Definition at line 143 of file boundary_data.f90.

◆ update_geometry()

procedure, pass(this) boundary_data::boundary_data_t::update_geometry ( class(boundary_data_t), intent(inout) this )

Definition at line 84 of file boundary_data.f90.

Member Data Documentation

◆ area

type(vector_t) boundary_data::boundary_data_t::area

Definition at line 72 of file boundary_data.f90.

◆ bc

type(dirichlet_t) boundary_data::boundary_data_t::bc

Definition at line 60 of file boundary_data.f90.

◆ coef

type(coef_t), pointer boundary_data::boundary_data_t::coef => null()

Definition at line 58 of file boundary_data.f90.

◆ n_global

integer boundary_data::boundary_data_t::n_global = 0

Definition at line 66 of file boundary_data.f90.

◆ n_local

integer boundary_data::boundary_data_t::n_local = 0

Definition at line 64 of file boundary_data.f90.

◆ n_x

type(vector_t) boundary_data::boundary_data_t::n_x

Definition at line 70 of file boundary_data.f90.

◆ n_y

type(vector_t) boundary_data::boundary_data_t::n_y

Definition at line 70 of file boundary_data.f90.

◆ n_z

type(vector_t) boundary_data::boundary_data_t::n_z

Definition at line 70 of file boundary_data.f90.

◆ outward_normals

logical boundary_data::boundary_data_t::outward_normals = .true.

Definition at line 77 of file boundary_data.f90.

◆ work

type(vector_t), private boundary_data::boundary_data_t::work

private

Definition at line 74 of file boundary_data.f90.

◆ x

type(vector_t) boundary_data::boundary_data_t::x

Definition at line 68 of file boundary_data.f90.

◆ y

type(vector_t) boundary_data::boundary_data_t::y

Definition at line 68 of file boundary_data.f90.

◆ z

type(vector_t) boundary_data::boundary_data_t::z

Definition at line 68 of file boundary_data.f90.

◆ zone_indices

integer, dimension(:), allocatable boundary_data::boundary_data_t::zone_indices

Definition at line 62 of file boundary_data.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/common/boundary_data.f90

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Function/Subroutine Documentation

◆ average() [1/2]

◆ average() [2/2]

◆ average_by_field()

◆ average_by_name()

◆ centroid()

◆ flux() [1/2]

◆ flux() [2/2]

◆ flux_by_field()

◆ flux_by_name()

◆ free()

◆ get() [1/2]

◆ get() [2/2]

◆ get_vector_by_field()

◆ get_vector_by_name()

◆ init()

◆ integrate() [1/2]

◆ integrate() [2/2]

◆ integrate_by_field()

◆ integrate_by_name()

◆ integrate_normal() [1/2]

◆ integrate_normal() [2/2]

◆ integrate_normal_by_field()

◆ integrate_normal_by_name()

◆ integrate_vector() [1/2]

◆ integrate_vector() [2/2]

◆ integrate_vector_by_field()

◆ integrate_vector_by_name()

◆ is_geometry()

◆ normal() [1/2]

◆ normal() [2/2]

◆ normal_inplace()

◆ normal_split()

◆ point_average()

◆ scatter() [1/2]

◆ scatter() [2/2]

◆ scatter_to_field_by_name()

◆ scatter_to_field_by_vector()

◆ surface_area()

◆ tangential() [1/2]

◆ tangential() [2/2]

◆ tangential_inplace()

◆ tangential_split()

◆ update_geometry()

Member Data Documentation

◆ area

◆ bc

◆ coef

◆ n_global

◆ n_local

◆ n_x

◆ n_y

◆ n_z

◆ outward_normals

◆ work

◆ x

◆ y

◆ z

◆ zone_indices
