boundary_data Module Reference

Implements the boundary_data_t type.

Data Types
type	boundary_data_t
	Collects data on the boundary points of one or more labelled zones and perform some bounary operations. More...

Functions/Subroutines
subroutine	boundary_data_init (this, coef, zone_indices, outward_normals)
	Build the boundary point mask and gather the geometry.
subroutine	boundary_data_free (this)
	Destructor.
subroutine	boundary_data_update_geometry (this)
	Re-gather the coordinates, normals and surface weights.
pure logical function	boundary_data_is_geometry (name)
	Whether name refers to one of the geometry attributes.
subroutine	boundary_data_get_vector_by_name (this, name, v)
	Sample a named quantity at the boundary points into a vector.
subroutine	boundary_data_get_vector_by_field (this, f, v)
	Sample a field at the boundary points into a vector.
subroutine	boundary_data_scatter_to_field_by_vector (this, v, f, clear)
	Scatter a boundary vector back into a full field.
subroutine	boundary_data_scatter_to_field_by_name (this, name, f, clear)
	Scatter a named boundary quantity into a full field.
subroutine	boundary_data_tangential_inplace (this, vx, vy, vz)
	Keep only the wall tangential part of a vector at the boundary points, in place. Each component is overwritten with v - (v . n) n.
subroutine	boundary_data_tangential_split (this, vx, vy, vz, tx, ty, tz)
	Wall tangential part of a vector at the boundary points, out of place. The input (vx, vy, vz) is left unchanged and (tx, ty, tz) receive v - (v . n) n.
subroutine	boundary_data_normal_inplace (this, vx, vy, vz)
	Keep only the wall normal part of a vector at the boundary points, in place. Each component is overwritten with (v . n) n.
subroutine	boundary_data_normal_split (this, vx, vy, vz, nx, ny, nz)
	Wall normal part of a vector at the boundary points, out of place. The input (vx, vy, vz) is left unchanged and (nx, ny, nz) receive (v . n) n.
real(kind=rp) function	boundary_data_integrate_by_name (this, name)
	Surface integral of a named quantity over the zones.
real(kind=rp) function	boundary_data_integrate_by_field (this, f)
	Surface integral of a field over the zones.
real(kind=rp) function	boundary_data_surface_area (this)
	Total surface area of the zones.
real(kind=rp) function	boundary_data_average_by_name (this, name)
	Area weighted average of a named quantity over the zones.
real(kind=rp) function	boundary_data_average_by_field (this, f)
	Area weighted average of a field over the zones.
real(kind=rp) function, dimension(3)	boundary_data_centroid (this)
	Area weighted geometric centre of the zones.
real(kind=rp) function, dimension(3)	boundary_data_point_average (this)
	Unweighted mean of the boundary point coordinates.
real(kind=rp) function, dimension(3)	boundary_data_integrate_vector_by_field (this, fx, fy, fz)
	Surface integral of a vector quantity, component by component.
real(kind=rp) function, dimension(3)	boundary_data_integrate_vector_by_name (this, fx, fy, fz)
	Surface integral of a named vector quantity, component by component.
real(kind=rp) function	boundary_data_flux_by_field (this, u, v, w)
	Flux of a vector quantity through the zones.
real(kind=rp) function	boundary_data_flux_by_name (this, u, v, w)
	Flux of a named vector quantity through the zones.
real(kind=rp) function, dimension(3)	boundary_data_integrate_normal_by_field (this, f)
	Surface integral of a scalar quantity times the normal.
real(kind=rp) function, dimension(3)	boundary_data_integrate_normal_by_name (this, name)
	Surface integral of a named scalar quantity times the normal.

Function/Subroutine Documentation

boundary_data_average_by_field()

real(kind=rp) function boundary_data::boundary_data_average_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  f  )

private

Parameters

f	The field to average.

Definition at line 582 of file boundary_data.f90.

boundary_data_average_by_name()

real(kind=rp) function boundary_data::boundary_data_average_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  name  )

private

Parameters

name	The quantity to average.

Definition at line 565 of file boundary_data.f90.

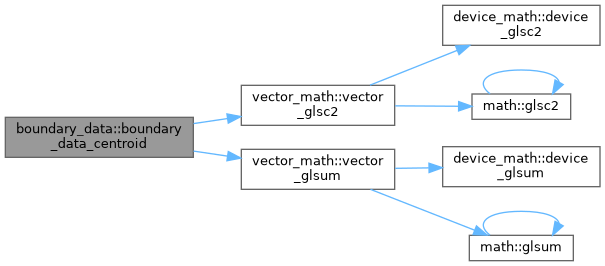

boundary_data_centroid()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_centroid ( class(boundary_data_t), intent(inout)  this )

private

Definition at line 598 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_flux_by_field()

real(kind=rp) function boundary_data::boundary_data_flux_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  u, type(field_t), intent(in)  v, type(field_t), intent(in)  w  )

private

Note

The sign follows the stored normals. With the default outward convention a positive value is a flux out of the wall into the fluid.

Parameters

u	The x component.
v	The y component.
w	The z component.

Definition at line 663 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_flux_by_name()

real(kind=rp) function boundary_data::boundary_data_flux_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  u, character(len=*), intent(in)  v, character(len=*), intent(in)  w  )

private

Parameters

u	The name of the x component.
v	The name of the y component.
w	The name of the z component.

Definition at line 681 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_free()

subroutine boundary_data::boundary_data_free ( class(boundary_data_t), intent(inout)  this )

private

Definition at line 221 of file boundary_data.f90.

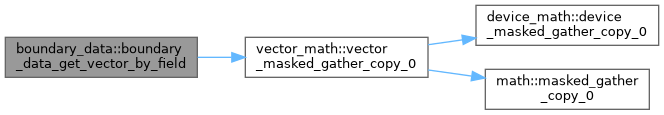

boundary_data_get_vector_by_field()

subroutine boundary_data::boundary_data_get_vector_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  f, type(vector_t), intent(inout)  v  )

private

Parameters

f	The source field, which must live on the same dofmap.
v	The vector to fill.

Definition at line 344 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_get_vector_by_name()

subroutine boundary_data::boundary_data_get_vector_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  name, type(vector_t), intent(inout)  v  )

private

The name is either one of the geometry attributes x, y, z, n_x, n_y, n_z, area, or the name of a field in the registry.

Parameters

name	The requested quantity.
v	The vector to fill.

Definition at line 302 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_init()

subroutine boundary_data::boundary_data_init	(	class(boundary_data_t), intent(inout)	this,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		logical, intent(in), optional	outward_normals
	)

Parameters

coef	The SEM coefficients.
zone_indices	The labelled zones to include.
outward_normals	Whether the normals should point out of the wall into the fluid, which is the default. Pass false to keep the coef convention, where they point out of the fluid domain.

Definition at line 161 of file boundary_data.f90.

boundary_data_integrate_by_field()

real(kind=rp) function boundary_data::boundary_data_integrate_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  f  )

private

Parameters

f	The field to integrate, on the same dofmap.

Definition at line 544 of file boundary_data.f90.

Here is the call graph for this function:

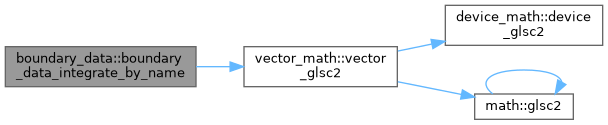

boundary_data_integrate_by_name()

real(kind=rp) function boundary_data::boundary_data_integrate_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  name  )

private

Parameters

name	The quantity to integrate.

Definition at line 532 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_integrate_normal_by_field()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_integrate_normal_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  f  )

private

Note

The sign follows the stored normals, so it changes with outward_normals.

Parameters

f	The scalar field.

Definition at line 699 of file boundary_data.f90.

Here is the call graph for this function:

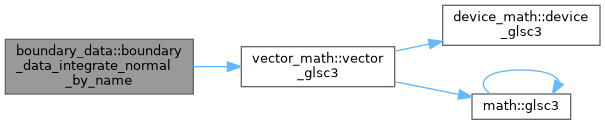

boundary_data_integrate_normal_by_name()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_integrate_normal_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  name  )

private

Parameters

name	The scalar quantity.

Definition at line 713 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_integrate_vector_by_field()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_integrate_vector_by_field ( class(boundary_data_t), intent(inout)  this, type(field_t), intent(in)  fx, type(field_t), intent(in)  fy, type(field_t), intent(in)  fz  )

private

Parameters

fx	The x component.
fy	The y component.
fz	The z component.

Definition at line 630 of file boundary_data.f90.

boundary_data_integrate_vector_by_name()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_integrate_vector_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  fx, character(len=*), intent(in)  fy, character(len=*), intent(in)  fz  )

private

Parameters

fx	The name of the x component.
fy	The name of the y component.
fz	The name of the z component.

Definition at line 646 of file boundary_data.f90.

boundary_data_is_geometry()

pure logical function boundary_data::boundary_data_is_geometry ( character(len=*), intent(in)  name )

private

Parameters

name	The requested name.

Definition at line 284 of file boundary_data.f90.

boundary_data_normal_inplace()

subroutine boundary_data::boundary_data_normal_inplace ( class(boundary_data_t), intent(inout)  this, type(vector_t), intent(inout)  vx, type(vector_t), intent(inout)  vy, type(vector_t), intent(inout)  vz  )

private

Note

The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its normal part.
vy	The y component, overwritten with its normal part.
vz	The z component, overwritten with its normal part.

Definition at line 482 of file boundary_data.f90.

Here is the call graph for this function:

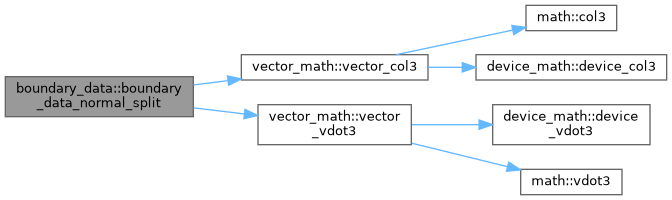

boundary_data_normal_split()

subroutine boundary_data::boundary_data_normal_split ( class(boundary_data_t), intent(inout)  this, type(vector_t), intent(in)  vx, type(vector_t), intent(in)  vy, type(vector_t), intent(in)  vz, type(vector_t), intent(inout)  nx, type(vector_t), intent(inout)  ny, type(vector_t), intent(inout)  nz  )

private

Note

The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
nx	The output x component of the normal part.
ny	The output y component of the normal part.
nz	The output z component of the normal part.

Definition at line 511 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_point_average()

real(kind=rp) function, dimension(3) boundary_data::boundary_data_point_average ( class(boundary_data_t), intent(inout)  this )

private

Definition at line 616 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_scatter_to_field_by_name()

subroutine boundary_data::boundary_data_scatter_to_field_by_name ( class(boundary_data_t), intent(inout)  this, character(len=*), intent(in)  name, type(field_t), intent(inout)  f, logical, intent(in), optional  clear  )

private

Parameters

name	The requested quantity.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 400 of file boundary_data.f90.

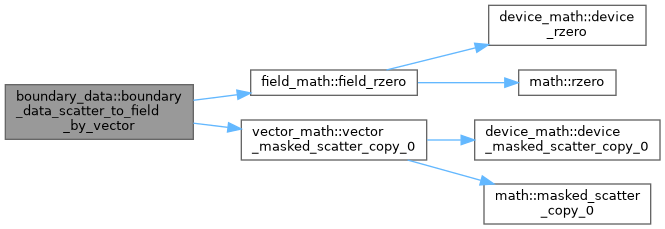

boundary_data_scatter_to_field_by_vector()

subroutine boundary_data::boundary_data_scatter_to_field_by_vector ( class(boundary_data_t), intent(inout)  this, type(vector_t), intent(in)  v, type(field_t), intent(inout)  f, logical, intent(in), optional  clear  )

private

Parameters

v	The boundary point values.
f	The destination field.
clear	If true, zero the whole field before writing the boundary points; defaults to false.

Definition at line 371 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_surface_area()

real(kind=rp) function boundary_data::boundary_data_surface_area ( class(boundary_data_t), intent(inout)  this )

private

Definition at line 555 of file boundary_data.f90.

Here is the call graph for this function:

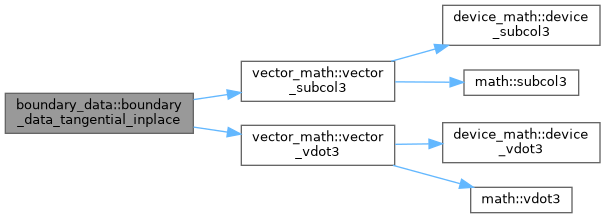

boundary_data_tangential_inplace()

subroutine boundary_data::boundary_data_tangential_inplace ( class(boundary_data_t), intent(inout)  this, type(vector_t), intent(inout)  vx, type(vector_t), intent(inout)  vy, type(vector_t), intent(inout)  vz  )

private

Note

The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The x component, overwritten with its tangential part.
vy	The y component, overwritten with its tangential part.
vz	The z component, overwritten with its tangential part.

Definition at line 423 of file boundary_data.f90.

Here is the call graph for this function:

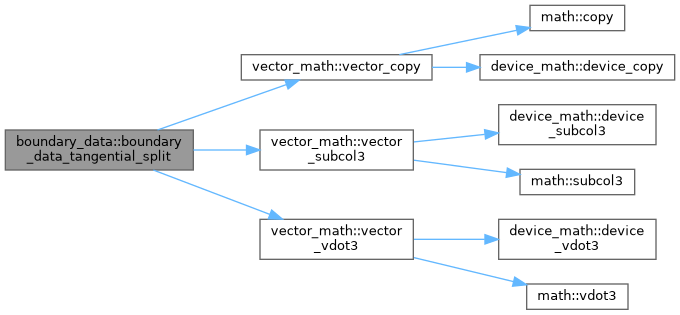

boundary_data_tangential_split()

subroutine boundary_data::boundary_data_tangential_split ( class(boundary_data_t), intent(inout)  this, type(vector_t), intent(in)  vx, type(vector_t), intent(in)  vy, type(vector_t), intent(in)  vz, type(vector_t), intent(inout)  tx, type(vector_t), intent(inout)  ty, type(vector_t), intent(inout)  tz  )

private

Note

The result does not depend on the sign of the normal, since the normal enters twice, so it is the same whether the stored normals are the outward or not.

Parameters

vx	The input x component.
vy	The input y component.
vz	The input z component.
tx	The output x component of the tangential part.
ty	The output y component of the tangential part.
tz	The output z component of the tangential part.

Definition at line 452 of file boundary_data.f90.

Here is the call graph for this function:

boundary_data_update_geometry()

subroutine boundary_data::boundary_data_update_geometry ( class(boundary_data_t), intent(inout)  this )

private

Definition at line 244 of file boundary_data.f90.

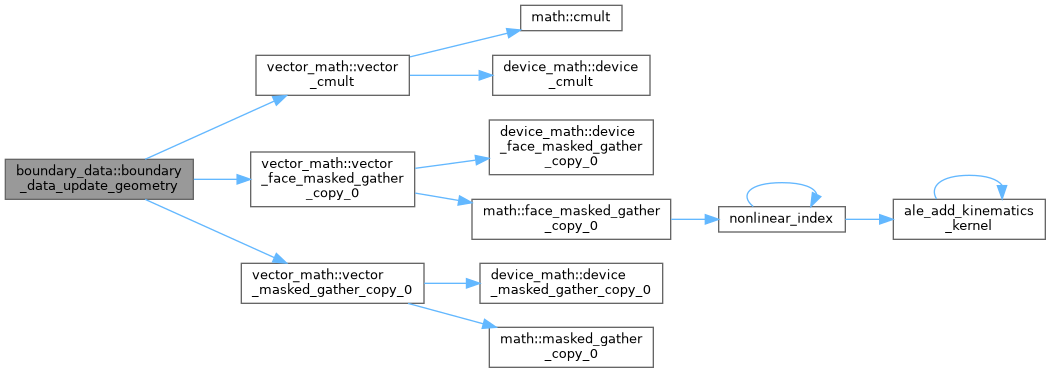

Here is the call graph for this function:
