Axis-aligned symmetry boundary condition. More...

Inheritance diagram for symmetry_aligned::symmetry_aligned_t:

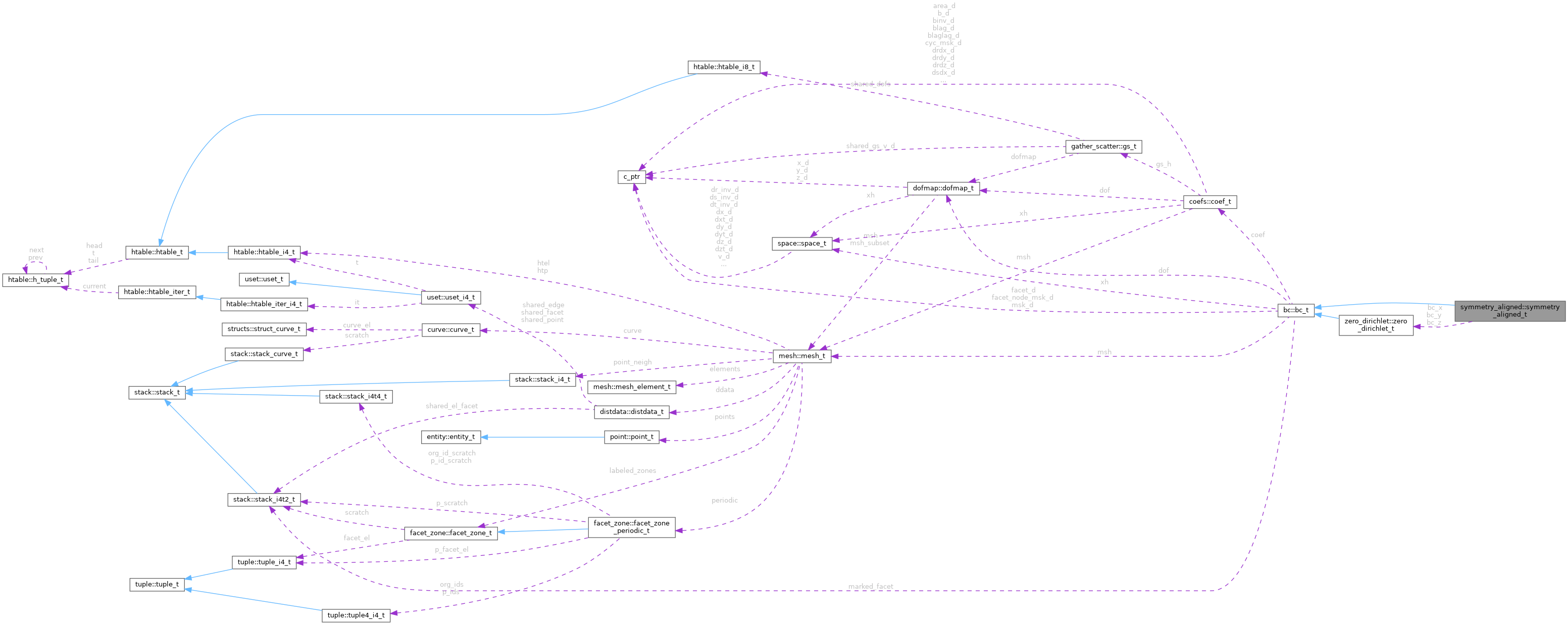

Collaboration diagram for symmetry_aligned::symmetry_aligned_t:

[legend]

Public Member Functions
procedure, pass(this)	apply_scalar (this, x, n, time, strong)
	No-op scalar application.

procedure, pass(this)	apply_vector (this, x, y, z, n, time, strong)
	Remove the normal component on the CPU.

procedure, pass(this)	apply_scalar_dev (this, x_d, time, strong, strm)
	No-op scalar application on the device.

procedure, pass(this)	apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Remove the normal component on the device.

procedure, pass(this)	init (this, coef, json)
	Construct the boundary condition from JSON.

procedure, pass(this)	init_from_components (this, coef)
	Construct the boundary condition from its components.

procedure, pass(this)	free (this)
	Free the boundary condition and its nested storage.

procedure, pass(this)	get_normal_axis (this, sx, sy, sz, facet, el)
	Estimate which global axis is normal to a marked facet.

procedure, pass(this)	finalize (this)
	Finalize the boundary condition.

procedure, pass(this)	init_base (this, coef)
	Constructor.

procedure, pass(this)	free_base (this)
	Destructor.

procedure, pass(this)	mark_facet (this, facet, el)
	Mark a facet on an element as part of the boundary condition.

procedure, pass(this)	mark_facets (this, facet_list)
	Mark all facets from a (facet, element) tuple list.

procedure, pass(this)	mark_zone (this, bc_zone)
	Mark all facets from a zone.

procedure, pass(this)	mark_labeled_zone (this, zone_index)
	Mark all facets from a labeled zone.

procedure, pass(this)	mark_labeled_zones (this, zone_indices)
	Mark all facets from a list of labeled zones.

procedure, pass(this)	finalize_base (this)
	Finalize the construction of the bc by populating the msk and facet arrays.

procedure, pass(this)	apply_scalar_generic (this, x, time, strong, strm)
	Apply the boundary condition to a scalar field. Dispatches to the CPU or the device version.

procedure, pass(this)	apply_vector_generic (this, x, y, z, time, strong, strm)
	Apply the boundary condition to a vector field. Dispatches to the CPU or the device version.

procedure, pass(this)	debug_mask_ (this, file_name)
	Write a field showing the mask of the bcs.

procedure(bc_apply_scalar), deferred, pass	apply_scalar (this, x, n, time, strong)
	Apply the boundary condition to a scalar field on the CPU.

procedure(bc_apply_vector), deferred, pass	apply_vector (this, x, y, z, n, time, strong)
	Apply the boundary condition to a vector field on the CPU.

procedure(bc_apply_scalar_dev), deferred, pass	apply_scalar_dev (this, x_d, time, strong, strm)
	Device version of apply_scalar on the device.

procedure(bc_apply_vector_dev), deferred, pass	apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Device version of apply_vector on the device.

procedure(bc_destructor), deferred, pass	free (this)
	Deferred destructor.

procedure(bc_constructor), deferred, pass	init (this, coef, json)
	Deferred constructor.

procedure(bc_finalize), deferred, pass	finalize (this)
	Deferred finalizer.

Public Attributes
type(zero_dirichlet_t)	bc_x
	Nested zero-Dirichlet boundary conditions for each component.

type(zero_dirichlet_t)	bc_y

type(zero_dirichlet_t)	bc_z

integer, dimension(:), allocatable	msk
	The linear index of each constrained local degree of freedom.

integer, dimension(:), allocatable	facet_node_msk
	The linear index of each node on the marked boundary facets.

integer, dimension(:), allocatable	facet
	A list of facet ids (1 to 6), one for each entry in facet_node_msk.

type(dofmap_t), pointer	dof => null()
	Map of degrees of freedom.

type(coef_t), pointer	coef => null()
	SEM coefficients.

type(mesh_t), pointer	msh => null()
	The mesh.

type(space_t), pointer	xh => null()
	The function space.

type(stack_i4t2_t)	marked_facet
	Index tuples (facet, element) marked as part of the boundary condition.

type(c_ptr)	msk_d = C_NULL_PTR
	Device pointer for msk.

type(c_ptr)	facet_node_msk_d = C_NULL_PTR
	Device pointer for facet_node_msk.

type(c_ptr)	facet_d = C_NULL_PTR
	Device pointer for facet.

integer	bc_type = -1
	Type of the boundary condition, from the `BC_*` constants.

logical	updated = .false.
	Indicates wether the bc has been updated, for those BCs that need additional computations.

character(len=:), allocatable	name

integer, dimension(:), allocatable	zone_indices

Detailed Description

Warning: Only works for axis-aligned plane boundaries.

This variant uses nested zero_dirichlet_t boundary conditions to constrain the single global component normal to each marked facet.

Definition at line 51 of file symmetry_aligned.f90.

Member Function/Subroutine Documentation

◆ apply_scalar() [1/2]

procedure(bc_apply_scalar), deferred, pass bc::bc_t::apply_scalar	(	class(bc_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

pure virtualinherited

Definition at line 132 of file bc.f90.

◆ apply_scalar() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::apply_scalar	(	class(symmetry_aligned_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

Parameters

x	Scalar field values.
n	Number of entries in `x`.
time	Current time state.
strong	Whether to apply the strong form.

Definition at line 58 of file symmetry_aligned.f90.

◆ apply_scalar_dev() [1/2]

procedure(bc_apply_scalar_dev), deferred, pass bc::bc_t::apply_scalar_dev	(	class(bc_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

pure virtualinherited

Definition at line 136 of file bc.f90.

◆ apply_scalar_dev() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::apply_scalar_dev	(	class(symmetry_aligned_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

Parameters

x_d	Device pointer to the scalar field.
time	Current time state.
strong	Whether to apply the strong form.
strm	Device stream.

Definition at line 62 of file symmetry_aligned.f90.

◆ apply_scalar_generic()

procedure, pass(this) bc::bc_t::apply_scalar_generic	(	class(bc_t), intent(inout)	this,
		type(field_t), intent(inout)	x,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout), optional	strm
	)

inherited

Parameters

x	The x comp of the field for which to apply the bc.
time	Current time state.
strong	Whether we are setting a strong or a weak bc.
strm	Device stream

Definition at line 125 of file bc.f90.

◆ apply_vector() [1/2]

procedure(bc_apply_vector), deferred, pass bc::bc_t::apply_vector	(	class(bc_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	y,
		real(kind=rp), dimension(n), intent(inout)	z,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

pure virtualinherited

Definition at line 134 of file bc.f90.

◆ apply_vector() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::apply_vector	(	class(symmetry_aligned_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	y,
		real(kind=rp), dimension(n), intent(inout)	z,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

For axis-aligned facets this reduces to applying the nested zero-Dirichlet condition to the corresponding global component.

Parameters

x	x-component of the field.
y	y-component of the field.
z	z-component of the field.
n	Number of entries in each component array.
time	Current time state.
strong	Whether to apply the strong form.

Definition at line 60 of file symmetry_aligned.f90.

◆ apply_vector_dev() [1/2]

procedure(bc_apply_vector_dev), deferred, pass bc::bc_t::apply_vector_dev	(	class(bc_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(c_ptr), intent(inout)	y_d,
		type(c_ptr), intent(inout)	z_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

pure virtualinherited

Definition at line 138 of file bc.f90.

◆ apply_vector_dev() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::apply_vector_dev	(	class(symmetry_aligned_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(c_ptr), intent(inout)	y_d,
		type(c_ptr), intent(inout)	z_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

Uses the component masks of the nested zero-Dirichlet boundary conditions corresponding to the axis-aligned facet normals.

Parameters

x_d	Device pointer to the x-component.
y_d	Device pointer to the y-component.
z_d	Device pointer to the z-component.
time	Current time state.
strong	Whether to apply the strong form.
strm	Device stream.

Definition at line 65 of file symmetry_aligned.f90.

◆ apply_vector_generic()

procedure, pass(this) bc::bc_t::apply_vector_generic	(	class(bc_t), intent(inout)	this,
		type(field_t), intent(inout)	x,
		type(field_t), intent(inout)	y,
		type(field_t), intent(inout)	z,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout), optional	strm
	)

inherited

Parameters

x	The x comp of the field for which to apply the bc.
y	The y comp of the field for which to apply the bc.
z	The z comp of the field for which to apply the bc.
time	Current time state.
strong	Whether we are setting a strong or a weak bc.
Device	stream

Definition at line 128 of file bc.f90.

◆ debug_mask_()

procedure, pass(this) bc::bc_t::debug_mask_	(	class(bc_t), intent(inout)	this,
		character(len=*), intent(in)	file_name
	)

inherited

The mask will be marked with 1.

Parameters

file_name The name of the fld file.

Definition at line 130 of file bc.f90.

◆ finalize() [1/2]

procedure(bc_finalize), deferred, pass bc::bc_t::finalize ( class(bc_t), intent(inout), target this )

pure virtualinherited

Definition at line 144 of file bc.f90.

◆ finalize() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::finalize ( class(symmetry_aligned_t), intent(inout), target this )

Detects the normal axis of each marked facet and marks the corresponding nested zero-Dirichlet component boundary condition.

Definition at line 78 of file symmetry_aligned.f90.

◆ finalize_base()

procedure, pass(this) bc::bc_t::finalize_base ( class(bc_t), intent(inout), target this )

inherited

This will linearize the marked facet's indicies in the msk array.

Definition at line 121 of file bc.f90.

◆ free() [1/2]

procedure(bc_destructor), deferred, pass bc::bc_t::free ( class(bc_t), intent(inout), target this )

pure virtualinherited

Definition at line 140 of file bc.f90.

◆ free() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::free ( class(symmetry_aligned_t), intent(inout), target this )

Definition at line 73 of file symmetry_aligned.f90.

◆ free_base()

procedure, pass(this) bc::bc_t::free_base ( class(bc_t), intent(inout) this )

inherited

Definition at line 108 of file bc.f90.

◆ get_normal_axis()

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::get_normal_axis	(	class(symmetry_aligned_t), intent(inout), target	this,
		real(kind=rp), intent(out)	sx,
		real(kind=rp), intent(out)	sy,
		real(kind=rp), intent(out)	sz,
		integer, intent(in)	facet,
		integer, intent(in)	el
	)

Parameters

[out]	sx	Deviation from an x-aligned normal.
[out]	sy	Deviation from a y-aligned normal.
[out]	sz	Deviation from a z-aligned normal.
[in]	facet	Facet id on the reference hex.
[in]	el	Element id.

Definition at line 75 of file symmetry_aligned.f90.

◆ init() [1/2]

procedure(bc_constructor), deferred, pass bc::bc_t::init	(	class(bc_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

pure virtualinherited

Definition at line 142 of file bc.f90.

◆ init() [2/2]

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::init	(	class(symmetry_aligned_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 68 of file symmetry_aligned.f90.

◆ init_base()

procedure, pass(this) bc::bc_t::init_base	(	class(bc_t), intent(inout)	this,
		type(coef_t), intent(in), target	coef
	)

inherited

Parameters

dof	Map of degrees of freedom.

Definition at line 106 of file bc.f90.

◆ init_from_components()

procedure, pass(this) symmetry_aligned::symmetry_aligned_t::init_from_components	(	class(symmetry_aligned_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef
	)

Parameters

[in] coef The SEM coefficients.

Definition at line 70 of file symmetry_aligned.f90.

◆ mark_facet()

procedure, pass(this) bc::bc_t::mark_facet	(	class(bc_t), intent(inout)	this,
		integer, intent(in)	facet,
		integer, intent(in)	el
	)

inherited

Parameters

facet	The index of the facet.
el	The index of the element.

Definition at line 110 of file bc.f90.

◆ mark_facets()

procedure, pass(this) bc::bc_t::mark_facets	(	class(bc_t), intent(inout)	this,
		type(stack_i4t2_t), intent(inout)	facet_list
	)

inherited

Parameters

facet_list The list of tuples.

Definition at line 112 of file bc.f90.

◆ mark_labeled_zone()

procedure, pass(this) bc::bc_t::mark_labeled_zone	(	class(bc_t), intent(inout)	this,
		integer, intent(in)	zone_index
	)

inherited

Parameters

zone_index The index of the labeled zone to be marked.

Definition at line 116 of file bc.f90.

◆ mark_labeled_zones()

procedure, pass(this) bc::bc_t::mark_labeled_zones	(	class(bc_t), intent(inout)	this,
		integer, dimension(:), intent(in)	zone_indices
	)

inherited

Parameters

zone_indices The indices of the labeled zones to be marked.

Definition at line 118 of file bc.f90.

◆ mark_zone()

procedure, pass(this) bc::bc_t::mark_zone	(	class(bc_t), intent(inout)	this,
		class(facet_zone_t), intent(in)	bc_zone
	)

inherited

Parameters

bc_zone Boundary zone to be marked.

Definition at line 114 of file bc.f90.

Member Data Documentation

◆ bc_type

integer bc::bc_t::bc_type = -1

inherited

Definition at line 96 of file bc.f90.

◆ bc_x

type(zero_dirichlet_t) symmetry_aligned::symmetry_aligned_t::bc_x

Definition at line 53 of file symmetry_aligned.f90.

◆ bc_y

type(zero_dirichlet_t) symmetry_aligned::symmetry_aligned_t::bc_y

Definition at line 54 of file symmetry_aligned.f90.

◆ bc_z

type(zero_dirichlet_t) symmetry_aligned::symmetry_aligned_t::bc_z

Definition at line 55 of file symmetry_aligned.f90.

◆ coef

type(coef_t), pointer bc::bc_t::coef => null()

inherited

Definition at line 82 of file bc.f90.

◆ dof

type(dofmap_t), pointer bc::bc_t::dof => null()

inherited

Definition at line 80 of file bc.f90.

◆ facet

integer, dimension(:), allocatable bc::bc_t::facet

inherited

Definition at line 78 of file bc.f90.

◆ facet_d

type(c_ptr) bc::bc_t::facet_d = C_NULL_PTR

inherited

Definition at line 94 of file bc.f90.

◆ facet_node_msk

integer, dimension(:), allocatable bc::bc_t::facet_node_msk

inherited

Definition at line 76 of file bc.f90.

◆ facet_node_msk_d

type(c_ptr) bc::bc_t::facet_node_msk_d = C_NULL_PTR

inherited

Definition at line 92 of file bc.f90.

◆ marked_facet

type(stack_i4t2_t) bc::bc_t::marked_facet

inherited

Definition at line 88 of file bc.f90.

◆ msh

type(mesh_t), pointer bc::bc_t::msh => null()

inherited

Definition at line 84 of file bc.f90.

◆ msk

integer, dimension(:), allocatable bc::bc_t::msk

inherited

Definition at line 74 of file bc.f90.

◆ msk_d

type(c_ptr) bc::bc_t::msk_d = C_NULL_PTR

inherited

Definition at line 90 of file bc.f90.

◆ name

character(len=:), allocatable bc::bc_t::name

inherited

Definition at line 101 of file bc.f90.

◆ updated

logical bc::bc_t::updated = .false.

inherited

Definition at line 99 of file bc.f90.

◆ xh

type(space_t), pointer bc::bc_t::xh => null()

inherited

Definition at line 86 of file bc.f90.

◆ zone_indices

integer, dimension(:), allocatable bc::bc_t::zone_indices

inherited

Definition at line 103 of file bc.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/bc/symmetry_aligned.f90

Public Member Functions

Public Attributes

Detailed Description

Member Function/Subroutine Documentation

◆ apply_scalar() [1/2]

◆ apply_scalar() [2/2]

◆ apply_scalar_dev() [1/2]

◆ apply_scalar_dev() [2/2]

◆ apply_scalar_generic()

◆ apply_vector() [1/2]

◆ apply_vector() [2/2]

◆ apply_vector_dev() [1/2]

◆ apply_vector_dev() [2/2]

◆ apply_vector_generic()

◆ debug_mask_()

◆ finalize() [1/2]

◆ finalize() [2/2]

◆ finalize_base()

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ get_normal_axis()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_from_components()

◆ mark_facet()

◆ mark_facets()

◆ mark_labeled_zone()

◆ mark_labeled_zones()

◆ mark_zone()

Member Data Documentation

◆ bc_type

◆ bc_x

◆ bc_y

◆ bc_z

◆ coef

◆ dof

◆ facet

◆ facet_d

◆ facet_node_msk

◆ facet_node_msk_d

◆ marked_facet

◆ msh

◆ msk

◆ msk_d

◆ name

◆ updated

◆ xh

◆ zone_indices
