Passive Lagrangian particle tracking. More...

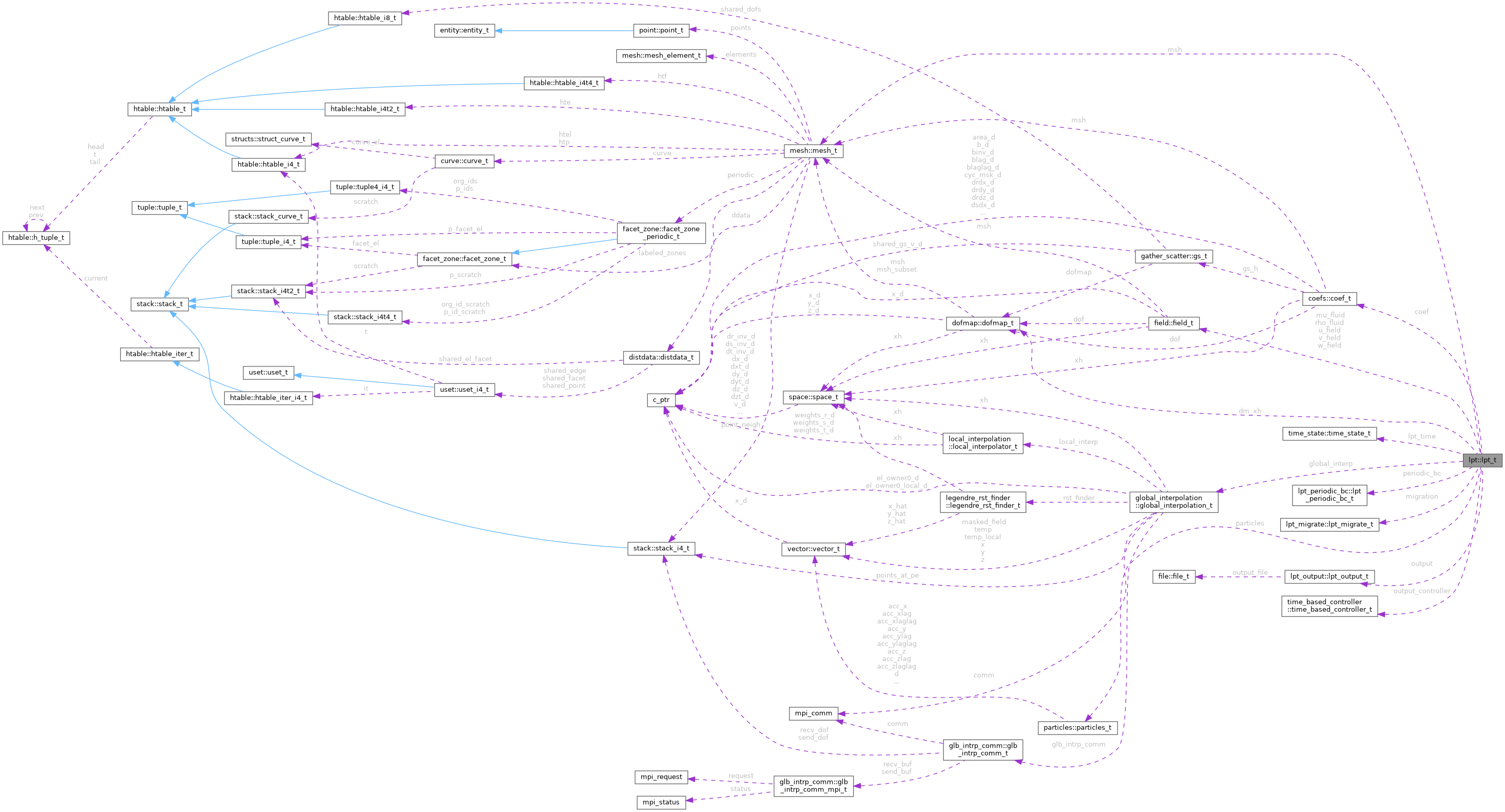

Collaboration diagram for lpt::lpt_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json, case)
	Build a mask of elastic wall facets from configured mesh zone ids.

procedure, pass(this)	free (this)
	Free all LPT-owned state and reset pointers/flags.

procedure, pass(this)	preprocess (this, time)
	Advance particle positions and, for inertial particles, velocities.

procedure, pass(this)	compute (this, time)
	Refresh particle/fluid coupling after the fluid step and emit output.

Public Attributes
character(:), allocatable	name
	LPT instance name.

type(field_t), pointer	u_field => null()

type(field_t), pointer	v_field => null()

type(field_t), pointer	w_field => null()

type(field_t), pointer	mu_fluid => null()

type(field_t), pointer	rho_fluid => null()

type(mesh_t), pointer	msh => null()

type(dofmap_t), pointer	dm_xh => null()

type(coef_t), pointer	coef => null()

integer	time_order

integer	lag_len

integer	history_len = 0

logical	inertia = .false.

real(kind=rp)	nonlinear_coefficient

real(kind=rp)	nonlinear_exponent

logical	elastic_wall_enabled = .false.

integer, dimension(:), allocatable	wall_zone_indices

logical, dimension(:, :), allocatable	wall_facet_mask

type(time_state_t)	lpt_time

logical	lpt_time_initialized = .false.

type(global_interpolation_t)	global_interp

type(lpt_periodic_bc_t)	periodic_bc

type(lpt_migrate_t)	migration

type(particles_t)	particles

type(lpt_output_t)	output

type(time_based_controller_t)	output_controller

logical	output_enabled = .false.

logical	log = .true.

real(kind=rp)	start_time = -huge(0.0_rp)

Private Member Functions
procedure, pass(this), private	read_particles_json (this, json)
	Read particle data from JSON and initialise particles on rank 0.

procedure, pass(this), private	read_particles_csv (this, json)
	Read particle data from a CSV file and initialise particles on rank 0.

procedure, pass(this), private	evaluate_velocity (this, u_fluid, v_fluid, w_fluid)
	Interpolate the carrier velocity at the local particles.

procedure, pass(this), private	evaluate_acceleration (this, acc_x, acc_y, acc_z, u_fluid, v_fluid, w_fluid)
	Estimate particle acceleration from local carrier-fluid velocity.

procedure, pass(this), private	sync_time_controller (this, time)
	Build an LPT-local time-step history from the times at which LPT runs.

procedure, pass(this), private	ode_integrate_ab_3c (this, sol_x, sol_y, sol_z, rhs_x, rhs_y, rhs_z, rhs_xlag, rhs_ylag, rhs_zlag, rhs_xlaglag, rhs_ylaglag, rhs_zlaglag, n)
	Advance a three-component state with variable-step Adams-Bashforth.

procedure, pass(this), private	update_current_rhs (this)
	Refresh particle RHS values using the current fluid solution.

procedure, pass(this), private	write_output (this, time)
	Write one trajectory snapshot.

procedure, pass(this), private	log_status (this)
	Emit a setup summary for the configured LPT instance.

Detailed Description

Definition at line 73 of file lpt.f90.

Member Function/Subroutine Documentation

◆ compute()

procedure, pass(this) lpt::lpt_t::compute	(	class(lpt_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

time	Current simulation time used for output scheduling.

Definition at line 107 of file lpt.f90.

◆ evaluate_acceleration()

procedure, pass(this), private lpt::lpt_t::evaluate_acceleration	(	class(lpt_t), intent(inout)	this,
		type(vector_t), intent(inout)	acc_x,
		type(vector_t), intent(inout)	acc_y,
		type(vector_t), intent(inout)	acc_z,
		type(vector_t), intent(in)	u_fluid,
		type(vector_t), intent(in)	v_fluid,
		type(vector_t), intent(in)	w_fluid
	)

private

Parameters

acc_x	Particle acceleration in x.
acc_y	Particle acceleration in y.
acc_z	Particle acceleration in z.
u_fluid	Interpolated x velocity at particle locations.
v_fluid	Interpolated y velocity at particle locations.
w_fluid	Interpolated z velocity at particle locations.

Definition at line 111 of file lpt.f90.

◆ evaluate_velocity()

procedure, pass(this), private lpt::lpt_t::evaluate_velocity	(	class(lpt_t), intent(inout)	this,
		type(vector_t), intent(inout)	u_fluid,
		type(vector_t), intent(inout)	v_fluid,
		type(vector_t), intent(inout)	w_fluid
	)

private

Parameters

u_fluid	Interpolated x velocity at particle locations.
v_fluid	Interpolated y velocity at particle locations.
w_fluid	Interpolated z velocity at particle locations.

Definition at line 110 of file lpt.f90.

◆ free()

procedure, pass(this) lpt::lpt_t::free ( class(lpt_t), intent(inout) this )

Definition at line 105 of file lpt.f90.

◆ init()

procedure, pass(this) lpt::lpt_t::init	(	class(lpt_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Reflect particles and histories after elastic wall contact. Construct from JSON. Supported particle input is either a flat coordinates array [x1,y1,z1,x2,y2,z2,...] or a three-column CSV points_file.

Definition at line 104 of file lpt.f90.

◆ log_status()

procedure, pass(this), private lpt::lpt_t::log_status ( class(lpt_t), intent(in) this )

private

Definition at line 116 of file lpt.f90.

Here is the call graph for this function:

◆ ode_integrate_ab_3c()

procedure, pass(this), private lpt::lpt_t::ode_integrate_ab_3c	(	class(lpt_t), intent(inout)	this,
		type(vector_t), intent(inout)	sol_x,
		type(vector_t), intent(inout)	sol_y,
		type(vector_t), intent(inout)	sol_z,
		type(vector_t), intent(in)	rhs_x,
		type(vector_t), intent(in)	rhs_y,
		type(vector_t), intent(in)	rhs_z,
		type(vector_t), intent(in)	rhs_xlag,
		type(vector_t), intent(in)	rhs_ylag,
		type(vector_t), intent(in)	rhs_zlag,
		type(vector_t), intent(in)	rhs_xlaglag,
		type(vector_t), intent(in)	rhs_ylaglag,
		type(vector_t), intent(in)	rhs_zlaglag,
		integer, intent(in)	n
	)

private

Parameters

sol_x	State component in x.
sol_y	State component in y.
sol_z	State component in z.
n	Number of local particles to advance.

Definition at line 113 of file lpt.f90.

◆ preprocess()

procedure, pass(this) lpt::lpt_t::preprocess	(	class(lpt_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

time	Current simulation time used to build the LPT local step.

Definition at line 106 of file lpt.f90.

◆ read_particles_csv()

procedure, pass(this), private lpt::lpt_t::read_particles_csv	(	class(lpt_t), intent(inout)	this,
		type(json_file), intent(inout)	json
	)

private

Parameters

json	LPT configuration containing `points_file`.

Definition at line 109 of file lpt.f90.

◆ read_particles_json()

procedure, pass(this), private lpt::lpt_t::read_particles_json	(	class(lpt_t), intent(inout)	this,
		type(json_file), intent(inout)	json
	)

private

Parameters

json	LPT configuration containing either `coordinates` or `points_file`.

Definition at line 108 of file lpt.f90.

◆ sync_time_controller()

procedure, pass(this), private lpt::lpt_t::sync_time_controller	(	class(lpt_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

private

Parameters

time	Current simulation time from the main solver.

Definition at line 112 of file lpt.f90.

◆ update_current_rhs()

procedure, pass(this), private lpt::lpt_t::update_current_rhs ( class(lpt_t), intent(inout) this )

private

Definition at line 114 of file lpt.f90.

◆ write_output()

procedure, pass(this), private lpt::lpt_t::write_output	(	class(lpt_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

private

Parameters

time	Current simulation time stored with particle data.

Definition at line 115 of file lpt.f90.

Member Data Documentation

◆ coef

type(coef_t), pointer lpt::lpt_t::coef => null()

Definition at line 84 of file lpt.f90.

◆ dm_xh

type(dofmap_t), pointer lpt::lpt_t::dm_xh => null()

Definition at line 83 of file lpt.f90.

◆ elastic_wall_enabled

logical lpt::lpt_t::elastic_wall_enabled = .false.

Definition at line 89 of file lpt.f90.

◆ global_interp

type(global_interpolation_t) lpt::lpt_t::global_interp

Definition at line 94 of file lpt.f90.

◆ history_len

integer lpt::lpt_t::history_len = 0

Definition at line 86 of file lpt.f90.

◆ inertia

logical lpt::lpt_t::inertia = .false.

Definition at line 87 of file lpt.f90.

◆ lag_len

integer lpt::lpt_t::lag_len

Definition at line 85 of file lpt.f90.

◆ log

logical lpt::lpt_t::log = .true.

Definition at line 101 of file lpt.f90.

◆ lpt_time

type(time_state_t) lpt::lpt_t::lpt_time

Definition at line 92 of file lpt.f90.

◆ lpt_time_initialized

logical lpt::lpt_t::lpt_time_initialized = .false.

Definition at line 93 of file lpt.f90.

◆ migration

type(lpt_migrate_t) lpt::lpt_t::migration

Definition at line 96 of file lpt.f90.

◆ msh

type(mesh_t), pointer lpt::lpt_t::msh => null()

Definition at line 82 of file lpt.f90.

◆ mu_fluid

type(field_t), pointer lpt::lpt_t::mu_fluid => null()

Definition at line 80 of file lpt.f90.

◆ name

character(:), allocatable lpt::lpt_t::name

Definition at line 75 of file lpt.f90.

◆ nonlinear_coefficient

real(kind=rp) lpt::lpt_t::nonlinear_coefficient

Definition at line 88 of file lpt.f90.

◆ nonlinear_exponent

real(kind=rp) lpt::lpt_t::nonlinear_exponent

Definition at line 88 of file lpt.f90.

◆ output

type(lpt_output_t) lpt::lpt_t::output

Definition at line 98 of file lpt.f90.

◆ output_controller

type(time_based_controller_t) lpt::lpt_t::output_controller

Definition at line 99 of file lpt.f90.

◆ output_enabled

logical lpt::lpt_t::output_enabled = .false.

Definition at line 100 of file lpt.f90.

◆ particles

type(particles_t) lpt::lpt_t::particles

Definition at line 97 of file lpt.f90.

◆ periodic_bc

type(lpt_periodic_bc_t) lpt::lpt_t::periodic_bc

Definition at line 95 of file lpt.f90.

◆ rho_fluid

type(field_t), pointer lpt::lpt_t::rho_fluid => null()

Definition at line 81 of file lpt.f90.

◆ start_time

real(kind=rp) lpt::lpt_t::start_time = -huge(0.0_rp)

Definition at line 102 of file lpt.f90.

◆ time_order

integer lpt::lpt_t::time_order

Definition at line 85 of file lpt.f90.

◆ u_field

type(field_t), pointer lpt::lpt_t::u_field => null()

Definition at line 77 of file lpt.f90.

◆ v_field

type(field_t), pointer lpt::lpt_t::v_field => null()

Definition at line 78 of file lpt.f90.

◆ w_field

type(field_t), pointer lpt::lpt_t::w_field => null()

Definition at line 79 of file lpt.f90.

◆ wall_facet_mask

logical, dimension(:, :), allocatable lpt::lpt_t::wall_facet_mask

Definition at line 91 of file lpt.f90.

◆ wall_zone_indices

integer, dimension(:), allocatable lpt::lpt_t::wall_zone_indices

Definition at line 90 of file lpt.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/lpt/lpt.f90
