field_neumann Module Reference

Defines user neumann condition for a scalar field.

Data Types
type	field_neumann_t
	User defined neumann condition, for which the user can work with an entire field. The type stores a separate dummy field field_bc, which is passed to the user routine and can be populated with arbitrary values. The boundary condition then gathers these values at the bc mask locations into a compact flux vector and applies the weak neumann contribution. More...
interface	field_neumann_update
	Abstract interface defining a neumann condition on a list of fields. More...

Functions/Subroutines
subroutine	field_neumann_init (this, coef, json)
	Constructor.
subroutine	field_neumann_init_from_components (this, coef, field_name)
	Constructor from components.
subroutine	field_neumann_free (this)
	Destructor.
subroutine	field_neumann_gather_flux (this)
	Gather field-defined values into compact boundary flux storage.
subroutine	field_neumann_apply_scalar (this, x, n, time, strong)
	Apply scalar by adding weak neumann contribution.
subroutine	field_neumann_apply_scalar_dev (this, x_d, time, strong, strm)
	Apply scalar (device).
subroutine	field_neumann_apply_vector (this, x, y, z, n, time, strong)
	(No-op) Apply vector.
subroutine	field_neumann_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	(No-op) Apply vector (device).
subroutine	field_neumann_finalize (this, only_facets)
	Finalize.

Function/Subroutine Documentation

field_neumann_apply_scalar()

subroutine field_neumann::field_neumann_apply_scalar ( class(field_neumann_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	Field to which the weak neumann contribution is added.
n	Size of the array x.
time	The current time state.

Definition at line 172 of file field_neumann.f90.

Here is the call graph for this function:

field_neumann_apply_scalar_dev()

subroutine field_neumann::field_neumann_apply_scalar_dev ( class(field_neumann_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

x_d	Device pointer to the field to update.
time	The current time state.
strm	Device stream.

Definition at line 227 of file field_neumann.f90.

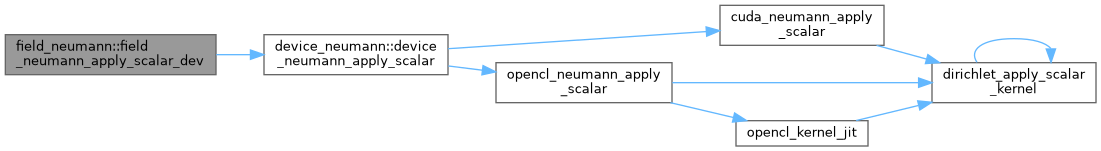

Here is the call graph for this function:

field_neumann_apply_vector()

subroutine field_neumann::field_neumann_apply_vector ( class(field_neumann_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Definition at line 258 of file field_neumann.f90.

field_neumann_apply_vector_dev()

subroutine field_neumann::field_neumann_apply_vector_dev ( class(field_neumann_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Definition at line 272 of file field_neumann.f90.

field_neumann_finalize()

subroutine field_neumann::field_neumann_finalize ( class(field_neumann_t), intent(inout), target  this, logical, intent(in), optional  only_facets  )

private

Definition at line 287 of file field_neumann.f90.

field_neumann_free()

subroutine field_neumann::field_neumann_free ( class(field_neumann_t), intent(inout), target  this )

private

Definition at line 138 of file field_neumann.f90.

field_neumann_gather_flux()

subroutine field_neumann::field_neumann_gather_flux ( class(field_neumann_t), intent(inout)  this )

private

Definition at line 153 of file field_neumann.f90.

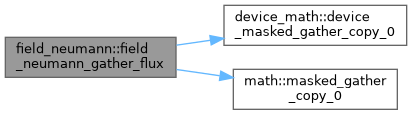

Here is the call graph for this function:

field_neumann_init()

subroutine field_neumann::field_neumann_init ( class(field_neumann_t), intent(inout), target  this, type(coef_t), intent(in), target  coef, type(json_file), intent(inout)  json  )

private

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 106 of file field_neumann.f90.

field_neumann_init_from_components()

subroutine field_neumann::field_neumann_init_from_components ( class(field_neumann_t), intent(inout), target  this, type(coef_t), intent(in)  coef, character(len=*), intent(in)  field_name  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	field_name	Name of the dummy field.

Definition at line 123 of file field_neumann.f90.
