overset_interface_vector Module Reference

Defines overset interface vector boundary conditions.

Data Types
type	overset_interface_vector_t
	Extension of the user defined dirichlet condition overset_interface More...

Functions/Subroutines
subroutine	overset_interface_vector_init (this, coef, json)
	Constructor.
subroutine	overset_interface_vector_init_from_components (this, coef, tol, pad, log, relaxation)
	Constructor from components.
subroutine	overset_interface_vector_free (this)
	Destructor. Currently unused as is, all field_dirichlet attributes are freed in fluid_scheme_incompressible::free.
subroutine	overset_interface_vector_restart (this, u, v, w, ulag, vlag, wlag)
	Restore interface history from checkpointed solution fields. Values are inserted from oldest to newest, leaving the current accepted value in the base interface vectors. The next regular update shifts that value into the first lag position before extrapolation. This must be called after the fluid restart has restored continuity of interpolated checkpoint fields.
subroutine	overset_interface_vector_apply_scalar (this, x, n, time, strong)
	No-op apply scalar.
subroutine	overset_interface_vector_apply_scalar_dev (this, x_d, time, strong, strm)
	No-op apply scalar (device).
subroutine	overset_interface_vector_apply_vector (this, x, y, z, n, time, strong)
	Apply the boundary condition to a vector field.
subroutine	overset_interface_vector_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Apply the boundary condition to a vector field on the device.
subroutine	overset_interface_vector_finalize (this)
	Finalize by building the mask arrays and propagating to underlying bcs.
subroutine	overset_interface_update (this, time)
	Update the values at the interfaces.
subroutine	relax_interface_values_ (this)
	Under-relax a Schwarz correction using the previously applied interface. For each velocity component, blend the new donor value g_new with the preceding Schwarz iterate g_old as g = relaxation * g_new + (1 - relaxation) * g_old. The caller skips this routine on the first pass of every physical timestep, preserving the temporal accuracy of the IEXT prediction.
subroutine	log_interface_error_ (this, u, v, w)
	Log interface RMSE for each vector component.
subroutine	build_masks_ (this)
	Build masks.
subroutine	gather_interface_dofs_ (this)
	Gather interface dofs.
subroutine	setup_interpolator_ (this)
	Set up the interpolator.

Function/Subroutine Documentation

build_masks_()

subroutine overset_interface_vector::build_masks_ ( class(overset_interface_vector_t), intent(inout)  this )

private

Create a new mask_t based on the 0-mask for the overset boundary points

Create a mask that marks the full elements containing overset boundary points

Create a domain mask that exclude the boundary elements.

Definition at line 729 of file overset_interface_vector.f90.

Here is the call graph for this function:

gather_interface_dofs_()

subroutine overset_interface_vector::gather_interface_dofs_ ( class(overset_interface_vector_t), intent(inout)  this )

private

Gather the coordinates to the vectors

synchronize if on device

Definition at line 782 of file overset_interface_vector.f90.

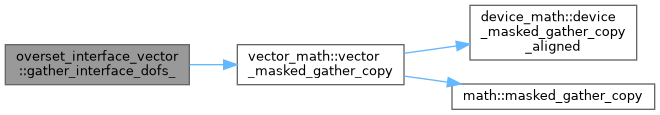

Here is the call graph for this function:

log_interface_error_()

subroutine overset_interface_vector::log_interface_error_ ( class(overset_interface_vector_t), intent(inout)  this, type(field_t), intent(in), pointer  u, type(field_t), intent(in), pointer  v, type(field_t), intent(in), pointer  w  )

private

Compute the L2 norm (RMSE in reality) of the error at the interface points

Log the errors

Definition at line 686 of file overset_interface_vector.f90.

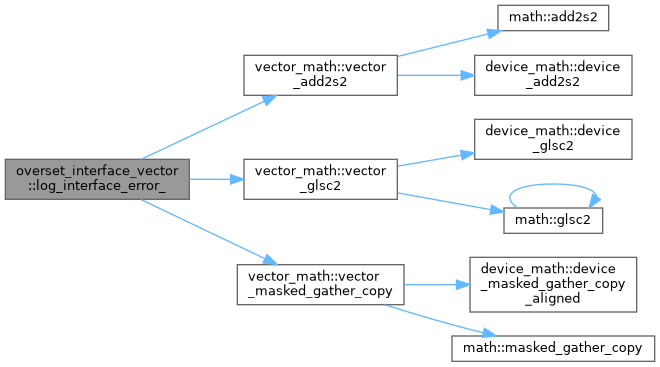

Here is the call graph for this function:

overset_interface_update()

subroutine overset_interface_vector::overset_interface_update ( class(overset_interface_vector_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Change the coordinates of the interface if set up by the user

Update in sub-step 1 should be an extrapolation of the boundary values

Find points if needed - later make sure only in first substep

Interpolate

If this is the first substep, then we do the extrapolation

Scatter them to the bc fields

Definition at line 528 of file overset_interface_vector.f90.

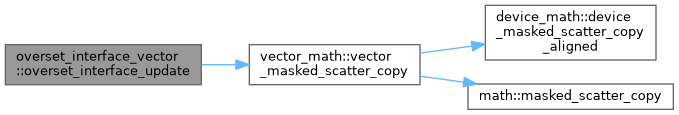

Here is the call graph for this function:

overset_interface_vector_apply_scalar()

subroutine overset_interface_vector::overset_interface_vector_apply_scalar ( class(overset_interface_vector_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	Field onto which to copy the values (e.g. u,v,w,p or s).
n	Size of the array x.
t	Current time state.

Definition at line 356 of file overset_interface_vector.f90.

overset_interface_vector_apply_scalar_dev()

subroutine overset_interface_vector::overset_interface_vector_apply_scalar_dev ( class(overset_interface_vector_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

x_d	Device pointer to the field onto which to copy the values.
time	The current time state.

Definition at line 371 of file overset_interface_vector.f90.

overset_interface_vector_apply_vector()

subroutine overset_interface_vector::overset_interface_vector_apply_vector ( class(overset_interface_vector_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	x-component of the field onto which to apply the values.
y	y-component of the field onto which to apply the values.
z	z-component of the field onto which to apply the values.
n	Size of the x, y and z arrays.
time	The current time state.

TODO: Change the mask to mask_t

Definition at line 390 of file overset_interface_vector.f90.

Here is the call graph for this function:

overset_interface_vector_apply_vector_dev()

subroutine overset_interface_vector::overset_interface_vector_apply_vector_dev ( class(overset_interface_vector_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

x	x-component of the field onto which to apply the values.
y	y-component of the field onto which to apply the values.
z	z-component of the field onto which to apply the values.
time	The current time state.
strm	Device stream

Definition at line 432 of file overset_interface_vector.f90.

Here is the call graph for this function:

overset_interface_vector_finalize()

subroutine overset_interface_vector::overset_interface_vector_finalize ( class(overset_interface_vector_t), intent(inout), target  this )

private

From field_dirichlet_vector_t

Build heper masks

Gather the interface boundary points

Initialize the interpolator and find the points

Keep a vector list that holds the values of interface fields

Fill the vector lists

Initialize the lag arrays

Definition at line 471 of file overset_interface_vector.f90.

overset_interface_vector_free()

subroutine overset_interface_vector::overset_interface_vector_free ( class(overset_interface_vector_t), intent(inout), target  this )

private

Definition at line 267 of file overset_interface_vector.f90.

overset_interface_vector_init()

subroutine overset_interface_vector::overset_interface_vector_init	(	class(overset_interface_vector_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Parse the interpolation settings

Definition at line 168 of file overset_interface_vector.f90.

overset_interface_vector_init_from_components()

subroutine overset_interface_vector::overset_interface_vector_init_from_components ( class(overset_interface_vector_t), intent(inout), target  this, type(coef_t), intent(in)  coef, real(kind=rp), intent(in), optional  tol, real(kind=rp), intent(in), optional  pad, logical, intent(in), optional  log, real(kind=rp), intent(in), optional  relaxation  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	tol	The tolerance for the interpolation.
[in]	pad	The padding for the interpolation.
[in]	log	Whether to log the interpolation.
[in]	relaxation	Under-relaxation factor for interface updates.

This initializes coef, dof, msh, and Xh pointers

Set the interpolation settings

init coord vectors

Copy the dof coordinates to the internal vectors keep this to later check if the coordinates have changed.

Definition at line 200 of file overset_interface_vector.f90.

Here is the call graph for this function:

overset_interface_vector_restart()

subroutine overset_interface_vector::overset_interface_vector_restart ( class(overset_interface_vector_t), intent(inout)  this, type(field_t), intent(in)  u, type(field_t), intent(in)  v, type(field_t), intent(in)  w, type(field_series_t), intent(in)  ulag, type(field_series_t), intent(in)  vlag, type(field_series_t), intent(in)  wlag  )

private

Definition at line 309 of file overset_interface_vector.f90.

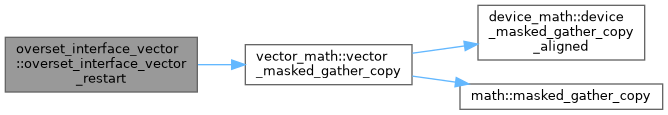

Here is the call graph for this function:

relax_interface_values_()

subroutine overset_interface_vector::relax_interface_values_ ( class(overset_interface_vector_t), intent(inout)  this )

private

Definition at line 646 of file overset_interface_vector.f90.

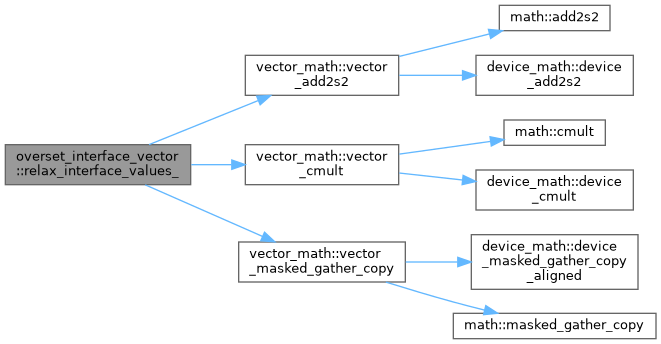

Here is the call graph for this function:

setup_interpolator_()

subroutine overset_interface_vector::setup_interpolator_ ( class(overset_interface_vector_t), intent(inout)  this )

private

Initialize the interpolator with the mask and the dof coords

Find the interface points on the global domain

Definition at line 807 of file overset_interface_vector.f90.
