rough_log_law Module Reference

Implements rough_log_law_t.

Data Types
type	rough_log_law_t
	Wall model based on the log-law for a rough wall. The formula defining the law is \( u^+ = log(z/z_0)/\kappa + B \). Here, \( z \) is the wall-normal distance, as per tradition in atmospheric sciences, where this law is often used. More...

Functions/Subroutines
subroutine	rough_log_law_init (this, scheme_name, coef, msk, facet, json)
	Constructor from JSON.
subroutine	rough_log_law_partial_init (this, coef, scheme_name, json)
	Constructor from JSON.
subroutine	rough_log_law_finalize (this, msk, facet, bc_name, user)
	Finalize the construction using the mask and facet arrays of the bc.
subroutine	rough_log_law_extract_properties (this)
	Extract the values of rho at the boundary.
subroutine	rough_log_law_init_from_components (this, scheme_name, coef, msk, facet, sampler, kappa, b, z0)
	Constructor from components.
subroutine	rough_log_law_validate_sampling_height (this)
subroutine	rough_log_law_free (this)
	Destructor for the rough_log_law_t (base) class.
subroutine	rough_log_law_compute (this, t, tstep)
	Compute the wall shear stress.

Function/Subroutine Documentation

rough_log_law_compute()

subroutine rough_log_law::rough_log_law_compute ( class(rough_log_law_t), intent(inout)  this, real(kind=rp), intent(in)  t, integer, intent(in)  tstep  )

private

Parameters

t	The time value.
tstep	The time iteration.

Definition at line 247 of file rough_log_law.f90.

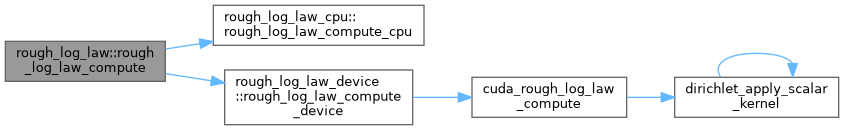

Here is the call graph for this function:

rough_log_law_extract_properties()

subroutine rough_log_law::rough_log_law_extract_properties ( class(rough_log_law_t), intent(inout)  this )

private

Definition at line 172 of file rough_log_law.f90.

Here is the call graph for this function:

rough_log_law_finalize()

subroutine rough_log_law::rough_log_law_finalize ( class(rough_log_law_t), intent(inout)  this, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet, character(len=*), intent(in), optional  bc_name, type(user_t), intent(in), optional, target  user  )

private

Parameters

msk	The boundary mask.
facet	The boundary facets.

Definition at line 153 of file rough_log_law.f90.

Here is the call graph for this function:

rough_log_law_free()

subroutine rough_log_law::rough_log_law_free ( class(rough_log_law_t), intent(inout)  this )

private

Definition at line 233 of file rough_log_law.f90.

rough_log_law_init()

subroutine rough_log_law::rough_log_law_init	(	class(rough_log_law_t), intent(inout)	this,
		character(len=*), intent(in)	scheme_name,
		type(coef_t), intent(in)	coef,
		integer, dimension(:), intent(in)	msk,
		integer, dimension(:), intent(in)	facet,
		type(json_file), intent(inout)	json
	)

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
json	A dictionary with parameters.

Definition at line 102 of file rough_log_law.f90.

Here is the call graph for this function:

rough_log_law_init_from_components()

subroutine rough_log_law::rough_log_law_init_from_components ( class(rough_log_law_t), intent(inout)  this, character(len=*), intent(in)  scheme_name, type(coef_t), intent(in)  coef, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet, class(wall_sampler_t), intent(inout), allocatable  sampler, real(kind=rp), intent(in)  kappa, real(kind=rp), intent(in)  b, real(kind=rp), intent(in)  z0  )

private

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
sampler	The sampling strategy. Ownership is transferred.
kappa	The von Karman coefficient.
B	The log-law intercept.
z0	The roughness height.

Definition at line 194 of file rough_log_law.f90.

Here is the call graph for this function:

rough_log_law_partial_init()

subroutine rough_log_law::rough_log_law_partial_init ( class(rough_log_law_t), intent(inout)  this, type(coef_t), intent(in)  coef, character(len=*), intent(in)  scheme_name, type(json_file), intent(inout)  json  )

private

Parameters

coef	SEM coefficients.
json	A dictionary with parameters.

Definition at line 125 of file rough_log_law.f90.

rough_log_law_validate_sampling_height()

subroutine rough_log_law::rough_log_law_validate_sampling_height ( class(rough_log_law_t), intent(in)  this )

private

Definition at line 221 of file rough_log_law.f90.

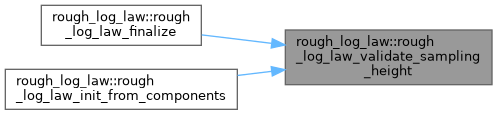

Here is the caller graph for this function:
