aabb_pe_finder::aabb_pe_finder_t Type Reference

Implements global interpolation for arbitrary points in the domain. More...

Inheritance diagram for aabb_pe_finder::aabb_pe_finder_t:

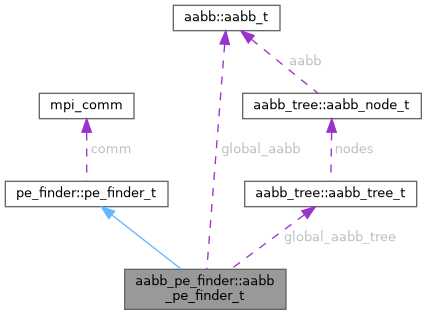

Collaboration diagram for aabb_pe_finder::aabb_pe_finder_t:

Public Member Functions
procedure, pass(this)	init (this, x, y, z, nelv, xh, comm, padding)
	Initialize the global interpolation object on a set of coordinates.
procedure, pass(this)	free (this)
	Destructor.
procedure, pass(this)	find (this, my_point, pe_candidates)
	Find pe candidates.
procedure, pass(this)	find_batch (this, points, n_points, points_at_pe, n_points_pe)
procedure(pe_finder_free), deferred, pass	free (this)
procedure(pe_finder_find), deferred, pass	find (this, my_point, pe_candidates)
procedure(pe_finder_find_batch), deferred, pass	find_batch (this, points, n_points, points_at_pe, n_points_pe)

Public Attributes
real(kind=dp)	padding
	Which communicator to find things on.
type(aabb_t), dimension(:), allocatable	global_aabb
	Structure to find rank candidates.
type(aabb_tree_t)	global_aabb_tree
integer	pe_box_num
	Number of boxes per rank.
integer	glob_map_size
	Number of boxes in total.
integer	pe_size
integer	pe_rank
type(mpi_comm)	comm

Detailed Description

Definition at line 62 of file aabb_pe_finder.f90.

Member Function/Subroutine Documentation

find() [1/2]

procedure, pass(this) aabb_pe_finder::aabb_pe_finder_t::find	(	class(aabb_pe_finder_t), intent(inout)	this,
		type(point_t), intent(in)	my_point,
		type(stack_i4_t), intent(inout)	pe_candidates
	)

Parameters

my_point	Point to find candidates for.
pe_candidates	Candidates for the point.

Definition at line 76 of file aabb_pe_finder.f90.

find() [2/2]

procedure(pe_finder_find), deferred, pass pe_finder::pe_finder_t::find ( class(pe_finder_t), intent(inout)  this, type(point_t), intent(in)  my_point, type(stack_i4_t), intent(inout)  pe_candidates  )

pure virtualinherited

Definition at line 51 of file pe_finder.f90.

find_batch() [1/2]

procedure, pass(this) aabb_pe_finder::aabb_pe_finder_t::find_batch	(	class(aabb_pe_finder_t), intent(inout)	this,
		real(kind=rp), dimension(3,n_points), intent(in)	points,
		integer, intent(in)	n_points,
		type(stack_i4_t), dimension(0:(this%pe_size-1)), intent(inout)	points_at_pe,
		integer, dimension(0:(this%pe_size-1)), intent(inout)	n_points_pe
	)

Definition at line 77 of file aabb_pe_finder.f90.

find_batch() [2/2]

procedure(pe_finder_find_batch), deferred, pass pe_finder::pe_finder_t::find_batch ( class(pe_finder_t), intent(inout)  this, real(kind=rp), dimension(3,n_points), intent(in)  points, integer, intent(in)  n_points, type(stack_i4_t), dimension(0:(this%pe_size-1)), intent(inout)  points_at_pe, integer, dimension(0:(this%pe_size-1)), intent(inout)  n_points_pe  )

pure virtualinherited

Definition at line 52 of file pe_finder.f90.

free() [1/2]

procedure, pass(this) aabb_pe_finder::aabb_pe_finder_t::free

(

class(aabb_pe_finder_t), intent(inout)

this

)

Definition at line 75 of file aabb_pe_finder.f90.

free() [2/2]

procedure(pe_finder_free), deferred, pass pe_finder::pe_finder_t::free ( class(pe_finder_t), intent(inout)  this )

pure virtualinherited

Definition at line 50 of file pe_finder.f90.

init()

procedure, pass(this) aabb_pe_finder::aabb_pe_finder_t::init	(	class(aabb_pe_finder_t), intent(inout)	this,
		real(kind=rp), dimension(:), intent(in), target	x,
		real(kind=rp), dimension(:), intent(in), target	y,
		real(kind=rp), dimension(:), intent(in), target	z,
		integer, intent(in)	nelv,
		type(space_t), intent(in), target	xh,
		type(mpi_comm), intent(in), optional	comm,
		real(kind=dp), intent(in)	padding
	)

Parameters

x	x-coordinates.
y	y-coordinates.
z	z-coordinates.
gdim	Geometric dimension.
nelv	Number of elements of the mesh in which to search for the points.
Xh	Space on which to interpolate.
tol	Tolerance for Newton iterations.

Definition at line 74 of file aabb_pe_finder.f90.

Member Data Documentation

comm

type(mpi_comm) pe_finder::pe_finder_t::comm

inherited

Definition at line 48 of file pe_finder.f90.

glob_map_size

integer aabb_pe_finder::aabb_pe_finder_t::glob_map_size

Definition at line 71 of file aabb_pe_finder.f90.

global_aabb

type(aabb_t), dimension(:), allocatable aabb_pe_finder::aabb_pe_finder_t::global_aabb

Definition at line 66 of file aabb_pe_finder.f90.

global_aabb_tree

type(aabb_tree_t) aabb_pe_finder::aabb_pe_finder_t::global_aabb_tree

Definition at line 67 of file aabb_pe_finder.f90.

padding

real(kind=dp) aabb_pe_finder::aabb_pe_finder_t::padding

Definition at line 64 of file aabb_pe_finder.f90.

pe_box_num

integer aabb_pe_finder::aabb_pe_finder_t::pe_box_num

Definition at line 69 of file aabb_pe_finder.f90.

pe_rank

integer pe_finder::pe_finder_t::pe_rank

inherited

Definition at line 47 of file pe_finder.f90.

pe_size

integer pe_finder::pe_finder_t::pe_size

inherited

Definition at line 46 of file pe_finder.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/global_interpolation/aabb_pe_finder.f90
