non_normal Module Reference

Implements non_normal_t.

Data Types
type	non_normal_t
	Mixed Dirichlet condition constraining the tangential vector components. More...

Functions/Subroutines
subroutine	non_normal_init (this, coef, json)
	Construct the boundary condition from JSON.
subroutine	non_normal_init_from_components (this, coef, value)
	Construct the boundary condition from a uniform global vector.
subroutine	non_normal_apply_scalar (this, x, n, time, strong)
	No-op scalar application.
subroutine	non_normal_apply_vector (this, x, y, z, n, time, strong)
	Strong application preserving the normal component while enforcing the tangential projections of the configured global value.
subroutine	non_normal_apply_scalar_dev (this, x_d, time, strong, strm)
	No-op scalar application on the device.
subroutine	non_normal_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Apply the tangential components of the prescribed vector on the device.
subroutine	non_normal_finalize (this)
	Finalize the boundary condition.
subroutine	non_normal_free (this)
	Free the boundary condition and its mixed-bc storage.

Function/Subroutine Documentation

non_normal_apply_scalar()

subroutine non_normal::non_normal_apply_scalar ( class(non_normal_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	Scalar field values.
n	Number of entries in x.
time	Current time state.
strong	Whether to apply the strong form.

Definition at line 119 of file non_normal.f90.

non_normal_apply_scalar_dev()

subroutine non_normal::non_normal_apply_scalar_dev ( class(non_normal_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Parameters

x_d	Device pointer to the scalar field.
time	Current time state.
strong	Whether to apply the strong form.
strm	Device stream.

Definition at line 186 of file non_normal.f90.

non_normal_apply_vector()

subroutine non_normal::non_normal_apply_vector ( class(non_normal_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Parameters

x	x-component of the field.
y	y-component of the field.
z	z-component of the field.
n	Number of entries in each component array.
time	Current time state.
strong	Whether to apply the strong form.

Definition at line 135 of file non_normal.f90.

non_normal_apply_vector_dev()

subroutine non_normal::non_normal_apply_vector_dev ( class(non_normal_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Uses the resolved mixed-node mask together with the local basis vectors provided by the coupled vector BC projector.

Parameters

x_d	Device pointer to the x-component.
y_d	Device pointer to the y-component.
z_d	Device pointer to the z-component.
time	Current time state.
strong	Whether to apply the strong form.
strm	Device stream.

Definition at line 203 of file non_normal.f90.

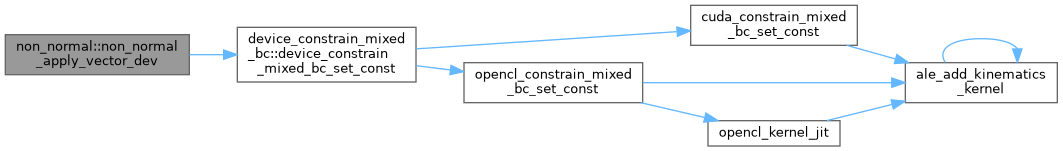

Here is the call graph for this function:

non_normal_finalize()

subroutine non_normal::non_normal_finalize ( class(non_normal_t), intent(inout), target  this )

private

Definition at line 233 of file non_normal.f90.

non_normal_free()

subroutine non_normal::non_normal_free ( class(non_normal_t), intent(inout), target  this )

private

Definition at line 240 of file non_normal.f90.

non_normal_init()

subroutine non_normal::non_normal_init	(	class(non_normal_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 81 of file non_normal.f90.

non_normal_init_from_components()

subroutine non_normal::non_normal_init_from_components ( class(non_normal_t), intent(inout), target  this, type(coef_t), intent(in), target  coef, real(kind=rp), dimension(3), intent(in)  value  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	value	Global vector whose tangential components are enforced.

Definition at line 103 of file non_normal.f90.
