gs_device_mpi Module Reference

Defines GPU aware MPI gather-scatter communication.

Data Types
interface	device_mpi_free_reqs
interface	device_mpi_init_reqs
interface	device_mpi_irecv
interface	device_mpi_isend
interface	device_mpi_test
interface	device_mpi_waitall
interface	device_mpi_waitany
type	gs_device_mpi_buf_t
	Buffers for non-blocking communication and packing/unpacking. More...
type	gs_device_mpi_t
	Gather-scatter communication using device MPI. The arrays are indexed per PE like send_pe and @ recv_pe. More...
interface	hip_gs_pack
interface	hip_gs_pack_vec
interface	hip_gs_unpack
interface	hip_gs_unpack_vec

Functions/Subroutines
subroutine	gs_device_mpi_buf_init (this, pe_order, dof_stack, mark_dupes)
subroutine	gs_device_mpi_buf_free (this)
subroutine	gs_device_mpi_init (this, send_pe, recv_pe)
	Initialise MPI based communication method.
subroutine	gs_device_mpi_free (this)
	Deallocate MPI based communication method.
subroutine	gs_device_mpi_nbsend (this, u, n, tag, deps, strm)
	Post non-blocking send operations.
subroutine	gs_device_mpi_nbrecv (this, tag)
	Post non-blocking receive operations.
subroutine	gs_device_mpi_nbwait (this, u, n, op, strm)
	Wait for non-blocking operations.
subroutine	gs_device_mpi_nbsend_vec (this, u, n, nc, tag, deps, strm)
	Fused nc-component send. u is the compact shared device buffer (component-outer, per-component stride n = nshared). Packs nc components into the interleaved send buffer and issues one Isend of nc*ndofs per peer.
subroutine	gs_device_mpi_nbrecv_vec (this, tag, nc)
	Post non-blocking receives for a fused nc-component exchange.
subroutine	gs_device_mpi_nbwait_vec (this, u, n, nc, op, strm)
	Wait for a fused nc-component exchange and unpack/reduce into u.

Function/Subroutine Documentation

gs_device_mpi_buf_free()

subroutine gs_device_mpi::gs_device_mpi_buf_free ( class(gs_device_mpi_buf_t), intent(inout)  this )

private

Definition at line 318 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_buf_init()

subroutine gs_device_mpi::gs_device_mpi_buf_init ( class(gs_device_mpi_buf_t), intent(inout)  this, integer, dimension(:), intent(inout), allocatable  pe_order, type(stack_i4_t), dimension(:), intent(inout), allocatable  dof_stack, logical, intent(in)  mark_dupes  )

private

Definition at line 239 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_free()

subroutine gs_device_mpi::gs_device_mpi_free ( class(gs_device_mpi_t), intent(inout)  this )

private

Definition at line 368 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_init()

subroutine gs_device_mpi::gs_device_mpi_init ( class(gs_device_mpi_t), intent(inout)  this, type(stack_i4_t), intent(inout)  send_pe, type(stack_i4_t), intent(inout)  recv_pe  )

private

Definition at line 332 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_nbrecv()

subroutine gs_device_mpi::gs_device_mpi_nbrecv ( class(gs_device_mpi_t), intent(inout)  this, integer, intent(in)  tag  )

private

Definition at line 465 of file gs_device_mpi.F90.

gs_device_mpi_nbrecv_vec()

subroutine gs_device_mpi::gs_device_mpi_nbrecv_vec ( class(gs_device_mpi_t), intent(inout)  this, integer, intent(in)  tag, integer, intent(in)  nc  )

private

Definition at line 587 of file gs_device_mpi.F90.

gs_device_mpi_nbsend()

subroutine gs_device_mpi::gs_device_mpi_nbsend ( class(gs_device_mpi_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  u, integer, intent(in)  n, integer, intent(in)  tag, type(c_ptr), intent(inout)  deps, type(c_ptr), intent(inout)  strm  )

private

Definition at line 390 of file gs_device_mpi.F90.

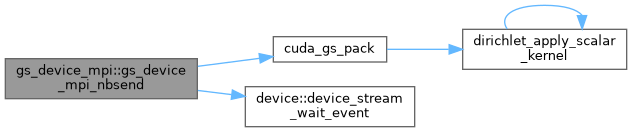

Here is the call graph for this function:

gs_device_mpi_nbsend_vec()

subroutine gs_device_mpi::gs_device_mpi_nbsend_vec ( class(gs_device_mpi_t), intent(inout)  this, real(kind=rp), dimension(nc*n), intent(inout)  u, integer, intent(in)  n, integer, intent(in)  nc, integer, intent(in)  tag, type(c_ptr), intent(inout)  deps, type(c_ptr), intent(inout)  strm  )

private

Definition at line 553 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_nbwait()

subroutine gs_device_mpi::gs_device_mpi_nbwait ( class(gs_device_mpi_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  u, integer, intent(in)  n, integer  op, type(c_ptr), intent(inout)  strm  )

private

Definition at line 479 of file gs_device_mpi.F90.

Here is the call graph for this function:

gs_device_mpi_nbwait_vec()

subroutine gs_device_mpi::gs_device_mpi_nbwait_vec ( class(gs_device_mpi_t), intent(inout)  this, real(kind=rp), dimension(nc*n), intent(inout)  u, integer, intent(in)  n, integer, intent(in)  nc, integer  op, type(c_ptr), intent(inout)  strm  )

private

Definition at line 602 of file gs_device_mpi.F90.

Here is the call graph for this function:
