tree_amg_aggregate Module Reference
Implements an aggregation for TreeAMG hierarchy structure.
Data Types | |
| type | tamg_agg_monitor_t |
Functions/Subroutines | |
| subroutine | aggregate_finest_level (tamg, lx, ly, lz, ne) |
| Aggregaiton on finest level Aggregates all dofs in an element into a single aggregate. | |
| subroutine | agg_greedy_first_pass (naggs, max_aggs, n_elements, facet_neigh, offset_el, n_facet, is_aggregated, aggregate_size) |
| First pass of a greedy aggregation Loop through all dofs and aggregate on dof that has all unaggregated neighbors. | |
| subroutine | agg_greedy_second_pass (naggs, max_aggs, n_elements, facet_neigh, offset_el, n_facet, is_aggregated, aggregate_size) |
| Second pass of a greedy aggregation Loop through all unaggregated dofs and add them to a neighboring aggregate. If no neighboring aggregates, create a new aggregate. | |
| subroutine | agg_fill_nhbr_info (agg_nhbr, n_agg_nhbr, n_elements, facet_neigh, offset_el, n_facet, is_aggregated, aggregate_size) |
| Create information on which aggregates are "adjacent" to eachother. | |
| subroutine | aggregate_greedy (tamg, lvl_id, max_aggs, facet_neigh, agg_nhbr) |
| Aggregates dofs based on adjacent dofs. | |
| subroutine | aggregate_end (tamg, lvl_id) |
| Aggregate all dofs to a single point to form a tree-like structure. | |
| subroutine | aggregation_monitor_finest (lvl, ndof, nagg) |
| subroutine | aggregation_monitor_phase1 (lvl, ndof, nagg, is_aggregated) |
| subroutine | aggregation_monitor_phase2 (lvl, ndof, nagg, is_aggregated) |
| subroutine | aggregation_monitor_final (lvl, ndof, nagg) |
Function/Subroutine Documentation
◆ agg_fill_nhbr_info()
| subroutine tree_amg_aggregate::agg_fill_nhbr_info | ( | integer, dimension(:,:), intent(inout) | agg_nhbr, |
| integer, intent(inout) | n_agg_nhbr, | ||
| integer, intent(in) | n_elements, | ||
| integer, dimension(:,:), intent(in) | facet_neigh, | ||
| integer, intent(in) | offset_el, | ||
| integer, intent(in) | n_facet, | ||
| integer, dimension(:), intent(inout) | is_aggregated, | ||
| integer, dimension(:), intent(inout) | aggregate_size | ||
| ) |
- Parameters
-
agg_nhbr Aggregate adjacency information (same structure as facet_neigh) n_agg_nhbr The max number of aggregate neighbors over all aggregates n_elements The number of elements (dofs) facet_neigh Dof adjacency information offset_el Offset for facet_neigh n_facet Max number of adjecnt dofs (ex. 6 if element is a cube) is_aggregated Array containing aggregate info. Maps from dof id to agg id aggregate_size Array containing the size of each aggregate
if nhbr exists
Definition at line 244 of file tree_amg_aggregate.f90.

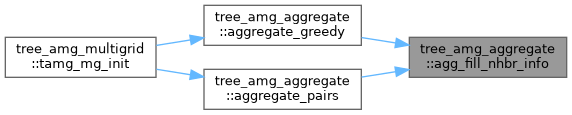

Here is the caller graph for this function:
◆ agg_greedy_first_pass()
| subroutine tree_amg_aggregate::agg_greedy_first_pass | ( | integer, intent(inout) | naggs, |
| integer, intent(in) | max_aggs, | ||
| integer, intent(in) | n_elements, | ||
| integer, dimension(:,:), intent(in) | facet_neigh, | ||
| integer, intent(in) | offset_el, | ||
| integer, intent(in) | n_facet, | ||
| integer, dimension(:), intent(inout) | is_aggregated, | ||
| integer, dimension(:), intent(inout), allocatable | aggregate_size | ||
| ) |
- Parameters
-
naggs The number of aggregates that have been created max_aggs The maximum number of aggregates to allow to be created facet_neigh Dof adjacency information offset_el Offset for facet_neigh n_facet Max number of adjecnt dofs (ex. 6 if element is a cube) is_aggregated Array containing aggregate info. Maps from dof id to agg id aggregate_size Array containing the size of each aggregate
THE NON-RANDOM VERSION...
Check to see if any of the points neighbors are aggregated
if nhbr exists
if no neighbors are aggregated, create new aggregate
if nhbr exists
Definition at line 111 of file tree_amg_aggregate.f90.
Here is the caller graph for this function:
◆ agg_greedy_second_pass()
| subroutine tree_amg_aggregate::agg_greedy_second_pass | ( | integer, intent(inout) | naggs, |
| integer, intent(in) | max_aggs, | ||
| integer, intent(in) | n_elements, | ||
| integer, dimension(:,:), intent(in) | facet_neigh, | ||
| integer, intent(in) | offset_el, | ||
| integer, intent(in) | n_facet, | ||
| integer, dimension(:), intent(inout) | is_aggregated, | ||
| integer, dimension(:), intent(inout) | aggregate_size | ||
| ) |
- Parameters
-
naggs The number of aggregates that have ben created max_aggs The maximum number of aggregates to allow to be created facet_neigh Dof adjacency information offset_el Offset for facet_neigh n_facet Max number of adjecnt dofs (ex. 6 if element is a cube) is_aggregated Array containing aggregate info. Maps from dof id to agg id aggregate_size Array containing the size of each aggregate
Add remaining unaggregated nodes to aggregates
dof i is unaggregated. Check neighbors, add to smallest neighbor
if nhbr exists
if neighbor aggregate found add to that aggregate
if none of the neignbors are aggregated. might as well make a new aggregate
Add neighbors to aggregate if unaggregated
if nhbr exists
Definition at line 174 of file tree_amg_aggregate.f90.
Here is the caller graph for this function:
◆ aggregate_end()
| subroutine tree_amg_aggregate::aggregate_end | ( | type(tamg_hierarchy_t), intent(inout) | tamg, |
| integer, intent(in) | lvl_id | ||
| ) |
- Parameters
-
tamg TreeAMG hierarchy data structure being aggregated lvl_id The level id for which aggregates are being created
link all branches together at a point
Allocate lvl
Allocate node
Fill node
Definition at line 383 of file tree_amg_aggregate.f90.
Here is the caller graph for this function:
◆ aggregate_finest_level()
| subroutine tree_amg_aggregate::aggregate_finest_level | ( | type(tamg_hierarchy_t), intent(inout) | tamg, |
| integer, intent(in) | lx, | ||
| integer, intent(in) | ly, | ||
| integer, intent(in) | lz, | ||
| integer, intent(in) | ne | ||
| ) |
- Parameters
-
tamg TreeAMG hierarchy data structure being aggregated lx Number of dofs in x direction per element ly Number of dofs in y direction per element lz Number of dofs in z direction per element ne Number of elements
Count things
Allocate. For finest level, each aggregate is a node.
Fill the nodes
Definition at line 64 of file tree_amg_aggregate.f90.
Here is the call graph for this function:
Here is the caller graph for this function:
◆ aggregate_greedy()
| subroutine tree_amg_aggregate::aggregate_greedy | ( | type(tamg_hierarchy_t), intent(inout) | tamg, |
| integer, intent(in) | lvl_id, | ||
| integer, intent(in) | max_aggs, | ||
| integer, dimension(:,:), intent(in) | facet_neigh, | ||
| integer, dimension(:,:), intent(inout), allocatable | agg_nhbr | ||
| ) |
- Parameters
-
tamg TreeAMG hierarchy data structure being aggregated lvl_id The level id for which aggregates are being created max_aggs Target number of aggregates to create on level facet_neigh Input array that contains adjacency of dofs on level agg_nhbr Output array that contains adjacency of created aggregates
NEKO elements are hexes, thus have 6 face neighbors
fill with false
Fill with large number
First pass of greedy aggregation.
Second pass of greedy aggregation, adding unaggregated dofs to neighboring aggregates.
if needed on next level...
count things
Allocate and fill lvl and nodes
Definition at line 289 of file tree_amg_aggregate.f90.
Here is the call graph for this function:
Here is the caller graph for this function:
