shear_stress Module Reference

Defines a shear stress boundary condition for a vector field. Maintainer: Timofey Mukha.

Data Types

type  shear_stress_t
 A shear stress boundary condition. More...


Functions/Subroutines

subroutine shear_stress_apply_scalar (this, x, n, time, strong)
 Apply shear stress for a scalar field x.

subroutine shear_stress_apply_vector (this, x, y, z, n, time, strong)
 Boundary condition apply for a generic shear_stress condition to vectors x, y and z.

subroutine shear_stress_apply_scalar_dev (this, x_d, time, strong, strm)
 Boundary condition apply for a generic shear_stress condition to a vector x (device version)

subroutine shear_stress_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
 Boundary condition apply for a generic shear_stress condition to vectors x, y and z (device version)

subroutine shear_stress_init (this, coef, json)
 Constructor.

subroutine shear_stress_init_from_components (this, coef, value)
 Constructor from components.

subroutine shear_stress_finalize (this, only_facets)

subroutine shear_stress_set_stress_scalar (this, tau_x, tau_y, tau_z)
 Set the value of the shear stress vector using 3 scalars.

subroutine shear_stress_set_stress_array (this, tau_x, tau_y, tau_z)
 Set the shear stress components.

subroutine shear_stress_free (this)
 Destructor.


Function/Subroutine Documentation

◆ shear_stress_apply_scalar()

subroutine shear_stress::shear_stress_apply_scalar ( class(shear_stress_t), intent(inout this,
real(kind=rp), dimension(n), intent(inout x,
integer, intent(in n,
type(time_state_t), intent(in), optional  time,
logical, intent(in), optional  strong
)

Definition at line 89 of file shear_stress.f90.

◆ shear_stress_apply_scalar_dev()

subroutine shear_stress::shear_stress_apply_scalar_dev ( class(shear_stress_t), intent(inout), target  this,
type(c_ptr), intent(inout x_d,
type(time_state_t), intent(in), optional  time,
logical, intent(in), optional  strong,
type(c_ptr), intent(inout strm
)
private

Definition at line 133 of file shear_stress.f90.

◆ shear_stress_apply_vector()

subroutine shear_stress::shear_stress_apply_vector ( class(shear_stress_t), intent(inout this,
real(kind=rp), dimension(n), intent(inout x,
real(kind=rp), dimension(n), intent(inout y,
real(kind=rp), dimension(n), intent(inout z,
integer, intent(in n,
type(time_state_t), intent(in), optional  time,
logical, intent(in), optional  strong
)
private

Definition at line 105 of file shear_stress.f90.

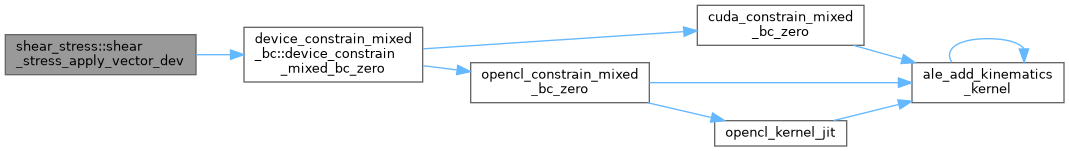

◆ shear_stress_apply_vector_dev()

subroutine shear_stress::shear_stress_apply_vector_dev ( class(shear_stress_t), intent(inout), target  this,
type(c_ptr), intent(inout x_d,
type(c_ptr), intent(inout y_d,
type(c_ptr), intent(inout z_d,
type(time_state_t), intent(in), optional  time,
logical, intent(in), optional  strong,
type(c_ptr), intent(inout strm
)
private

Definition at line 146 of file shear_stress.f90.

◆ shear_stress_finalize()

subroutine shear_stress::shear_stress_finalize ( class(shear_stress_t), intent(inout), target  this,
logical, intent(in), optional  only_facets
)
private

Definition at line 217 of file shear_stress.f90.

◆ shear_stress_free()

subroutine shear_stress::shear_stress_free ( class(shear_stress_t), intent(inout), target  this)
private

Definition at line 276 of file shear_stress.f90.

◆ shear_stress_init()

subroutine shear_stress::shear_stress_init ( class(shear_stress_t), intent(inout), target  this,
type(coef_t), intent(in), target  coef,
type(json_file), intent(inout json
)
private
Parameters
[in]coefThe SEM coefficients.
[in,out]jsonThe JSON object configuring the boundary condition.

Definition at line 177 of file shear_stress.f90.

◆ shear_stress_init_from_components()

subroutine shear_stress::shear_stress_init_from_components ( class(shear_stress_t), intent(inout), target  this,
type(coef_t), intent(in coef,
real(kind=rp), dimension(3), intent(in value
)
private
Parameters
[in]coefThe SEM coefficients.
[in]valueThe value of the shear stress to apply.

Definition at line 196 of file shear_stress.f90.

◆ shear_stress_set_stress_array()

subroutine shear_stress::shear_stress_set_stress_array ( class(shear_stress_t), intent(inout this,
type(vector_t), intent(in tau_x,
type(vector_t), intent(in tau_y,
type(vector_t), intent(in tau_z
)
private
Parameters
tau_xThe x component of the stress.
tau_yThe y component of the stress.
tau_zThe z component of the stress.

Definition at line 263 of file shear_stress.f90.

◆ shear_stress_set_stress_scalar()

subroutine shear_stress::shear_stress_set_stress_scalar ( class(shear_stress_t), intent(inout this,
real(kind=rp), intent(in tau_x,
real(kind=rp), intent(in tau_y,
real(kind=rp), intent(in tau_z
)
private

Definition at line 245 of file shear_stress.f90.
