Implements the derivative_t type.

Data Types
type	derivative_t
	A simulation component that computes a derivative of a field. Wraps the `duxyz` operator. More...

Functions/Subroutines
subroutine	derivative_init_from_json (this, json, case)
	Constructor from json.

subroutine	derivative_init_common (this, field_name, computed_field, direction)
	Common part of constructors from components.

subroutine	derivative_init_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller, field_name, computed_field, direction, filename, precision)
	Constructor from components, passing controllers.

subroutine	derivative_init_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, field_name, computed_field, direction, filename, precision)
	Constructor from components, passing properties to the time_based_controller` components in the base type.

subroutine	derivative_free (this)
	Destructor.

subroutine	derivative_compute (this, time)
	Compute the derivative field.

Function/Subroutine Documentation

◆ derivative_compute()

subroutine derivative_simcomp::derivative_compute	(	class(derivative_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

private

Parameters

time	The current time.

Definition at line 255 of file derivative_simcomp.f90.

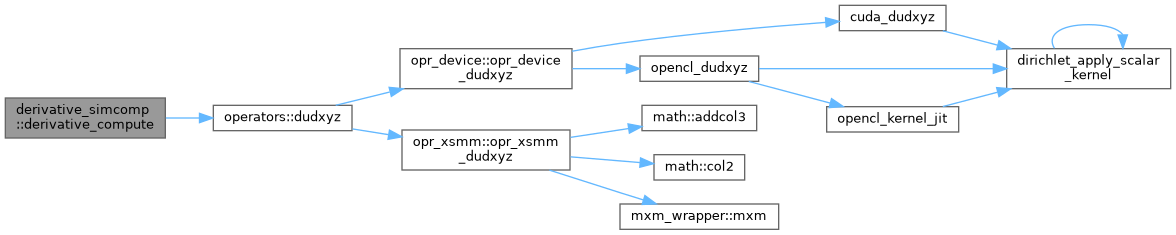

Here is the call graph for this function:

subroutine derivative_simcomp::derivative_free ( class(derivative_t), intent(inout) this )

private

Definition at line 242 of file derivative_simcomp.f90.

subroutine derivative_simcomp::derivative_init_common	(	class(derivative_t), intent(inout)	this,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction
	)

private

Parameters

field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.

Definition at line 122 of file derivative_simcomp.f90.

subroutine derivative_simcomp::derivative_init_from_controllers	(	class(derivative_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

private

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 163 of file derivative_simcomp.f90.

subroutine derivative_simcomp::derivative_init_from_controllers_properties	(	class(derivative_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

private

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not provided, fields are added to the main output file.
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 207 of file derivative_simcomp.f90.

subroutine derivative_simcomp::derivative_init_from_json	(	class(derivative_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Definition at line 92 of file derivative_simcomp.f90.
