A simulation component that computes a derivative of a field. Wraps the duxyz operator. More...

Inheritance diagram for derivative_simcomp::derivative_t:

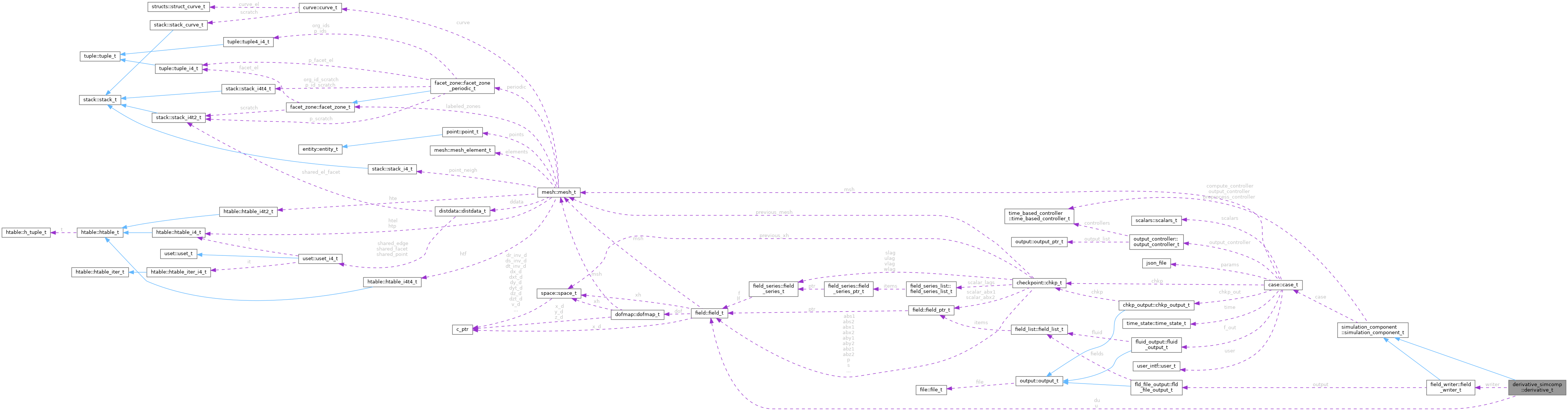

Collaboration diagram for derivative_simcomp::derivative_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json, case)
	Constructor from json, wrapping the actual constructor.

generic	init_from_components (this, name, case, order, preprocess_controller, compute_controller, output_controller, field_name, computed_field, direction, filename, precision)
	Generic for constructing from components.

generic	init_from_components (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, field_name, computed_field, direction, filename, precision)
	Generic for constructing from components.

procedure, pass(this)	init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, field_name, computed_field, direction, filename, precision)
	Constructor from components, passing time_based_controllers.

procedure, pass(this)	init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, field_name, computed_field, direction, filename, precision)
	Constructor from components, passing the properties of time_based_controllers.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	compute_ (this, time)
	Compute the derivative field.

procedure, pass(this)	init_base (this, json, case)
	Constructor for the simulation_component_t (base) class.

generic	init_base_from_components (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from components.

generic	init_base_from_components (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from components.

procedure, pass(this)	init_base_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from time_based_controllers, essentially directly from all components (we reserve the `_from_components` name for the generic binding).

procedure, pass(this)	init_base_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from properties of time_based_controllers, so the latter are constructed instead of assigned.

procedure, pass(this)	free_base (this)
	Destructor for the simulation_component_t (base) class.

procedure, pass(this)	restart (this, time)
	Wrapper for calling `set_counter` for the time based controllers. Serves as the public interface.

procedure, pass(this)	preprocess (this, time)
	Wrapper for calling `preprocess_` based on the `preprocess_controller`. Serves as the public interface.

procedure, pass(this)	compute (this, time)
	Wrapper for calling `compute_` based on the `compute_controller`. Serves as the public interface.

procedure(simulation_component_init), deferred, pass	init (this, json, case)
	The common constructor using a JSON dictionary.

procedure(simulation_component_free), deferred, pass	free (this)
	Destructor.

procedure, pass(this)	preprocess_ (this, time)
	The preprocessing function to be executed during the run.

procedure, pass(this)	compute_ (this, time)
	The main function to be executed during the run.

procedure, pass(this)	restart_ (this, time)
	The restart function to be called upon restarting simulation.

procedure, pass(this)	parse_json (this, json, case_params, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	JSON parameter parser for the time-based controllers.

Public Attributes
type(field_t), pointer	u
	The scalar field to compute the weak gradient of.

type(field_t), pointer	du
	The derivative field.

real(kind=rp), dimension(:,:,:,:), pointer, contiguous	dr
	Derivatives of r with respect to the direction of derivation.

real(kind=rp), dimension(:,:,:,:), pointer, contiguous	ds
	Derivatives of s with respect to the direction of derivation.

real(kind=rp), dimension(:,:,:,:), pointer, contiguous	dt
	Derivatives of t with respect to the direction of derivation.

type(field_writer_t)	writer
	Output writer.

type(case_t), pointer	case
	Pointer to the simulation case.

type(time_based_controller_t)	preprocess_controller
	Controller for when to run `preprocess`.

type(time_based_controller_t)	compute_controller
	Controller for when to run `compute`.

type(time_based_controller_t)	output_controller
	Controller for when to do output.

integer	order
	The execution order, lowest excutes first.

character(:), allocatable	name
	Unique name of the simcomp.

Private Member Functions
procedure, pass(this), private	init_common (this, name, field_name, computed_field, direction)
	Common part of both constructors.

Detailed Description

Definition at line 54 of file derivative_simcomp.f90.

Member Function/Subroutine Documentation

◆ compute()

procedure, pass(this) simulation_component::simulation_component_t::compute	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 91 of file simulation_component.f90.

◆ compute_() [1/2]

procedure, pass(this) derivative_simcomp::derivative_t::compute_	(	class(derivative_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

time	The current time.

Definition at line 86 of file derivative_simcomp.f90.

◆ compute_() [2/2]

procedure, pass(this) simulation_component::simulation_component_t::compute_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 99 of file simulation_component.f90.

◆ free() [1/2]

procedure, pass(this) derivative_simcomp::derivative_t::free ( class(derivative_t), intent(inout) this )

Definition at line 84 of file derivative_simcomp.f90.

◆ free() [2/2]

procedure(simulation_component_free), deferred, pass simulation_component::simulation_component_t::free ( class(simulation_component_t), intent(inout) this )

pure virtualinherited

Definition at line 95 of file simulation_component.f90.

◆ free_base()

procedure, pass(this) simulation_component::simulation_component_t::free_base ( class(simulation_component_t), intent(inout) this )

inherited

Definition at line 81 of file simulation_component.f90.

◆ init() [1/2]

procedure, pass(this) derivative_simcomp::derivative_t::init	(	class(derivative_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Definition at line 70 of file derivative_simcomp.f90.

◆ init() [2/2]

procedure(simulation_component_init), deferred, pass simulation_component::simulation_component_t::init	(	class(simulation_component_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

pure virtualinherited

Definition at line 93 of file simulation_component.f90.

◆ init_base()

procedure, pass(this) simulation_component::simulation_component_t::init_base	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

inherited

Definition at line 65 of file simulation_component.f90.

◆ init_base_from_components() [1/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_components() [2/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_controllers()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 73 of file simulation_component.f90.

◆ init_base_from_controllers_properties()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers_properties	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 78 of file simulation_component.f90.

◆ init_common()

procedure, pass(this), private derivative_simcomp::derivative_t::init_common	(	class(derivative_t), intent(inout)	this,
		character(len=*)	name,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction
	)

private

Parameters

name	The unique name of the simcomp.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.

Definition at line 82 of file derivative_simcomp.f90.

◆ init_from_components() [1/2]

generic derivative_simcomp::derivative_t::init_from_components	(	class(derivative_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not provided, fields are added to the main output file.
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 72 of file derivative_simcomp.f90.

◆ init_from_components() [2/2]

generic derivative_simcomp::derivative_t::init_from_components	(	class(derivative_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 72 of file derivative_simcomp.f90.

◆ init_from_controllers()

procedure, pass(this) derivative_simcomp::derivative_t::init_from_controllers	(	class(derivative_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 75 of file derivative_simcomp.f90.

◆ init_from_controllers_properties()

procedure, pass(this) derivative_simcomp::derivative_t::init_from_controllers_properties	(	class(derivative_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*)	field_name,
		character(len=*)	computed_field,
		character(len=*)	direction,
		character(len=*), intent(in), optional	filename,
		integer, intent(in), optional	precision
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
field_name	The name of the field to compute the derivative of.
computed_field	The base name of the curl field components.
direction	The direction of the derivative, one of x, y or z.
filename	The name of the file save the fields to. Optional, if not provided, fields are added to the main output file.
precision	The real precision of the output data. Optional, defaults to single precision.

Definition at line 79 of file derivative_simcomp.f90.

◆ parse_json()

procedure, pass(this) simulation_component::simulation_component_t::parse_json	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(json_file), intent(inout)	case_params,
		character(len=:), intent(inout), allocatable	preprocess_control,
		real(kind=rp), intent(out)	preprocess_value,
		character(len=:), intent(inout), allocatable	compute_control,
		real(kind=rp), intent(out)	compute_value,
		character(len=:), intent(inout), allocatable	output_control,
		real(kind=rp), intent(out)	output_value
	)

inherited

Parameters

json	The JSON dictionary of the simcomp.
case_params	The entire case configuration JSON.
preprocess_value	Control mode for preprocessing.
preprocess_controller	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_controller	Value parameter for computing.
output_controller	Control mode for output.
output_controller	Value parameter for output.

Definition at line 103 of file simulation_component.f90.

◆ preprocess()

procedure, pass(this) simulation_component::simulation_component_t::preprocess	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 87 of file simulation_component.f90.

◆ preprocess_()

procedure, pass(this) simulation_component::simulation_component_t::preprocess_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 97 of file simulation_component.f90.

◆ restart()

procedure, pass(this) simulation_component::simulation_component_t::restart	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 84 of file simulation_component.f90.

◆ restart_()

procedure, pass(this) simulation_component::simulation_component_t::restart_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 101 of file simulation_component.f90.

Member Data Documentation

◆ case

type(case_t), pointer simulation_component::simulation_component_t::case

inherited

Definition at line 52 of file simulation_component.f90.

◆ compute_controller

type(time_based_controller_t) simulation_component::simulation_component_t::compute_controller

inherited

Definition at line 56 of file simulation_component.f90.

◆ dr

real(kind=rp), dimension(:,:,:,:), pointer, contiguous derivative_simcomp::derivative_t::dr

Definition at line 60 of file derivative_simcomp.f90.

◆ ds

real(kind=rp), dimension(:,:,:,:), pointer, contiguous derivative_simcomp::derivative_t::ds

Definition at line 62 of file derivative_simcomp.f90.

◆ dt

real(kind=rp), dimension(:,:,:,:), pointer, contiguous derivative_simcomp::derivative_t::dt

Definition at line 64 of file derivative_simcomp.f90.

◆ du

type(field_t), pointer derivative_simcomp::derivative_t::du

Definition at line 58 of file derivative_simcomp.f90.

◆ name

character(:), allocatable simulation_component::simulation_component_t::name

inherited

Definition at line 62 of file simulation_component.f90.

◆ order

integer simulation_component::simulation_component_t::order

inherited

Definition at line 60 of file simulation_component.f90.

◆ output_controller

type(time_based_controller_t) simulation_component::simulation_component_t::output_controller

inherited

Definition at line 58 of file simulation_component.f90.

◆ preprocess_controller

type(time_based_controller_t) simulation_component::simulation_component_t::preprocess_controller

inherited

Definition at line 54 of file simulation_component.f90.

◆ u

type(field_t), pointer derivative_simcomp::derivative_t::u

Definition at line 56 of file derivative_simcomp.f90.

◆ writer

type(field_writer_t) derivative_simcomp::derivative_t::writer

Definition at line 66 of file derivative_simcomp.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/simulation_components/derivative_simcomp.f90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Member Function/Subroutine Documentation

◆ compute()

◆ compute_() [1/2]

◆ compute_() [2/2]

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_base_from_components() [1/2]

◆ init_base_from_components() [2/2]

◆ init_base_from_controllers()

◆ init_base_from_controllers_properties()

◆ init_common()

◆ init_from_components() [1/2]

◆ init_from_components() [2/2]

◆ init_from_controllers()

◆ init_from_controllers_properties()

◆ parse_json()

◆ preprocess()

◆ preprocess_()

◆ restart()

◆ restart_()

Member Data Documentation

◆ case

◆ compute_controller

◆ dr

◆ ds

◆ dt

◆ du

◆ name

◆ order

◆ output_controller

◆ preprocess_controller

◆ u

◆ writer
