lpt_periodic_bc Module Reference

Periodic and cyclic boundary-condition support for LPT.

Data Types
type	lpt_periodic_bc_t

Functions/Subroutines
subroutine	lpt_periodic_bc_free (this)
	Free periodic-boundary wrapping metadata.
subroutine	lpt_periodic_bc_init (this, msh, dm_xh, coef)
	Initialise rotational or translational periodic wrapping from the mesh.
subroutine	lpt_periodic_bc_wrap (this, x, y, z, n, u, v, w, u_lag, v_lag, w_lag, u_laglag, v_laglag, w_laglag, acc_xlag, acc_ylag, acc_zlag, acc_xlaglag, acc_ylaglag, acc_zlaglag)
	Wrap particle positions and optional vector histories across boundaries.
subroutine	lpt_periodic_bc_sync_from_device (x, y, z, u, v, w, u_lag, v_lag, w_lag, u_laglag, v_laglag, w_laglag, acc_xlag, acc_ylag, acc_zlag, acc_xlaglag, acc_ylaglag, acc_zlaglag)
	Copy wrapped particle coordinates and optional histories back to host.
subroutine	lpt_periodic_bc_reset (this)
	Reset all periodic wrapping flags, directions, and extents.
subroutine	lpt_periodic_bc_init_rotational (this, msh, dm_xh, coef)
	Detect and initialise rotational periodic wrapping.
subroutine	lpt_periodic_bc_init_translational (this, msh)
	Detect unique translational periodic directions from facet pairs.
subroutine	lpt_get_facet_points (msh, el, facet, pts)
	Gather the corner points of a mesh facet.
subroutine	lpt_get_periodic_center (msh, i_periodic, pt)
	Compute the geometric center of a periodic source facet.
subroutine	lpt_normalize (v)
	Normalise a 3-vector when its norm is above LPT periodic tolerance.
subroutine	lpt_periodic_bc_clear_translational (this)
	Clear translational periodic direction, extent, and shift storage.
pure real(kind=rp) function, dimension(3)	lpt_periodic_bc_get_dir (this, idx)
subroutine	lpt_periodic_bc_set_translational (this, idx, dir, periodic_min, periodic_max, shift, periodic_len)
	Store one translational periodic wrapping direction.

Variables
real(kind=rp), parameter	lpt_periodic_tol = 1.0e-8_rp

Function/Subroutine Documentation

lpt_get_facet_points()

subroutine lpt_periodic_bc::lpt_get_facet_points ( type(mesh_t), intent(in)  msh, integer, intent(in)  el, integer, intent(in)  facet, real(kind=rp), dimension(3, 4), intent(out)  pts  )

private

Parameters

msh	Mesh containing the element.
el	Local element index.
facet	Facet index on the element.
pts	Output corner coordinates.

Definition at line 437 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_get_periodic_center()

subroutine lpt_periodic_bc::lpt_get_periodic_center ( type(mesh_t), intent(in)  msh, integer, intent(in)  i_periodic, real(kind=rp), dimension(3), intent(out)  pt  )

private

Parameters

msh	Mesh containing periodic metadata.
i_periodic	Periodic-facet entry index.
pt	Output facet-center coordinate.

Definition at line 472 of file lpt_periodic_bc.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

lpt_normalize()

subroutine lpt_periodic_bc::lpt_normalize ( real(kind=rp), dimension(3), intent(inout)  v )

private

Parameters

v	Vector to normalise in place.

Definition at line 487 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_periodic_bc_clear_translational()

subroutine lpt_periodic_bc::lpt_periodic_bc_clear_translational ( class(lpt_periodic_bc_t), intent(inout)  this )

private

Definition at line 496 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_periodic_bc_free()

subroutine lpt_periodic_bc::lpt_periodic_bc_free

(

class(lpt_periodic_bc_t), intent(inout)

this

)

Definition at line 102 of file lpt_periodic_bc.f90.

lpt_periodic_bc_get_dir()

pure real(kind=rp) function, dimension(3) lpt_periodic_bc::lpt_periodic_bc_get_dir ( class(lpt_periodic_bc_t), intent(in)  this, integer, intent(in)  idx  )

private

Definition at line 528 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_periodic_bc_init()

subroutine lpt_periodic_bc::lpt_periodic_bc_init ( class(lpt_periodic_bc_t), intent(inout)  this, type(mesh_t), intent(in), target  msh, type(dofmap_t), intent(in)  dm_xh, type(coef_t), intent(in)  coef  )

private

Parameters

msh	Mesh containing periodic facet pairing.
dm_Xh	Coordinate dofmap used for rotational extents.
coef	Coefficients used to identify cyclic geometry.

Definition at line 112 of file lpt_periodic_bc.f90.

lpt_periodic_bc_init_rotational()

subroutine lpt_periodic_bc::lpt_periodic_bc_init_rotational ( class(lpt_periodic_bc_t), intent(inout)  this, type(mesh_t), intent(in)  msh, type(dofmap_t), intent(in)  dm_xh, type(coef_t), intent(in)  coef  )

private

Parameters

msh	Mesh used to determine dimensionality.
dm_Xh	Coordinate dofmap used to compute angular extents.
coef	Coefficients carrying cyclic-geometry metadata.

Definition at line 260 of file lpt_periodic_bc.f90.

lpt_periodic_bc_init_translational()

subroutine lpt_periodic_bc::lpt_periodic_bc_init_translational ( class(lpt_periodic_bc_t), intent(inout)  this, type(mesh_t), intent(in)  msh  )

private

Parameters

msh	Mesh containing periodic facet-pair metadata.

Definition at line 296 of file lpt_periodic_bc.f90.

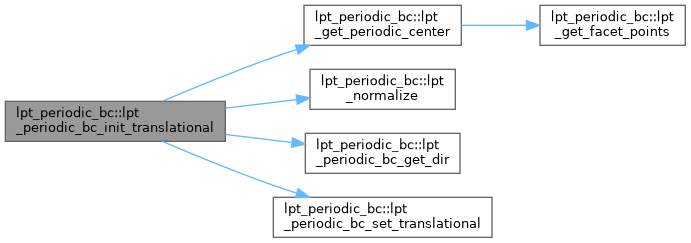

Here is the call graph for this function:

lpt_periodic_bc_reset()

subroutine lpt_periodic_bc::lpt_periodic_bc_reset ( class(lpt_periodic_bc_t), intent(inout)  this )

private

Definition at line 244 of file lpt_periodic_bc.f90.

Here is the call graph for this function:

lpt_periodic_bc_set_translational()

subroutine lpt_periodic_bc::lpt_periodic_bc_set_translational ( class(lpt_periodic_bc_t), intent(inout)  this, integer, intent(in)  idx, real(kind=rp), dimension(3), intent(in)  dir, real(kind=rp), intent(in)  periodic_min, real(kind=rp), intent(in)  periodic_max, real(kind=rp), dimension(3), intent(in)  shift, real(kind=rp), intent(in)  periodic_len  )

private

Parameters

idx	Direction slot in the fixed three-direction storage.
dir	Unit direction of periodic wrapping.
periodic_min	Minimum coordinate projected on dir.
periodic_max	Maximum coordinate projected on dir.
shift	Translation vector between paired facets.
periodic_len	Periodic length along dir.

Definition at line 555 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_periodic_bc_sync_from_device()

subroutine lpt_periodic_bc::lpt_periodic_bc_sync_from_device ( type(vector_t), intent(inout)  x, type(vector_t), intent(inout)  y, type(vector_t), intent(inout)  z, type(vector_t), intent(inout), optional  u, type(vector_t), intent(inout), optional  v, type(vector_t), intent(inout), optional  w, type(vector_t), intent(inout), optional  u_lag, type(vector_t), intent(inout), optional  v_lag, type(vector_t), intent(inout), optional  w_lag, type(vector_t), intent(inout), optional  u_laglag, type(vector_t), intent(inout), optional  v_laglag, type(vector_t), intent(inout), optional  w_laglag, type(vector_t), intent(inout), optional  acc_xlag, type(vector_t), intent(inout), optional  acc_ylag, type(vector_t), intent(inout), optional  acc_zlag, type(vector_t), intent(inout), optional  acc_xlaglag, type(vector_t), intent(inout), optional  acc_ylaglag, type(vector_t), intent(inout), optional  acc_zlaglag  )

private

Definition at line 204 of file lpt_periodic_bc.f90.

Here is the caller graph for this function:

lpt_periodic_bc_wrap()

subroutine lpt_periodic_bc::lpt_periodic_bc_wrap ( class(lpt_periodic_bc_t), intent(inout)  this, type(vector_t), intent(inout)  x, type(vector_t), intent(inout)  y, type(vector_t), intent(inout)  z, integer, intent(in)  n, type(vector_t), intent(inout), optional  u, type(vector_t), intent(inout), optional  v, type(vector_t), intent(inout), optional  w, type(vector_t), intent(inout), optional  u_lag, type(vector_t), intent(inout), optional  v_lag, type(vector_t), intent(inout), optional  w_lag, type(vector_t), intent(inout), optional  u_laglag, type(vector_t), intent(inout), optional  v_laglag, type(vector_t), intent(inout), optional  w_laglag, type(vector_t), intent(inout), optional  acc_xlag, type(vector_t), intent(inout), optional  acc_ylag, type(vector_t), intent(inout), optional  acc_zlag, type(vector_t), intent(inout), optional  acc_xlaglag, type(vector_t), intent(inout), optional  acc_ylaglag, type(vector_t), intent(inout), optional  acc_zlaglag  )

private

Parameters

x	Particle x coordinates.
y	Particle y coordinates.
z	Particle z coordinates.
n	Number of local particles.

Definition at line 133 of file lpt_periodic_bc.f90.

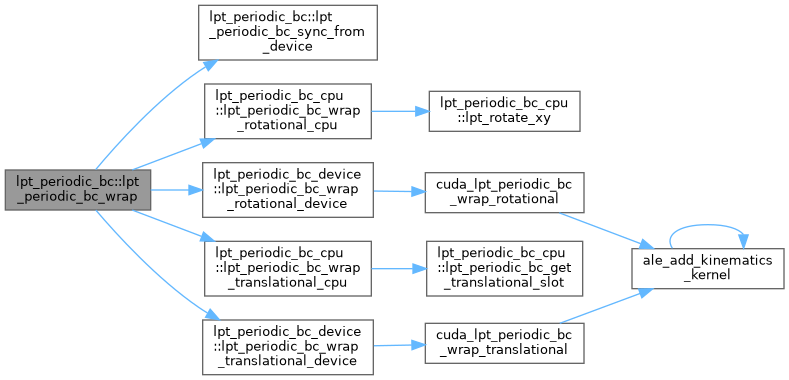

Here is the call graph for this function:

Variable Documentation

lpt_periodic_tol

real(kind=rp), parameter lpt_periodic_bc::lpt_periodic_tol = 1.0e-8_rp

private

Definition at line 52 of file lpt_periodic_bc.f90.
