sponge_source_term Module Reference

Implements the sponge_t type.

Data Types
type	sponge_source_term_t

Functions/Subroutines
subroutine	sponge_init_from_json (this, json, fields, coef, variable_name)
	Constructor from json.
subroutine	sponge_init_constant (this, fields, coef, start_time, end_time, amplitudes, fringe_registry_name, bf_registry_pref, dump_fields, dump_fname, constant_values)
	Initialize a sponge with a constant baseflow.
subroutine	sponge_init_field (this, fields, coef, start_time, end_time, amplitudes, fringe_registry_name, bf_registry_pref, dump_fields, dump_fname, file_name, interpolate, tolerance, mesh_file_name)
	Initialize a sponge with a baseflow imported from a field file.
subroutine	sponge_init_user (this, fields, coef, start_time, end_time, amplitudes, fringe_registry_name, bf_registry_pref, dump_fields, dump_fname)
	Initialize a sponge with a baseflow set by the user.
subroutine	sponge_init_common (this, fields, coef, start_time, end_time, amplitudes, fringe_registry_name, bf_registry_pref, dump_fields, dump_fname)
	Common constructor.
subroutine	sponge_free (this)
	Destructor.
subroutine	sponge_compute (this, time)
	Compute the sponge field. The sponge is applied according to the following definition: f_x = amp_x * fringe(x,y,z) * (u_bf - u) f_y = amp_y * fringe(x,y,z) * (v_bf - v) f_z = amp_z * fringe(x,y,z) * (w_bf - w)

Function/Subroutine Documentation

sponge_compute()

subroutine sponge_source_term::sponge_compute ( class(sponge_source_term_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

The fringe field must be added to the regisry and filled by the user according to where they want to apply the sponge. NOTE: Unfortunately this function is JSON dependent due to the initial condition being JSON dependent quite deep, there should be a nice way to get rid of that but it should take some effort.

Parameters

time	The current time state.

Definition at line 425 of file sponge_source_term.f90.

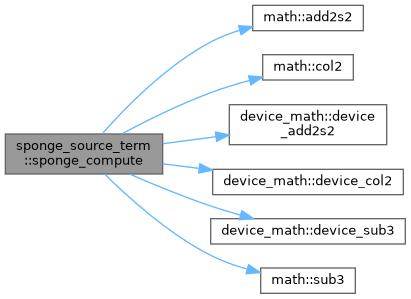

Here is the call graph for this function:

sponge_free()

subroutine sponge_source_term::sponge_free ( class(sponge_source_term_t), intent(inout)  this )

private

Definition at line 394 of file sponge_source_term.f90.

sponge_init_common()

subroutine sponge_source_term::sponge_init_common ( class(sponge_source_term_t), intent(inout)  this, type(field_list_t), intent(in), target  fields, type(coef_t), intent(in), target  coef, real(kind=rp), intent(in)  start_time, real(kind=rp), intent(in)  end_time, real(kind=rp), dimension(:), intent(in)  amplitudes, character(len=*), intent(in)  fringe_registry_name, character(len=*), intent(in)  bf_registry_pref, logical, intent(in)  dump_fields, character(len=*), intent(in)  dump_fname  )

private

Definition at line 357 of file sponge_source_term.f90.

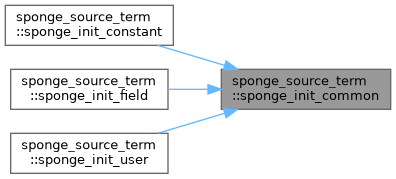

Here is the caller graph for this function:

sponge_init_constant()

subroutine sponge_source_term::sponge_init_constant ( class(sponge_source_term_t), intent(inout)  this, type(field_list_t), intent(in), target  fields, type(coef_t), intent(in), target  coef, real(kind=rp), intent(in)  start_time, real(kind=rp), intent(in)  end_time, real(kind=rp), dimension(:), intent(in)  amplitudes, character(len=*), intent(in)  fringe_registry_name, character(len=*), intent(in)  bf_registry_pref, logical, intent(in)  dump_fields, character(len=*), intent(in)  dump_fname, real(kind=rp), dimension(:), intent(in)  constant_values  )

private

Definition at line 213 of file sponge_source_term.f90.

Here is the call graph for this function:

sponge_init_field()

subroutine sponge_source_term::sponge_init_field ( class(sponge_source_term_t), intent(inout)  this, type(field_list_t), intent(in), target  fields, type(coef_t), intent(in), target  coef, real(kind=rp), intent(in)  start_time, real(kind=rp), intent(in)  end_time, real(kind=rp), dimension(:), intent(in)  amplitudes, character(len=*), intent(in)  fringe_registry_name, character(len=*), intent(in)  bf_registry_pref, logical, intent(in)  dump_fields, character(len=*), intent(in)  dump_fname, character(len=*), intent(in)  file_name, logical, intent(in)  interpolate, real(kind=rp), intent(in)  tolerance, character(len=*), intent(inout)  mesh_file_name  )

private

Definition at line 262 of file sponge_source_term.f90.

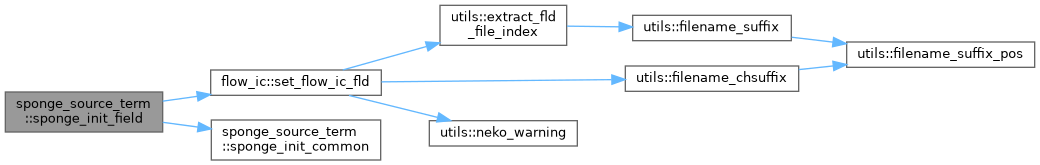

Here is the call graph for this function:

sponge_init_from_json()

subroutine sponge_source_term::sponge_init_from_json	(	class(sponge_source_term_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(field_list_t), intent(in), target	fields,
		type(coef_t), intent(in), target	coef,
		character(len=*), intent(in)	variable_name
	)

Definition at line 116 of file sponge_source_term.f90.

sponge_init_user()

subroutine sponge_source_term::sponge_init_user ( class(sponge_source_term_t), intent(inout)  this, type(field_list_t), intent(in), target  fields, type(coef_t), intent(in), target  coef, real(kind=rp), intent(in)  start_time, real(kind=rp), intent(in)  end_time, real(kind=rp), dimension(:), intent(in)  amplitudes, character(len=*), intent(in)  fringe_registry_name, character(len=*), intent(in)  bf_registry_pref, logical, intent(in)  dump_fields, character(len=*), intent(in)  dump_fname  )

private

Definition at line 335 of file sponge_source_term.f90.

Here is the call graph for this function:
